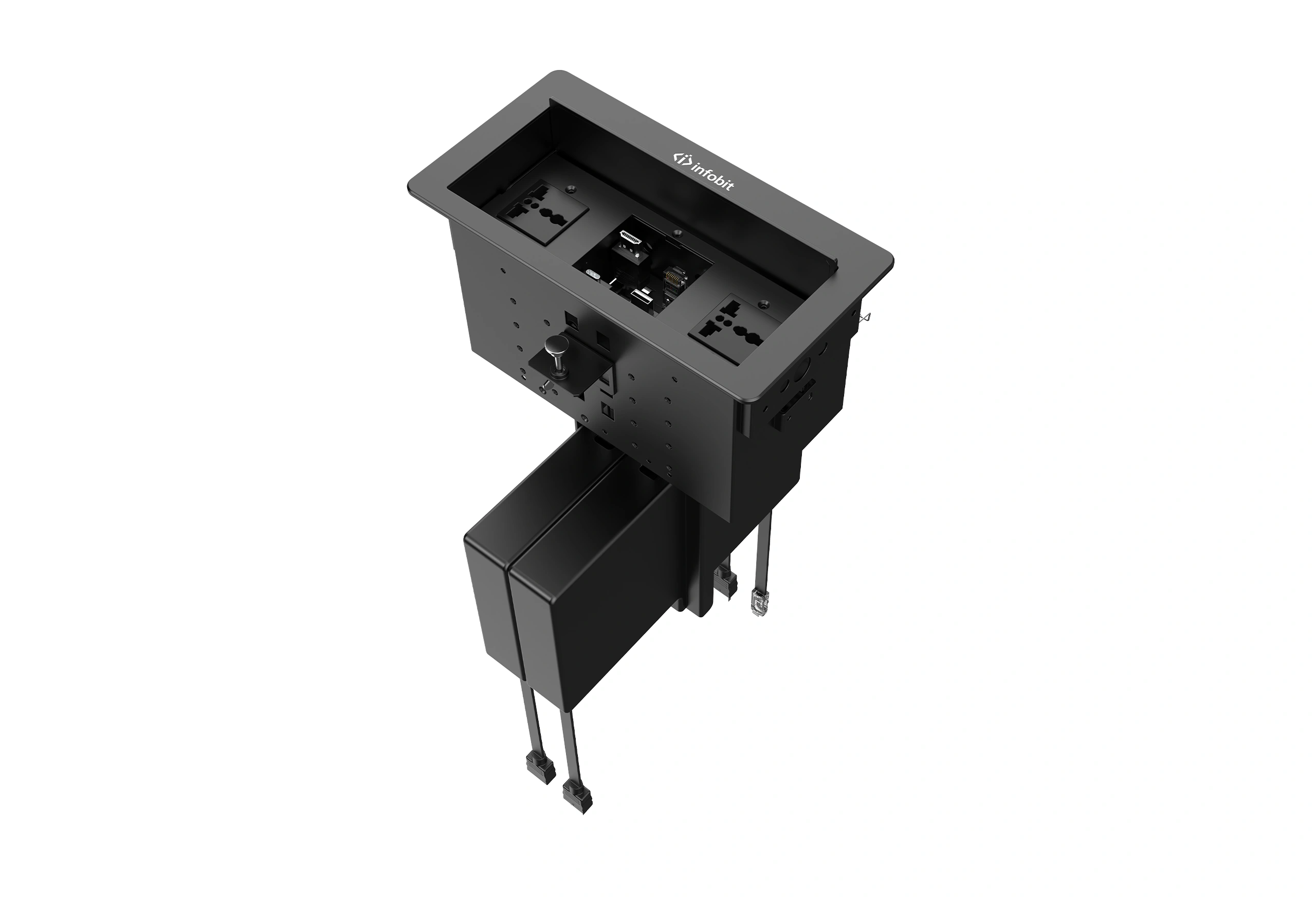

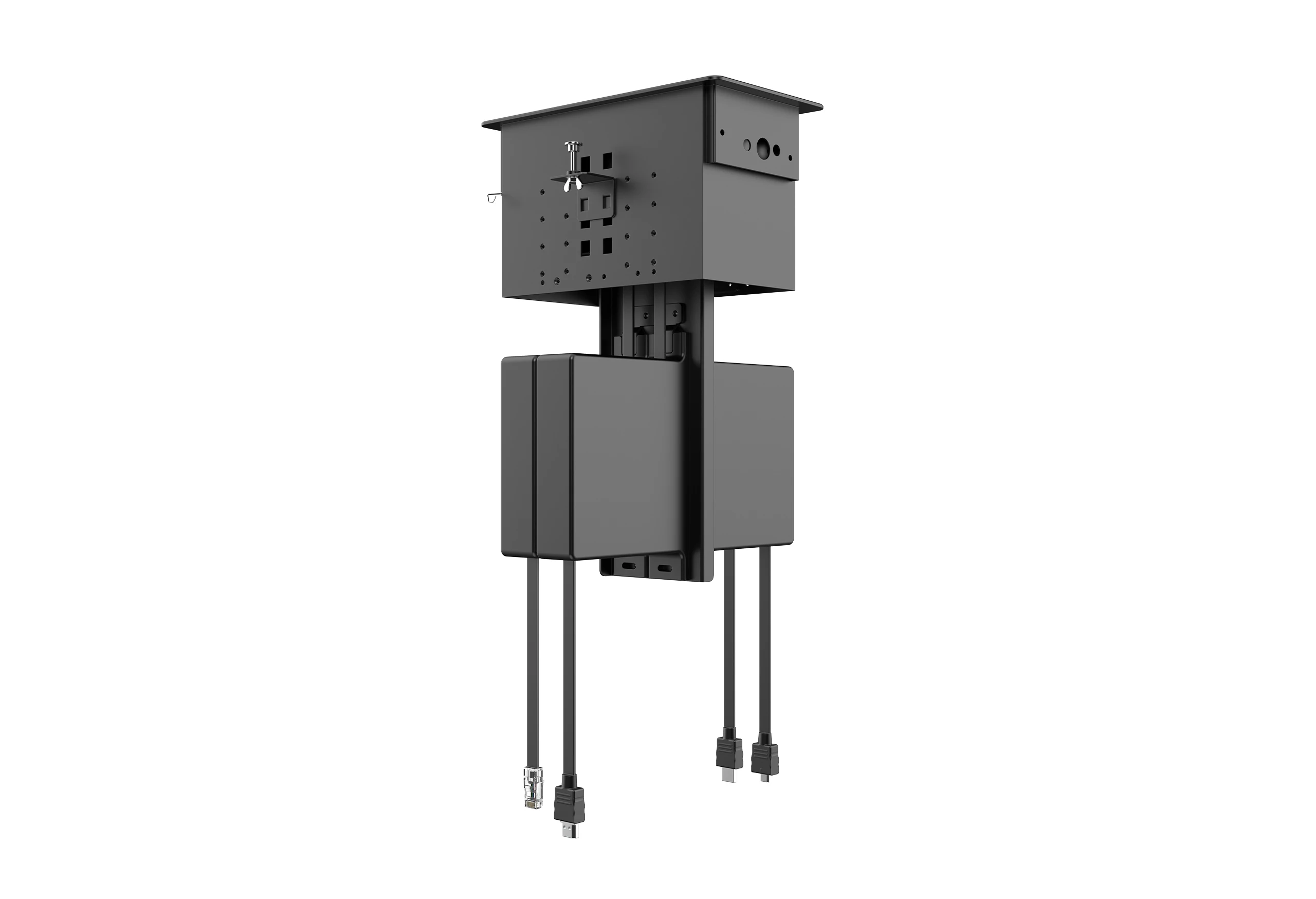

iBox Flex

iBox Flex (EU)

iBox Flex includes:
(2) Universal power sockets
(1) 1-meter retractable HDMI cable
(1) 1-meter retractable RJ45 cable
(1) 1-meter retractable USB A cable (USB 2.0 data and charging)
(1) 1-meter retractable USB C cable (USB 2.0 data and charging)

iBox Flex EU includes:
(1) EU power socket
(1) 1-meter retractable HDMI cable
(1) 1-meter retractable RJ45 cable
(1) 1-meter retractable USB A cable (USB 2.0 data and charging)
(1) 1-meter retractable USB C cable (USB 2.0 data and charging)
(1) USB A 5V power charging
(1) USB C 5V power charging

Features
A modular design
Combination of any 4 Modules
Pull-and-stop or pull-and-retract.
Easy to Install
Maximum 1m cable extension

Chat Now

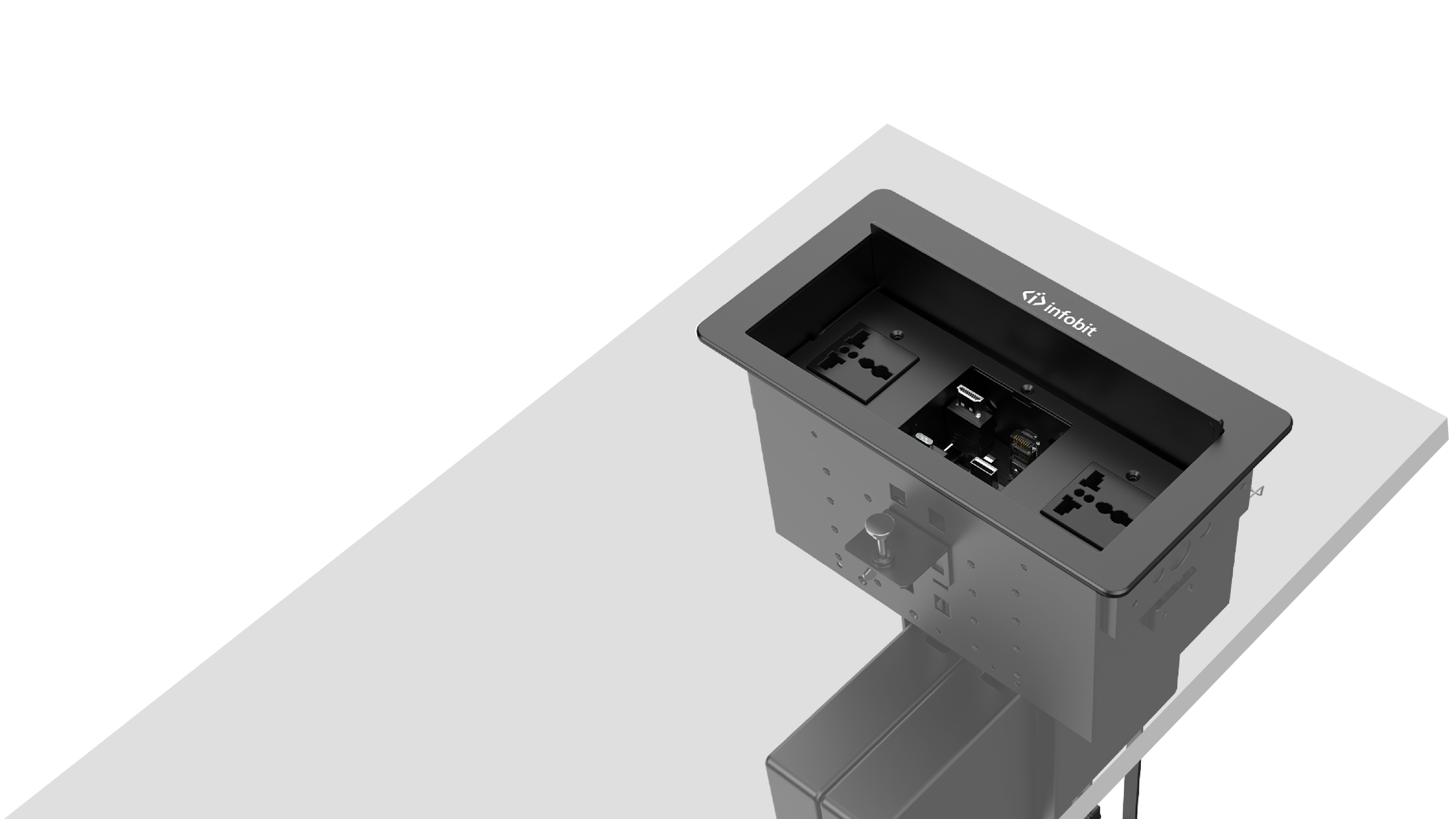

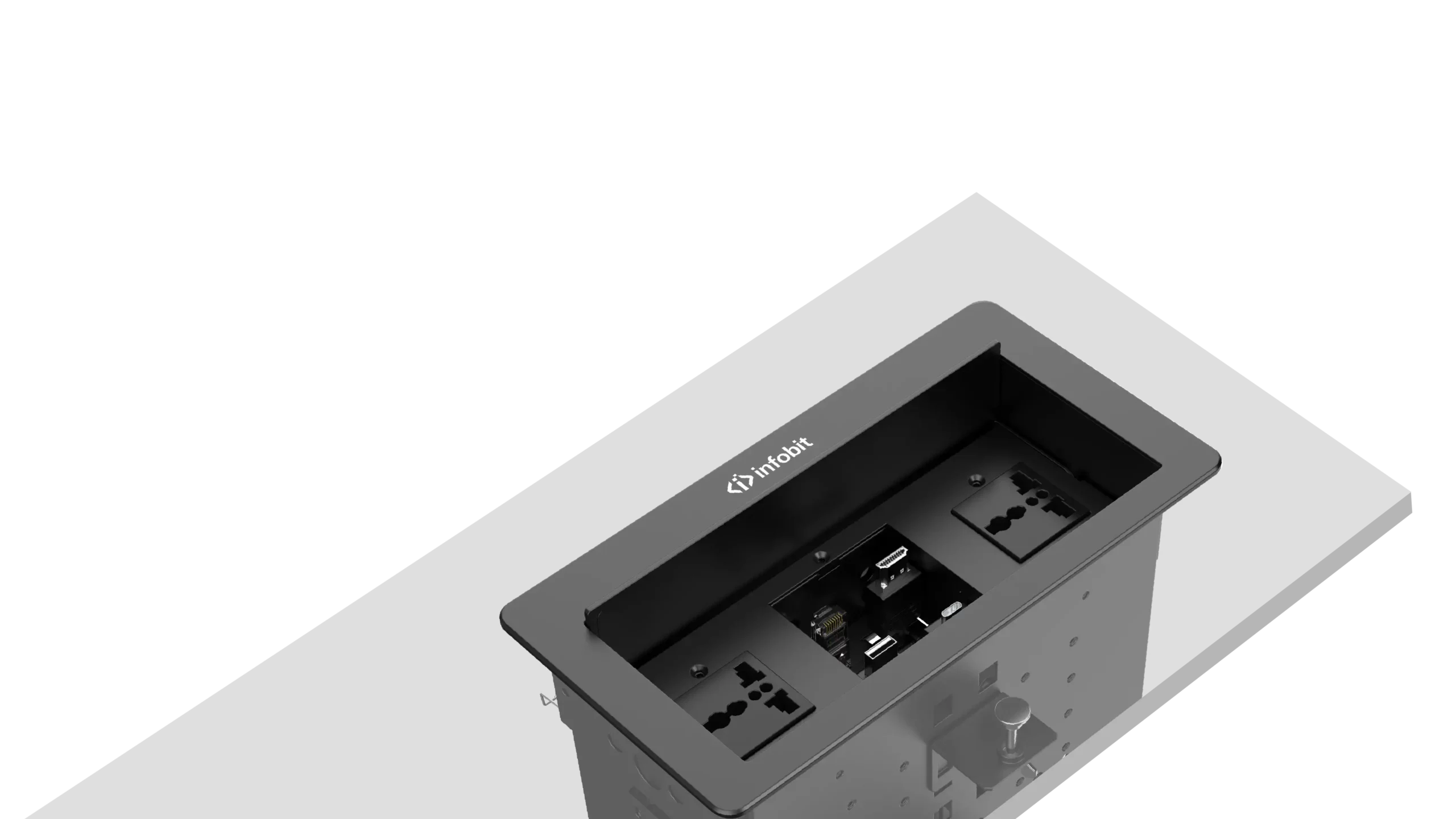

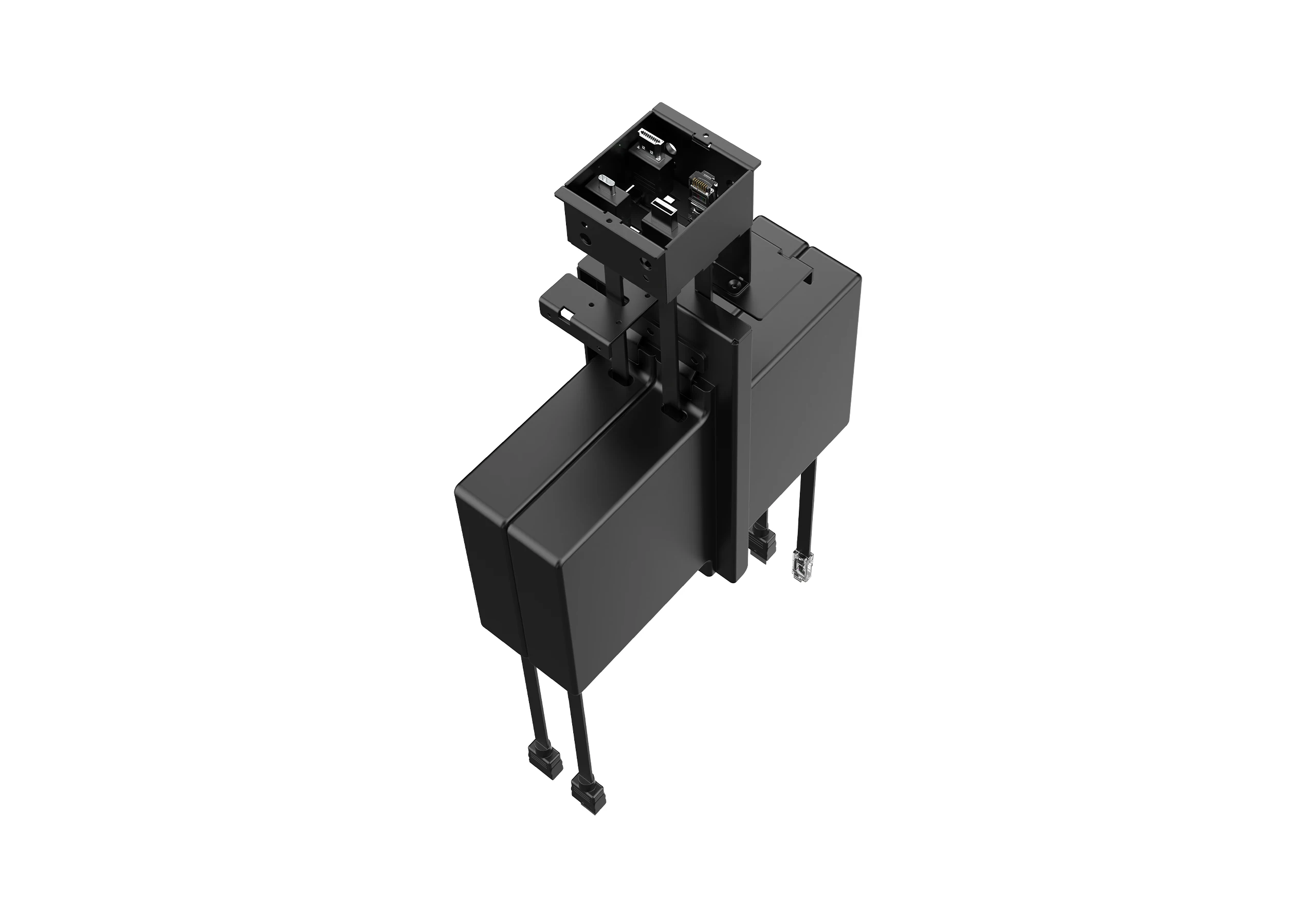

Modular Table Box- iBox Flex

Professional modular-designed compact cable box,
designed with intuitive use with pull and stop or pull and retract system,
is compatible with smart cable types,
including HDMI, Type C USB, RJ-45, and Type A USB.

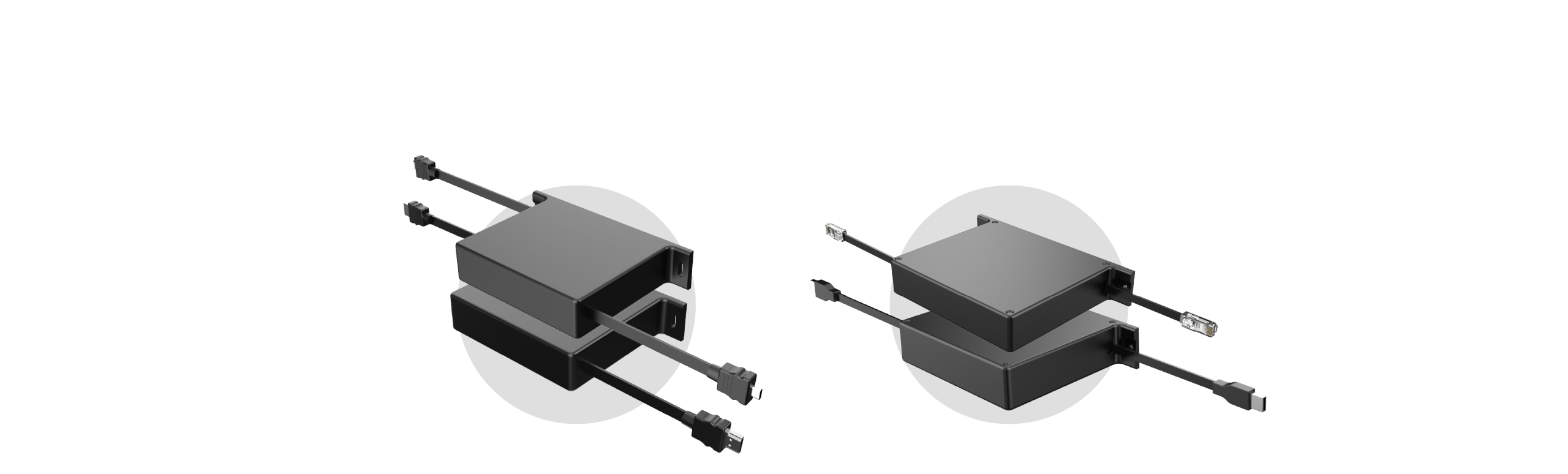

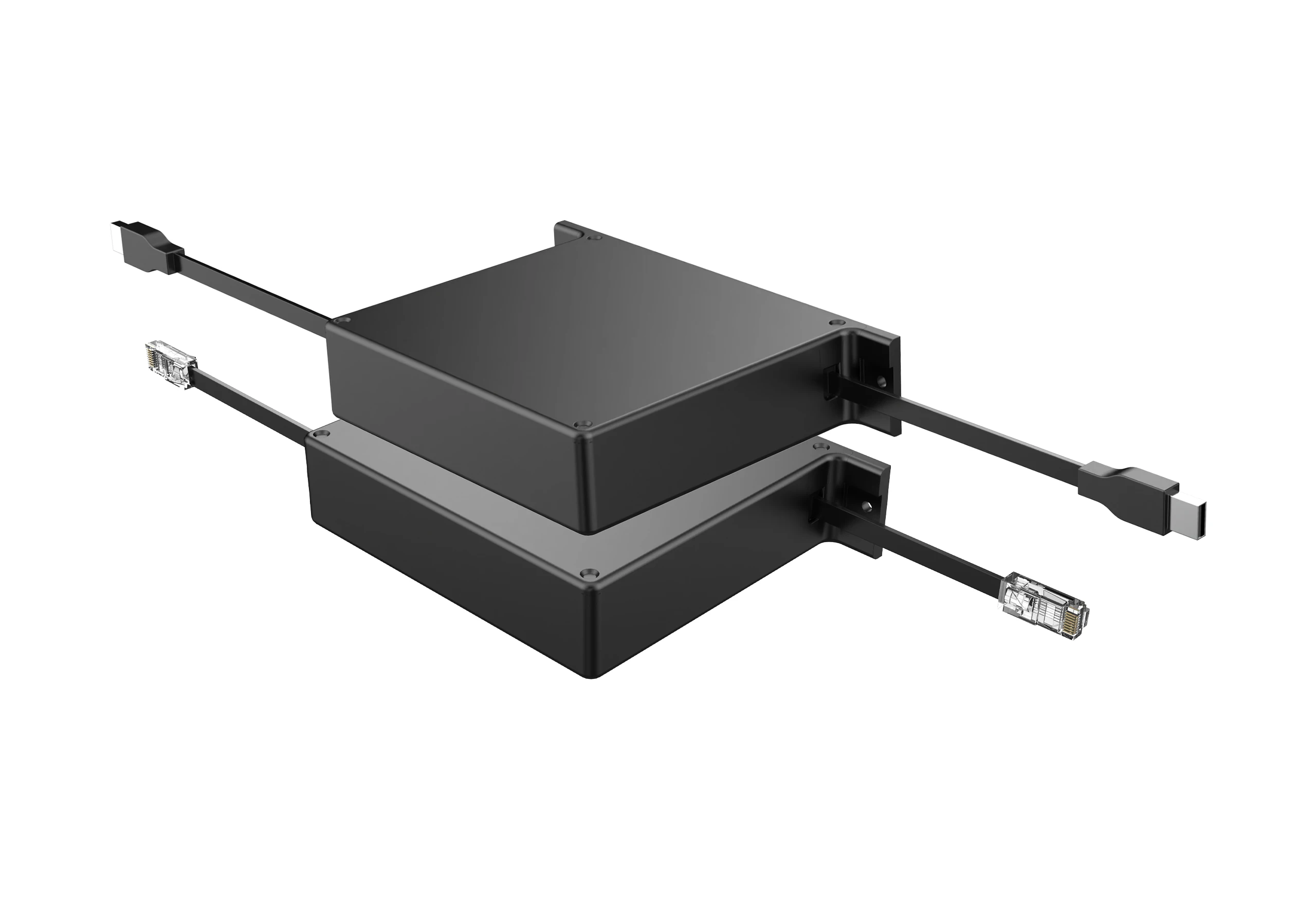

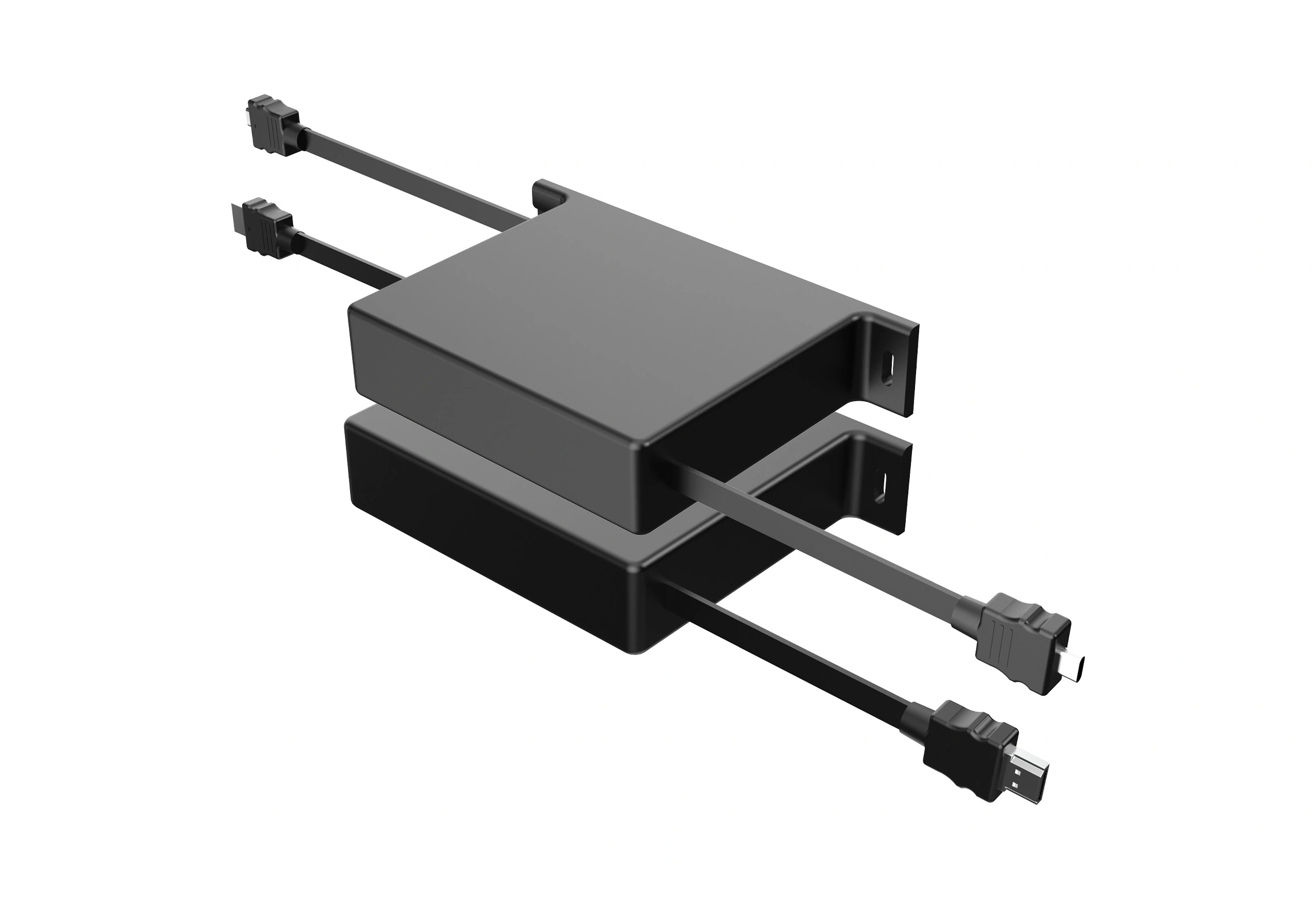

Retractable Modular

With four Pull-and-stop or pull-and-retract modulars,
including 1x 8K/4K HDMI, 1x Type C USB 2.0, 1x RJ-45,
and 1x Type A USB 2.0 cables.

Datasheet

iBox Flex (Main box)	Modular Table Box w/ Retractable System
	Ports	2x Universal power socket 4x retractable cable trays
	Material	Aluminum alloy (Case), Galvanized (Cover)
	Dimension	236125133mm
	Net Weight	2kg
	Cut-out dimension	215*107mm
	Gross Weight	3.2kg
	Package dimension	350207202mm

iBox Flex EU (Main box)	Modular Table Box w/ Retractable System, EU version
	Ports	1x EU power socket 4x retractable cable trays 1x USB A 5V charging 1x USB C 5V charging
	Material	Aluminum alloy (Case), Galvanized (Cover)
	Dimension	236125133mm
	Net Weight	2kg
	Cut-out dimension	215*107mm
	Gross Weight	3.2kg
	Package dimension	350207202mm

Retractable modulars (iBox Flex-H, Flex-UA, Flex-UC, Flex-N)	Material	Plastic (Case), Metal plate (Holder)
	Dimension	25012025
	Net Weight	0.35kg
	Gross Weight	0.42kg
	Package dimension	26515340mm

iBox Flex-H	HDMI Retractable System
	Cable length	Total 2 meters, retractable 1 meter
	Cable Diameter	2.5mm
	Video resolution	Max. 8K@60Hz, 4K@120Hz
	Version	HDMI 2.1
	Above table	HDMI 19-pin Male
	Below table	HDMI 19-pin Male

iBox Flex-UA	USB A Retractable System
	Cable length	Total 2 meters, retractable 1 meter
	Power out	5V3A
	Cable Diameter	3.6mm to 4mm
	Bandwidth	480Mbps
	Version	USB 2.0
	Above table	USB Type A male
	Below table	USB Type A male

iBox Flex-UC	USB C Retractable System
	Cable length	Total 2 meters, retractable 1 meter
	Power out	5V3A
	Cable Diameter	3.6mm to 4mm
	Bandwidth	480Mbps
	Version	USB 2.0
	Above table	USB Type C male
	Below table	USB Type A male

iBox Flex-N	Network Retractable System
	Cable length	Total 3 meters, retractable 1 meter
	Cable Diameter	2.8mm
	Bandwidth	10Gbps, 500MHz
	Version	Cat 6A UTP
	Above table	RJ45 male
	Below table	RJ45 male

Download

INFOBIT iBox Flex Install Guide V1.0.pdf

0.25M

2024-09-13
INFOBIT iBox Flex (Flex EU) Datasheet V2.0.pdf

0.27M

2024-09-13
