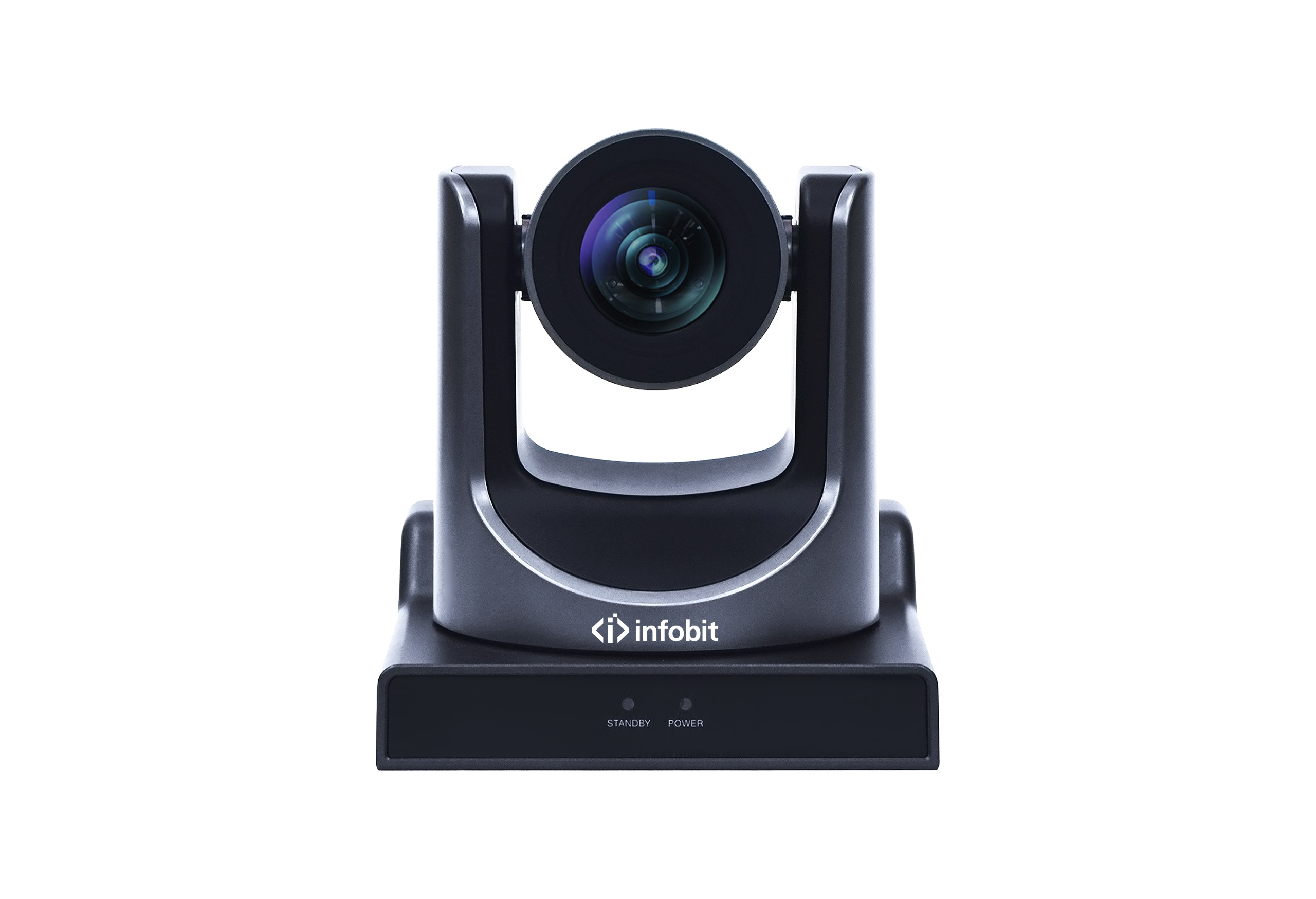

iCam P12U

HFOV 71°, 20x Optical + 16x Digital Zoom

1080P Full HD: High-quality HD CMOS sensor with 2.07 million effective pixels

USB3.0 compatible with USB2.0, support audio, compressed video output, UVC v1.5

Low illumination, 2D and 3D noise reduction

AAC Audio Encoding

Chat Now

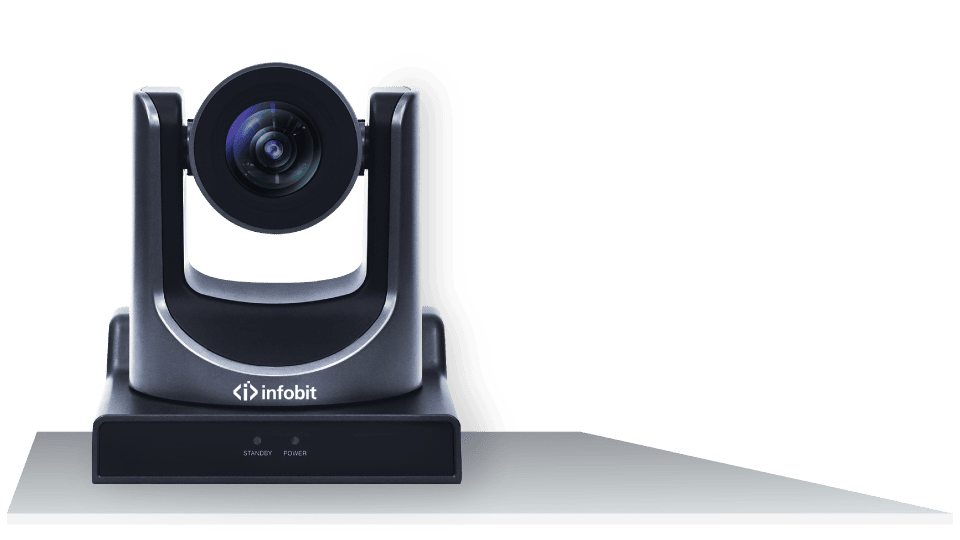

The most cost effective with premium performance

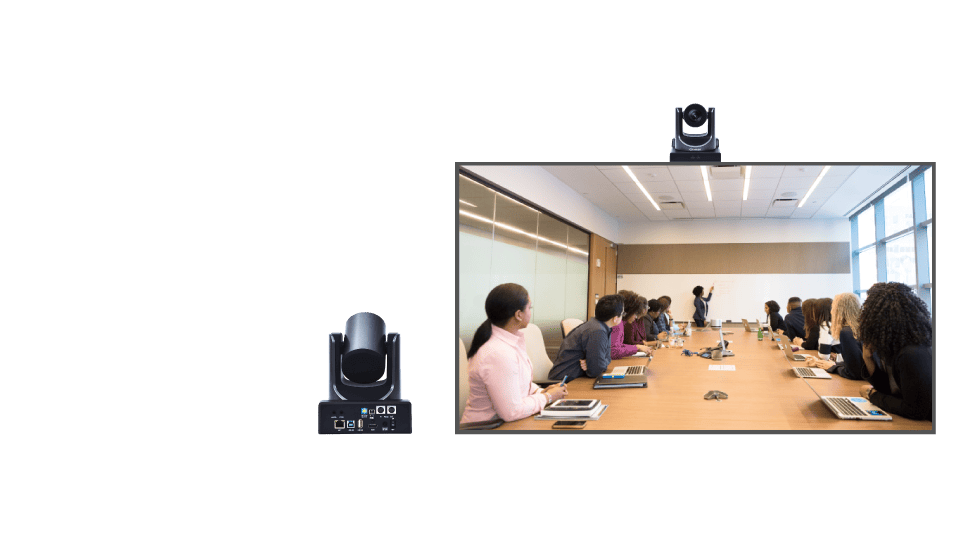

The iCam P12U camera is designed for mid-to-large video conferencing. With 1080p image quality, premium 20x optical and 16x digital zoom, the 51.3° wide-angle camera plus PTZ control brings you a new generation of crystal-clear video conference.

Superior HD 1080p Clarity

Panasonic 1/2.7" CMOS, 2D & 3D DNR, WDR
Low lighting conditions aren’t a problem anymore.
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm,
effectively reduce the noise, even under low illumination conditions,
picture can still be clean and clear.

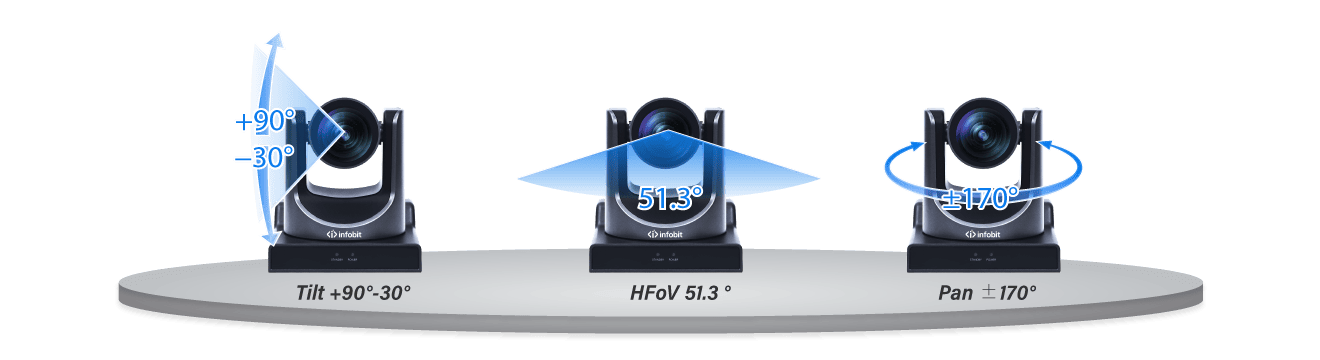

Wide-angle PTZ Performance for Complete Coverage

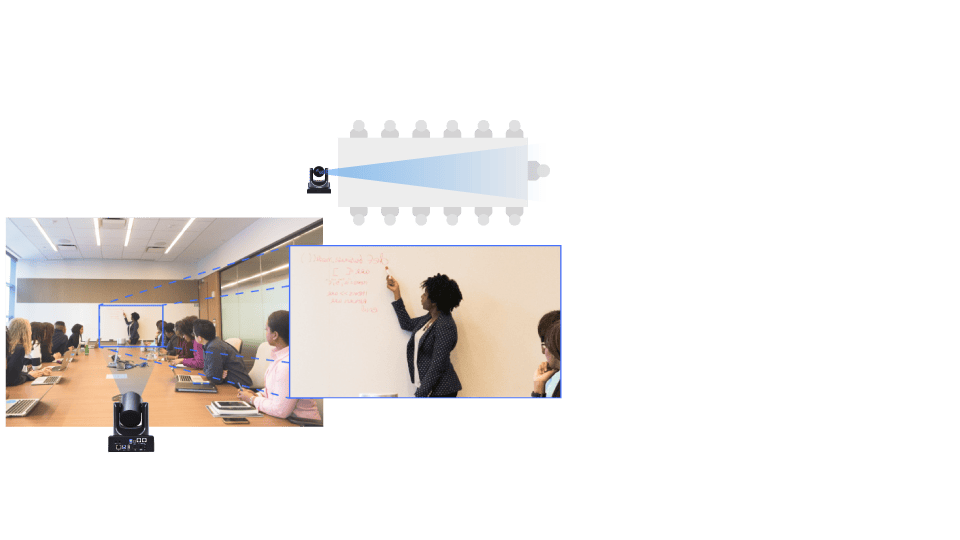

Make sure everyone in your meeting gets the attention they deserve. HFoV 51.3° aligned with wide-angle pan and tilt control ensures full-room visibility. You can choose from 255 presets to help you jump between whiteboards and speakers instantly.

20x Optical and 16x Digital Zoom

20x optical zoom and 16x times digital zoom means you can bring your audience’s attention to even the finest details of your presentation, without any loss of clarity. Responsive autofocus keeps images sharp and clear, even after zooming. Make sure to focus on every detail.

Working with Collaboration Tools well

The iCam P12U is a flexible camera that can work with a host of popular in-room devices and meeting tools based on RS232 protocol communication.

Datasheet

Model	iCam P12U
Name	USB 3.0 HD Video Conference Camera
Camera
Video System	1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50
Sensor	1/2.7”, CMOS, Effective Pixel: 2.07M
Scanning Mode	Progressive
Lens	20x, f5.5mm ~ 110mm, F1.6 ~ F3.5
Digital Zoom	16x
Minimal Illumination	0.5 Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s
White Balance	Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Video S/N	≥55dB
Horizontal Angle of View	51.3° ~ 2.7°
Vertical Angle of View	29.7° ~ 1.5°
Horizontal Rotation Range	±170°
Vertical Rotation Range	-30° ~ +90°
Pan Speed Range	1.7° ~ 100°/s
Tilt Speed Range	1.7° ~ 69.9°/s
H & V Flip	Support
Image Freeze	Support
Number of Preset	255
Preset Accuracy	0.1°
USB Features
OS	Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux
Color	YUY2 MJPEG H.264
Video Format	USB3.0 : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 USB2.0 : USB2.0:960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50
USB Video Communication Protocol	UVC 1.0
UVC PTZ	Support
IPC Features
Video Compression	H.265 / H.264 / MJEPG
Video Stream	Main Stream, Sub Stream
Main Stream Resolution	1920×1080, 1280×720, 1024×576 etc
Sub Stream Resolution	720×576, 720×480, 320×240 etc
Video Bit Rate	32Kbps ~ 20480Kbps
Bit Rate Type	Variable Rate, Fixed Rate
Frame Rate	50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression	AAC
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Support protocols	TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

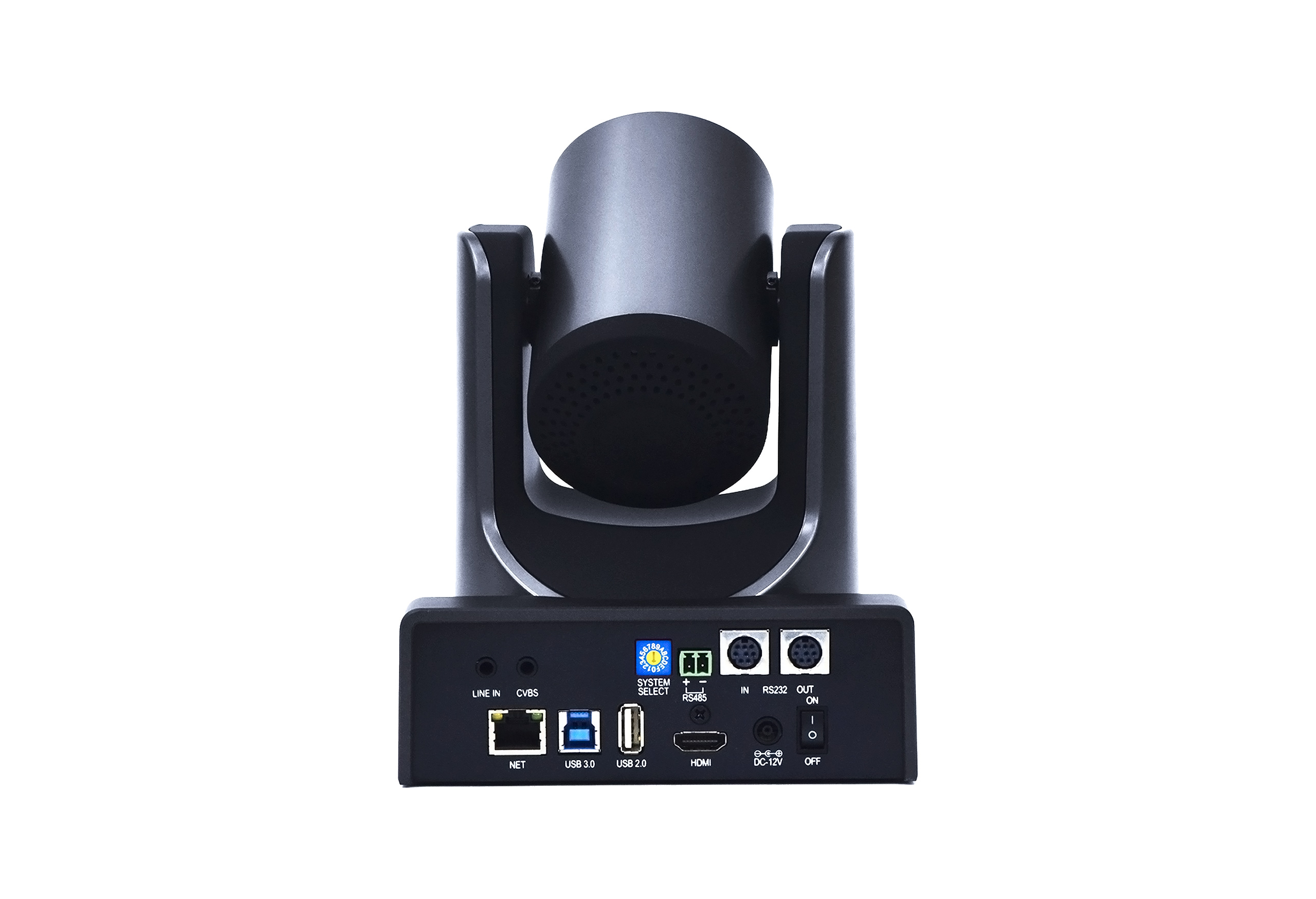

Input/Output Interface
HD Output	1xHDMI: Version 1.3
SD Output	1xCVBS: 3.5mm mini-jack, 1Vp-p, 75Ω
Network Interface	1xRJ45: 10M/100M Ethernet Interface
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
USB	1xUSB3.0: Type B female jack
USB	1xUSB2.0: Type A female jack, for local storage
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
	1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
	1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V)

Download

iCam P12U Datasheet V1.0.pdf

0.45M

2024-08-22
iCam P12U User manual V1.0.pdf

1.26M

2024-08-22
