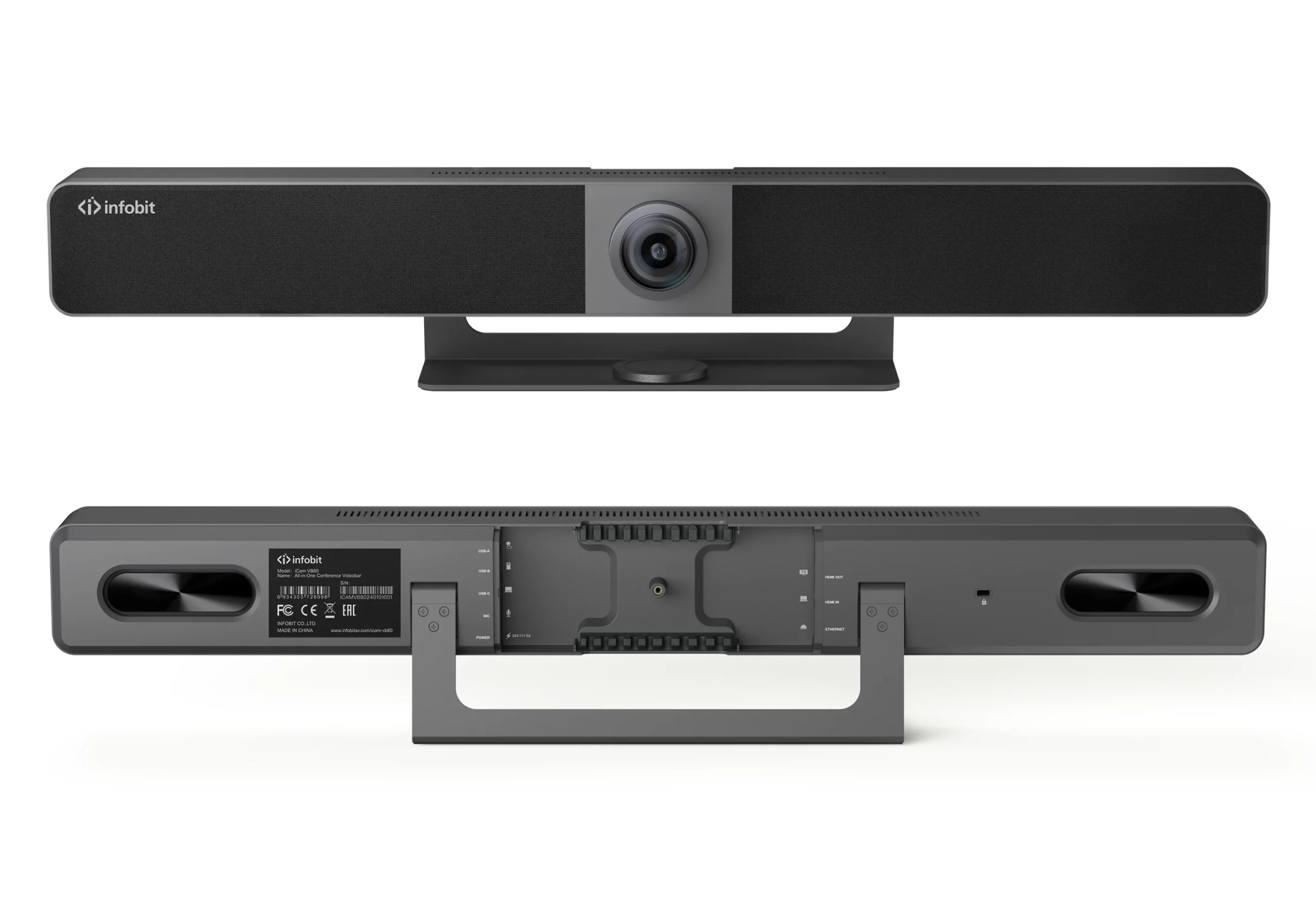

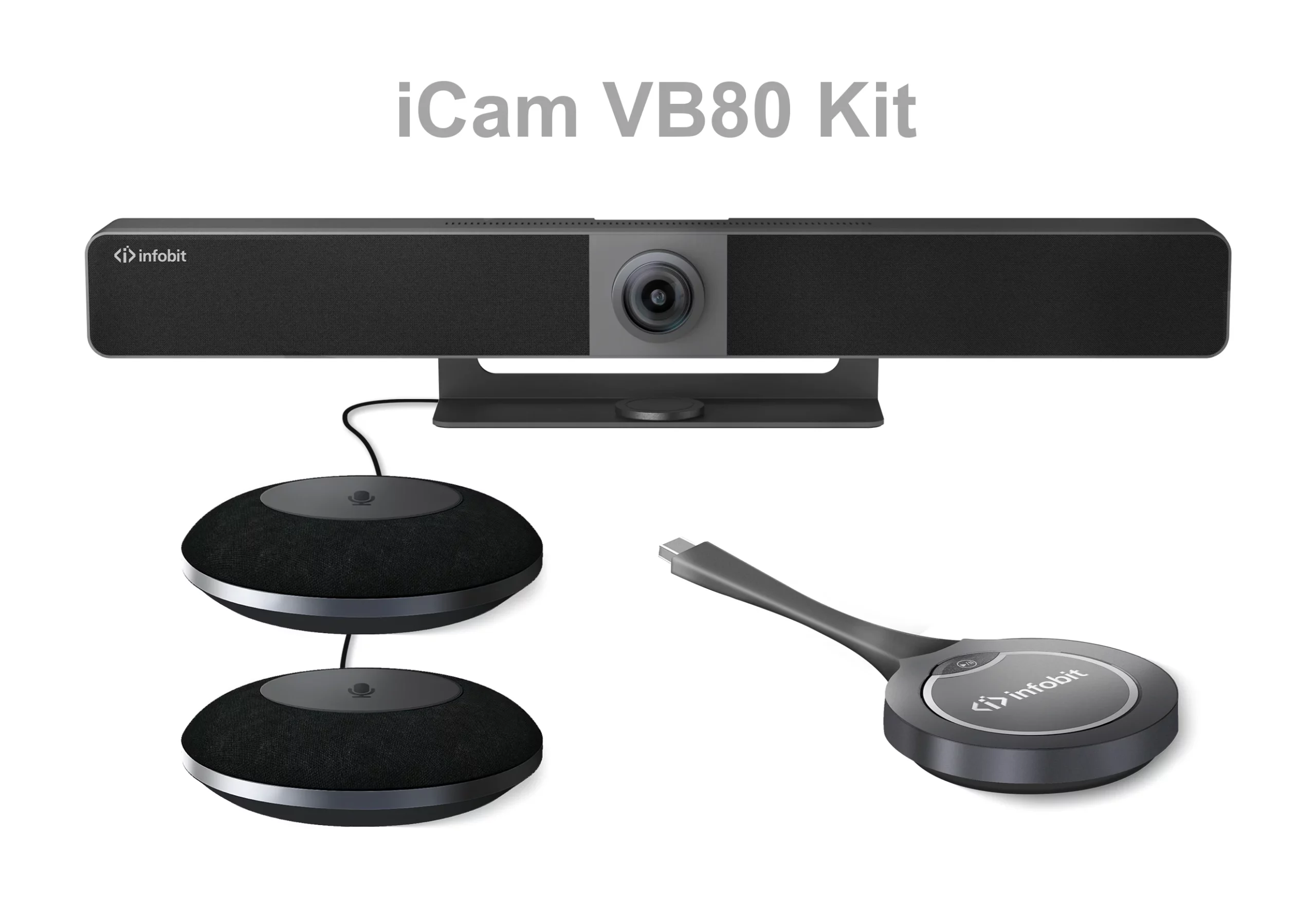

iCam VB80
1- Smart video conference collaboration with all-in-one solution of video speakerphone and camera.
2- Wired screen presentation via USB-C (with DP) and HDMI.
3- Wireless BYOD via Airplay, Miracast and Dongle (Dongle model: iShare MC).
4- Wide angle 4K video camera with 120° FOV.
5- 4x MEMS digital microphone arrays with a range of 5 ~ 8 meters and an angle of 180°.
6- 2x 8W Stereo full range speakers with passive radiator bass enhancement.
7- Includes AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control), ANS (Automatic Noise Suppression) and full duplex mode communication to make all participants feel like they are in the same room.
8- Auto Framing / Speaker Tracking / Presenter Tracking based on AI technology makes meetings more intimate and friendly.
9- Plug and play with excellent compatibility for OS and UC applications, such as Zoom, Teams, Webex, Skype, BlueJeans, etc.
10- Provides flexible control options of Web GUI and Remote Controller.
11- Built-in Wi-Fi.
12- Support max. 5pcs microphones expansion (Model: iCam VB8-Mic)

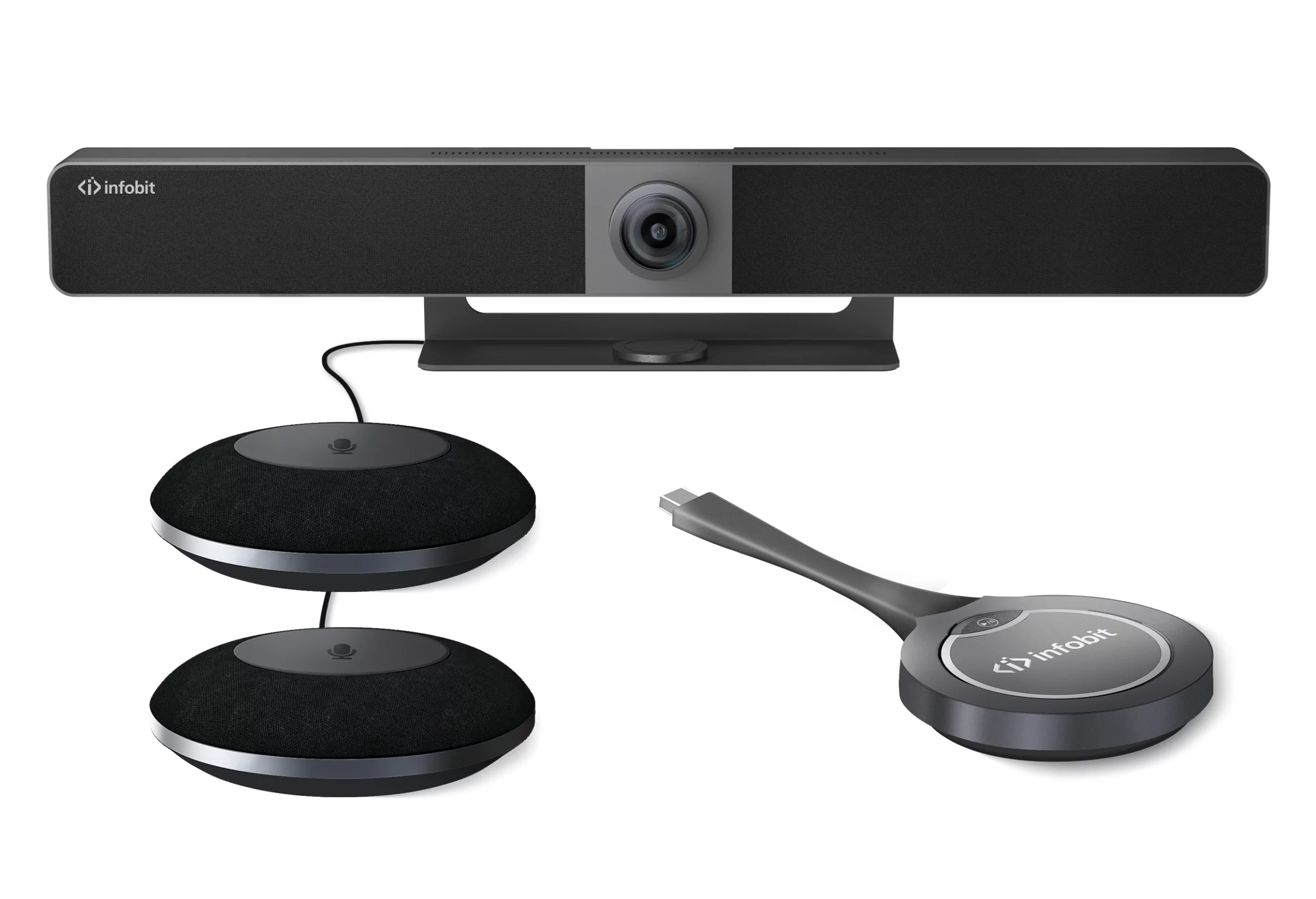

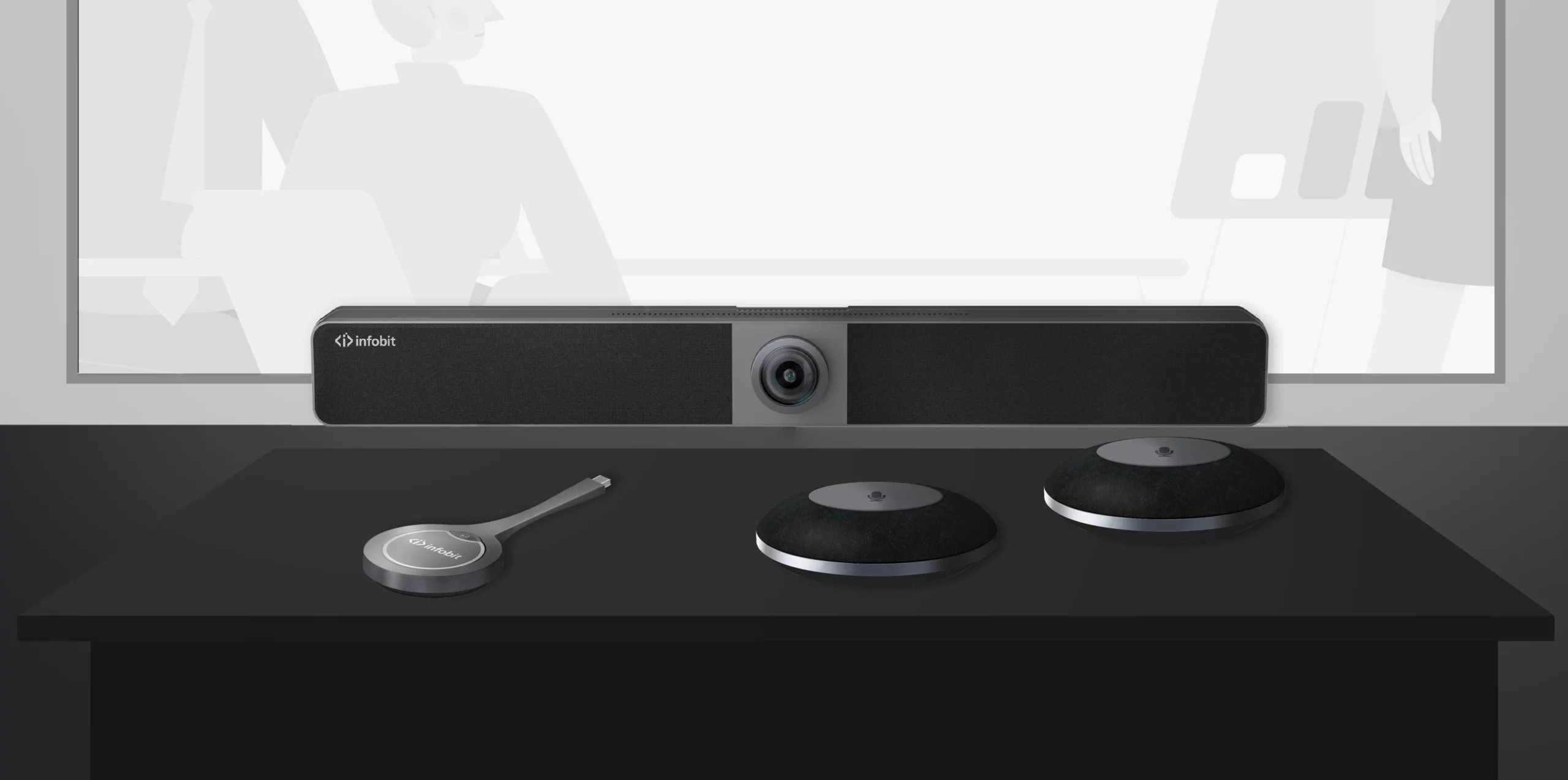

All-in-One Meeting Buddle
The iCam VB80 is an all-in-one meeting collaboration with ultra-wide angle 4K camera, microphone and speaker features, along with wired and wireless screen BYOD casting capability. Supports wired BYOM.
Auto-framming and Speaker Tracking
The iCam VB80 can automatically crop its image for an optimal view as attendees enter or leave its field of view. It can ensure all attendees are clearly reflected in the image and also put in the appropriate position.
Speaker Tracking
Wherever you stand to present and move around, the camera lens can automatically follow you in real time and ensure your image remains in the center.

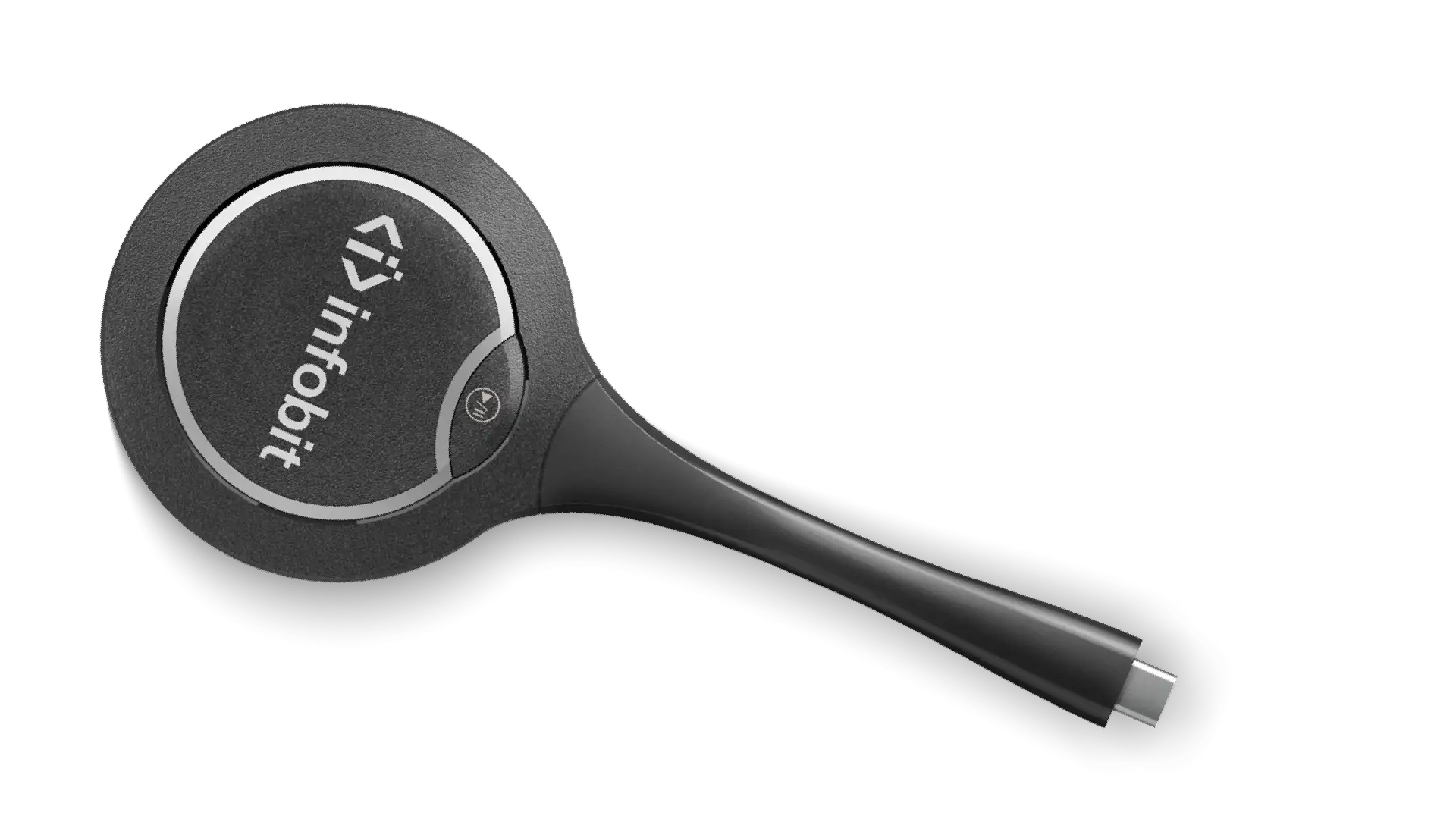

Wireless Presentation Dongle
The iShare MC USB-C dongle is the ideal way to share your content, the plug and play feature is ideal for guest/visitors who are unfamiliar with your meeting rooms.
For simultaneous collaboration, two dongles can be used. Simply plug in and press to connect.

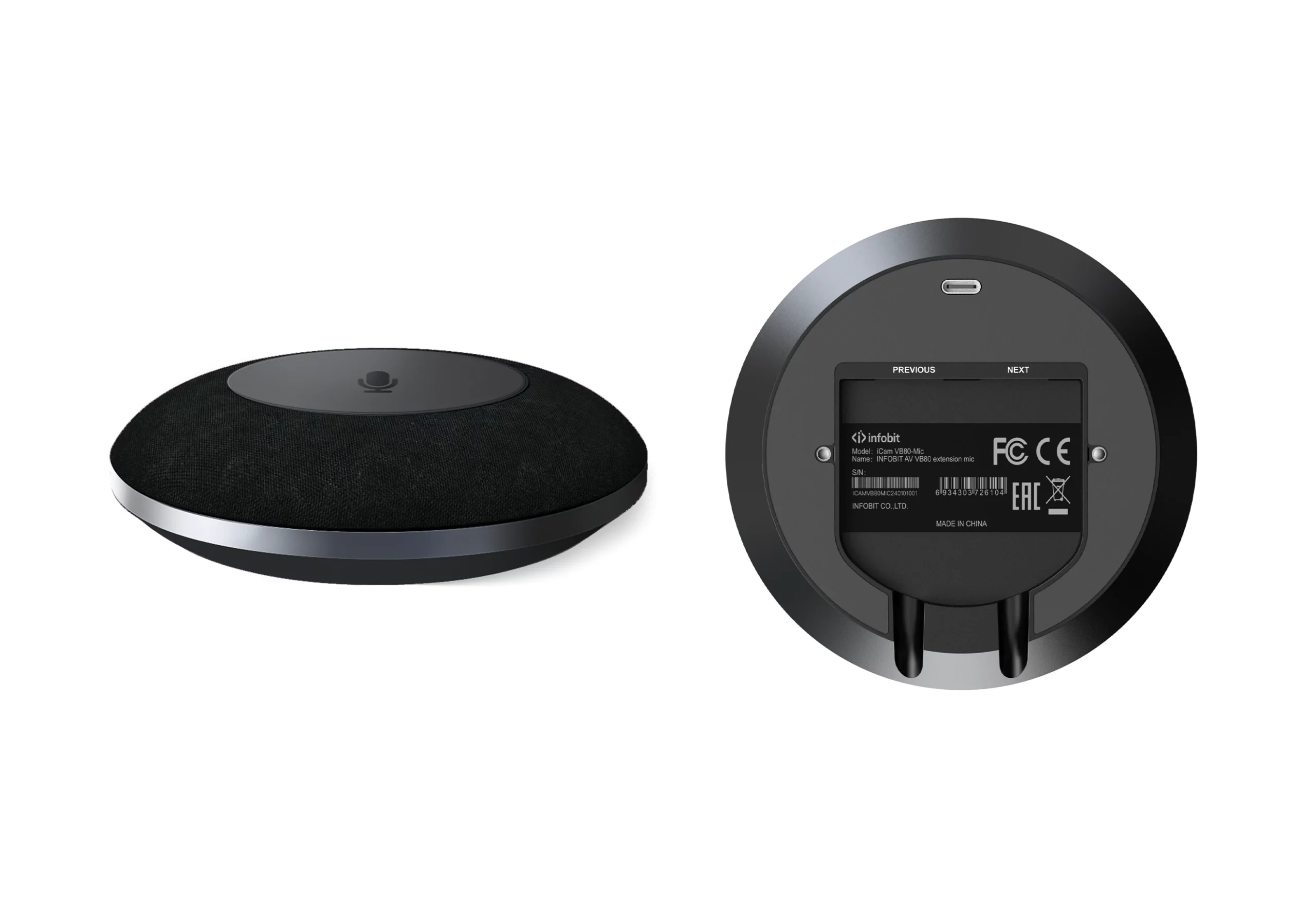

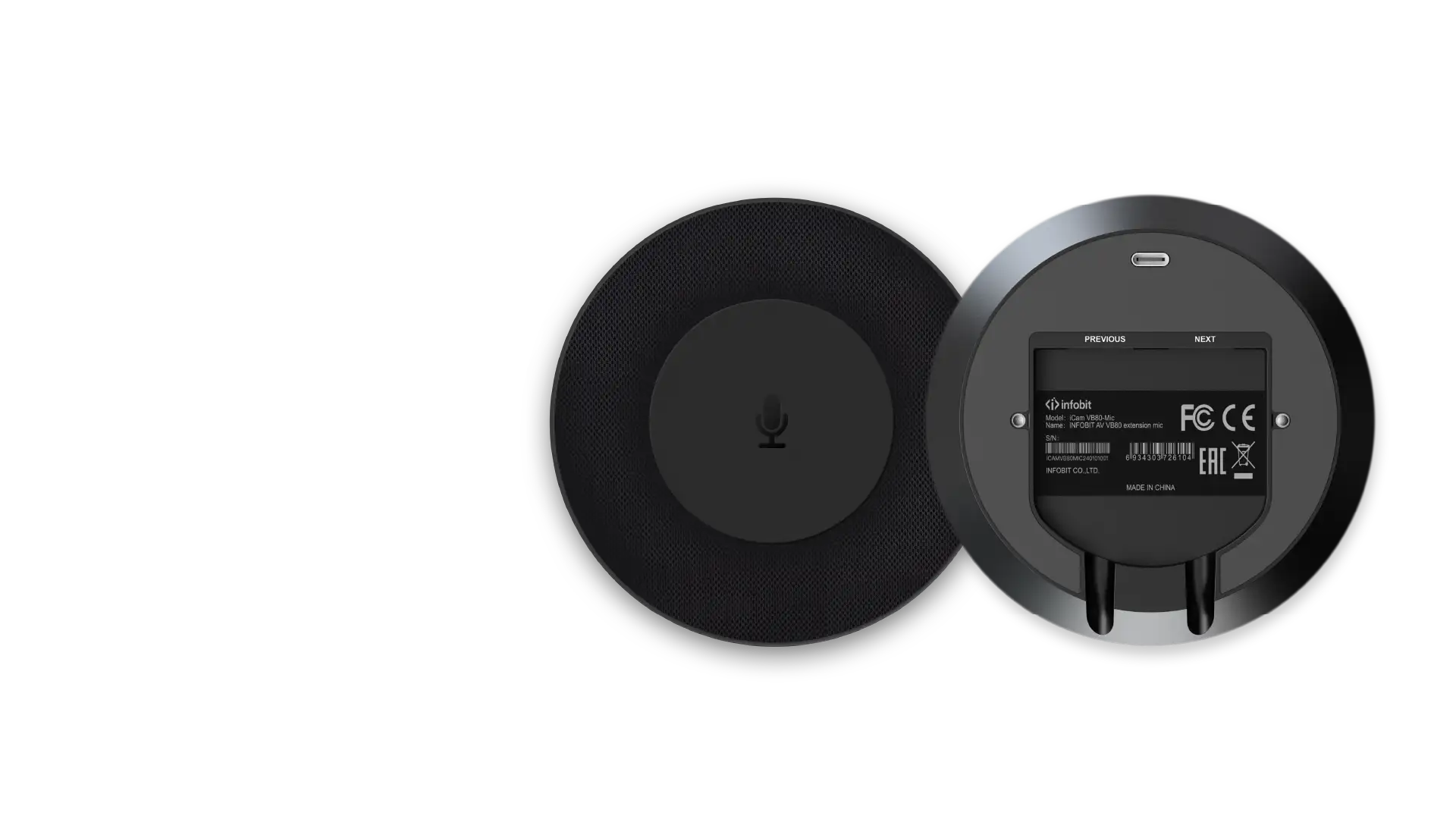

Expansion Microphones
The iCam VB80-Mic is an add-on microphone for iCam VB80 videobar to extend pickup distance.
It is ideal for applications at huddle/ small/ medium/ large conferencing rooms.

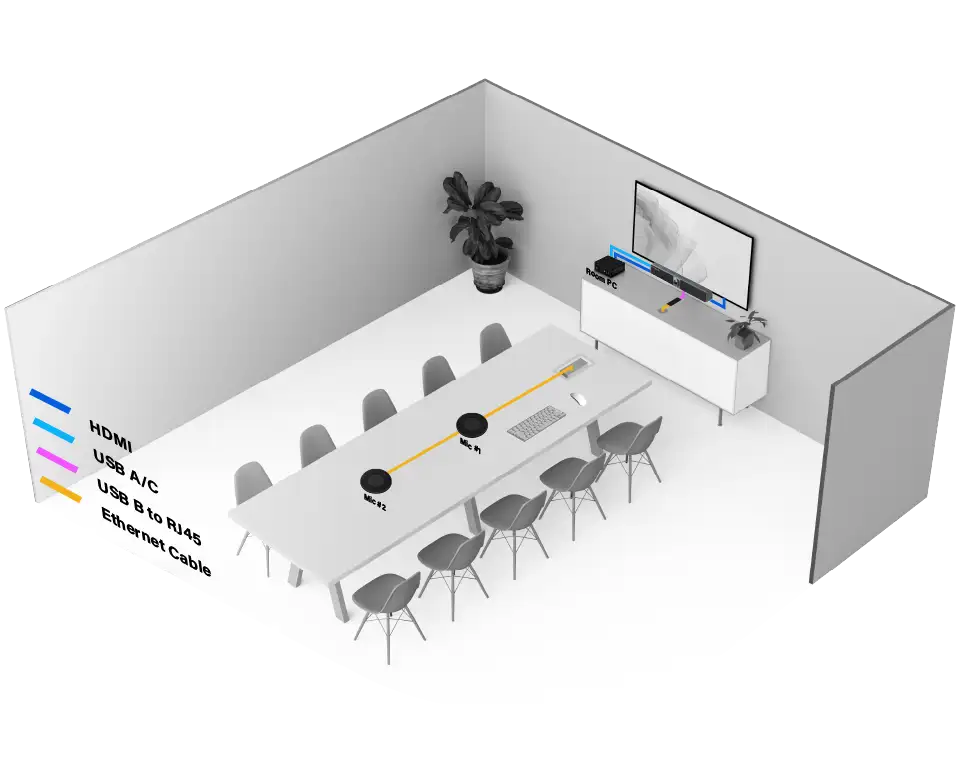

Combine with a Room PC
For rooms without own BYOD hardware, the iCam VB80 Kit can be in combination with your Room
PC to run your Teams Rooms or Zoom Rooms solutions.

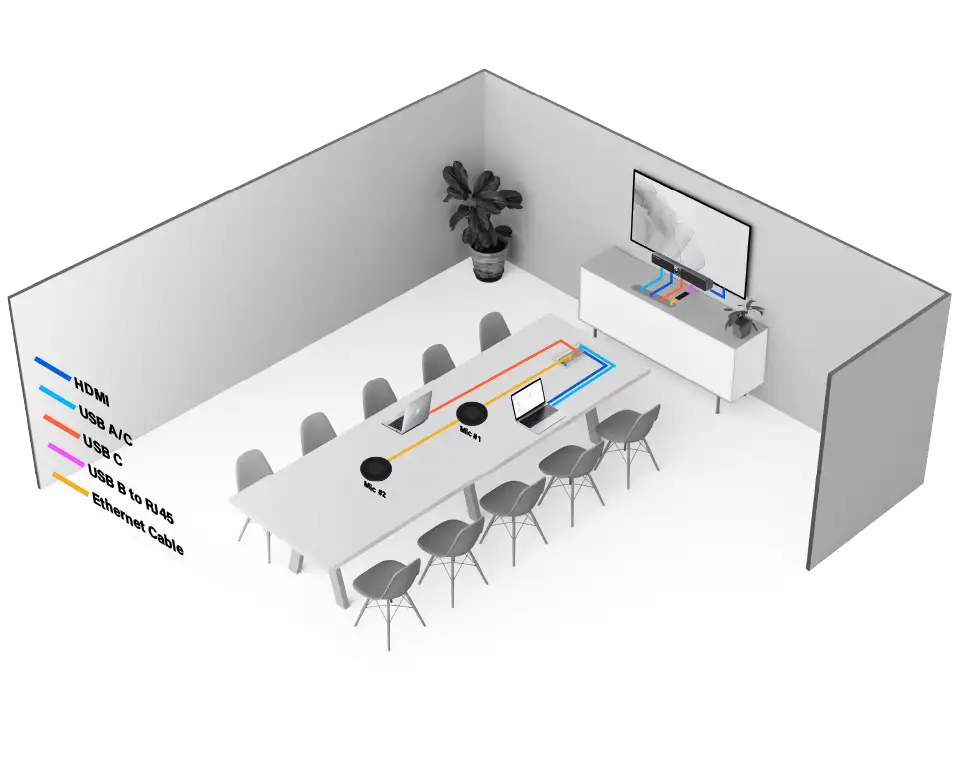

Combine with both Room PC and BYOD PC
For rooms without own hardware or with own BYOM laptop, the iCam VB80 Kit can be in combination
with both your Room PC and your BYOM PC.

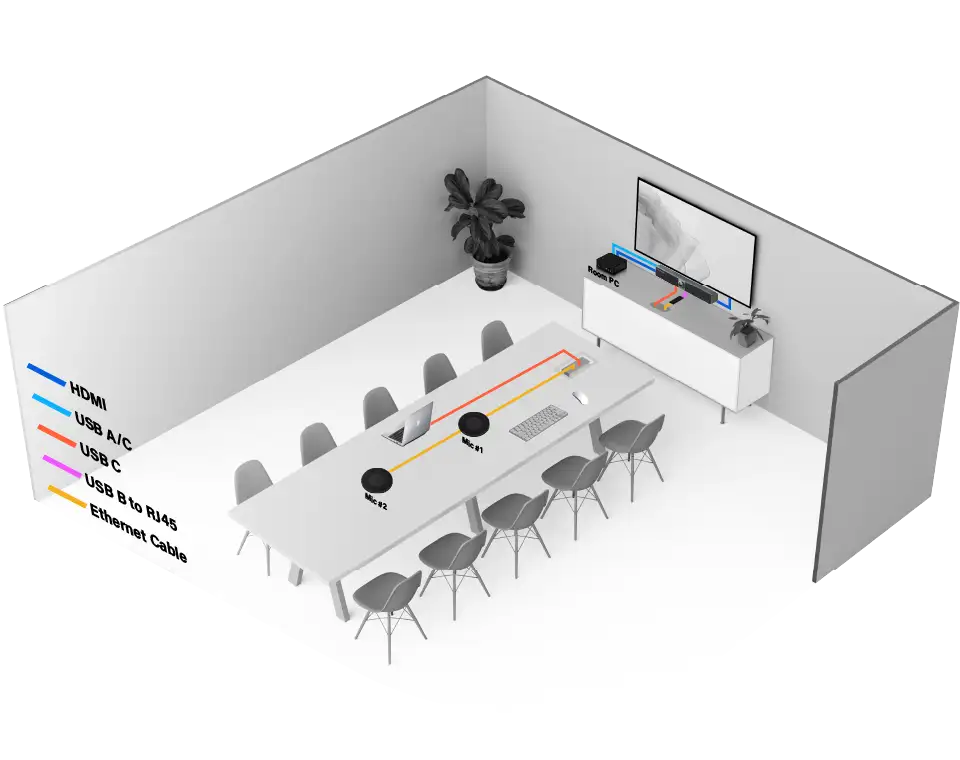

BYOM without Room PC
For rooms without Room PC, the iCam VB80 Kit can be in combination with user's BYOM PC.

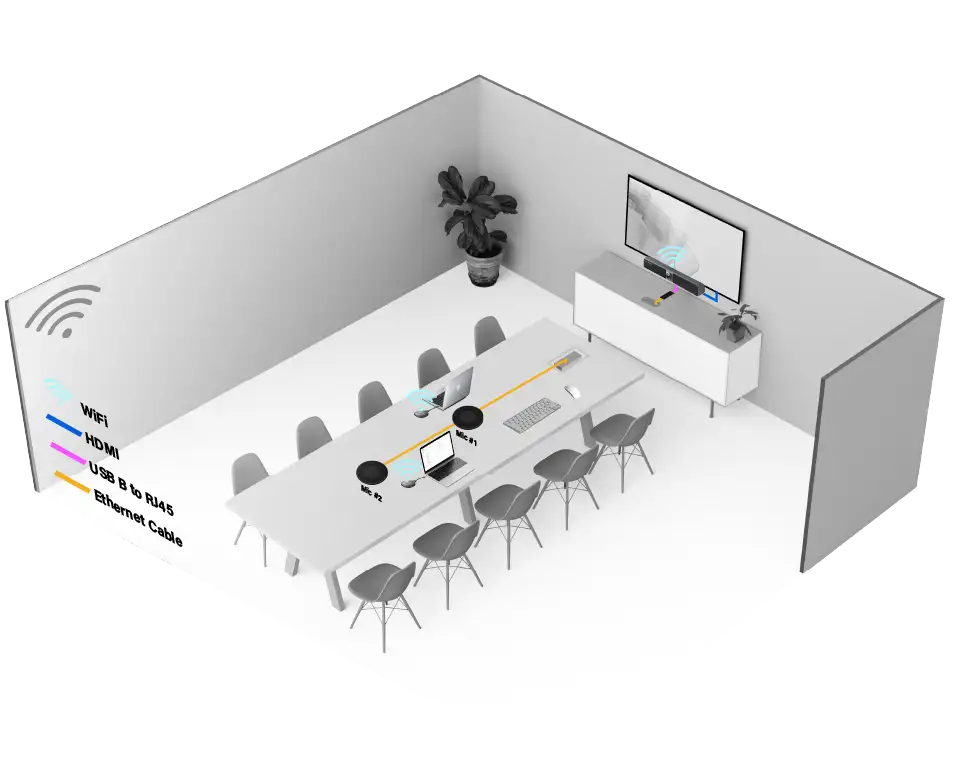

Pure Presentation BYOD
For rooms without Room PC, the iCam VB80 kit can be in combination with BYOD PCs for a tidy pure
presentation application throug wireless-only connection.
Datasheet
| Model | iCam VB80 Video Bar |
| Audio and Video | |
| Interface | 1x HDMI in, 1x HDMI out, 1x USB-C, 1x USB-B, 1x USB-A, 1x Mic, 1x GE, 1x DC |
| Video Resolutions | 4K@30Hz (Max) |
| Output Video Encoding | MJPEG/YUY2/H.264/H.265 | UVC 1.1 |
| Camera and Sensor | |
| Lens | Fixed Focus |
| Sensor | CMOS, Effective Pixel: 8.0M |
| White Balance | Auto |
| Backlight Compensation | Auto |
| Digital Noise Reduction | 2D, 3D Digital noise reduction supported |
| Viewing Angle | FOV: 120° |
| ePTZ | Supported | 5 x Digital Zoom |
| HDR | Supported |
| Tracking Mode | Auto Framing / Speaker Tracking / Presenter Tracking |
| Speakerphone | |
| Microphone | 4x Linear microphone arrays with echo cancellation Pick-up Range: 5m/16.4ft~8m/26.2ft |
| Speaker | 2 x 5 W |
| Communication and Control | |
| HDMI | HDMI 2.0, HDCP 2.2 |
| USB | USB-C: USB 3.0 host (60W max charging) USB-A: USB 3.0 device USB-B: USB 3.0 host |
| USB Protocol | UAC, UVC, USB HID |
| Ethernet | 1 x RJ-45 |
| WLAN | IEEE 802.11 a/b/g/n/ac |
| Control Method | Web UI, Bluetooth Remote Controller |
| General | |
| Operating Temperature | 0°C ~ 40°C (32°F to 104°F), 10% to 90%, non-condensing |
| Storage Temperature | -20°C ~ 60°C (-4°F to 140°F), 10% to 90%, non-condensing |
| MTBF | ＞ 30000h |
| Power Supply | DC 24V 5A |
| Power Consumption (Max) | 100W |
| Dimension (Width x Height x Depth) | 700mm x 126.83 mm x 90mm/27.56” x 4.99” x 3.54” (with Bracket) |
| Net Weight | 2.42kgs/5.324lbs (with Bracket) |
| Gross Weight | 6.22kgs/13.68lbs |
| Model | iCam VB80-Mic Expansion Microphone |
| Audio | |
| Input/Output | RJ-45 |
| Microphone | |
| Microphone | Omnidirectional microphone array, Pickup Range: 3m |
| Frequency Response | 100~10KHz |
| Sensitivity | -26dBFS |
| Signal-to-Noise Ratio | 62dB |
| Full Duplex | Supported |
| AEC (Automatic Echo Cancellation) | Supported |
| AGC (Automatic Gain Control) | Supported |
| Background Noise Reduction | Supported |
| Communication and Control | |
| Control Method | USB-C for firmware upgrade (Windows App) |
| General | |
| Operating Temperature | 0°C ~ 40°C (32°F to 104°F) |
| Storage Temperature | -20°C ~ 60°C (-4°F to 140°F) |
| Humidity | 10% to 90%, non-condensing |
| Power Supply | Powered by Video Bar |
| Power Consumption | 1.5W (Max) |
| Installation | On the table |
| Dimension (φ x h) | 108mm x 26.5mm/4.25” x 1.04” |
| Net Weight | 0.14kg/0.31lb |

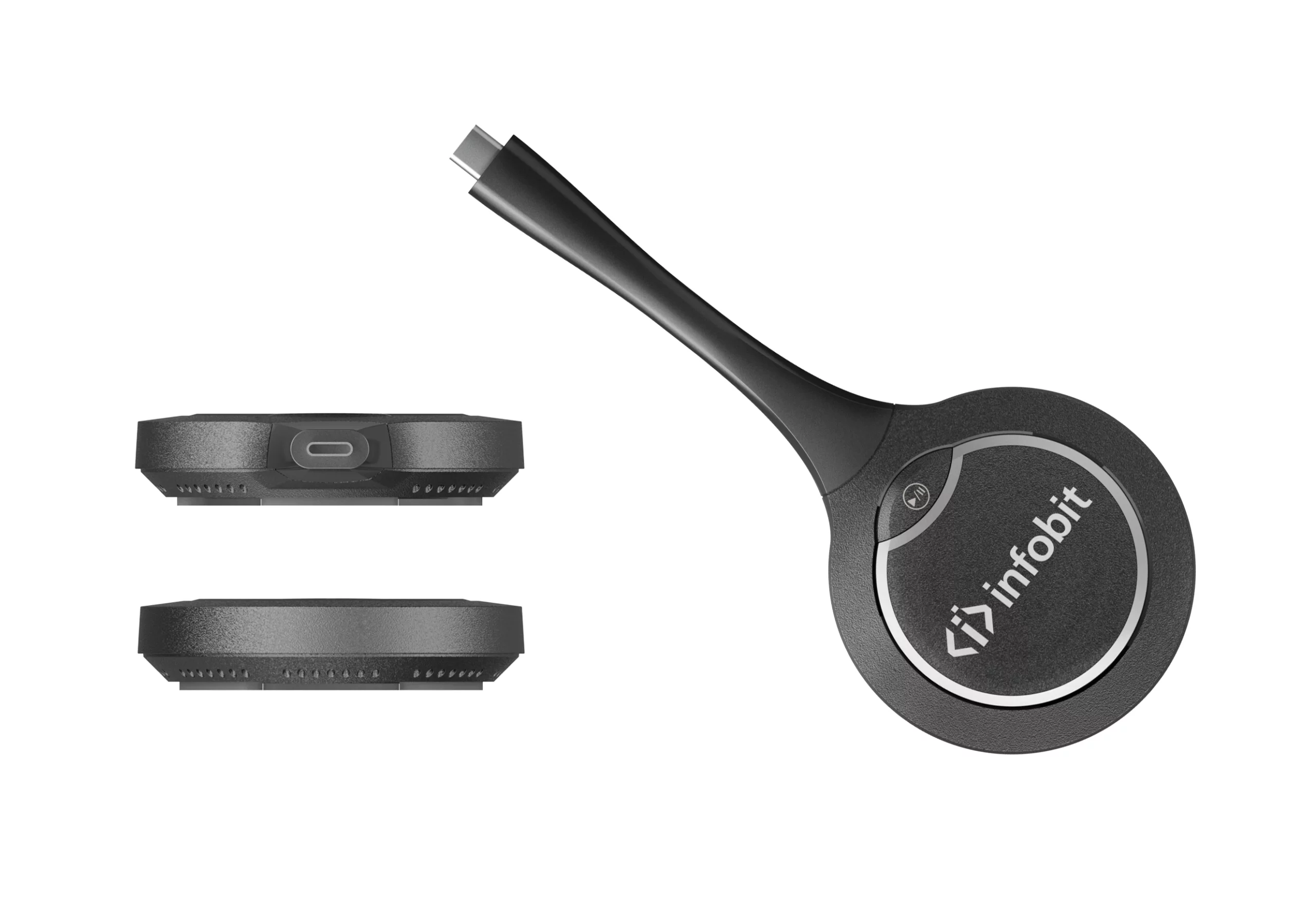

| Model | iShare MC |
| Technical | |
| Max Resolution | 1080P @ 30fps |
| Terminal Type | 1 x Type-C |
| Frequency | 5GHz (default) and 2.4GHz |
| Wireless transmission protocol | IEEE 802.11 a/b/g/n, IEEE 802.11ac |
| Authentication protocol | WPA2-PSK or IEEE 802.1X |
| USB | |
| Operate System | Windows 7/10, macOS, Android OS |
| USB Port | Type-C（DP_Alt mode） |
| General | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/±4kV (Contact discharge) |
| Input Voltage | 5V (Power over USB) |
| Power Consumption (Max) | 2.14W |
| Product size (φ x h x l) | 68.98mm x 16.4mm x 165.19mm/2.72” x 0.65” x 6.50” |
| Product Weight | 60g/0.13lb (net weight) |
