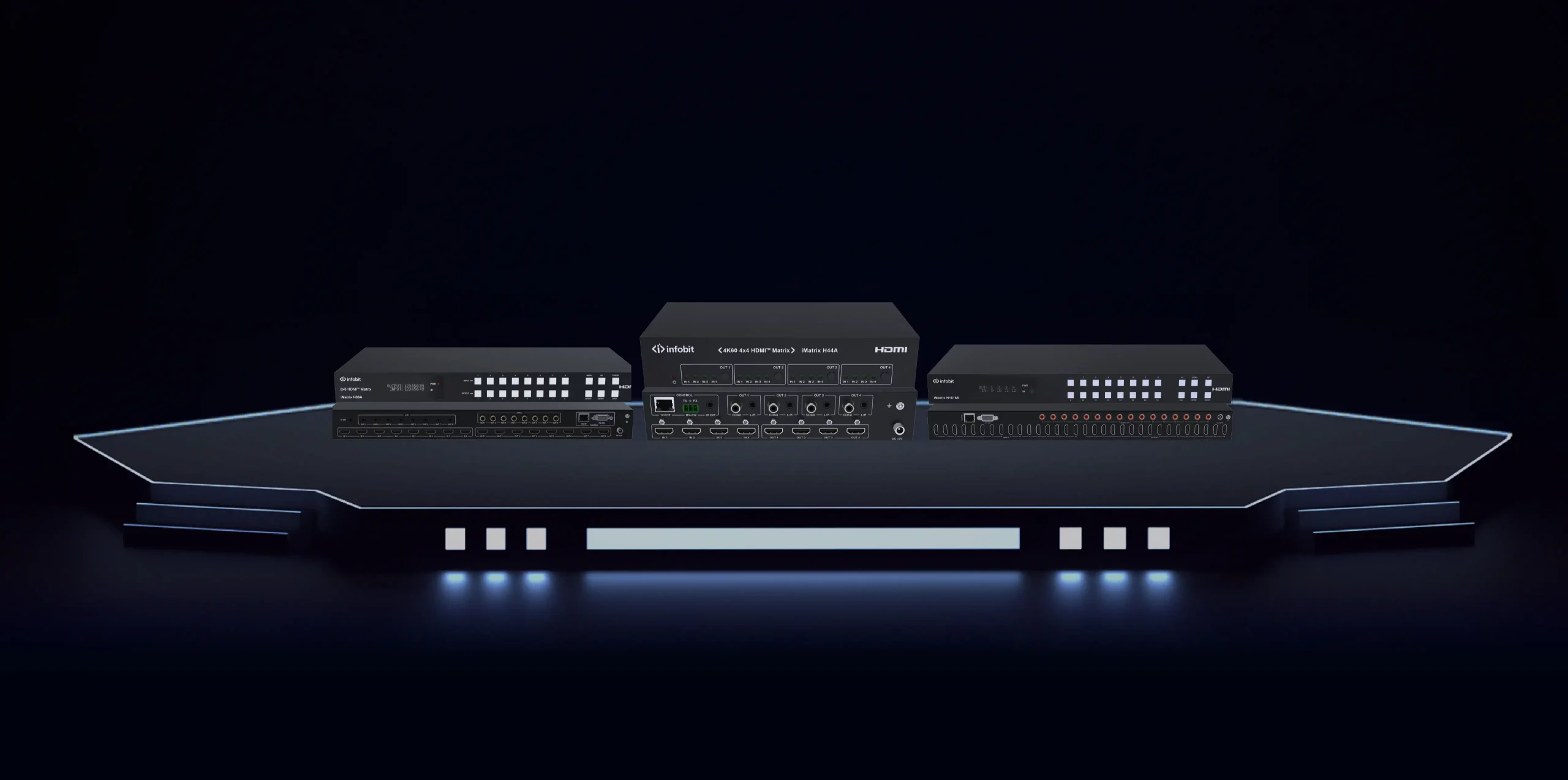

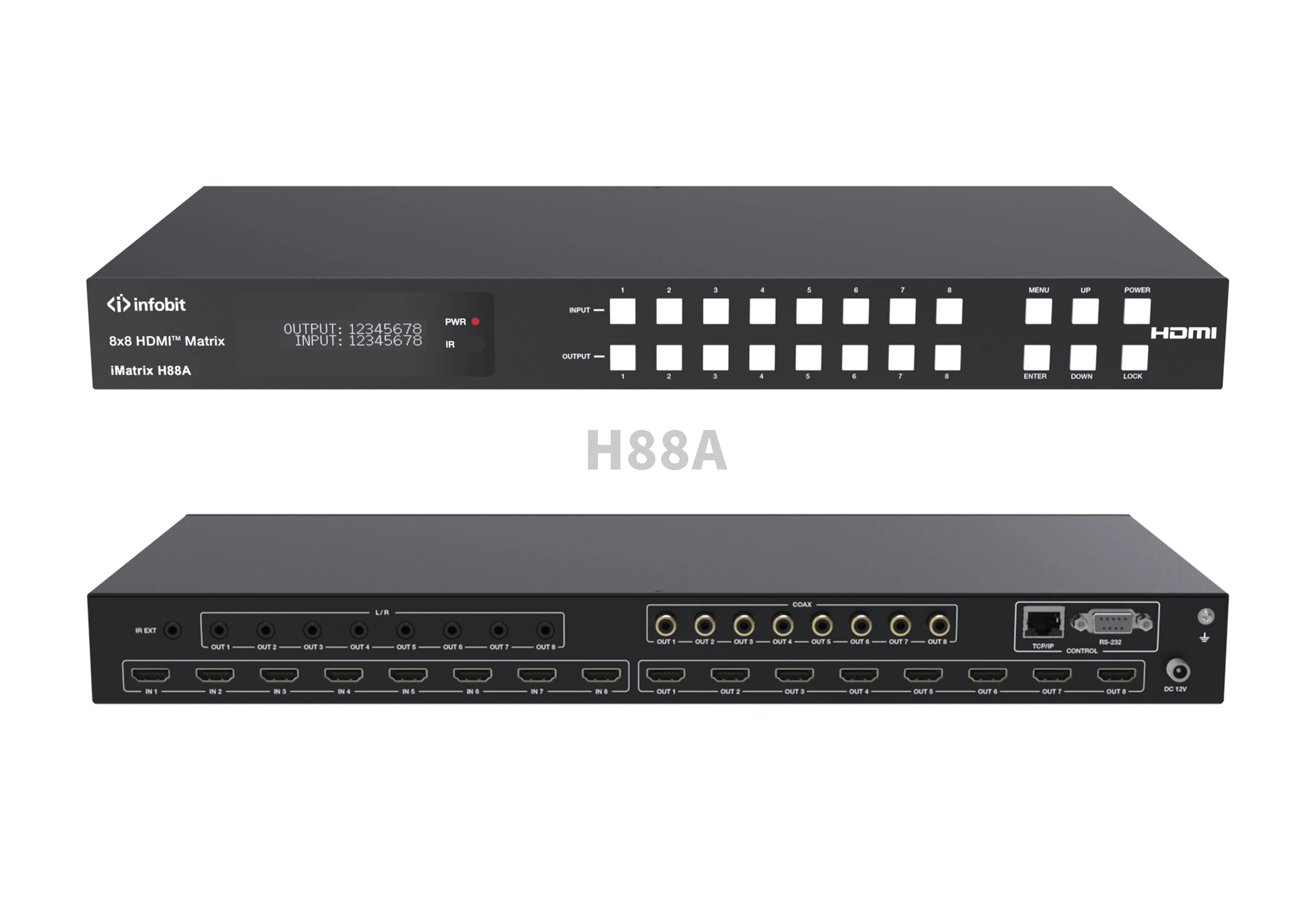

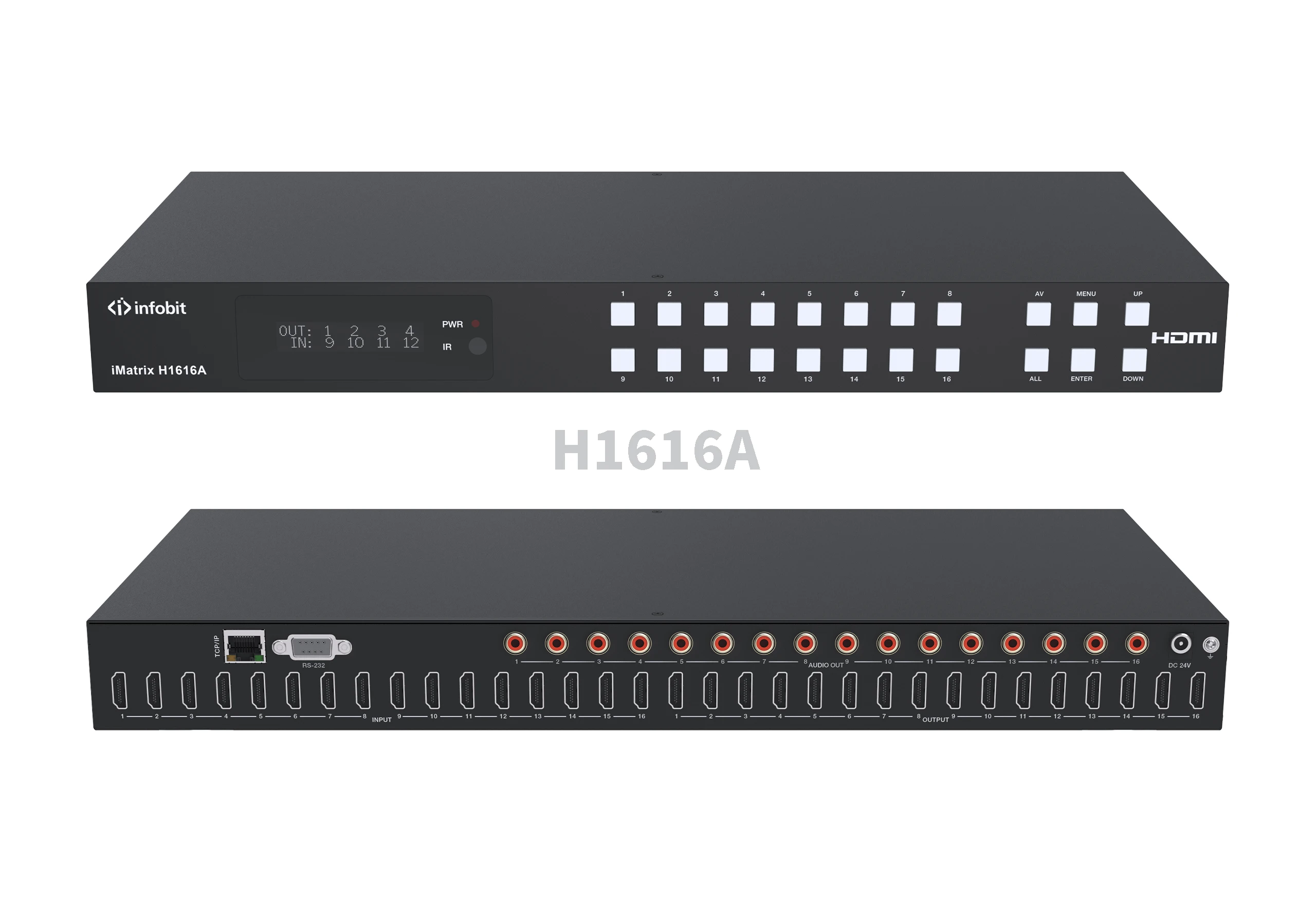

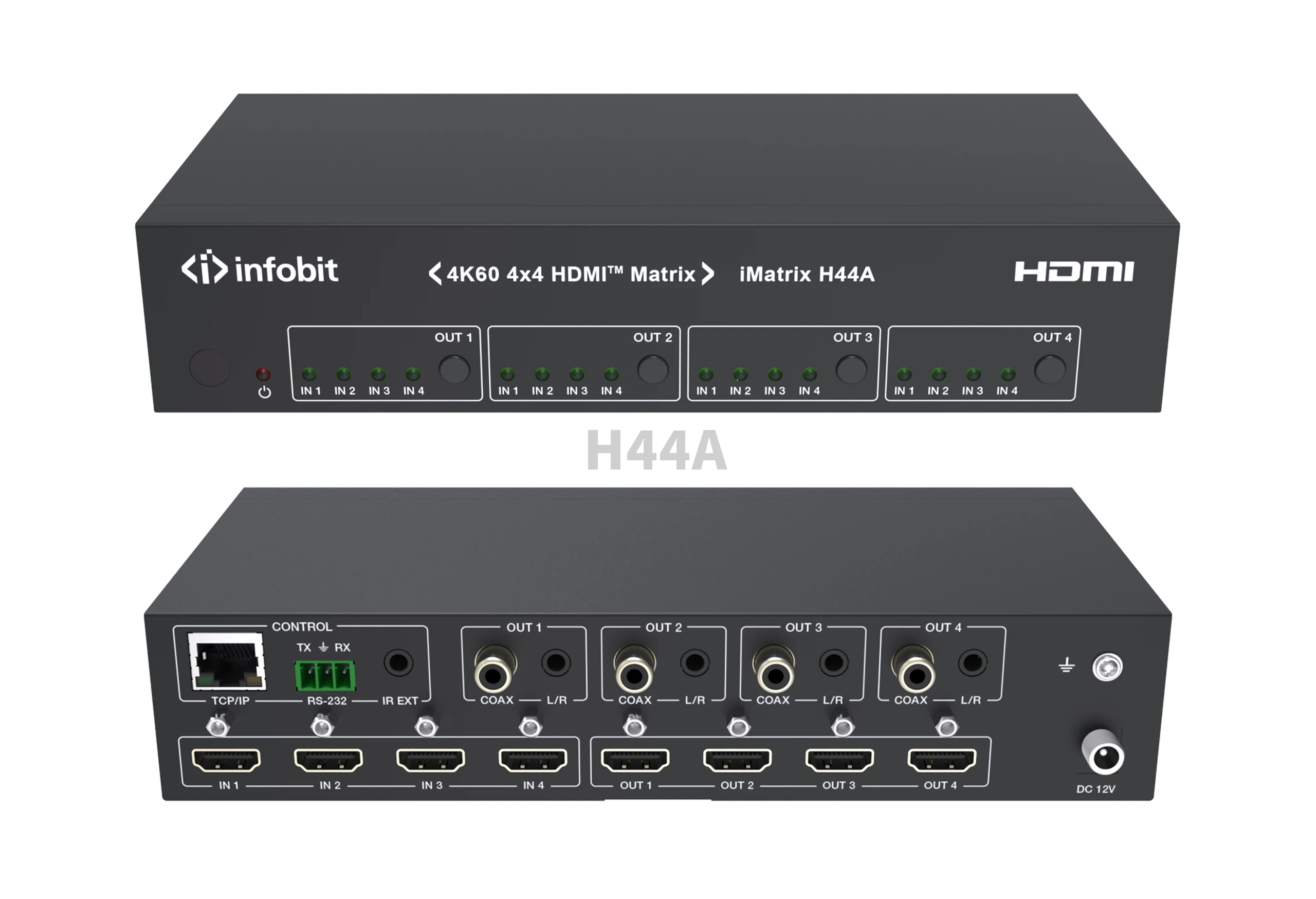

4K60 HDMI 4x4, 8x8, 16x16 Matrix Switchers with Audio
HDMI 2.0b, HDCP 2.2, and HDCP 1.4 compliant
Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI inputs/ outputs
Support 18Gbps video bandwidth
Dolby Vision, HDR10+, and HLG
Support 4K to 1080P Down Scaler for each output port
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
Audio de-embedded is supported via analog and coax ports
ARC, CEC, and smart EDID management
1U rack-mounted design with front panel OLED display
Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI
![](https://www.infobitav.com/wp-content/uploads/2021/01/iMatrix-HA-series-网页设计1.27-02-.jpg)

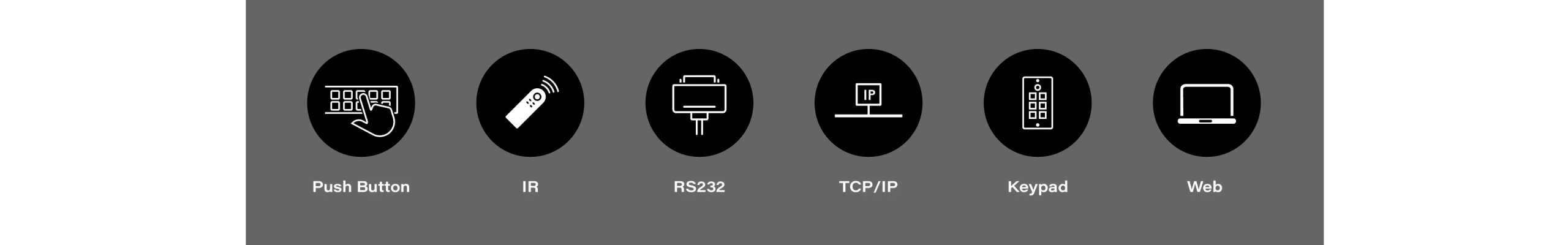

Multiple Control
Push Buttons, IR remote, RS232, TCP/IP, and Web GUI control.
The front-panel LCD screen provides real-time I/O connection status
![](https://www.infobitav.com/wp-content/uploads/2021/01/iMatrix-HA-series-网页设计1.27-03-.jpg)
Fully support Audio
It supports audio de-embedded from each source and ARC, CEC, etc.
![](https://www.infobitav.com/wp-content/uploads/2021/01/iMatrix-HA-series-网页设计1.27-05-.jpg)
Application
The INFOBIT iMatrix 4K60 HDMI matrix switchers w/ audio are used in broadcast, education, conference, home theater, control room and digital signage.
![](https://www.infobitav.com/wp-content/uploads/2021/01/iMatrix-HA-series-网页设计1.27-04-.jpg)
2K FHD TO 4K UHD
It supports crystal clear 4K60 UHD display and backwards compatible with 4K30, 1080p/120Hz and 180p 3D/60hz.

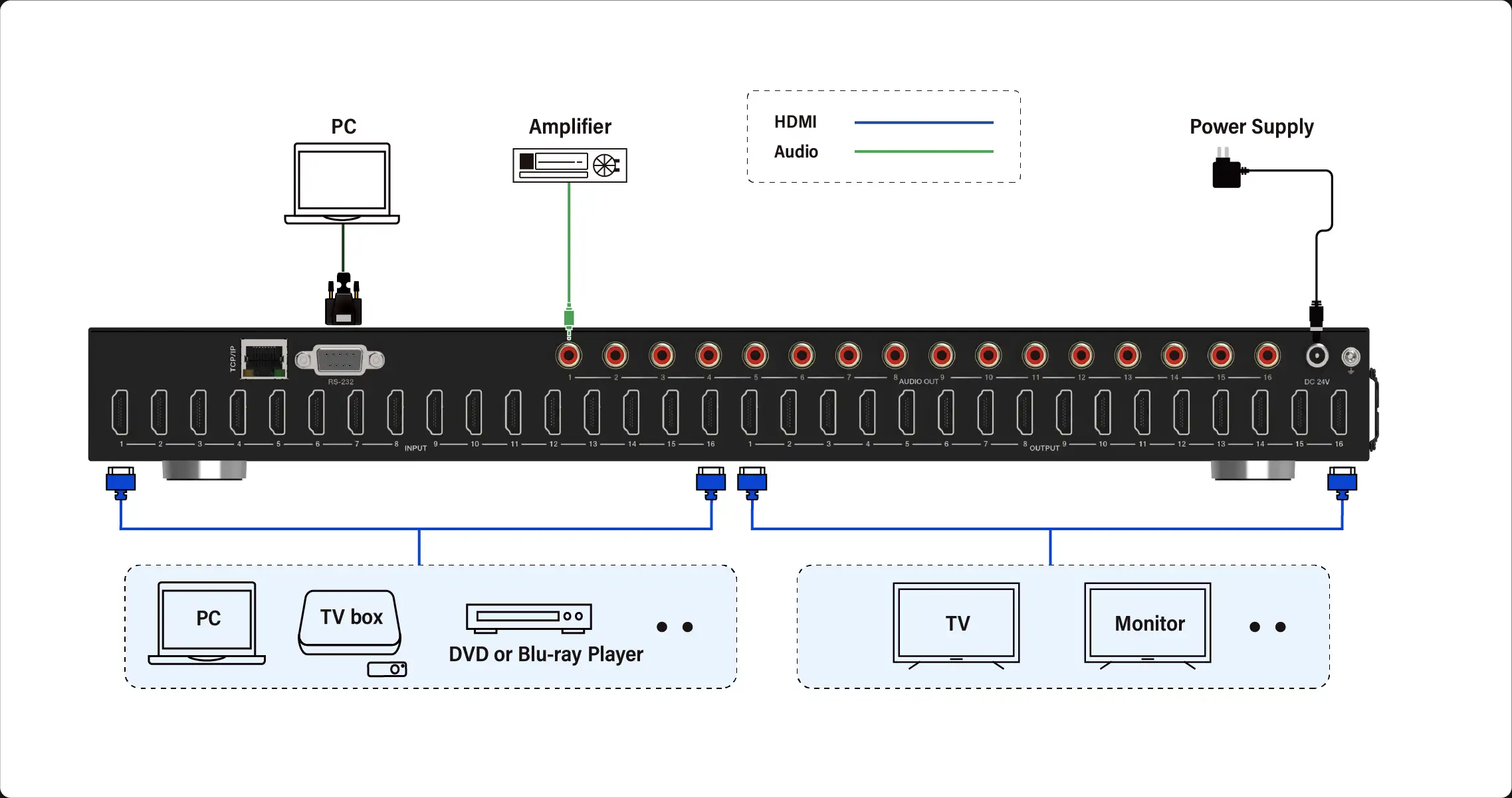

Diagram
![iMatrix HA HDMI 4K matrix switcher with audio iMatrix HA HDMI 4K matrix switcher with audio](https://www.infobitav.com/wp-content/uploads/2021/01/iMatrix-HA-series-网页设计1.27-06-01-.jpg)
Datasheet
Models | iMatrix H44A | iMatrix H88A | iMatrix H1616A |
Input Ports | 4×HDMI Type A [19-pin female] | 8×HDMI Type A [19-pin female] | 16×HDMI Type A [19-pin female] |
Output Ports | 4×HDMI Type A [19-pin female] 4×L/R audio out [3.5mm Stereo Mini-jack] 4×COAX audio out [RCA] |
8×HDMI Type A [19-pin female] 8×L/R Audio [3.5mm Stereo Mini-jack] 8×Coax Audio (RCA) |
16×HDMI Type A [19-pin female] 16×Coax Audio (RCA) |
HDMI Audio Formats (Pass-through) | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | |
L/R Audio Formats | PCM 2.0 | No | |
Coax Audio Formats | LPCM 2.0, Dolby Digital / Plus, DTS 5.1 | ||
HDMI Compliance | HDMI 2.0b | ||
HDCP Compliance | HDCP 2.2/1.x | ||
Video Bandwidth | 18Gbps | ||
Video Resolution | Up to 4K2K@60Hz (4:4:4) | ||
Control Ports | 1x TCP/IP [RJ45] 1x RS-232[3-pin phoenix connector] 1x IR EXT [3.5mm Stereo Mini-jack] |
||
Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 | ||
Color Depth | 8-bit, 10-bit, 12-bit | ||
HDR formats | HDR10,HDR10+,Dolby Vision, HLG | ||
ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) | ||
Housing | Metal Enclosure | ||
Color | Black | ||
Dimensions | 220mm (W)×105mm (D)×44mm (H) | 440mm (W)×200mm (D)×44.5mm (H) | 440mm (W)×200mm (D)×44mm (H) |
Weight | 792g | 2.8kg | 3.1kg |
Power Supply | Input: AC100~240V 50/60Hz Output: DC12V/2.5A (Locking connector) |
Input: AC 100 – 240V 50/60Hz Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified) |
Input: AC 100 – 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified) |
Power Consumption | 10W (max), 1.56W (Standby) | 43W | 76.8W |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | -10°C ~ 45°C / 14°F ~ 113°F | |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
Relative Humidity | 20~90% RH (non-condensing) | ||
Resolution/ Cable length | 4K60 – 10ft / 3M; 4K30 – 32ft / 10M ; 1080P60 – 50ft / 15M The use of a “Premium High-Speed HDMI” cable is highly recommended. |
4K60 – 16ft / 5M; 4K30 – 32ft / 10M ; 1080P60 – 50ft / 15M The use of a “Premium High-Speed HDMI” cable is highly recommended. |
Download
-
iMatrix HA series Datasheet_V1.0.pdf
0.06M 29-01-2021 -
iMatrix H44A Datasheet_V1.0.pdf
0.26M 29-01-2021 -
iMatrix H88A Datasheet-V1.0.pdf
0.21M 29-01-2021 -
iMatrix H1616A Datasheet-V1.0.pdf
0.22M 29-01-2021 -
iMatrix H44A User Manual_V1.0.pdf
0.84M 29-01-2021 -
iMatrix-H88A User Manual_V1.0.pdf
8.84M 31-10-2022 -
iMatrix-H1616A User Manual_V1.0.pdf
11.05M 29-01-2021 -
iMatrix H44A-H88A-H1616A ASCII Commands_V1.00.05.xlsx
0.05M 29-01-2021
