iMatrix HAM

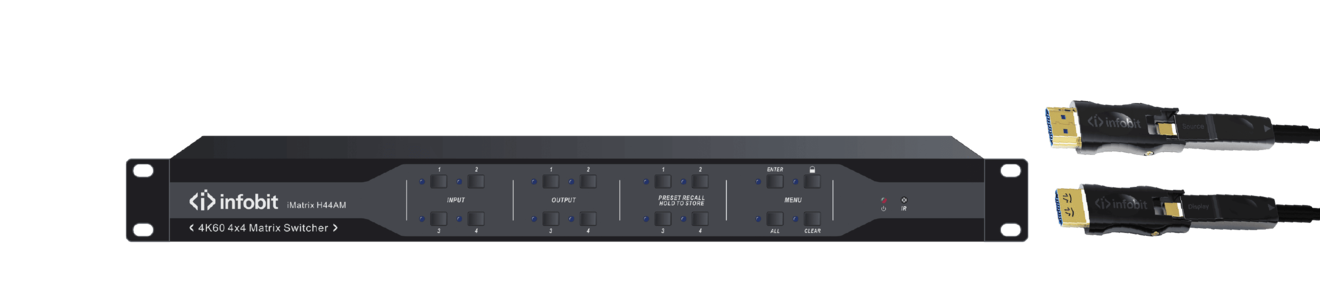

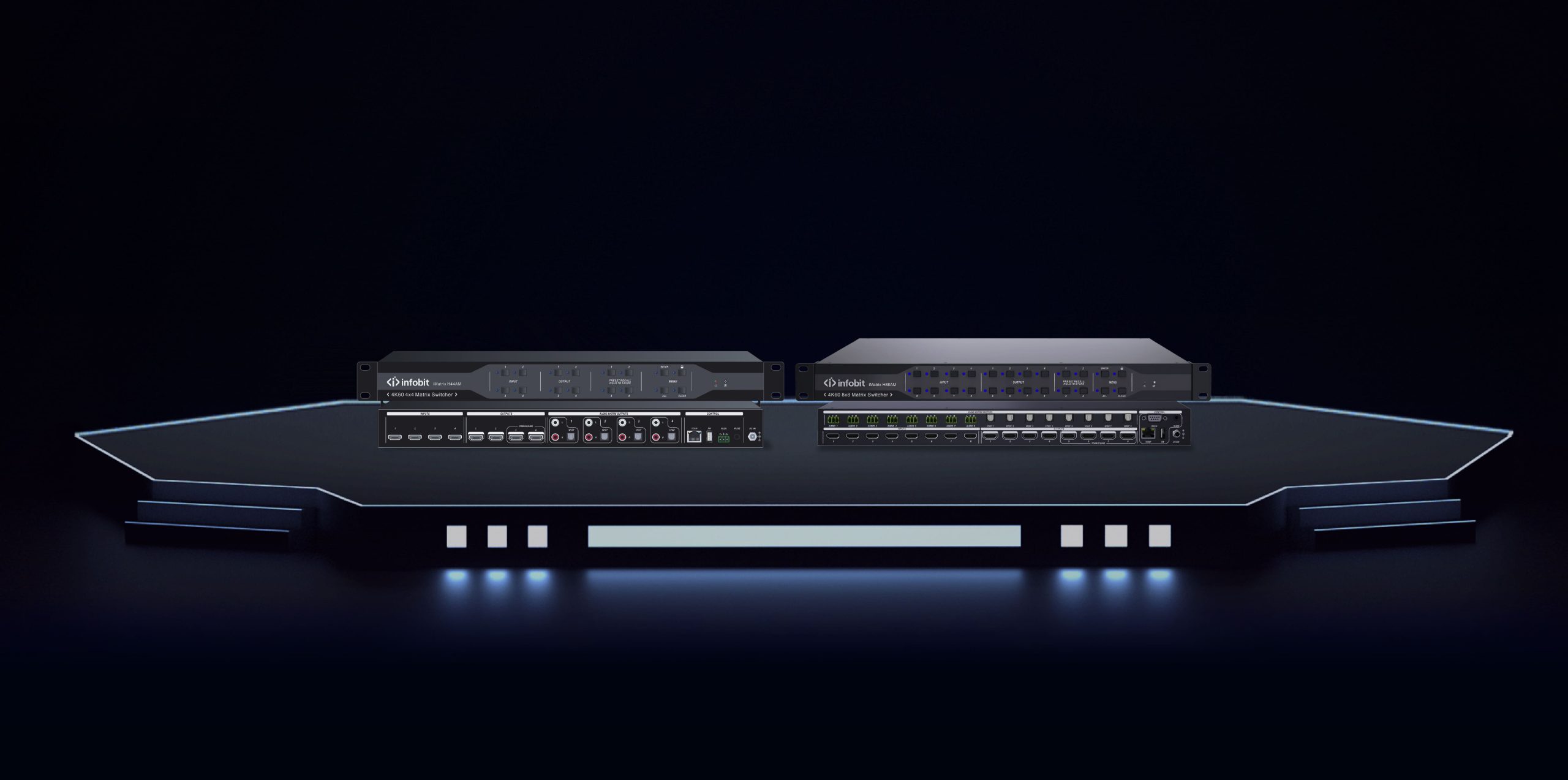

HDMl 4K60 Matrix Switcher with Audio Matrix
4x4, 8x8 inputs/ outputs

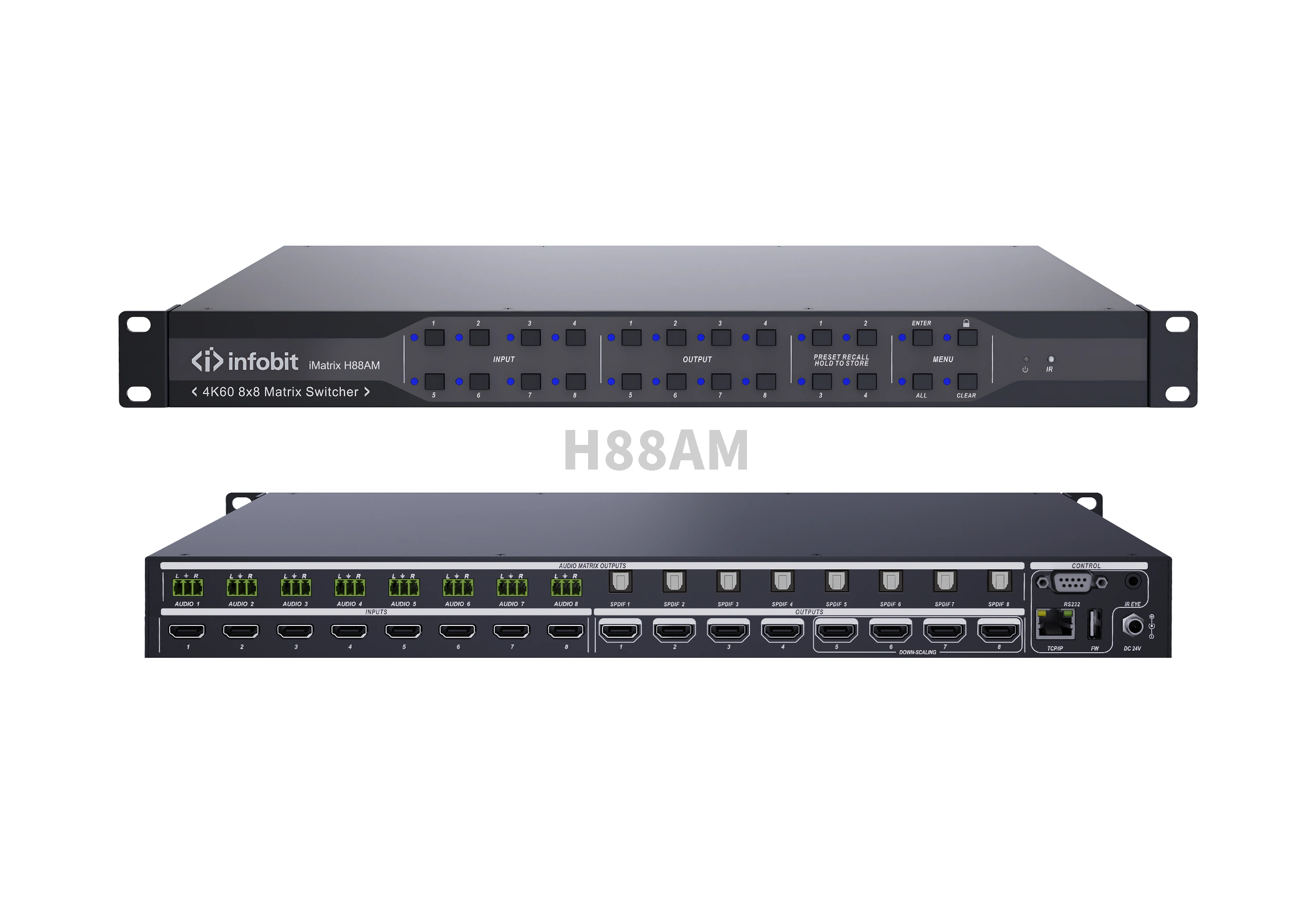

iMatrix H44AM/H88AM
iMatrix H44AM/H88AM
iMatrix H44AM/H88AM
iMatrix H44AM/H88AM
iMatrix H44AM/H88AM

4×4, 8×8 HDMI 2.0 Matrix Switcher with Audio Matrix/ Downscaling/ AOC Supported

4×4, 8×8 SPDIF+ L/R inputs, and outputs

Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant.

Audio Matrix, audio out can be de-embedded from arbitrary input or output.

Individual volume adjustment on each L+R output.

Supports 4K to 1080p down-scaling up to 4 outputs.

HDMI out provides 2.5W to power Active Optical Cable (AOC).

HDMI Output supports up to 5V500mA for AOC cable

Controllable by the front panel, IR, RS232, and TCP/IP.

Note: For H44AM, the last two outputs (outputs 3 and 4) have an auto down-scaling function.

For H88AM, the last four outputs (outputs 5, 6, 7, and 8) have an auto down-scaling function.

iMatrix H44AM/H88AM
iMatrix H44AM/H88AM
 Fully support Audio Switching
Fully support Audio Switching
With audio matrix, the audio output can be de-embedded from arbitrary input or output source.
Individual volume adjustment on each L+R output.
 Support AOC
Support AOC
The HDMI output provides 2.5W/ 5V500mA to power Active Optical Cable (AOC).
 2K FHD TO 4K UHD
2K FHD TO 4K UHD
It supports crystal clear 4K60 UHD display and backwards compatible with 4K30, 1080p/120Hz and 180p 3D/60hz.
 Application
Application
The INFOBIT iMatrix 4K60 HDMI matrix switchers w/ audio are used in broadcast, education, conference, home theater, control room and digital signage.
 Multiple Control
Multiple Control

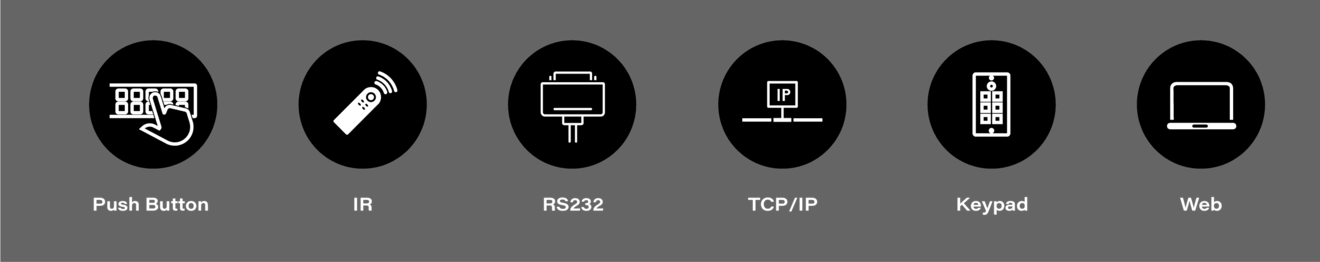

Push Buttons, IR remote, RS232, TCP/IP, and Web GUI control.
The front-panel LCD screen provides real-time I/O connection status
Datasheet
Model iMatrix H44AM iMatrix H88AM
Video Input (4) HDMI (8) HDMI
Input Connector (4) Type-A female HDMI (8) Type-A female HDMI
HDMI Input Resolution Up to 4K@60Hz 4:4:4, HDR Up to 4K@60Hz 4:4:4, HDR
Video Output (4) HDMI (8) HDMI
Output Connector (4) Type-A female HDMI, (8) Type-A female HDMI
HDMI Output Resolution Up to 4K@60Hz 4:4:4, HDR10, and Dolby Vision Up to 4K@60Hz 4:4:4, HDR10, and Dolby Vision
HDMI Output Supports up to 5V500mA for AoC cable Supports up to 5V500mA for AoC cable
HDMI Version Up to 2.0 Up to 2.0
HDCP Version Up to 2.3 Up to 2.3
HDMI Audio Signal LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through.      LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through.
Output (4) Digital SPDIF audio (8) Digital SPDIF audio
Output Connector (4) Toslink connectors (8) Toslink connectors
Digital SPDIF Audio Format Supports PCM, Dolby Digital, DTS, DTS-HD Supports PCM, Dolby Digital, DTS, DTS-HD
Frequency Response 20 Hz to 20 kHz, ±1dB 20Hz to 20KHz,±1dB
Max Output Level ±0.05dBFS ±0.05dBFS
THD+N < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level) < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)
SNR > 90dB, 20Hz-20 kHz bandwidth > 90dB, 20Hz-20KHz bandwidth
Crosstalk Isolation < -70 dB, 10 kHz sine at 0dBFS level (or max level before clipping) < -70 dB, 10 kHz sine at 0 dBFS level (or max level before clipping)
Noise -90dB -90dB
Output (4) Analog L/R Audio (8) Analog L/R Audio
Output Connector (4) L&R (RCA) (8) L&R (RCA)
Digital SPDIF Audio Format PCM 2CH PCM 2CH
Frequency Response 20 Hz to 20 kHz, ±1dB 20 Hz to 20 kHz, ±1dB
Max Output Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316 mV) nominal consumer line level signal 2.0Vrms ± 0.5dB. 2 V = 16 dB headroom above -10dBV (316 mV) nominal consumer line level signal
THD+N < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level) < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)
SNR > 80dB, 20Hz-20 kHz bandwidth > 80dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation < -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping) < -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping)
L-R level deviation < 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping)
< ± 0.5dB 20Hz – 20KHz
< 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping)
Output load capability 1k ohm and higher (supports 10x paralleled 10k ohm loads) 1k ohm and higher (supports 10x paralleled 10k ohm loads)
Noise -80dB -80dB
Control port (1) IR EYE, (1) RS232, (1) FIRMWARE, (1) TCP/IP (1) IR EYE, (1) RS232, (1) FIRMWARE, (1) TCP/IP
Control Connector (1) 3.5mm jack, (1) 3-pin terminal block, (1) USB-A, (1) RJ45 (1) 3.5mm jack, (1) 3-pin terminal block, (1) USB-A, (1) RJ45
Transmission Distance 4K/60Hz/444 5m, 4K/60Hz/420 10m, 1080P 15m 4K/60Hz/444 5m, 4K/60Hz/420 10m, 1080P 15m
Bandwidth 18Gbps 18Gbps
Operation Temperature -5℃ ~ +55℃ -5℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃ -25℃ ~ +70℃
Relative Humidity 10% ~ 90% 10% ~ 90%
External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A Input: AC 100V~240V, 50/60Hz; Output : 24V DC 2.71A
Power Consumption 18.3W 24W
Dimension (W*H*D) 436.4mm*44mm*236mm 436.4mm*44mm*236mm
Net Weight 2.6kg 3kg

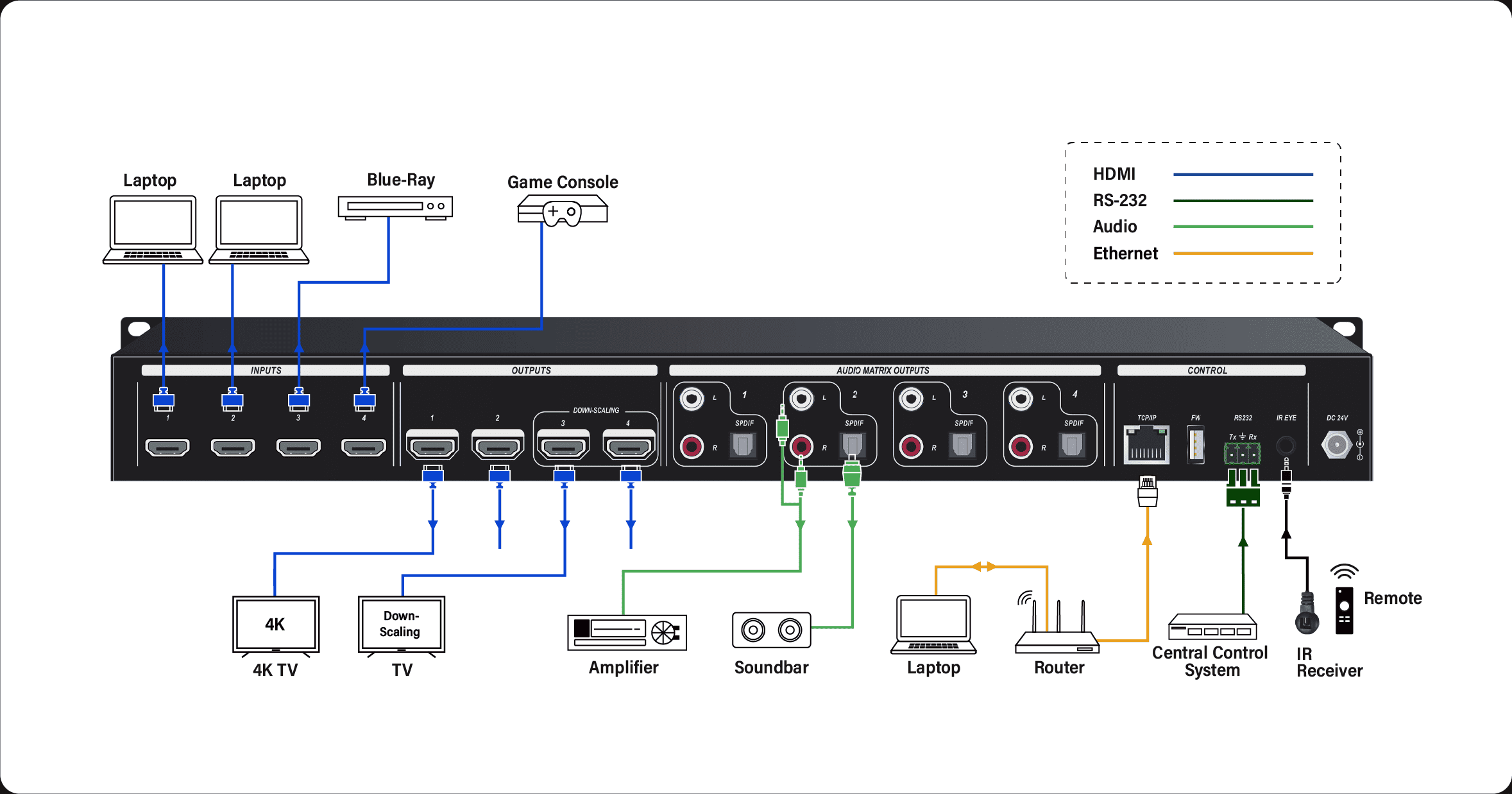

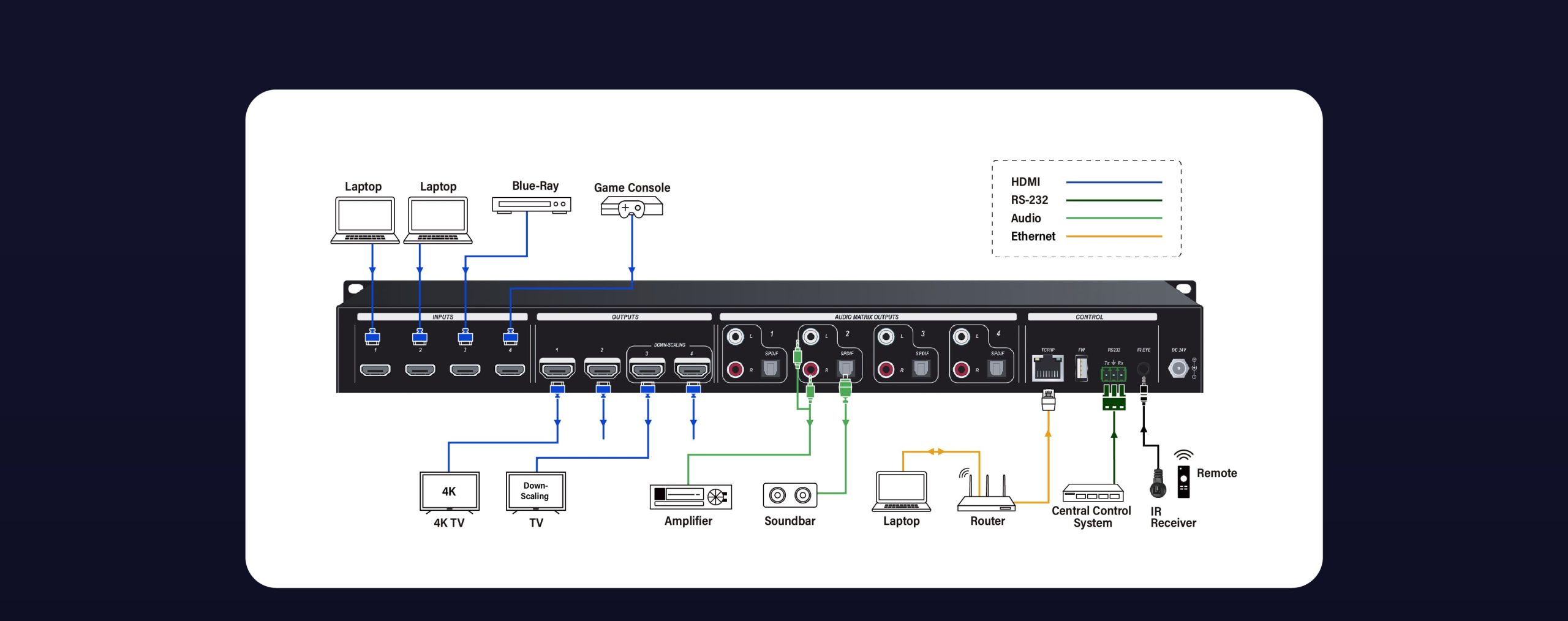

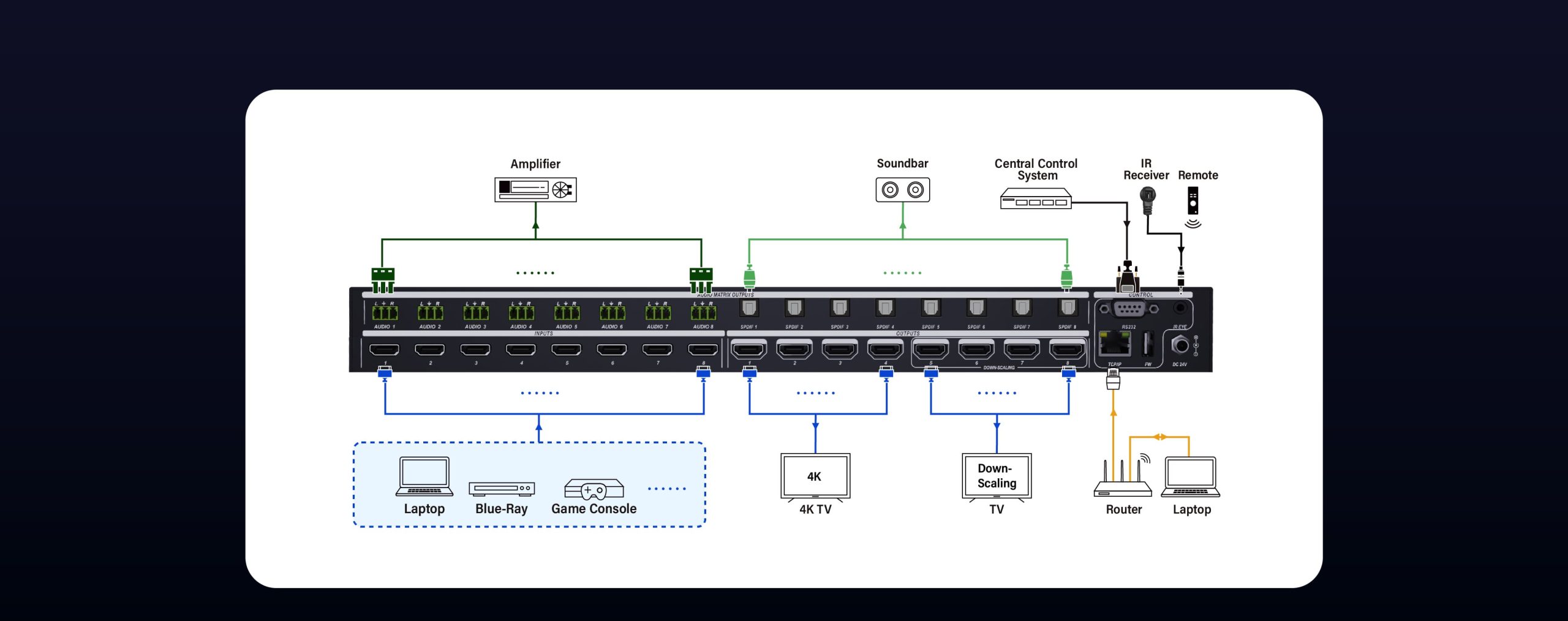

Diagram
Download
  • Datasheet_HAM series-V1.0.pdf
    0.07M
    2024-09-05
  • INFOBIT H44AM Datasheet_V2.0.pdf
    0.55M
    2025-03-06
  • INFOBIT datasheet H88AM_V1.0.pdf
    0.58M
    2024-09-05
  • INFOBIT User Manual H44AM V1.2.pdf
    1.83M
    2025-03-06
  • INFOBIT-iMatrix-H88AM User Manual_V1.0.pdf
    1.57M
    2024-09-05
