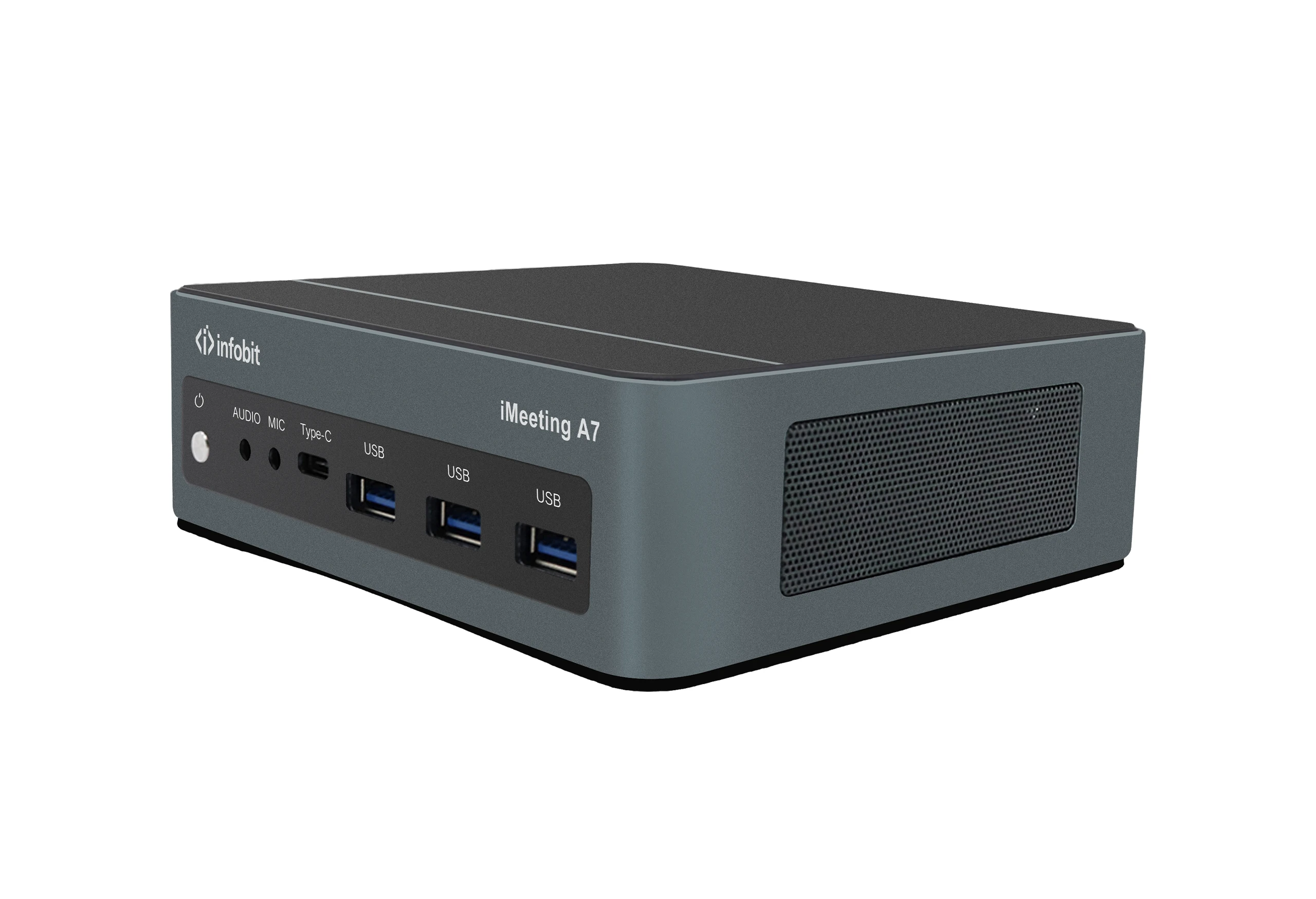

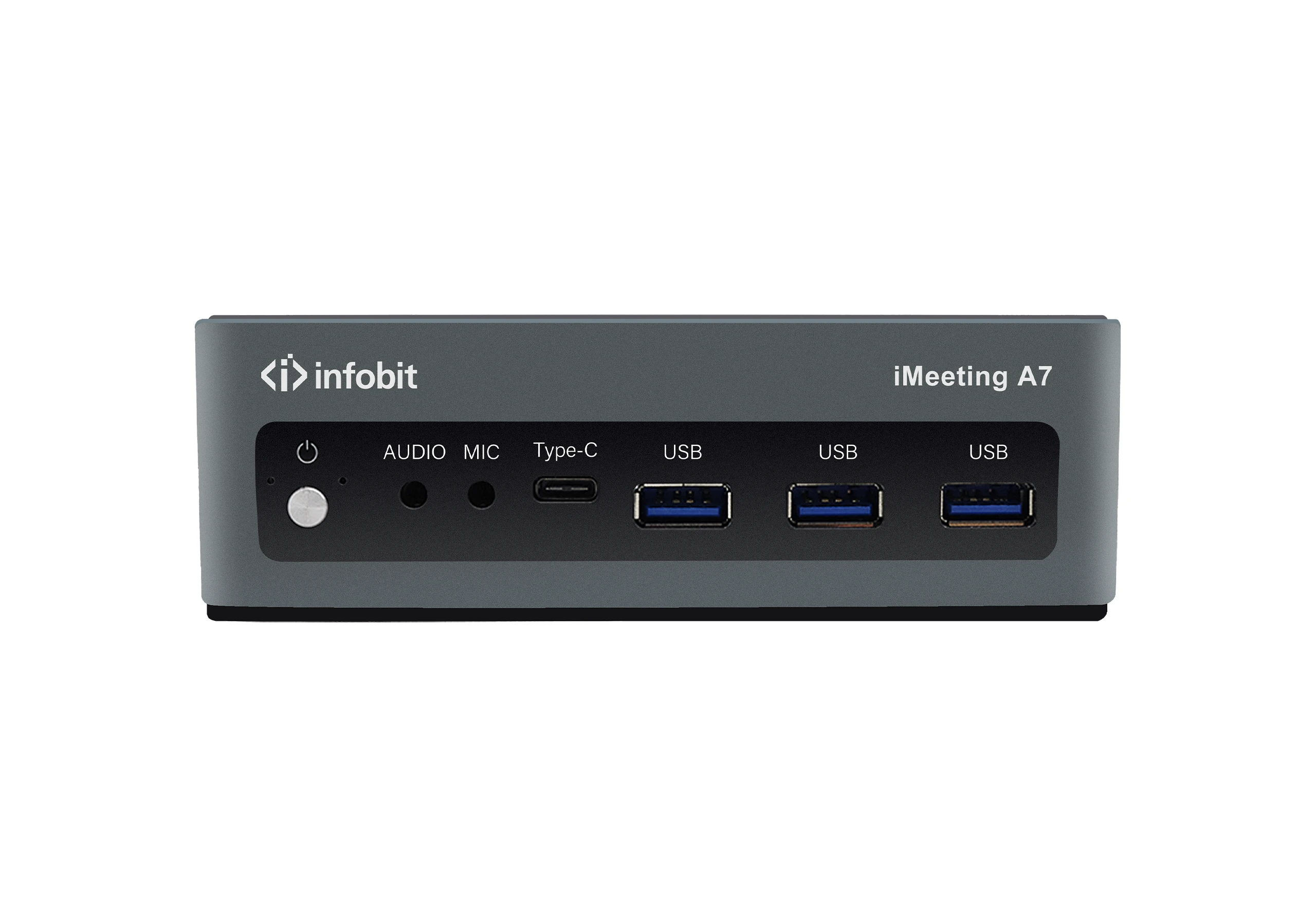

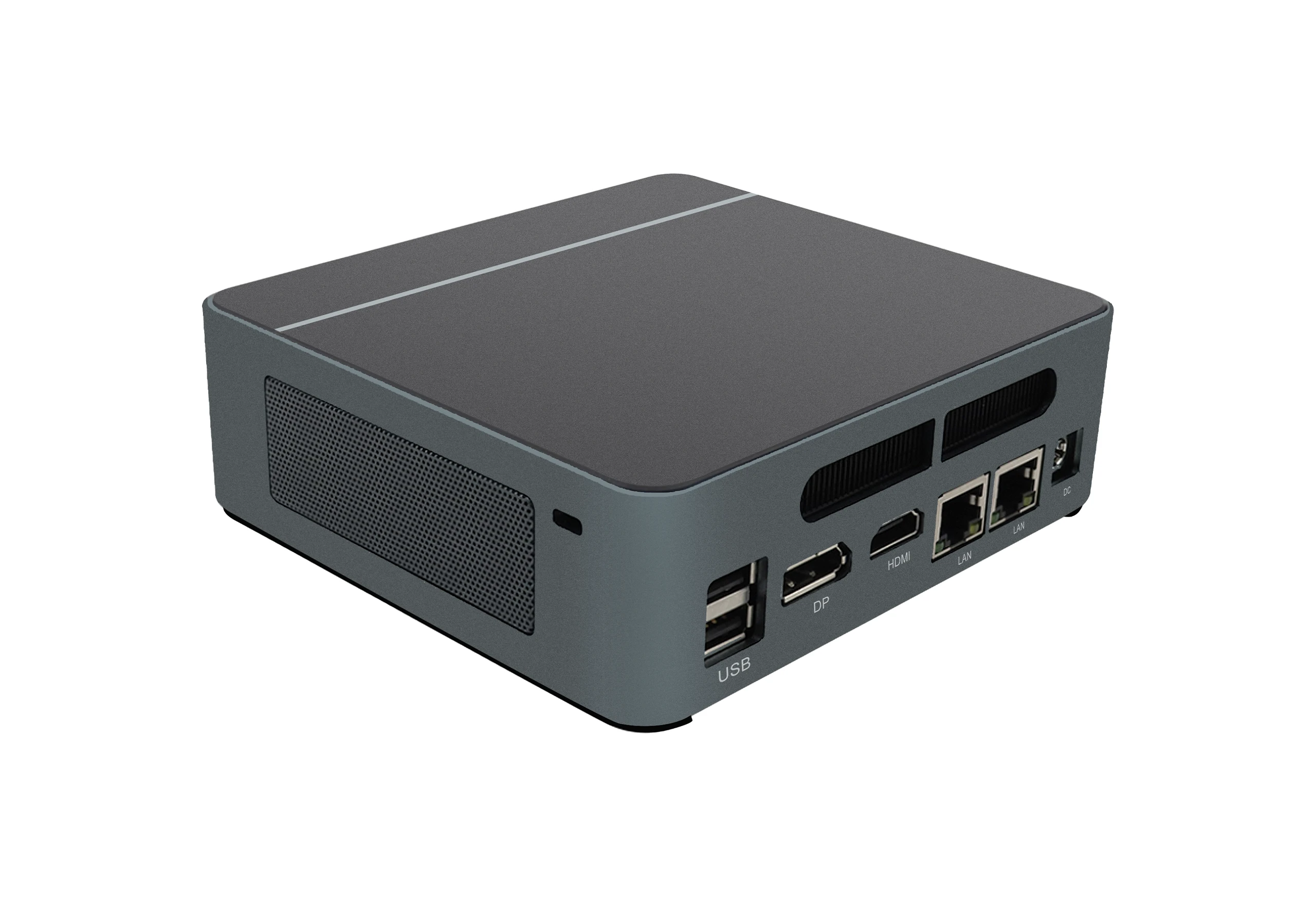

iMeeting A7
1- 12th Generation INTEL i7 Core Processors
2- Windows 11 Pro 64 BIT OEM, Activated
3- 2* SODIMM DDR4 memory slot, 16GB RAM
4- 1* M.2 2280 NVME/ PCIE3.0x4/SATA SSD
5- 256G NVME SSD
6- 1* 2.5'' SATA3.0 HDD/SSD
7- Bluetooth 4 and WIFI 6
8- 1* DP 8K60Hz
9- 1* HDMI 2.0 4K60Hz
10- 1* USB Type C Thunderbolt 4
11- 2* USB 2.0, 3* USB 3.0
12- 1x 3.5mm Audio, 1x 3.5mm Mic
13- 2x RJ45 Ethernet ports
Tailored for your meeting room
With 2* USB 2.0 and 3* USB 3.0 ports which connected to your camera, microphone, interactive display and more and more USB devices in your meeting room.

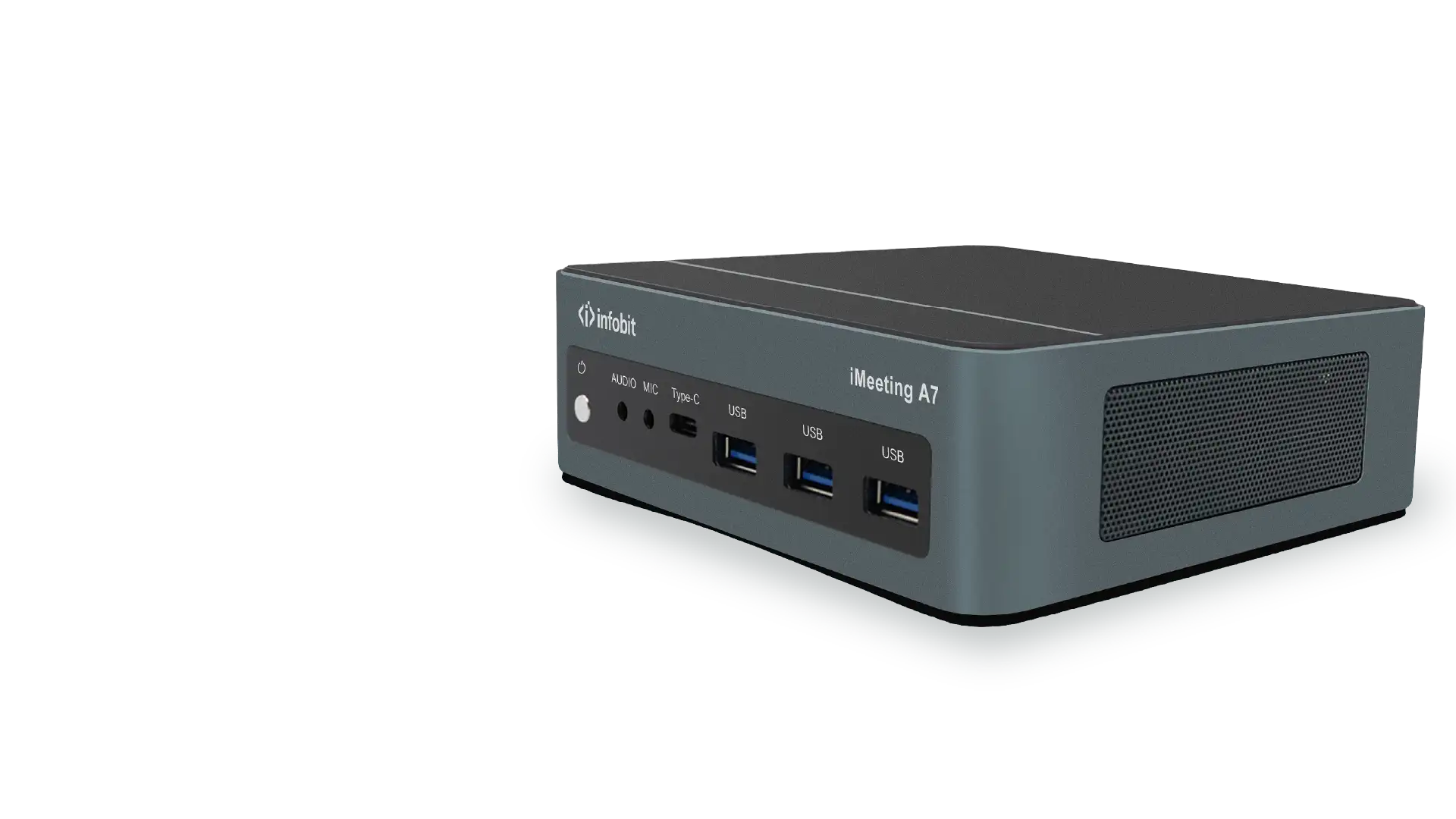

RAPID COOLING
With a built-in turbo fan, dual air inlets and outlets, which ensure heating dissipation efficiency
no matter where you install the mini PC at back of screen of in a limited space.
MORE FEATURES
Triple-screen Displaying
1x DP 1.4 port supports 8K60Hz.
1x HDMI 2.0 ports support 4K60Hz.
1x USB C port support 4K60Hz.

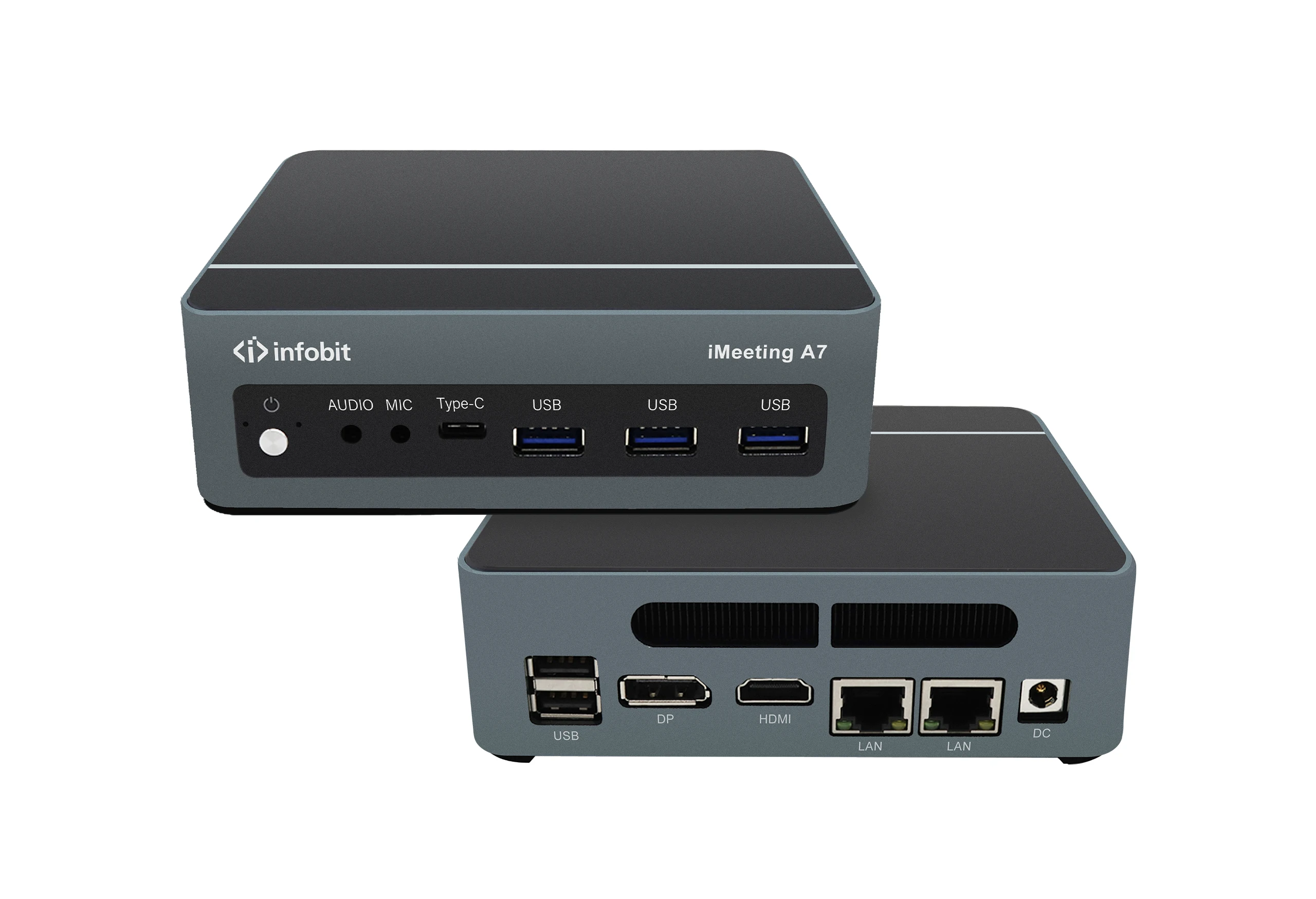

PORTS
Datasheet
| Model | iMeeting A7 |
| Name | Intel i7 Mini PC |
| CPU | Intel Core i7-1255U |
| TDP | 15W |
| BOIS | American Megatrends Inc. 5.12 |
| Chipset | Raptor Lake |
| Memory | 2 x SO-DIMM DDR5 Slot, 16GB DDR5 4800MHz/ 5200MHz |
| OS | Windows 11 |
| PXE | YES |
| Audio | Intel High Defini�on Audio Controller |
| Network | 2 x Realtek RTL8111H Gigabit Ethernet Controller, 10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel® Iris® Xe Graphics eligible |
| Storage | 2 x M.2 slot for NVME SSD (SSD1 supports M.2 SATA ), 256G |
| Switch | 1 x Power On/Off Switch |
| Display | 1 x HDMI 2.0, 1 x DP 1.4, 1 x USB Type-C |
| Power | 1 x 12V~19V DC In |
| LAN | 2 x RJ45 Giga Lan |
| USB | 3 x USB3.2(10Gbps), 2 x USB2.0 |
| Audio | 1 x MIC, 1 x SPK |
| WiFi Module | 1 x M.2 slot for Wi-Fi module |
| WiFi Antenna | 2 x inner RF cables and without antenna |
| Input | DC 100-240V AC/50-60Hz |
| Operating Temperature | -20/+60 Centigrade |
| Storage Temperature | -30/+70 Centigrade |
| Output | DC +12V~+19V |
| Relative Humidity | 10%~90% @30°C (non-condensing) |
| Size | 138x 126 x 44mm |
| Shell | Metel Grey Color Aluminum Alloy+ABS |
| Cooling Mode | All-copper turbo fan |
| Weight | 1.5KG |
| Functions | Wake On Lan, Auto Power On, RTC, PXE |
| Package | 1x Mini PC, 1x Power Adapter, 1x Power Cord, 1x Screws Bag |
