Daisy-chaining Digital Ceiling Microphone Array

Digital array microphone, 8 meters long-distance voice pickup

Innovative daisy-chaining, supporting up to 4 units cascaded.

Type-C interface, plug and play.

PoE interfaces, support long-distance power supply and data transmission.

Intelligent noise reduction, echo cancellation, reverberation suppression and full duplex communication

Intelligent voice tracking provides adaptability to different sound environments.

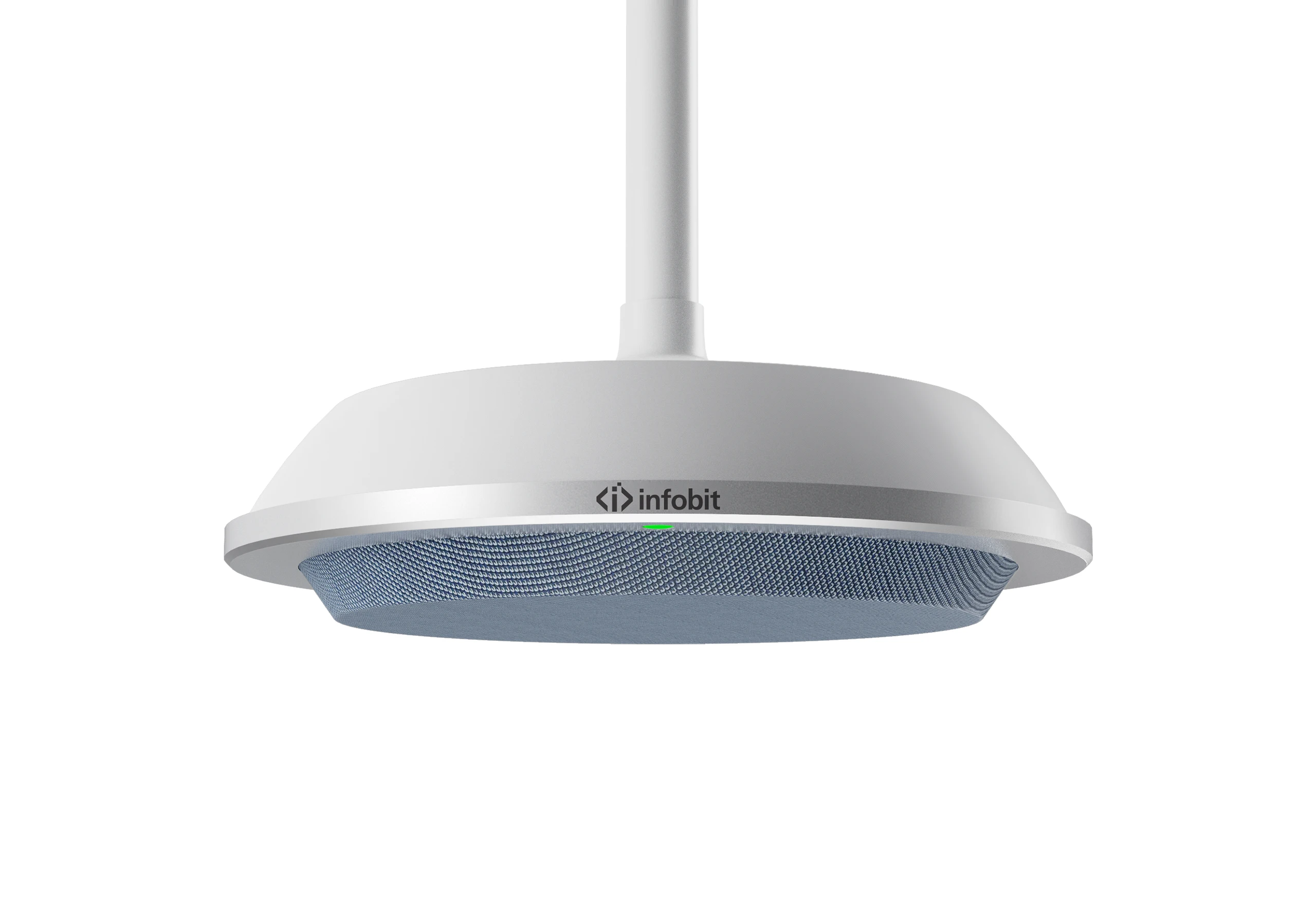

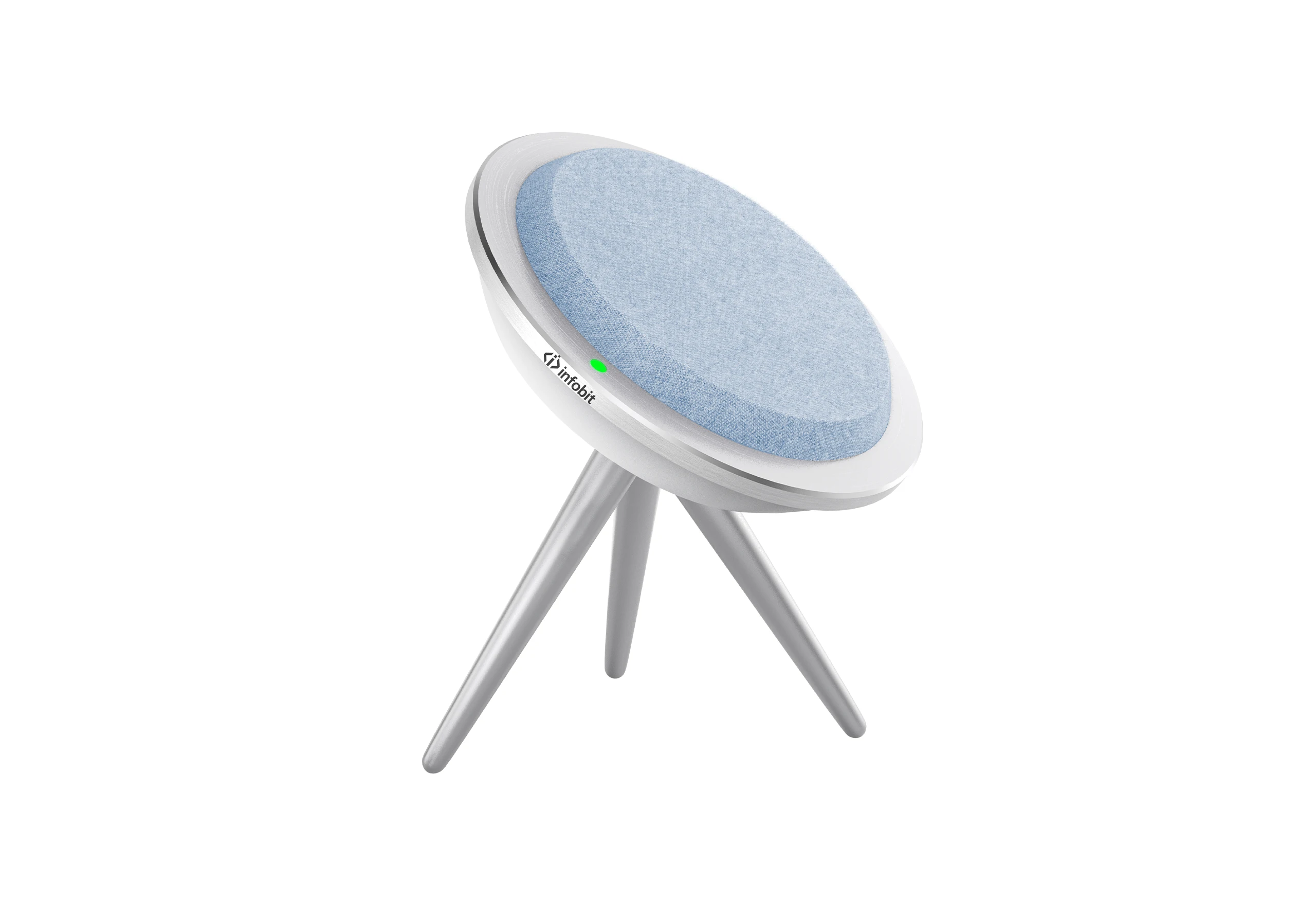

Available for ceiling mounting, wall mounting and desktop use.

Made of aluminum alloy, exquisite and durable design

Color: Milky Blue

iSpeaker CM710
iSpeaker CM710
iSpeaker CM710
iSpeaker CM710

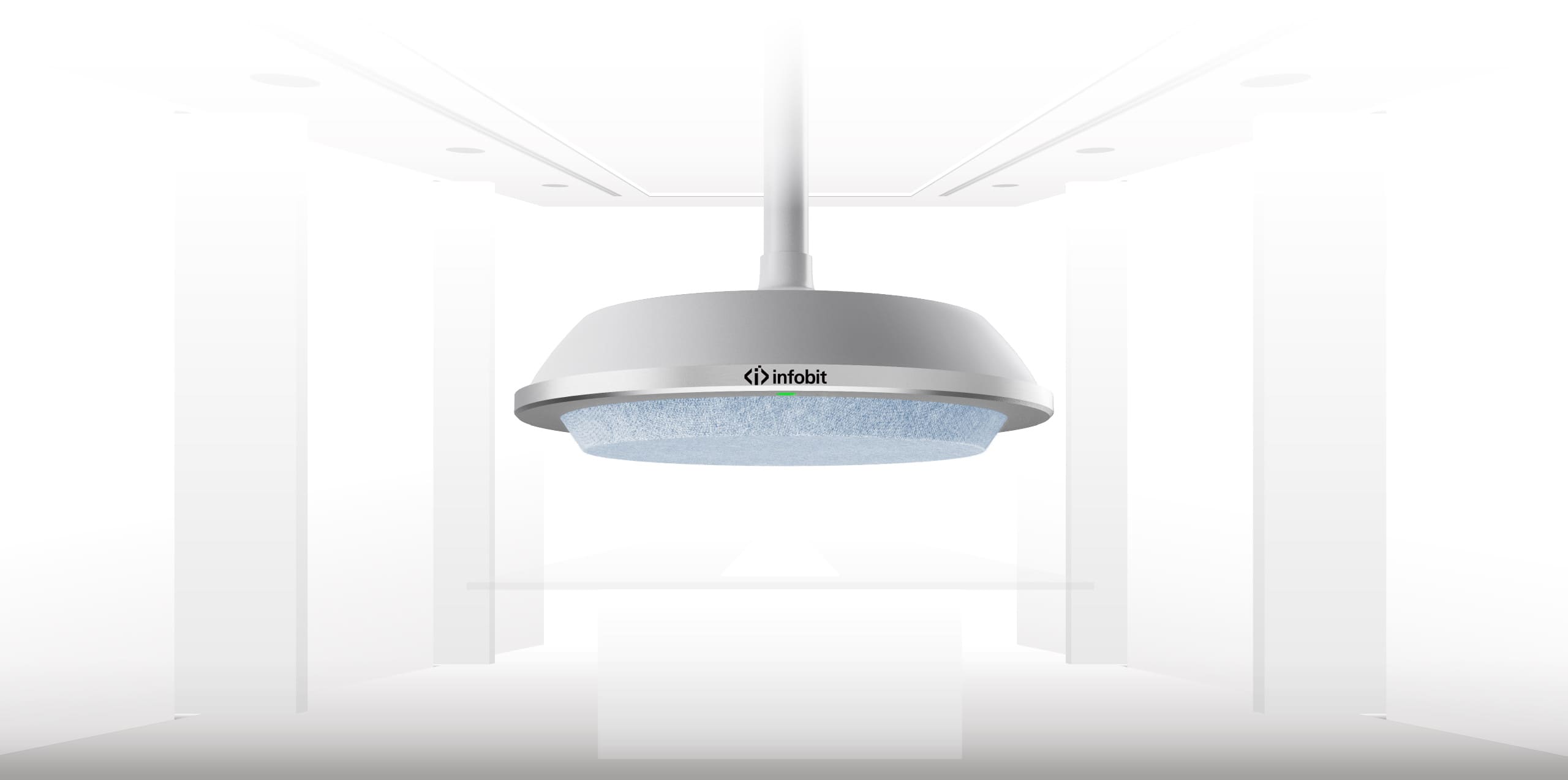

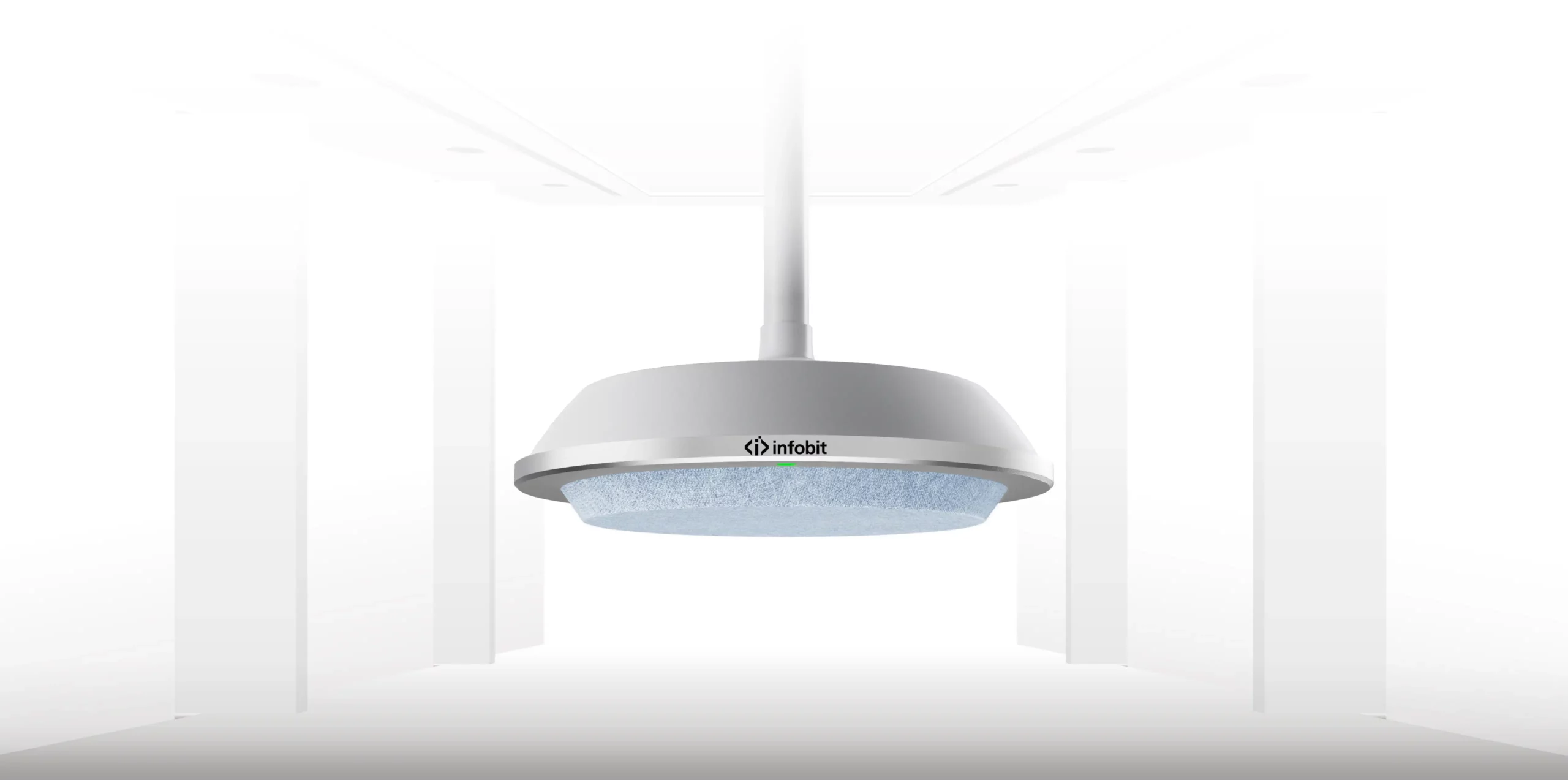

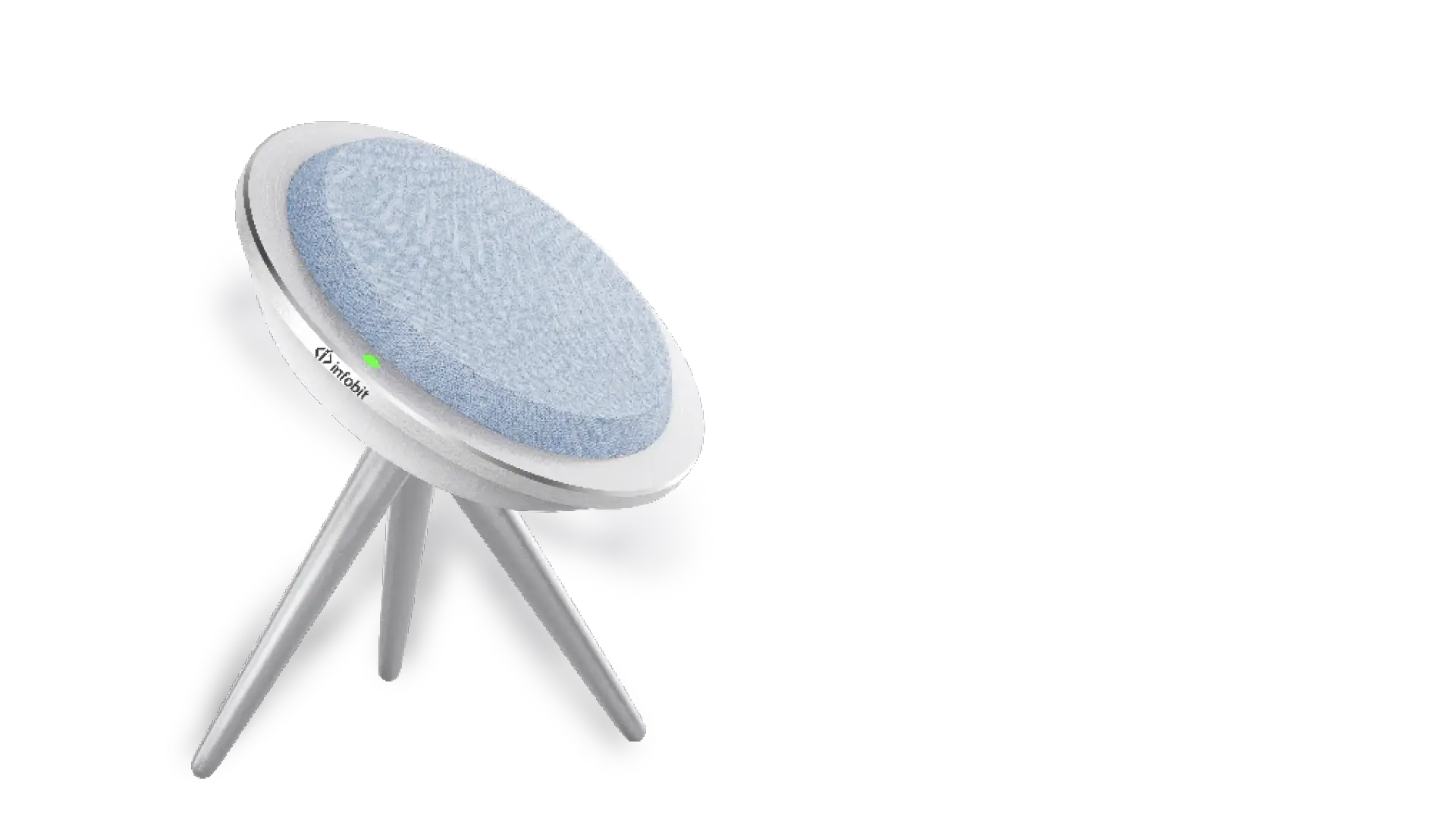

 Problem-solver Ceiling Microphone
Problem-solver Ceiling Microphone
The iSpeaker CM710 is an innovative microphone array that can be easily mounted on the ceiling of your conference room.
With 8m voice pickup range, it enables you to create the perfect high quality coverage for every meeting room.

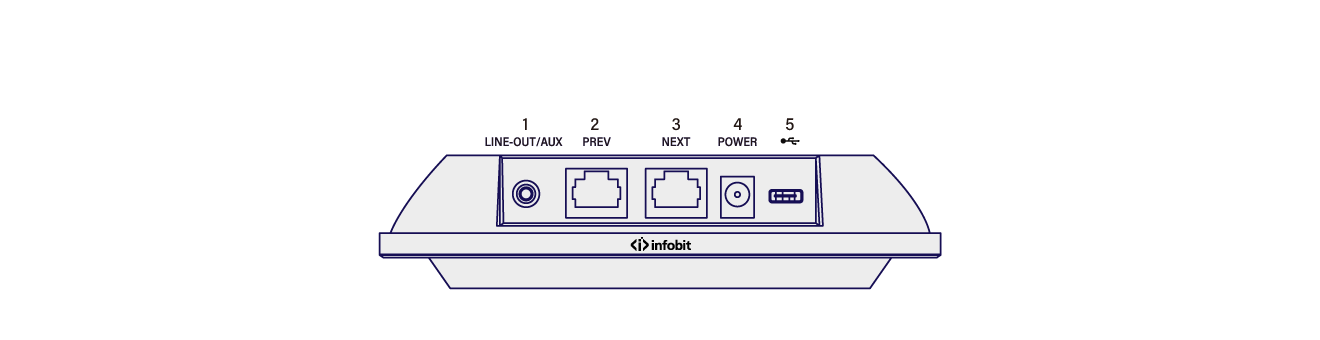

 Power over Ethernet PoE
Power over Ethernet PoE
The iSpeaker CM710 connect via either Power over Ethernet (PoE) or external power supply, making installation easier than ever. Running cables to power your products will never be an issue again.

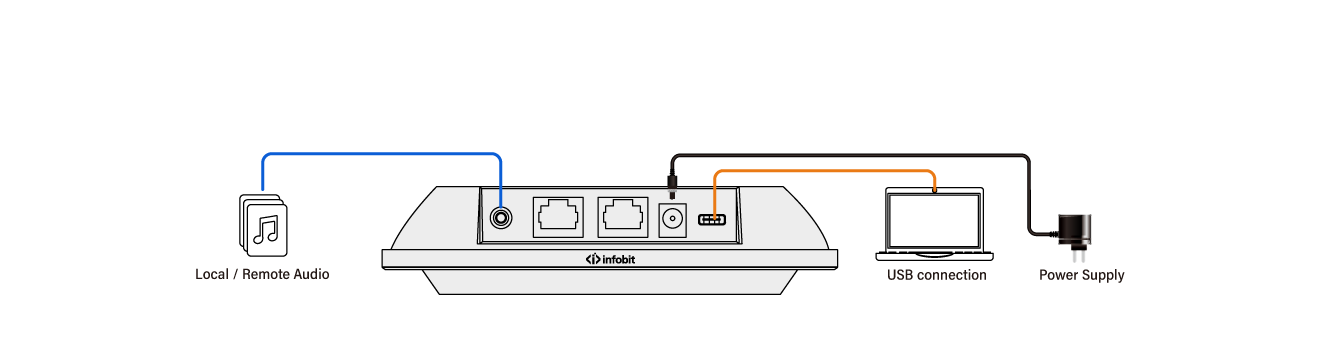

 Standalone mode (short distance)
Standalone mode (short distance)
If the user needs to place the iSpeaker CM710 at desktop or short distance to the PC,
a single unit iSpeaker CM710 can be connected to the PC directly through single USB cable.

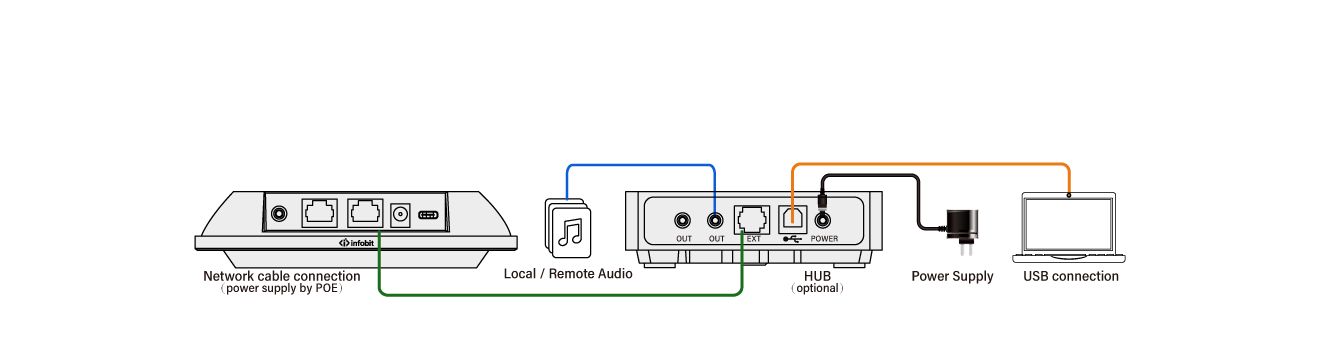

 Standalone mode (long distance with CM710-Hub)
Standalone mode (long distance with CM710-Hub)
The iSpeaker CM710-Hub is used to connect between the microphone and the PC by extending the distance up to 60 meters
via network cable which is much easier for installation.
 Hanging to flush-mount
Hanging to flush-mount
The microphone can be mounted to the ceiling or wall with
or without the rotatable mount bracket
(included in the package by default).
Datasheet
Model iSpeaker CM710
Name Daisy-chaining Digital Ceiling Microphone Array
Digital Array Microphone (Model: iSpeaker CM710)
Microphone Type  Omnidirectional Microphone
Built-in Mic  Built-in 10 Microphone Array
Pickup Distance  8 Meters
Sensitivity  -26 dBFS
Signal Noise to Ratio  >95 dB(A)
Frequency Response  20Hz – 16kHz
Samping Rate  32kHz Broadband Sampling
USB Protocol  Support UAC
3A Algorithm  AEC/ANS/AGC
Daisy Chain Max. 4 via RJ45

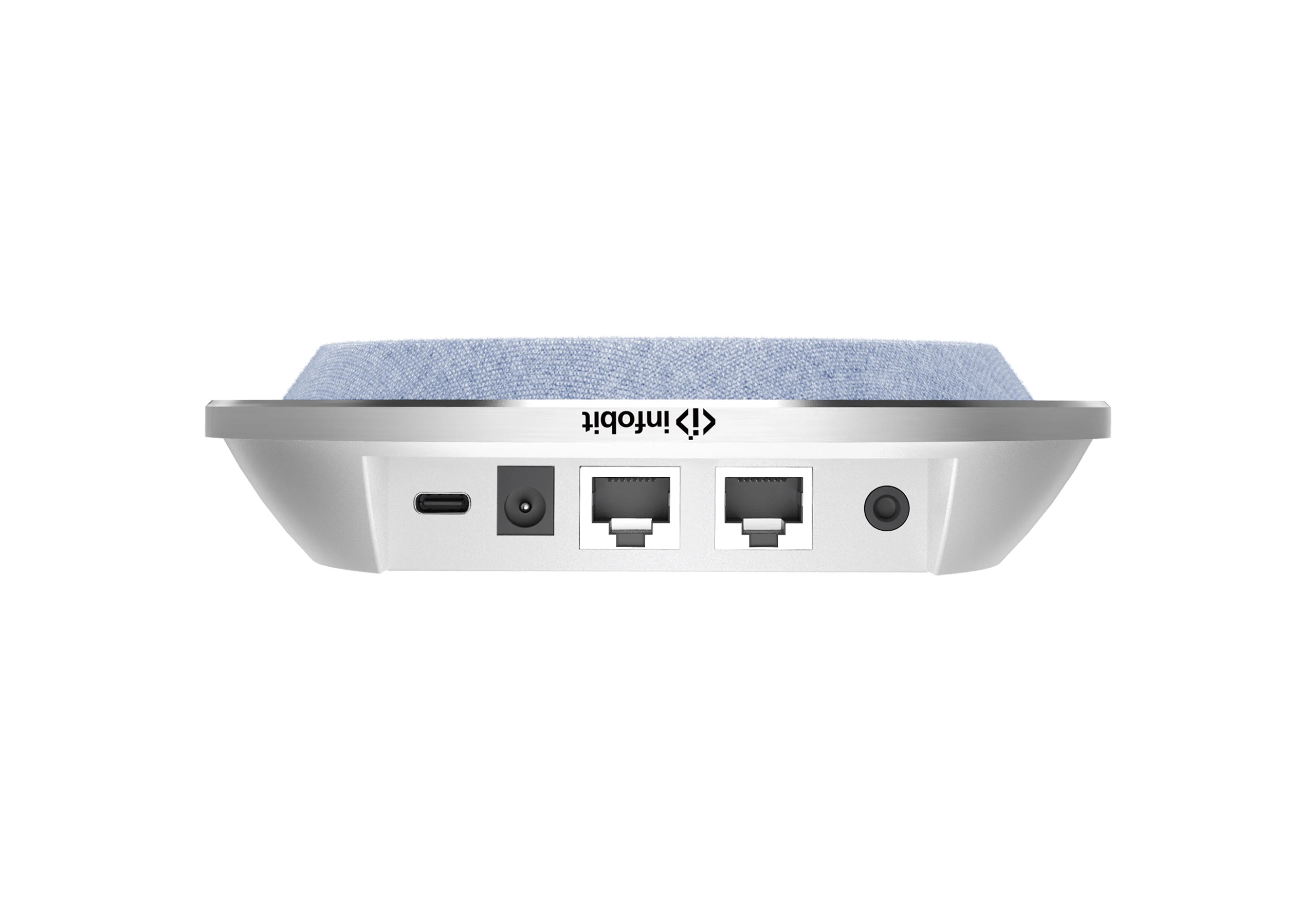

Interface  1x DC12V, 2x RJ45, 1x 3.5mm,1x Type-C
Digital Array Microphone HUB (Model: CM710-Hub)
Audio  Audio Long-distance Transmission, Audio Data Communication
Interface  2x 3.5mm OUT, 1x RJ45
USB Interface  1x USB-B
Power Supply  DC12V
Powered By  POE
Digital Array Microphone Mixer (Model: CM710-Mixer)
Audio  Audio Long-distance Transmission, Audio Data Communication
Interface  2x 3.5mm (1x AUX OUT; 1x IN/OUT), 2x RJ45 PoE, 1x Power, 1x USB C
USB Interface  1x USB-C
Power Supply  DC12V
Powered By  PoE

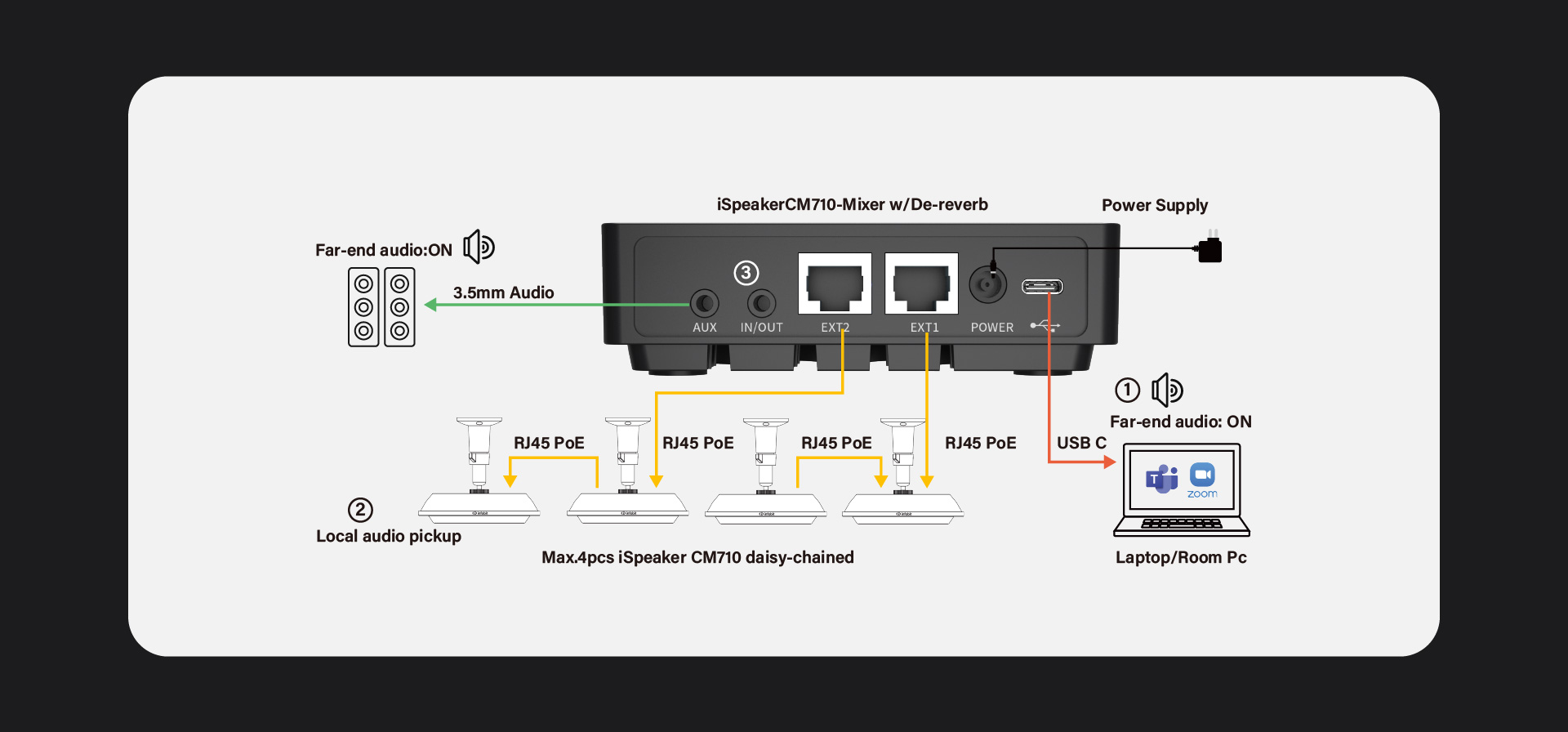

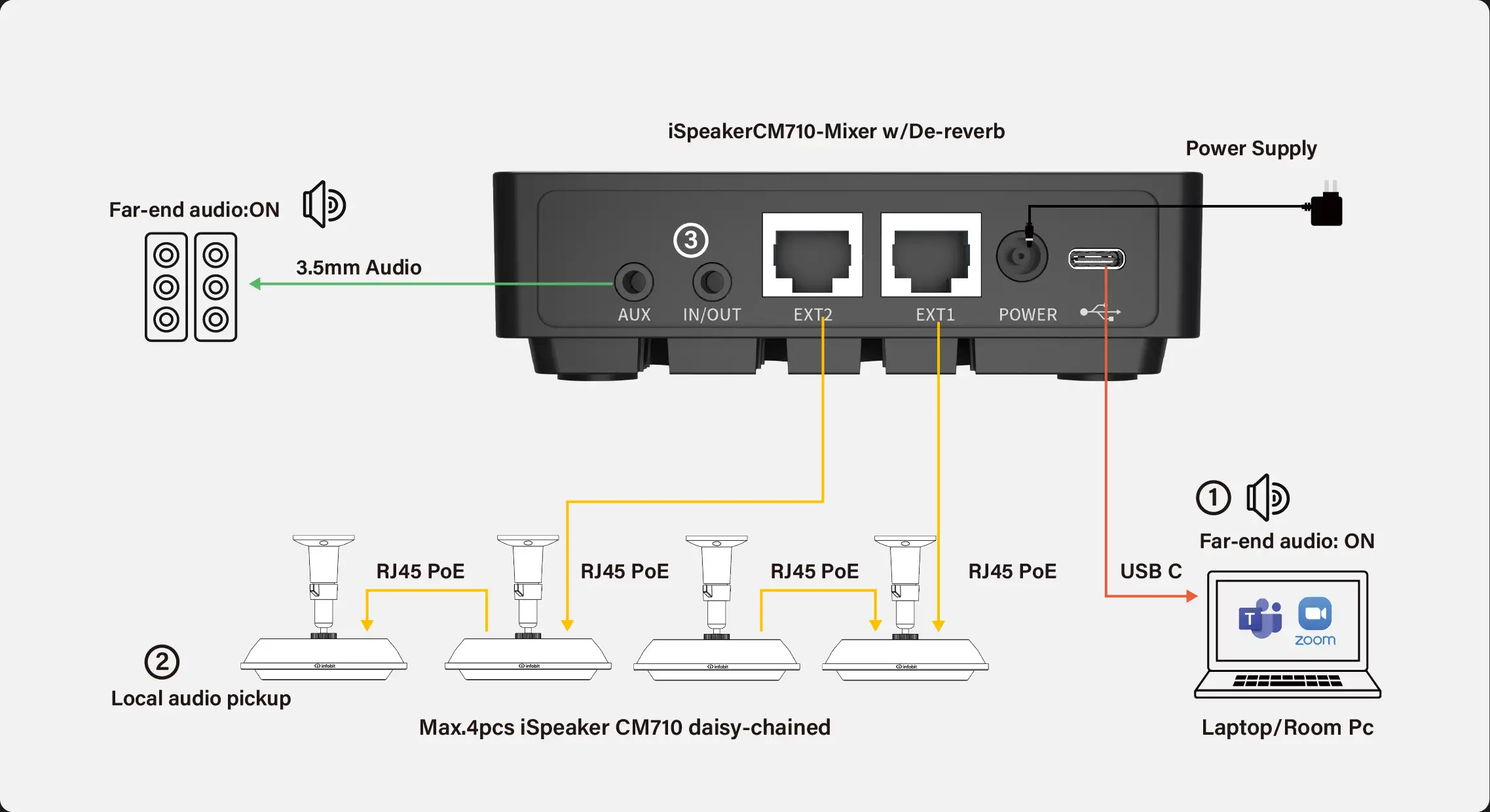

Diagram
