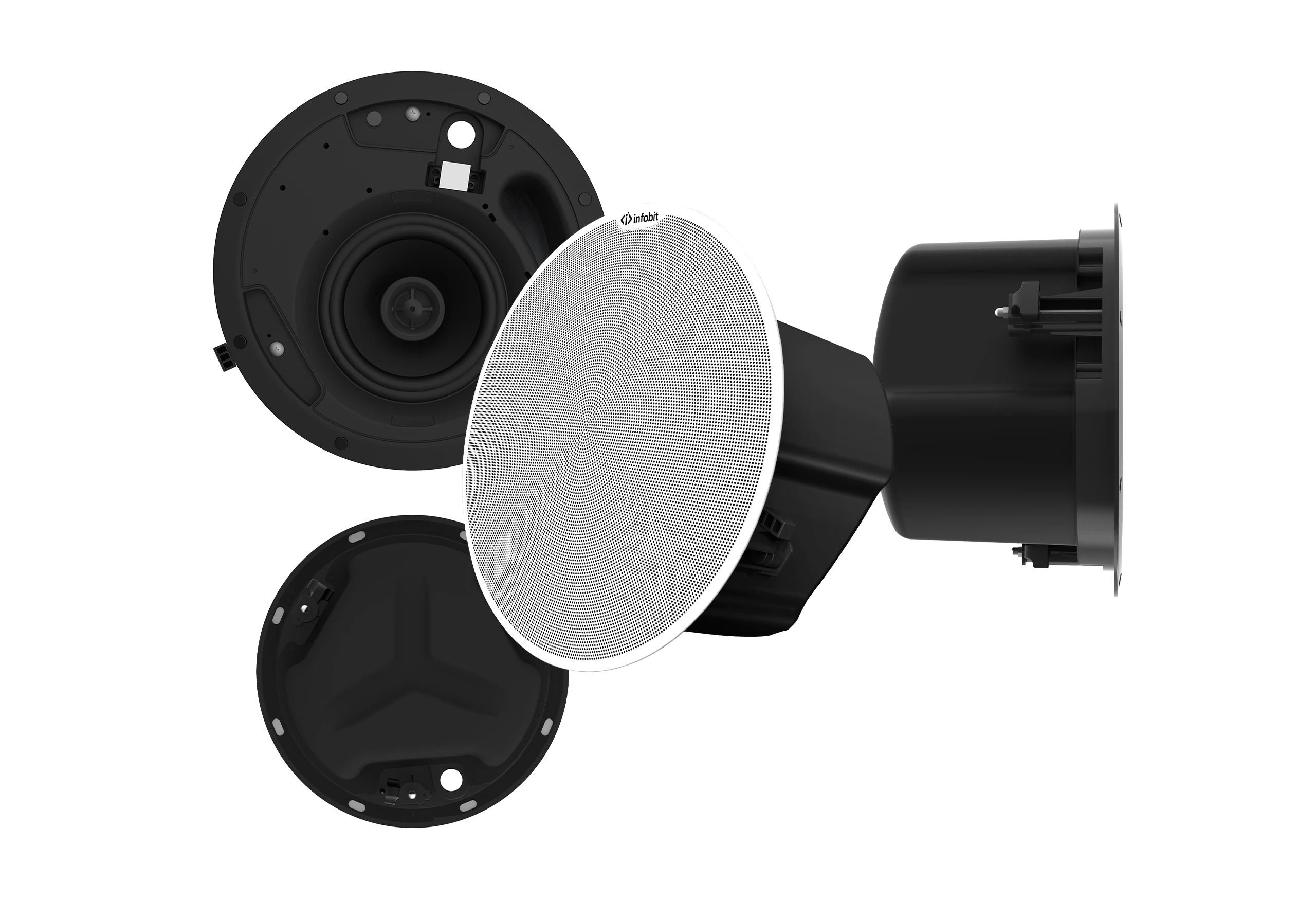

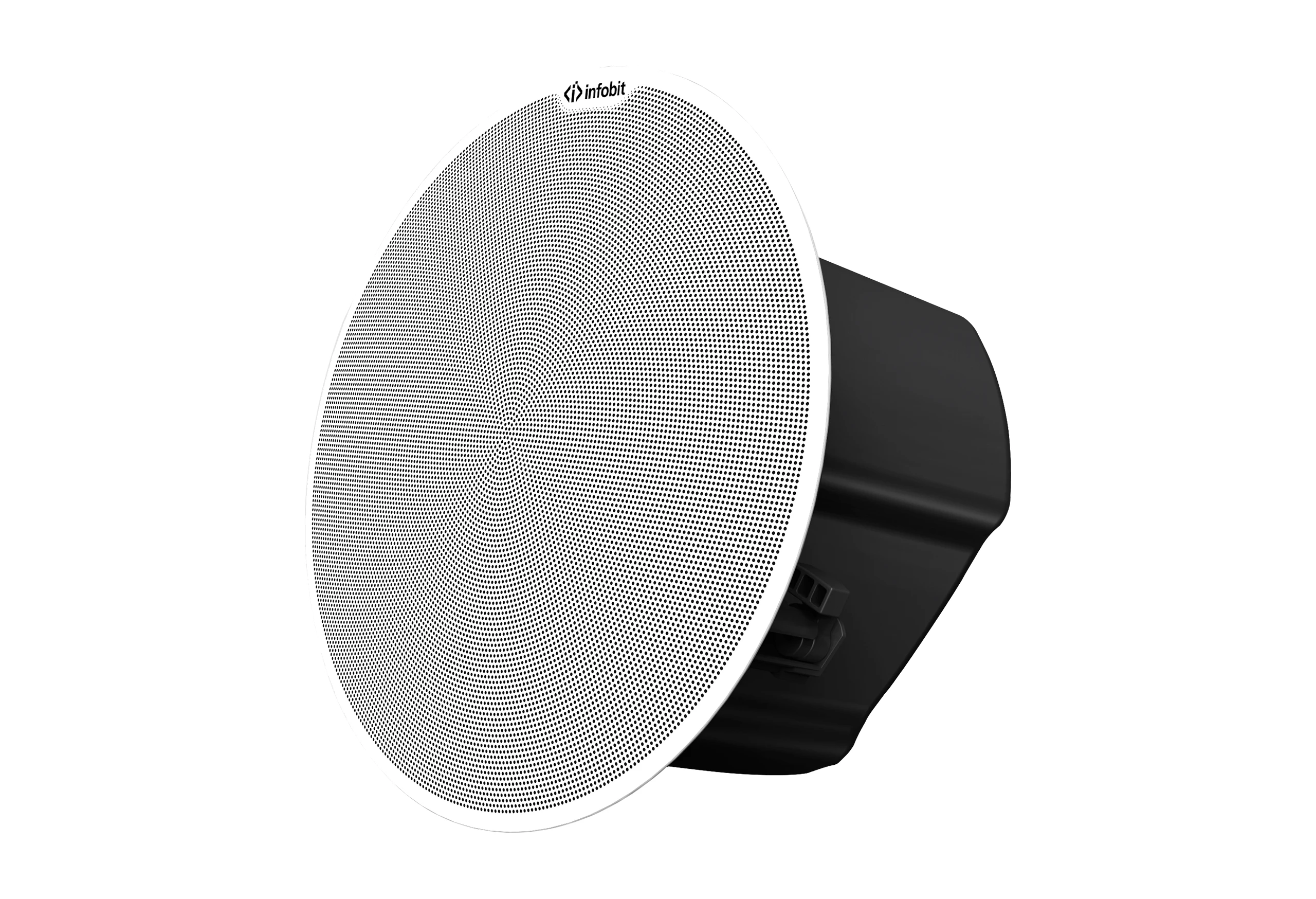

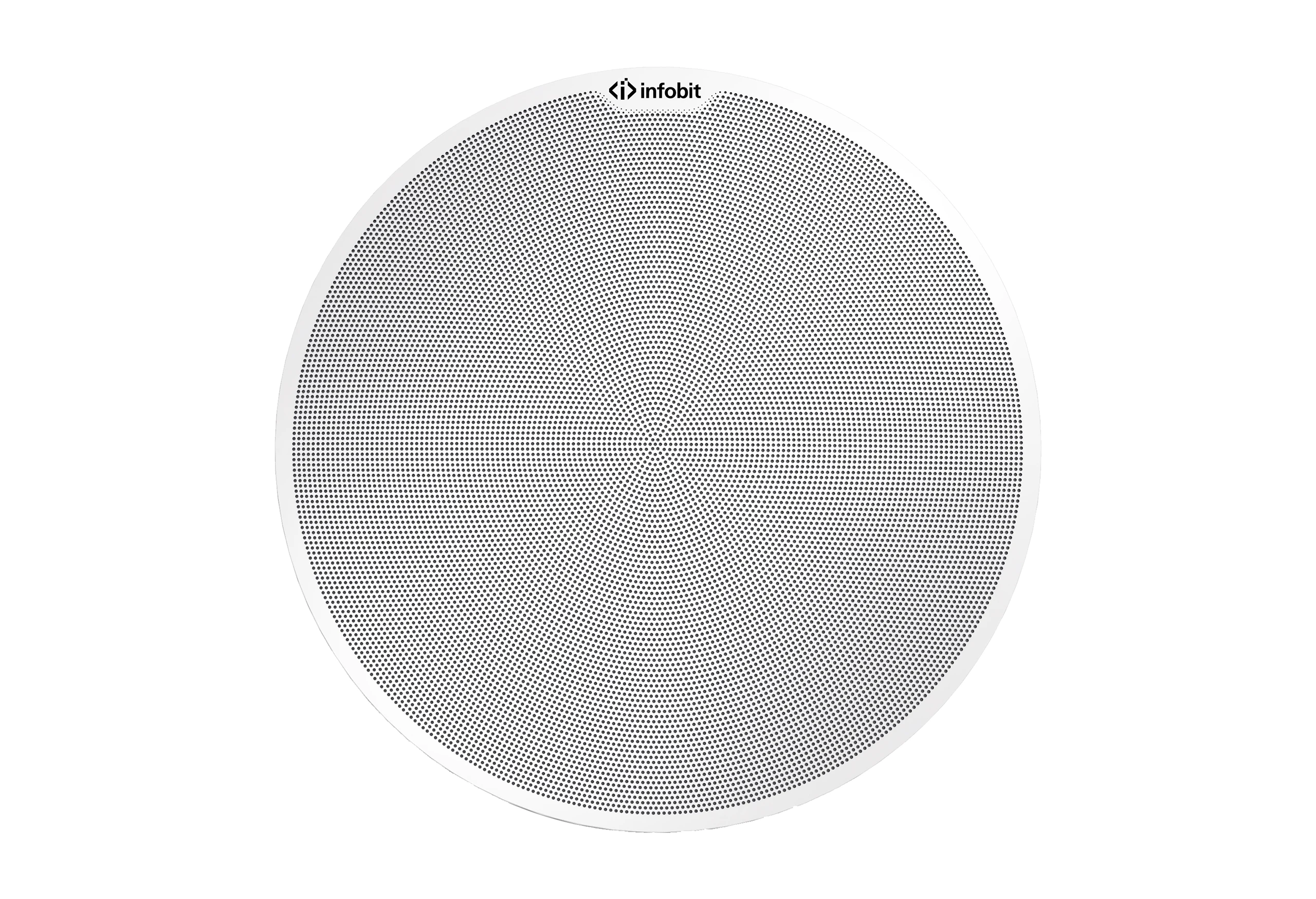

iSpeaker DAC6S
1- 1x6.5"+1x1" dome
2- Sensitivity of 93dB
3- Output power of 60W
4- Rated power (8Ω fixed resistance): 60W
5- Designed with 8x N42 high-strength magnets, more stable.
6- With anti-dropping rope.
7- Easy wiring: Front-out wiring cable raceway.
8- Suitable for narrow ceiling spaces.
9- Supports Dante
10- Supports PoE: 802.3af/802.3at/802.3bt

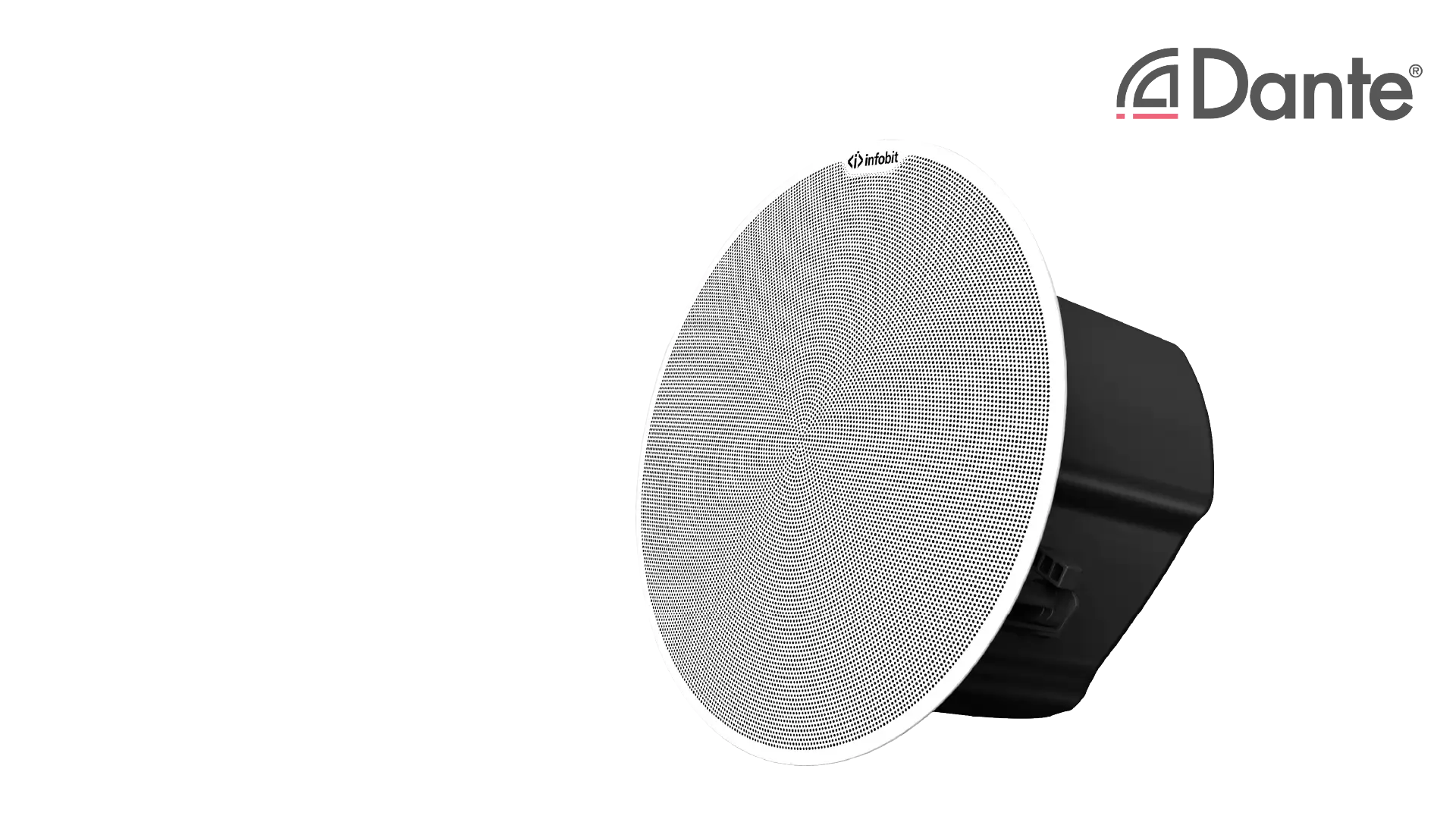

Supports Dante
The iSpeaker DAC6S supports Dante Audio, PoE 802.3af/802.3at/802.3bt.

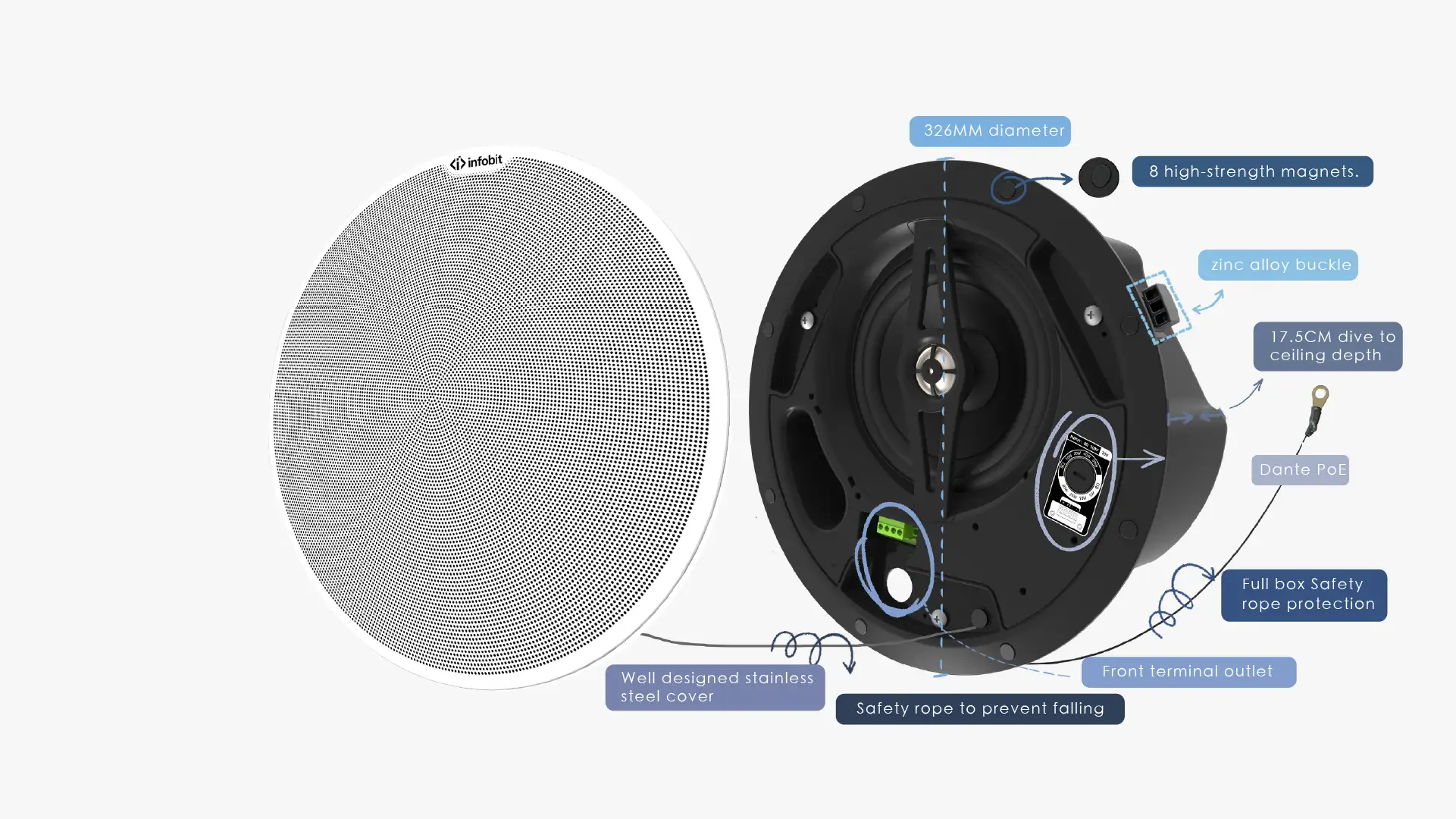

More Features

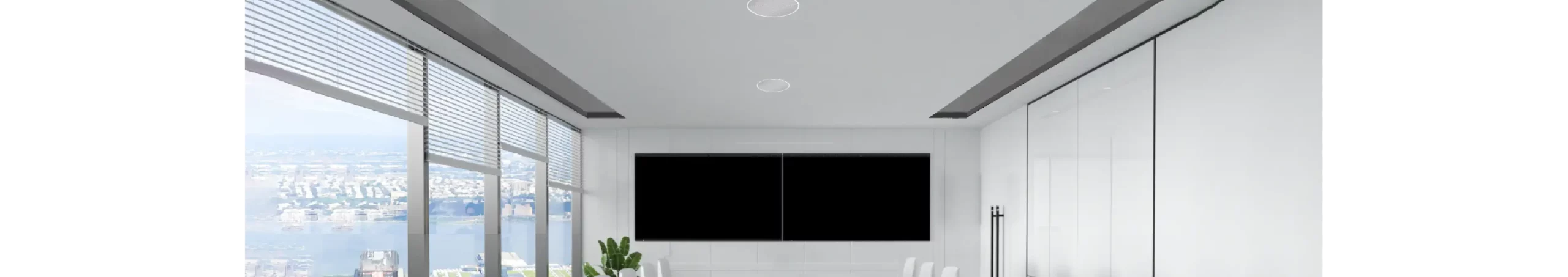

Meeting Rooms

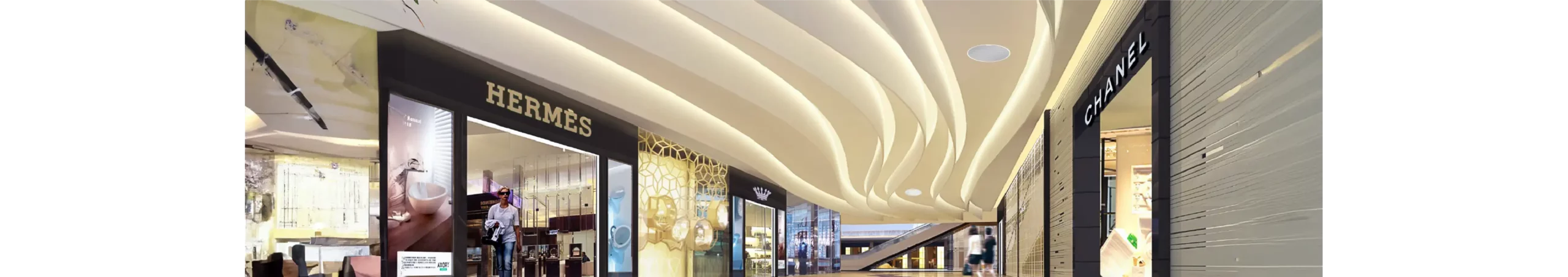

Shopping Malls

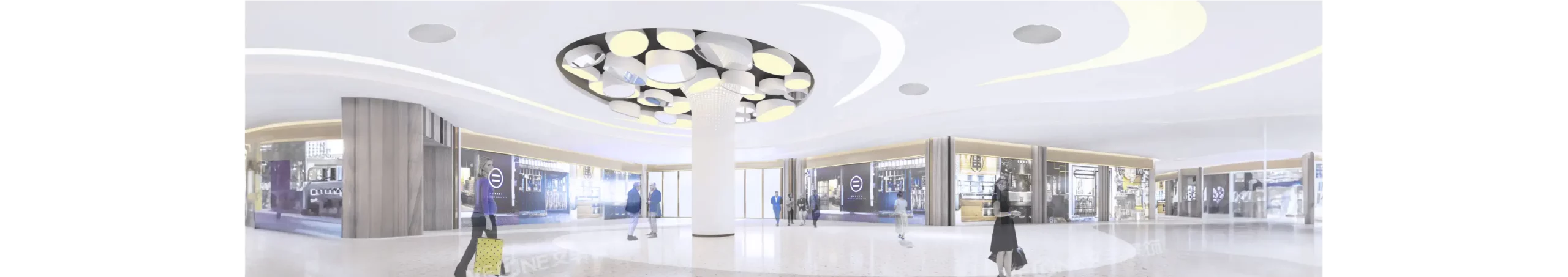

Airport

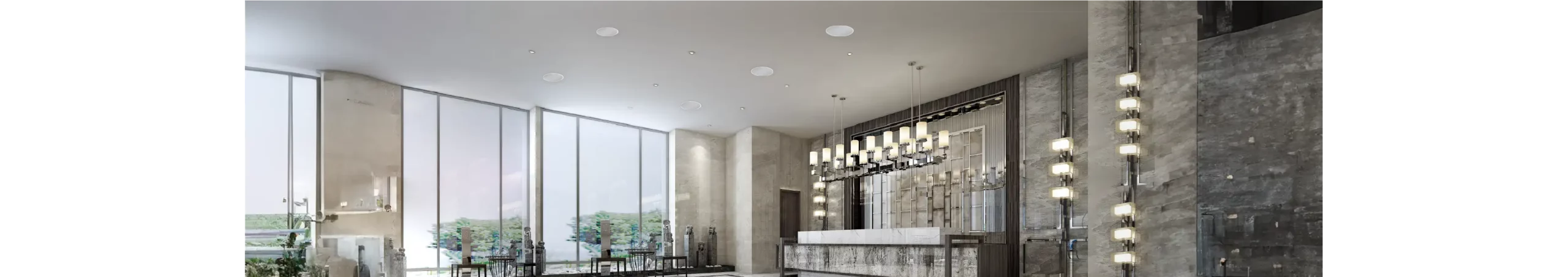

Hospitality Loby

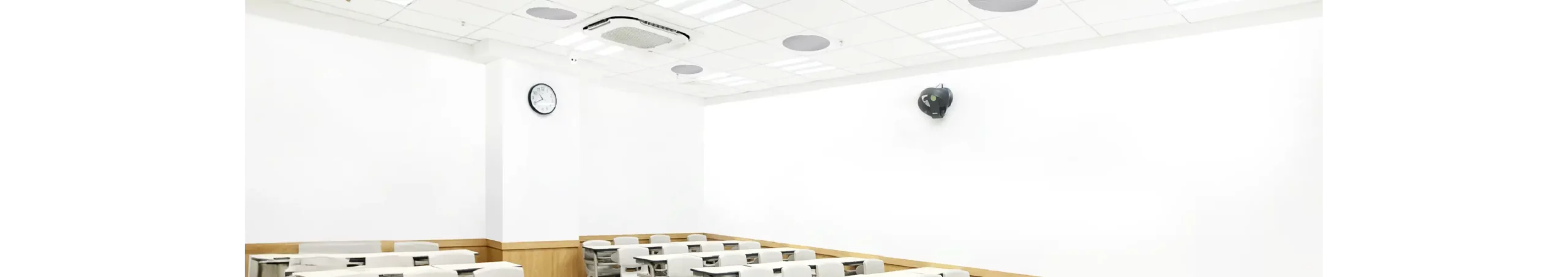

Conference Halls

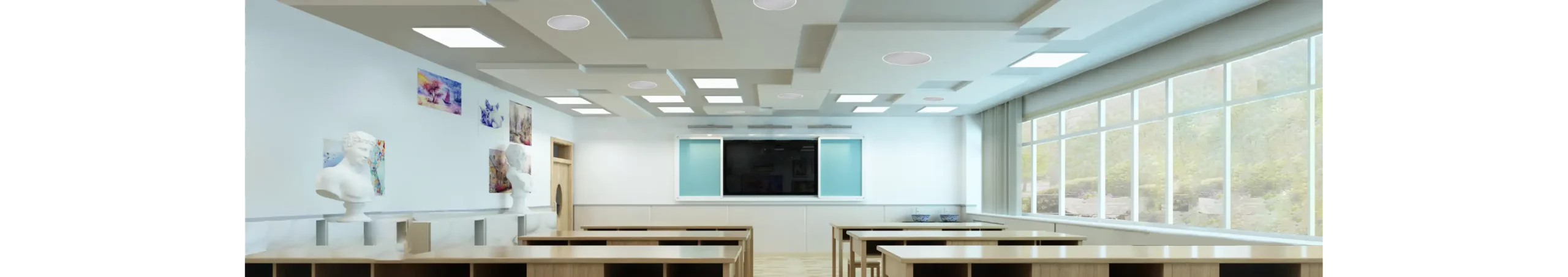

Education Classrooms
Datasheet
| Model | iSpeaker DAC6S |
| Name | Dante Ceiling Speaker 6.5” |

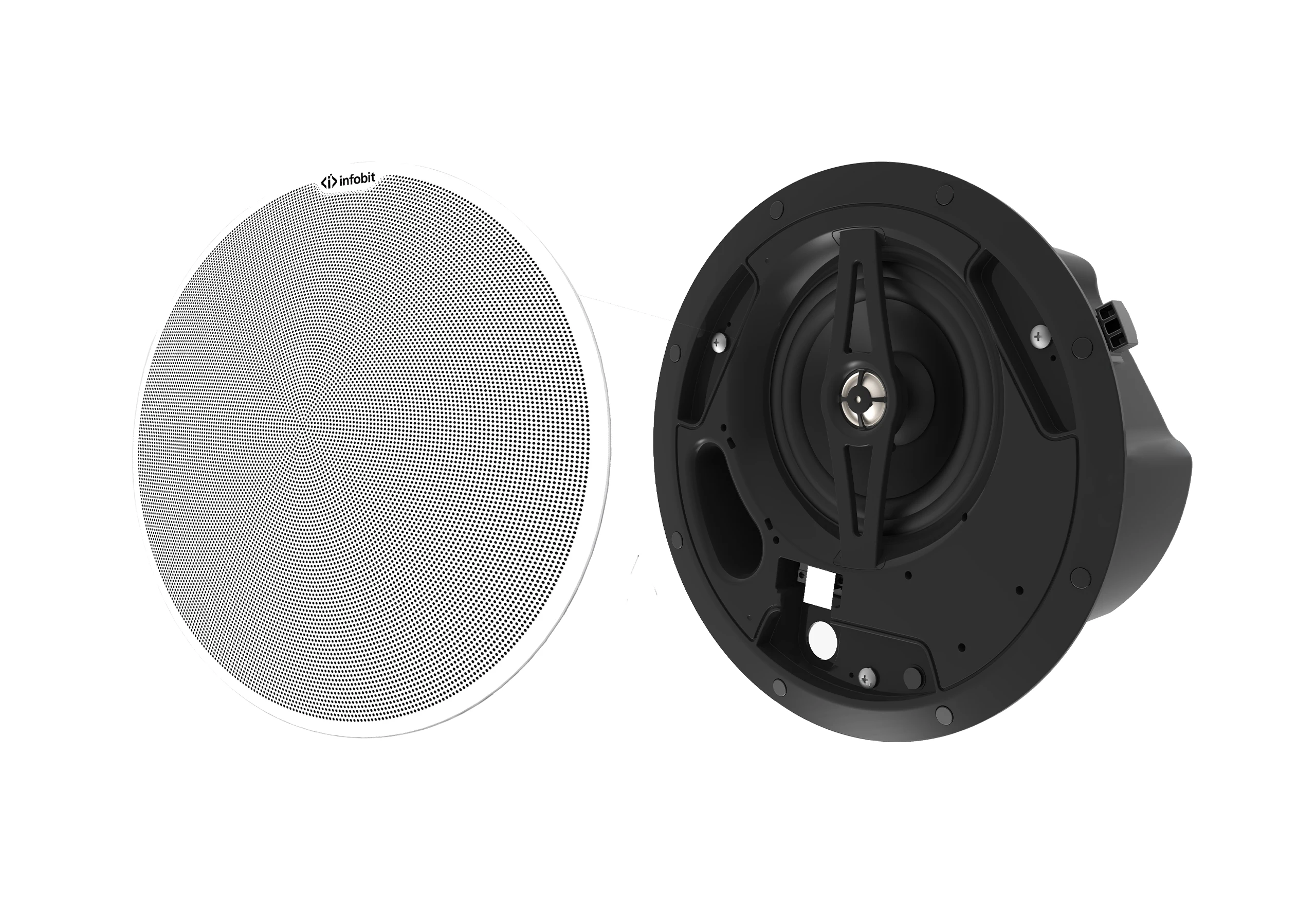

| Structure | 1×6.5″+1×1″ dome, coaxial design. |
| Rated Impedance | 8Ω |
| Rated power | 60W |
| Effective frequency range | 75Hz~20KHz |
| Sensitivity level (1m/1W) | 93dB |
| Sound pressure level | In the specified frequency band: 110dB |
| Net cover material | Metal mesh |
| Back shell material | Iron |
| Installation dimension | Total height: 197mm Embedded depth: 176mm Installation thickness: 10-50mm Opening diameter: 270-280mm Speaker outer diameter: 316mm |
| Port | Dante RJ45 PoE |
| PoE | 802.3af/802.3at/802.3bt |
| Net Weight | 4.87kg |
| Gross Weight | 6.4kg |
