iSpeaker-DAP6-B1
iSpeaker DAP6

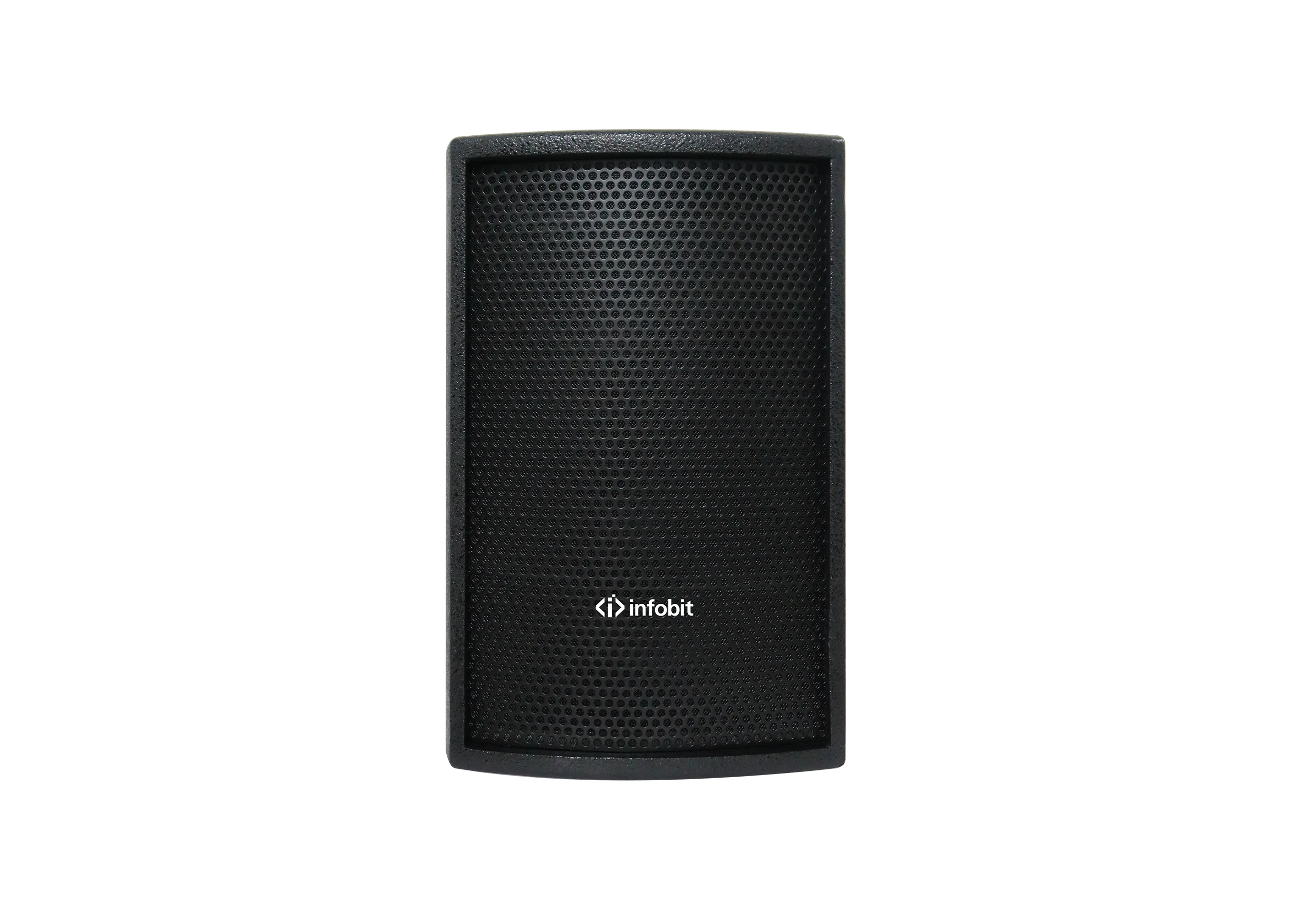

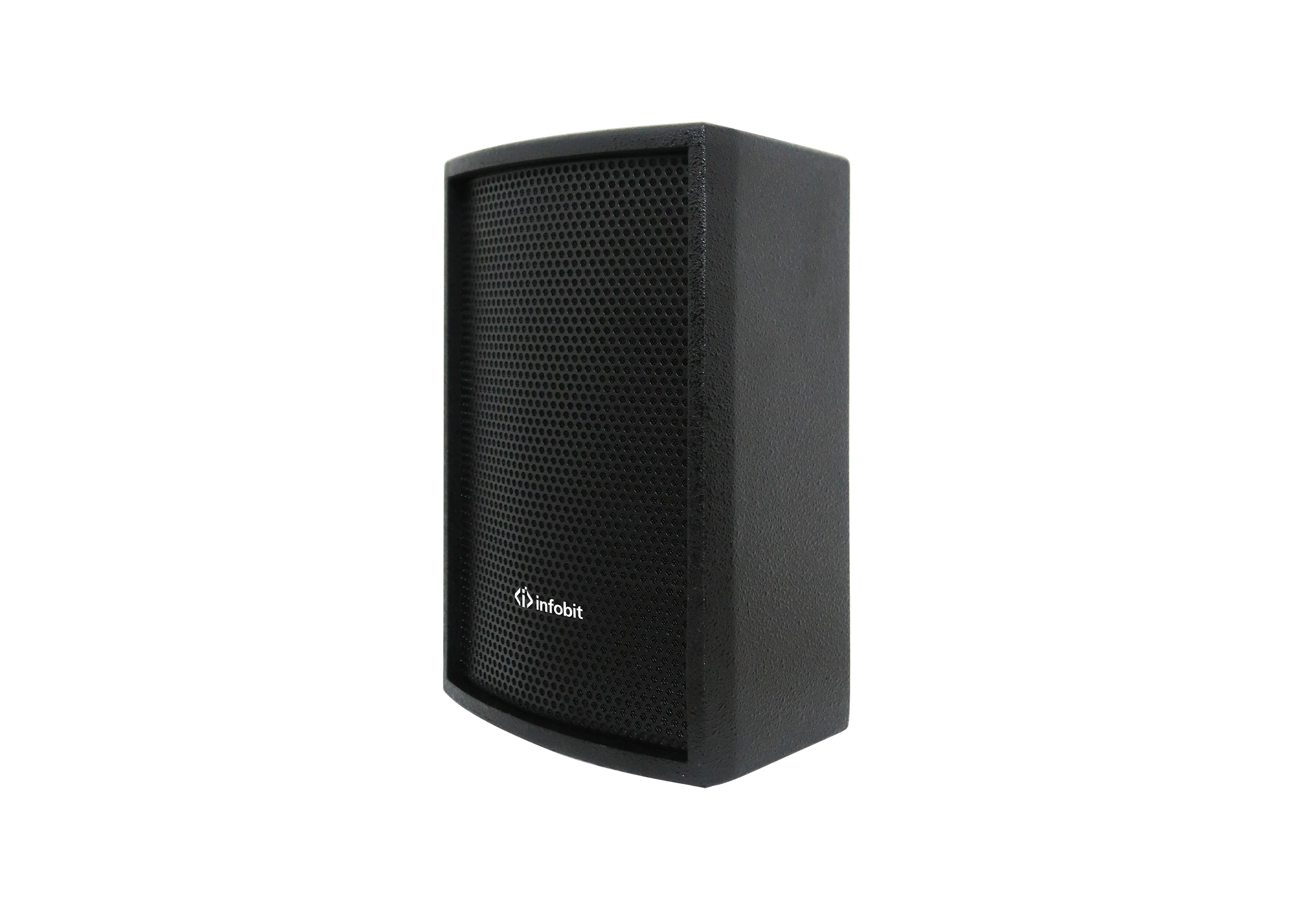

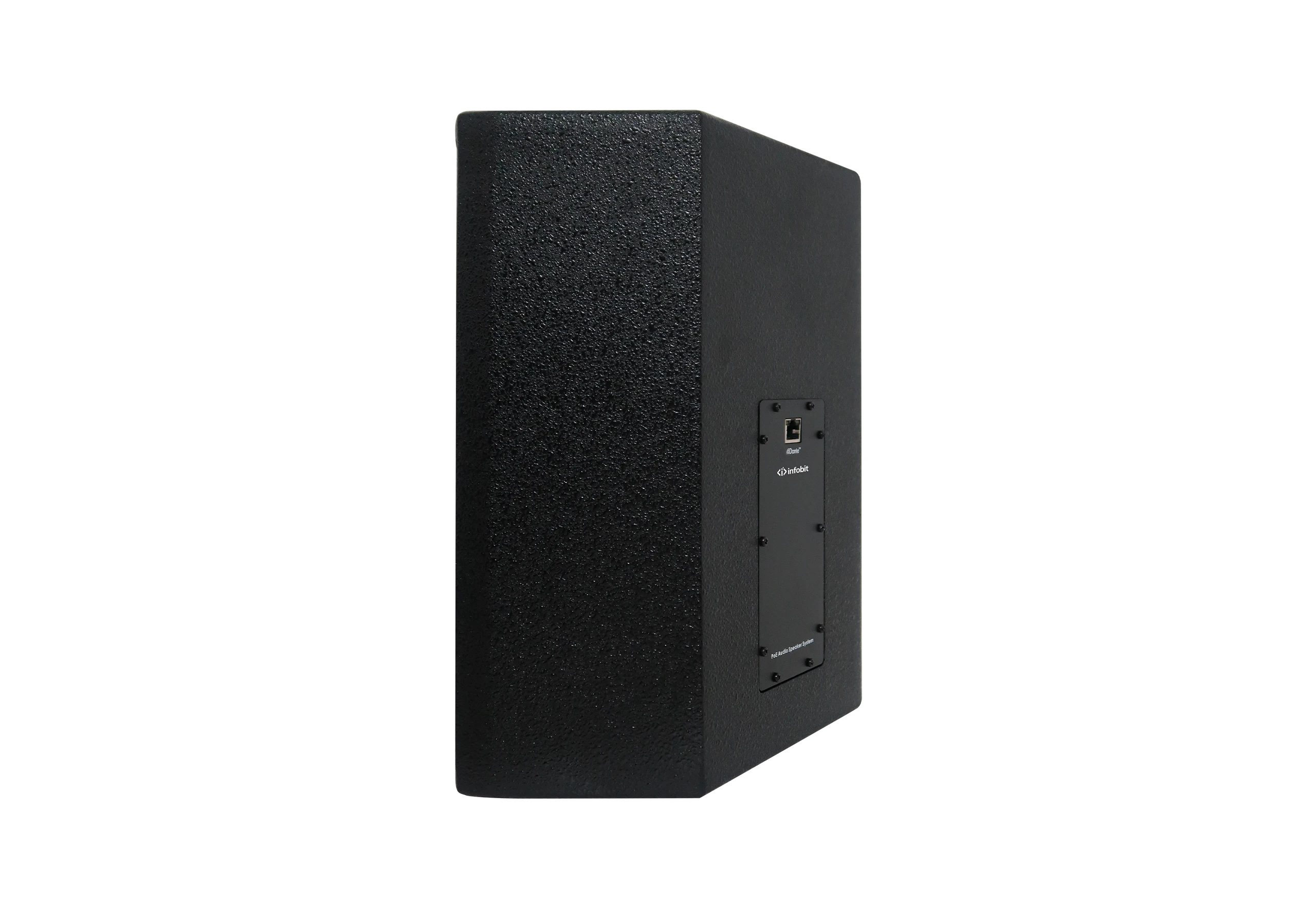

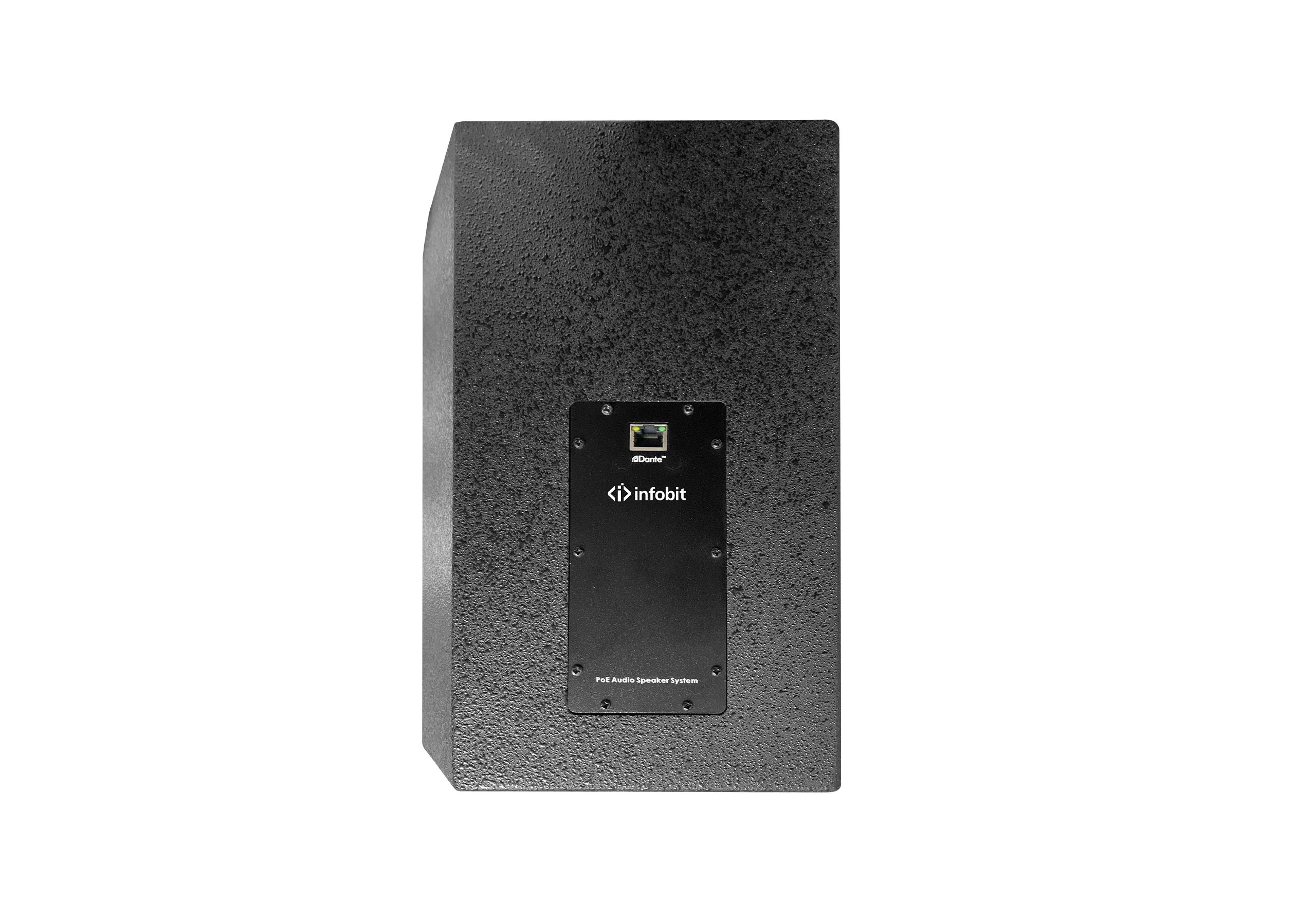

Dante Active Speaker 6”

iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6

Built-in amplifier module, digital signal processing.

Support for POE power and Dante transmission, single channel, 60W@4 ohms.

The PoE module uses the Dante™ network protocol, 24-bit high quality audio (44.1K/48KHz) and control signals can be sent via Dante™ and controlled by the Dante™ Controller.

The module has an integrated DSP containing gain control, mute control, level, temperature display, 5-band equaliser, and limit control functions.

All functions are fully process-controllable from the Dante Controller on PC or Mac.

iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6
iSpeaker DAP6

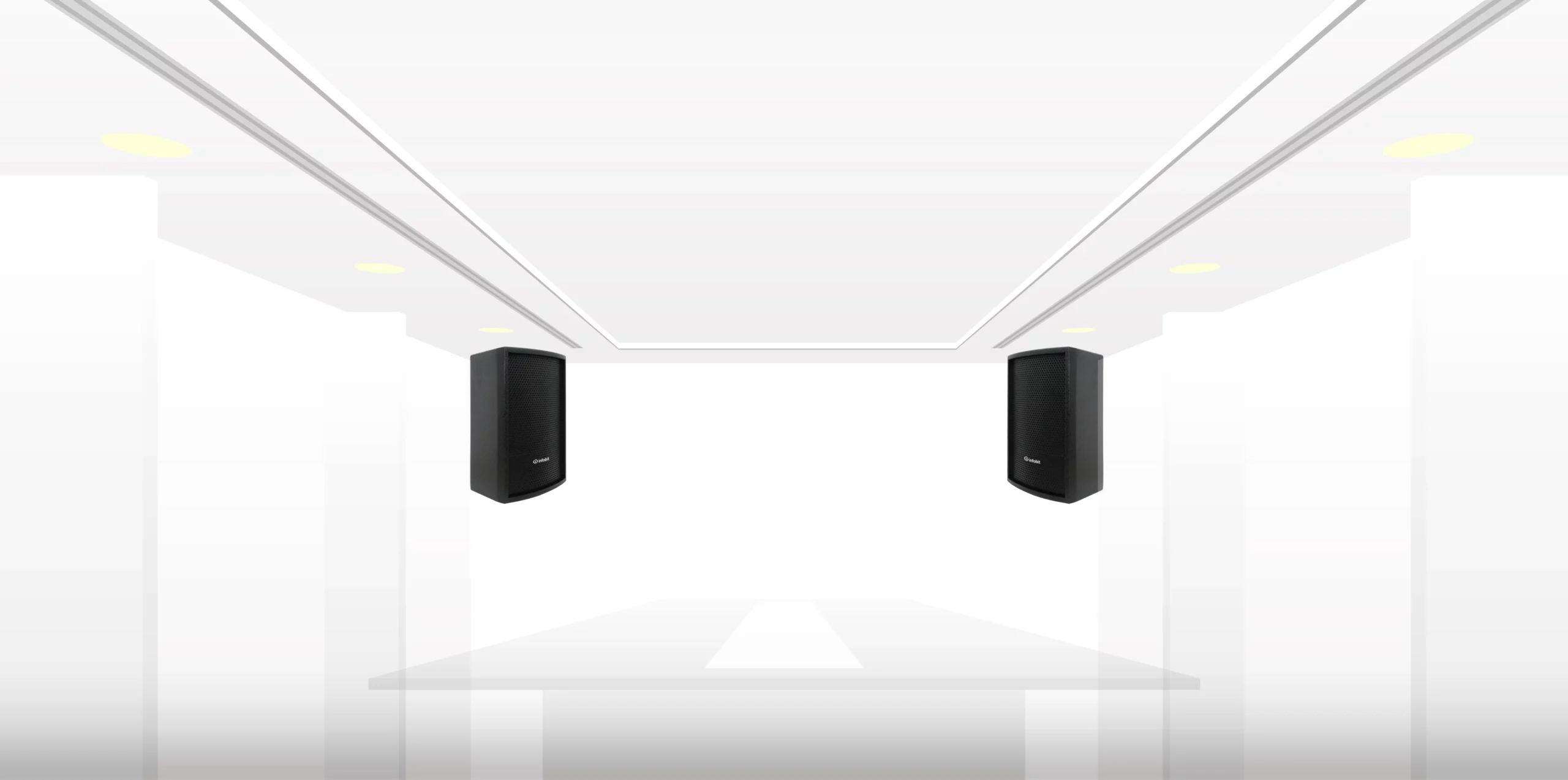

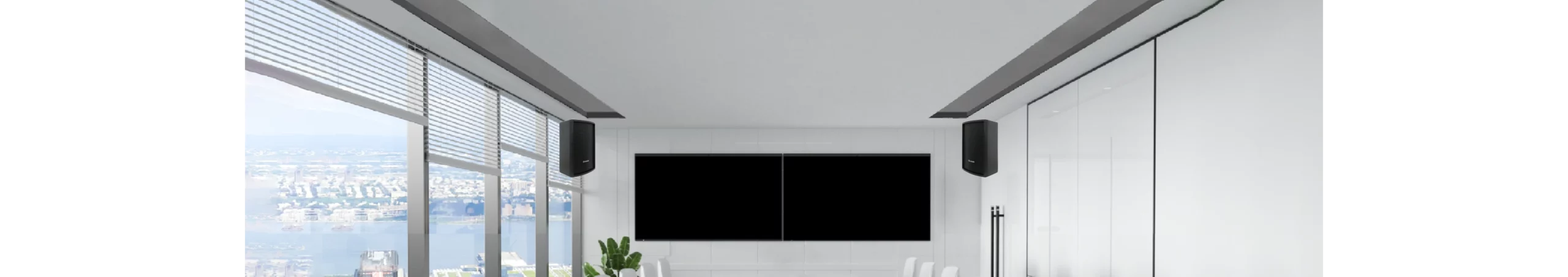

 Meeting Rooms
Meeting Rooms
Datasheet
Model iSpeaker DAP6
Name Dante Active Speaker 6”
Technical Bass 6.5-inch x1, treble 1-inch imported magnesium film + horn drive
Sensitivity 92dB (1w@1m)
Output power 15.4-30W
  (Determined by PoE output)
Maximum sound pressure 118dB
Power 60W
Impedance
Vertical coverage  60°
Horizontal coverage  90°
Frequency Response Range 70 Hz-21kHz
Interface RJ45
Transmission protocol Dante
Power supply method PoE power supply
DSP processing support
Installation Bring your own hangers
Net weight 4.1 Kg
Speaker size 197mm X 300mm X 118mm
Download
  • INFOBIT iSpeaker DAP6 datasheet V1.0.pdf
    0.19M
    2024-08-27
  • INFOBIT iSpeaker DAP6 quick guide V1.0.pdf
    0.26M
    2024-08-27
  • PoeDante software EN.msi
    3.7M
    2024-08-27
