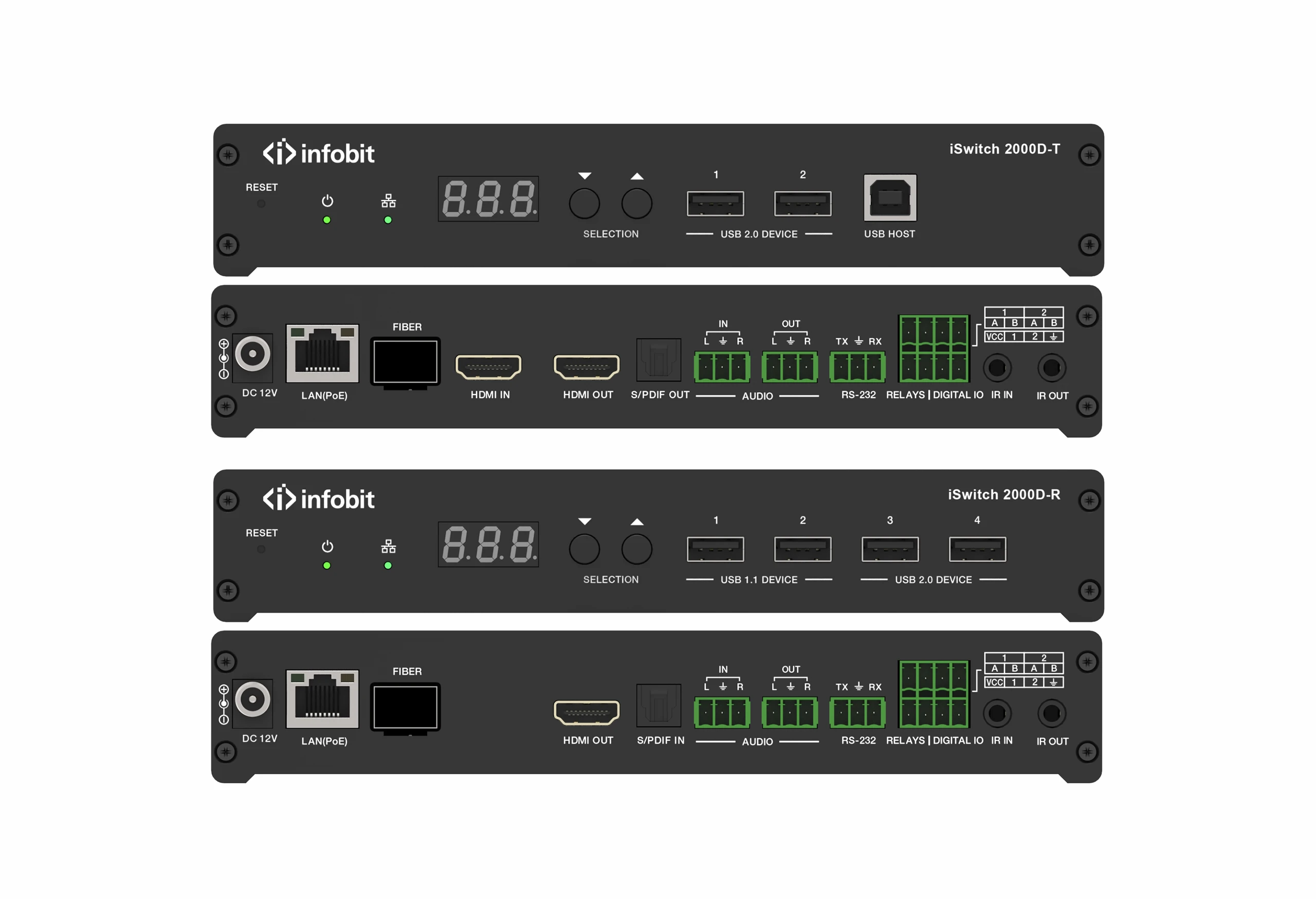

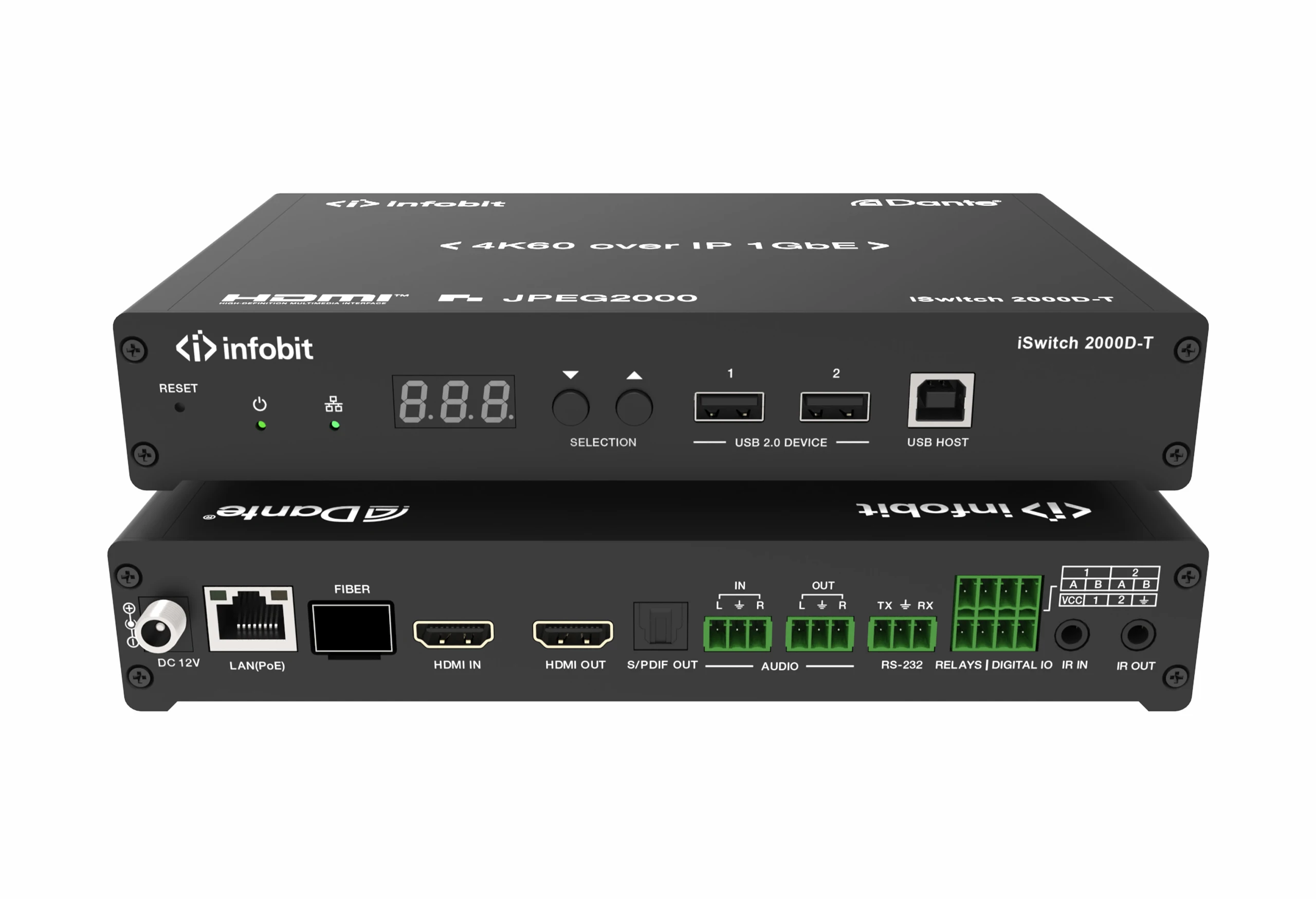

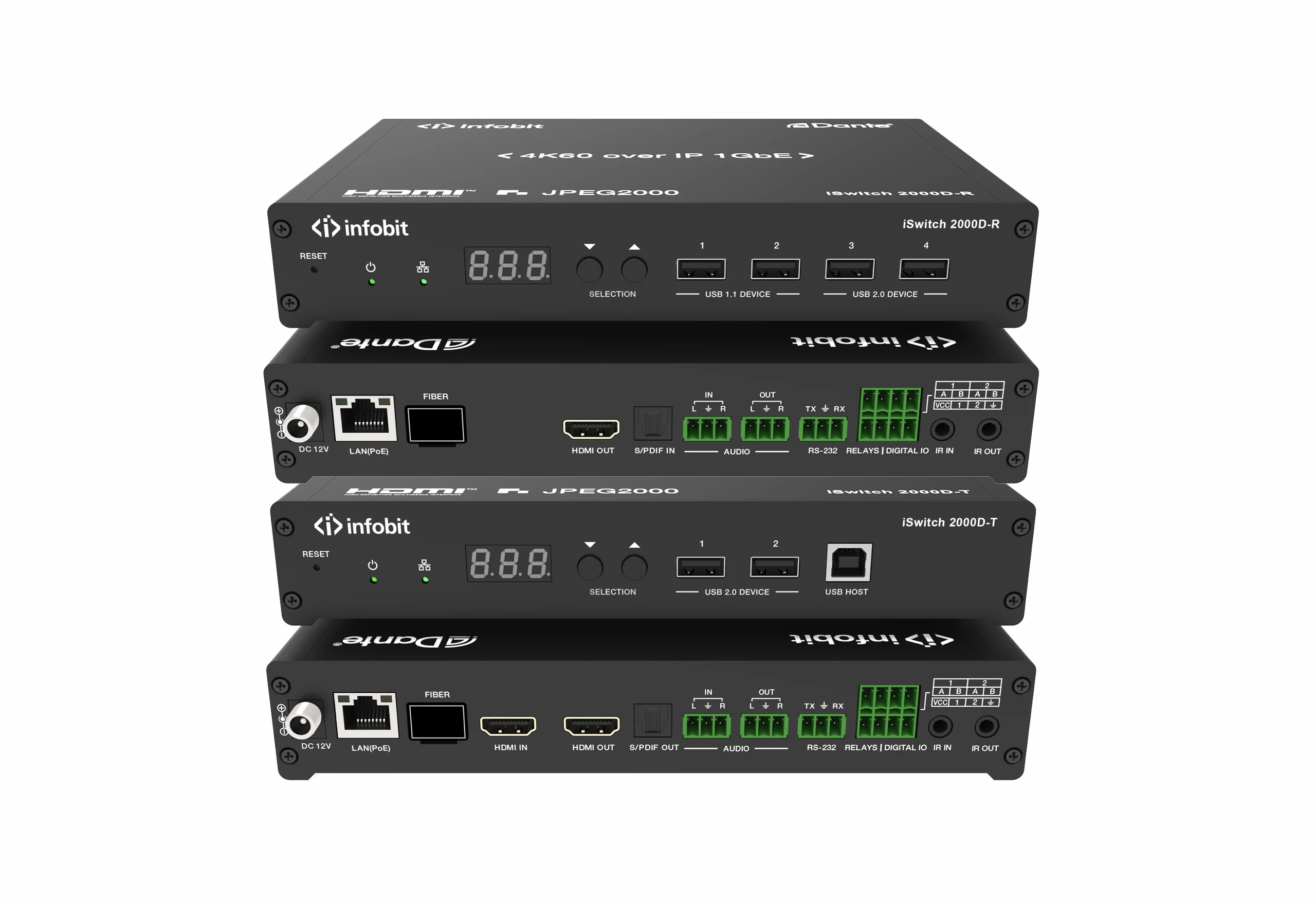

iSwitch 2000D (Dante)

18Gbps, HDMI 2.0b, HDCP 2.2 compliant

Both Input and output video resolution is up to 4K60 4:4:4

Up to 328ft / 100m via CAT5E/6/6A/7 cable

Transmit video, analog/digital audio, IR, RS-232, CEC and USB over Ethernet

Integrate both Copper and Fiber ports redundancy

ARC/eARC/SPDIF/Analog audio return function

Channel configuration via front panel buttons and LED screen

Built-in two-channel RELAY ports and two-channel I/O ports for contact control

Support unicast and multicast functions

Support point-to-point, video matrix, and video wall functions (video wall supports up to 9×9)

Intelligent video wall group management

Support MJPEG Substream real-time preview

1G Ethernet Switch, PoE

Built-in Web-GUI control, Telnet, and SSH as well

Support Dante audio

Smart networking design for easy and flexible installation

Chat Now

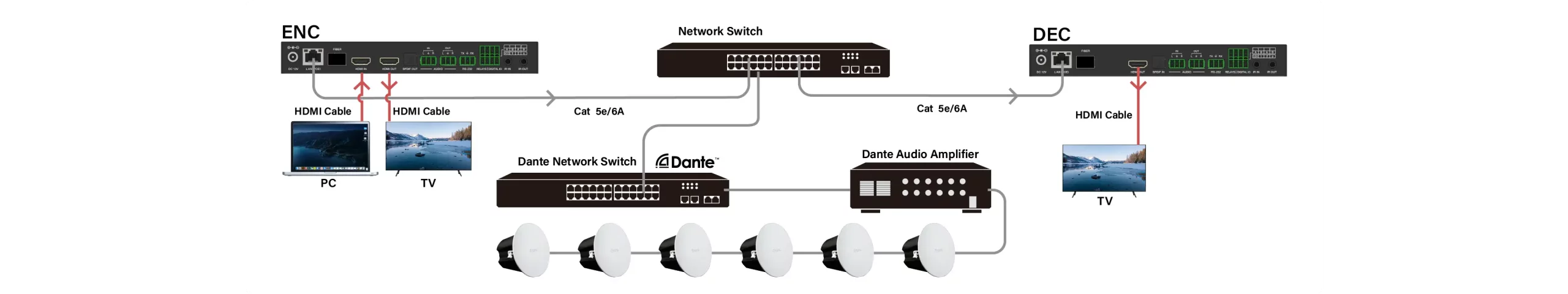

Dante Ready

The iSwitch 200D Tx/Rx is automatically discovered and ready to use when connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch. Comatible with INFOBIT Dante speakers.

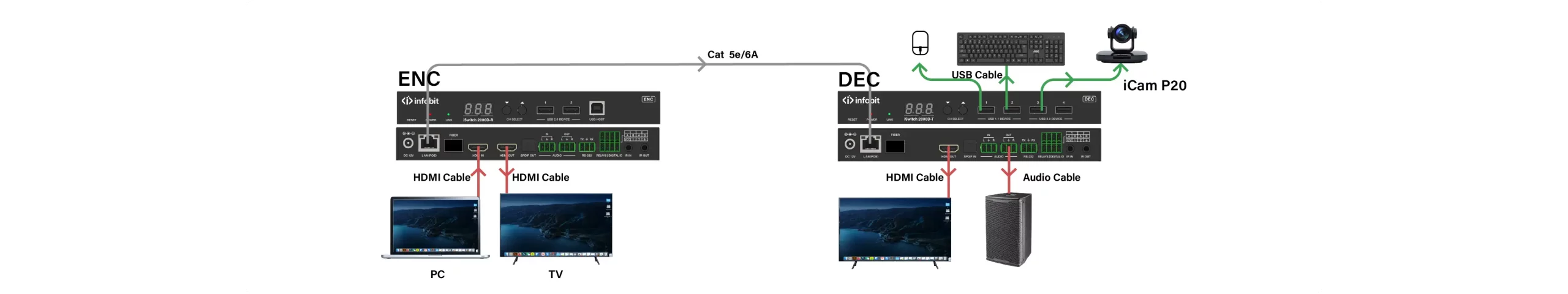

Point-to-Point

iSwitch AV over IP products are a direct replacement for AV Matrix (HDbaseT) solutions. Leverage IP infrastructure to route AV signals in offices, huddle rooms, conference rooms, or as content contribution (trunking) between locations. True plug-and-play, no need any IP settings.

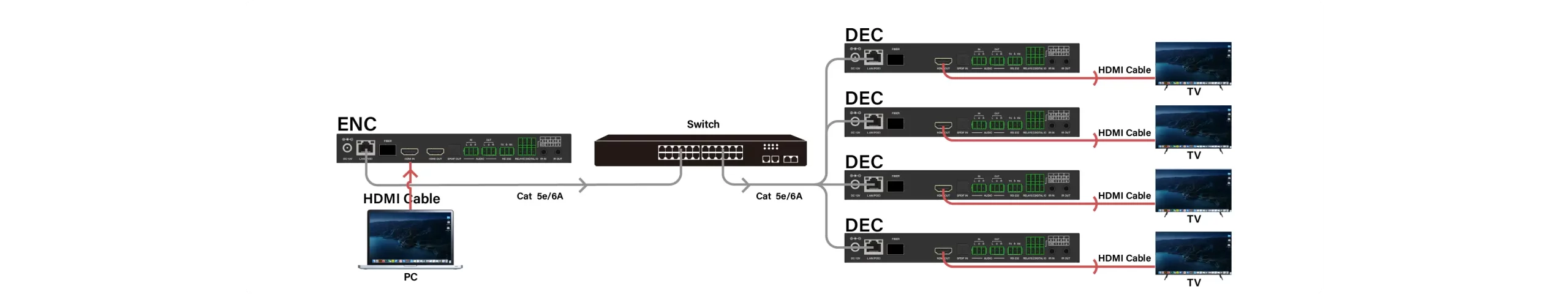

One-to-Many

iSwitch efficiently deliver high-quality, low latency, AV to many displays on a floor, between floors, or across the entire organization.

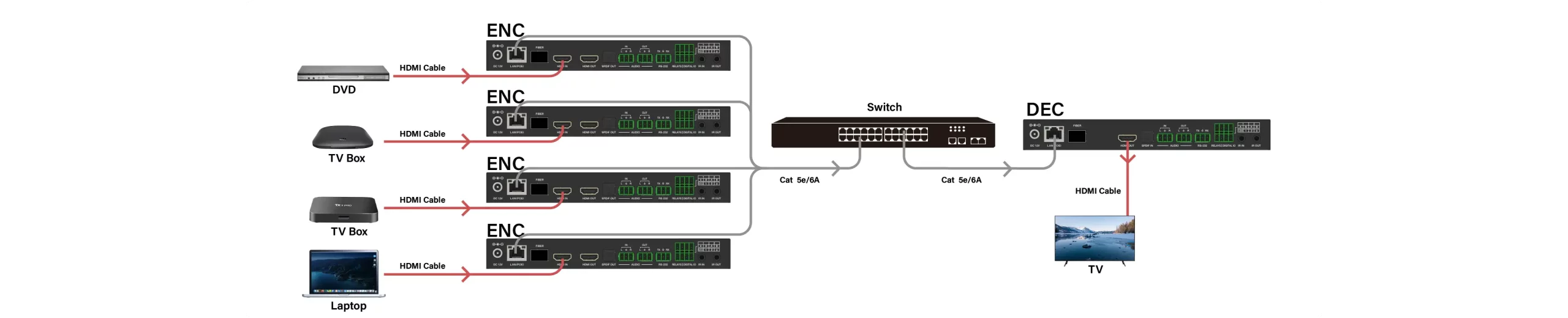

Many-to-One Switching

iSwitch lets you take content from multiple encoders and deliver it to one decoder connected to the same managed Ethernet switch.

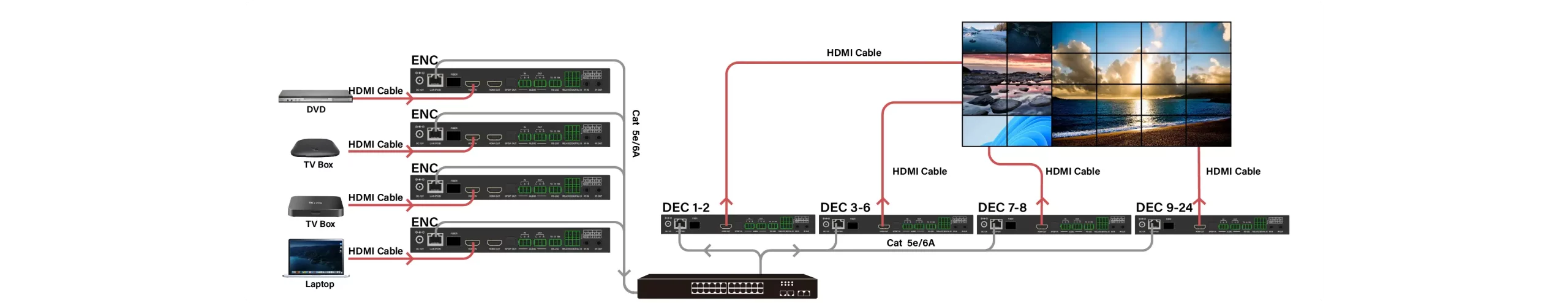

Many-to-Many Video Wall

iSwitch include video wall processing that allows encoded AV content to be presented across an array of displays.

Many-to-Many Matrix Switching

Digital signage systems are usually asymmetrical – a few sources feeding a large number of destinations.
iSwitch simply integrates decoder and network drop for each display.

Preview Source

With preview of all signal content.

Support portrait layouts

It supports 90°, 180°, 270° screen installation.

Datasheet

Model	iSwitch 2000D
Name	HDMI 4K60 AV over IP w/ Dante
HDMI Compliant	HDMI 2.0b
HDCP Compliant	HDCP 2.2
Video Bandwidth	18Gbps
Video Compression Standard	JPEG2000
Video Network Bandwidth	1G
Video Resolution	Up to 4K@60Hz 4:4:4
Color Depth	Input: 8/10/12-bit Output: 8-bit
Color Space	RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats	LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
Transmission Distance	100M CAT5E/6/6A/7
IR Level	Default 12V, optional 5V
IR Frequency	Wideband 20K – 60KHZ
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
iSwitch 2000D-T (Tx)	Input: 1x HDMI IN [Type A, 19-pin female] 1x L/R AUDIO IN [3-pin 3.81mm Phoenix connector] Output: 1 x HDMI OUT [Type A, 19-pin female] 1x L/R AUDIO OUT [3-pin 3.81mm Phoenix connector] 1x SPDIF OUT [Optical audio connector] Control: 1x RS-232 [3-pin 3.81mm Phoenix connector] 1x LAN (POE) [RJ45 jack] 1x FIBER [Optical fiber slot] 1x USB 2.0 HOST [Type B, 4-pin female] 2x USB 2.0 DEVICE [Type-A, 4pin female] 2x RELAYS [3.81mm Phoenix connector] 2x DIGITAL IO [3.81mm Phoenix connector] 1x IR IN [3.5mm Audio Jack] 1x IR OUT [3.5mm Audio Jack]
iSwitch 2000D-R (Rx)	Input: 1x SPDIF IN [Optical audio connector] 1x L/R AUDIO IN [3-pin 3.81mm Phoenix connector] Output: 1x HDMI OUT [Type A, 19-pin female] 1x L/R AUDIO OUT [3-pin 3.81mm Phoenix connector] Control: 1x RS-232 [3.81mm Phoenix connector] 1x LAN (POE) [RJ45 jack] 1x FIBER [Optical fiber slot] 2x USB 1.1 DEVICE [Type-A, 4-pin female] 2 x USB 2.0 DEVICE [Type-A, 4-pin female] 2 x RELAYS [3.81mm Phoenix connector] 2x DIGITAL IO [3.81mm Phoenix connector] 1 x IR IN [3.5mm Audio Jack] 1x IR OUT [3.5mm Audio Jack]
Housing	Metal enclosure
Color	Black
Dimensions	Encoder/Decoder: 204mm [W] x 136mm [D] x 25.5mm [H]
Weight	Encoder: 631g, Decoder: 626g
Power Supply	Input: AC100 – 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
Power Consumption	Encoder: 8.52W, Decoder: 7.08W (Max.)
Operating Temperature	32 – 104°F / 0 – 40°C
Storage Temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (no condensing)
Resolution / HDMI Cable Length	4K60: 5m; 4K30: 10m; 1080p: 15m
