Support 18Gbps video bandwidth, HDCP 2.2, and DP 1.2
Input and output video resolution is up to 4K60 4:4:4
Signal transmission distance can be extended up to 328ft/100m via CAT6/6A/7 cable
Transmit video, analog audio, RS-232, CEC and USB signal over Ethernet

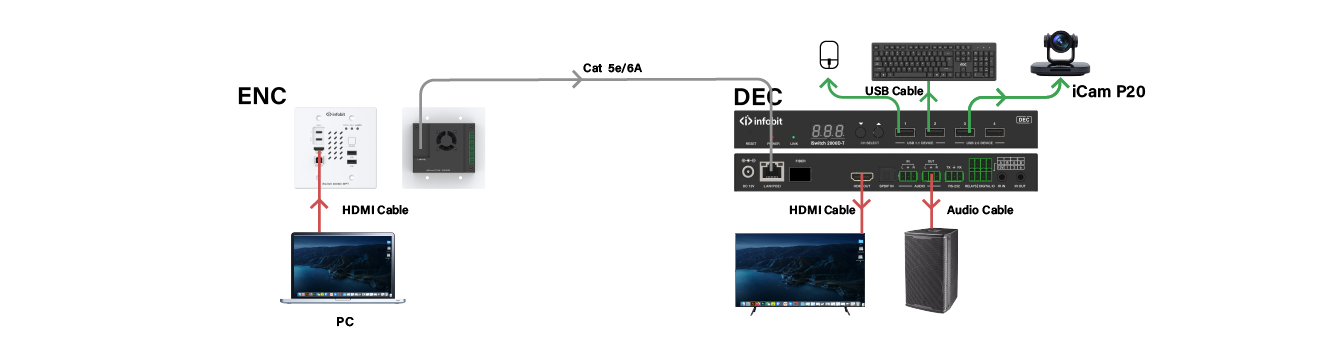

Support USB 2.0 and KVM function

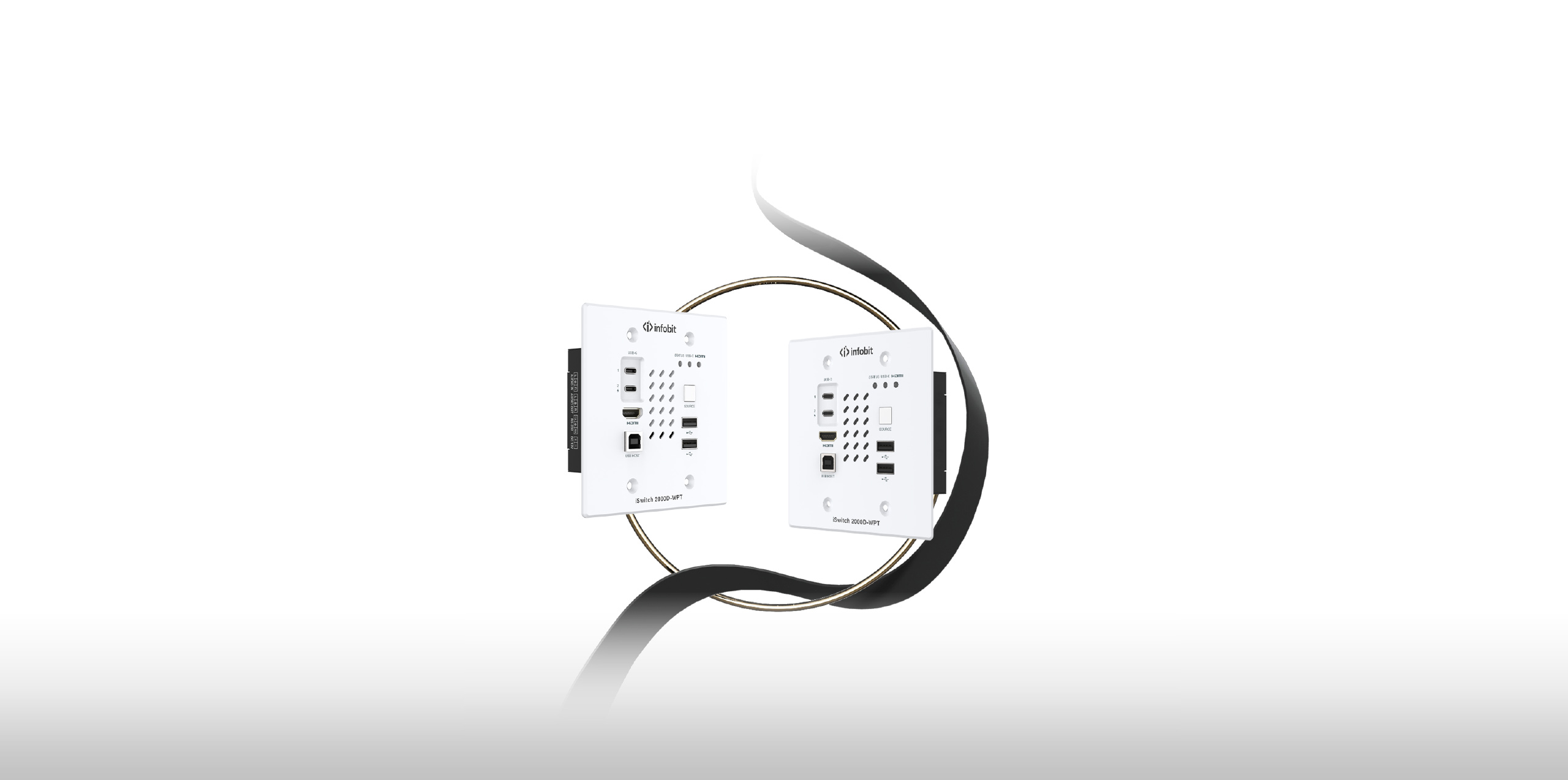

US 2-Gang wall-plate
With HDMI and USB-C dual inputs, supporting auto-switching and manual switching modes
The USB-C 1 port supports video/audio/USB data transmission and power charging.
Audio embedding and de-embedding are supported

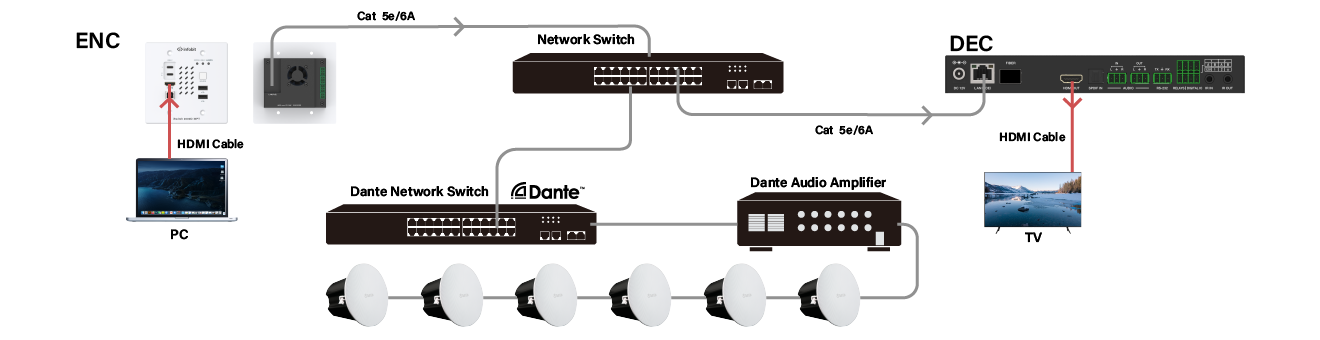

Dante AV-A mode is supported

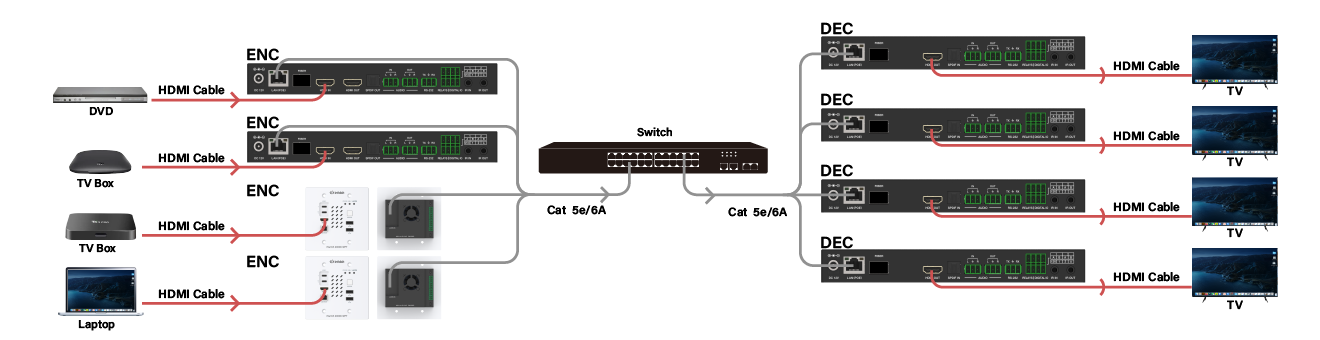

Support unicast and multicast functions

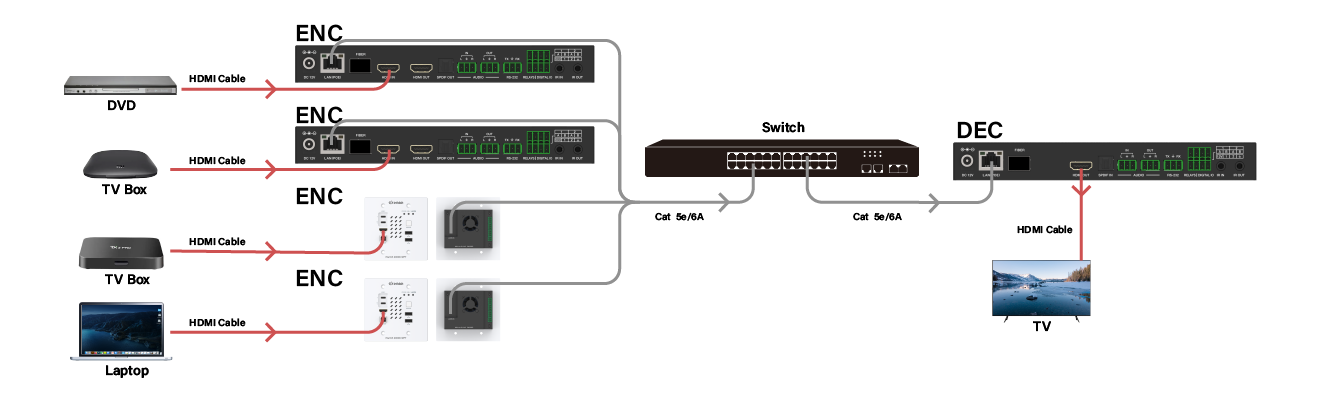

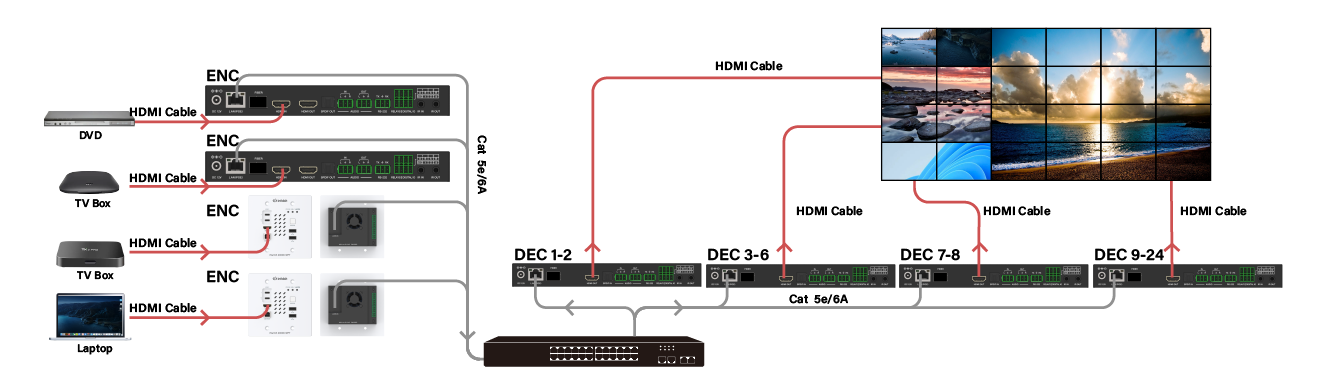

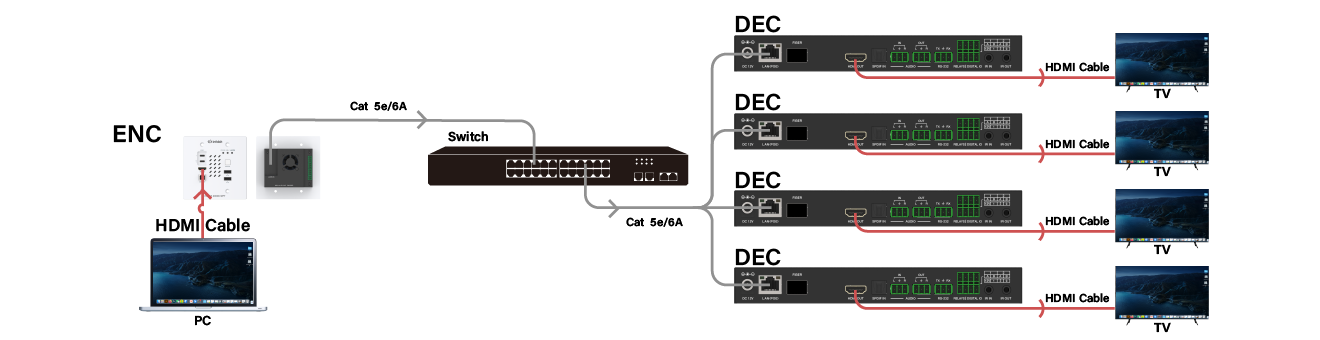

Support point-to-point, video matrix, and video wall functions (video wall supports up to 9×9)
Built-in MJPEG Substream for video real-time preview on portable devices
Support 1G Ethernet Switch, router and hub device transmission
Standard PoE (802.3at PD device) or local 12V power supply

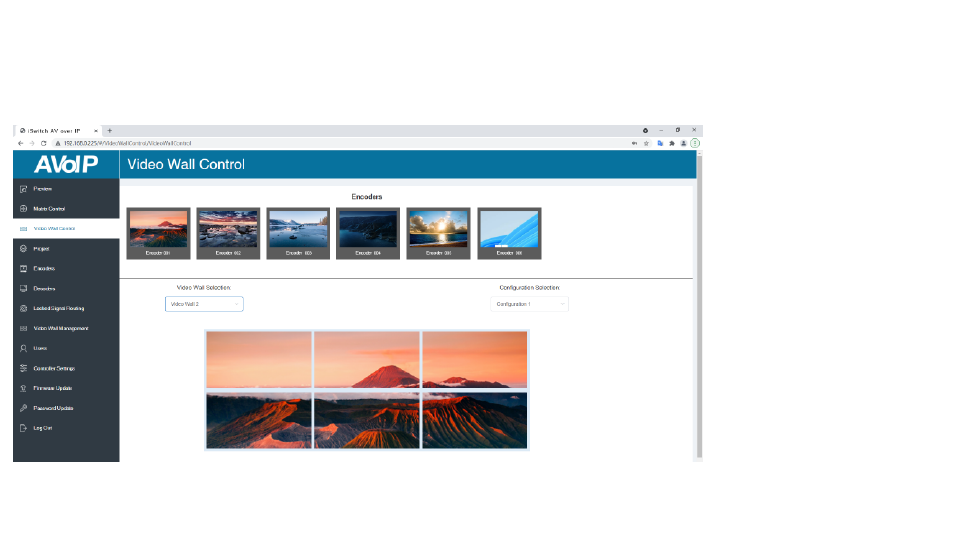

Built-in web page configuration and control, Telnet and SSH as well
Support HDR10, Dolby Vision, HLG bypass
Flexible control via Web GUI/TCP/RS-232 and third-party central control
Works with iSwitch 2000D-R
