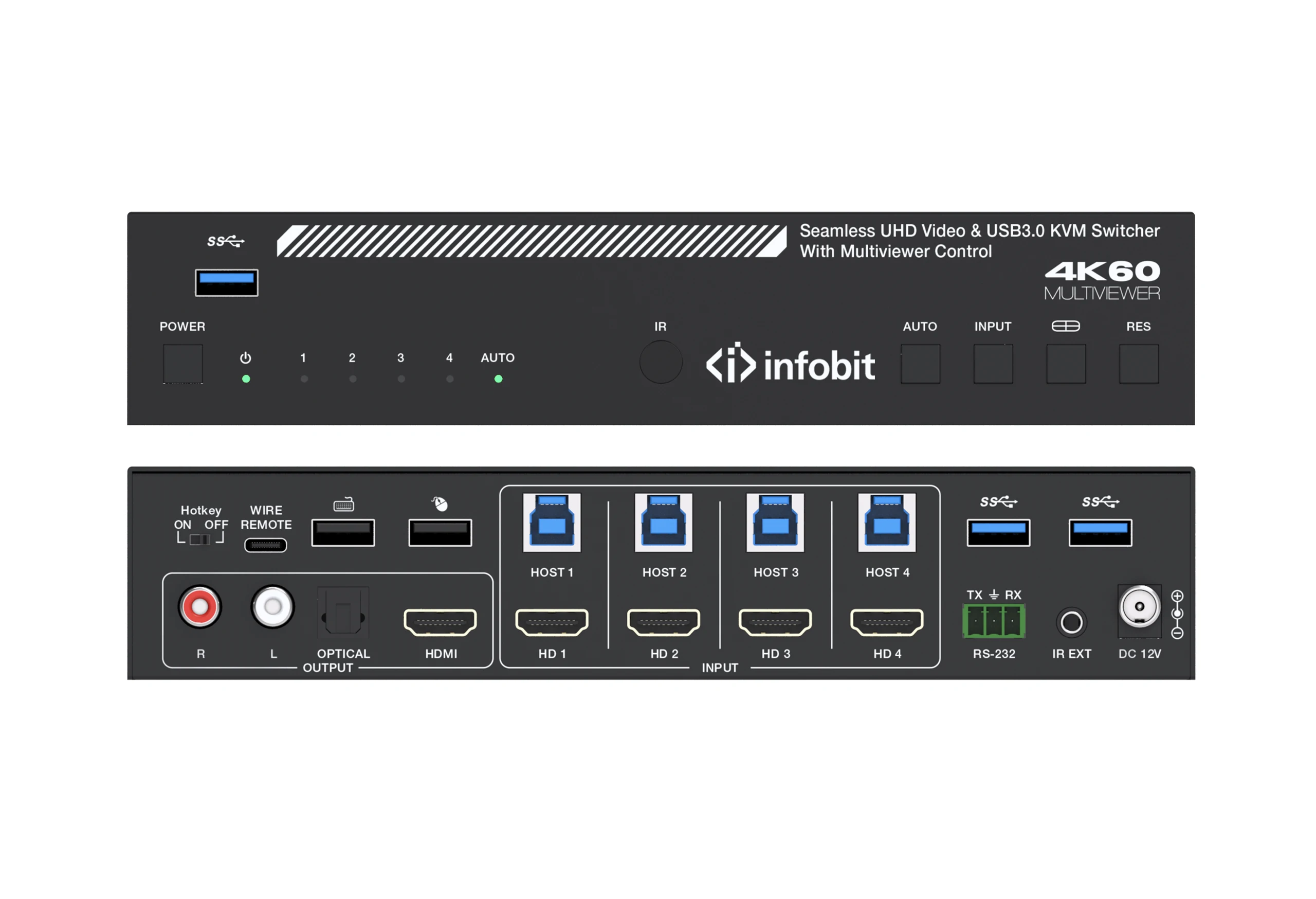

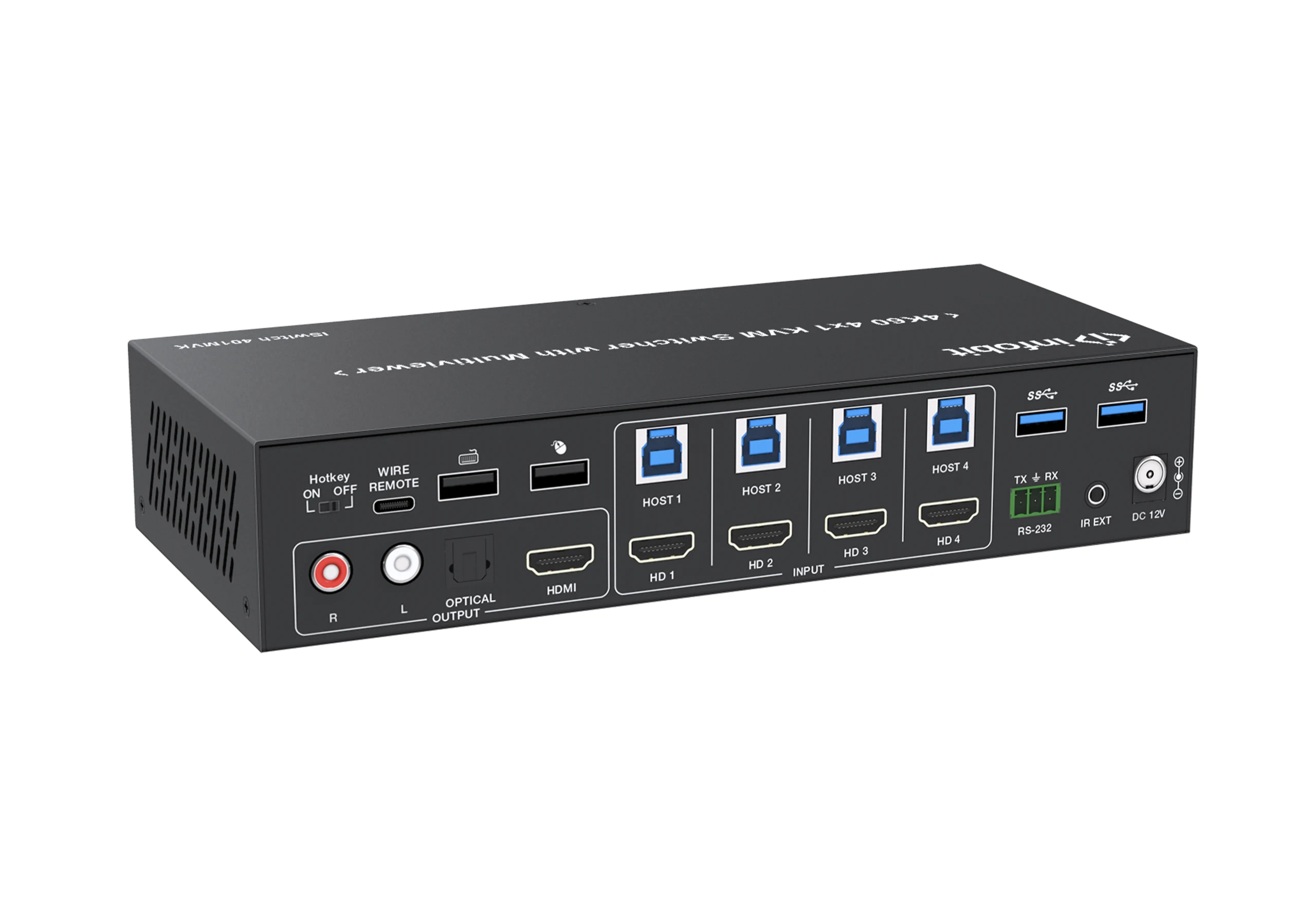

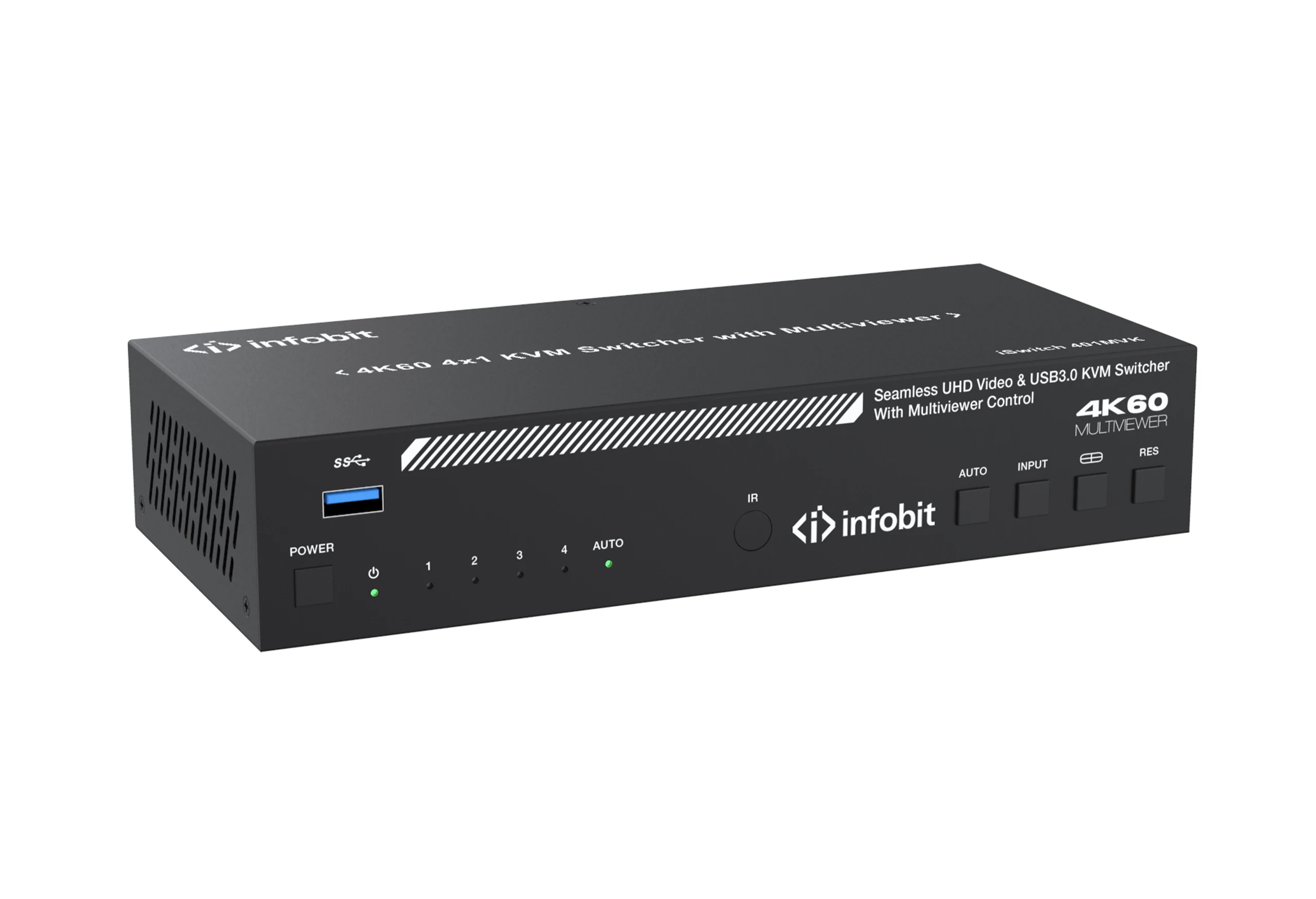

iSwitch 401MVK
1- HDCP 2.2 and HDCP 1.x compliant
2- Support 18Gbps uncompressed video bandwidth
3- Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b
4- Support LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel
5- Seamless switching between input channels and combined multiple images on single UHD monitor
6- Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
7- Seamless switching in single screen display mode
8- Fast switching in multiview display mode
9- Using only 1 set of keyboard, mouse and monitor to control 4 computers
10 Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers
11- Support multimedia, wireless keyboards and mouse
12- Audio de-embedding via analog and optical fiber audio ports
13- Support volume control and independent audio selection
14- Support OSD navigation for advanced setting
15- Control via front panel buttons, IR remote, keyboard/mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands
16- Compact design for easy and flexible installation

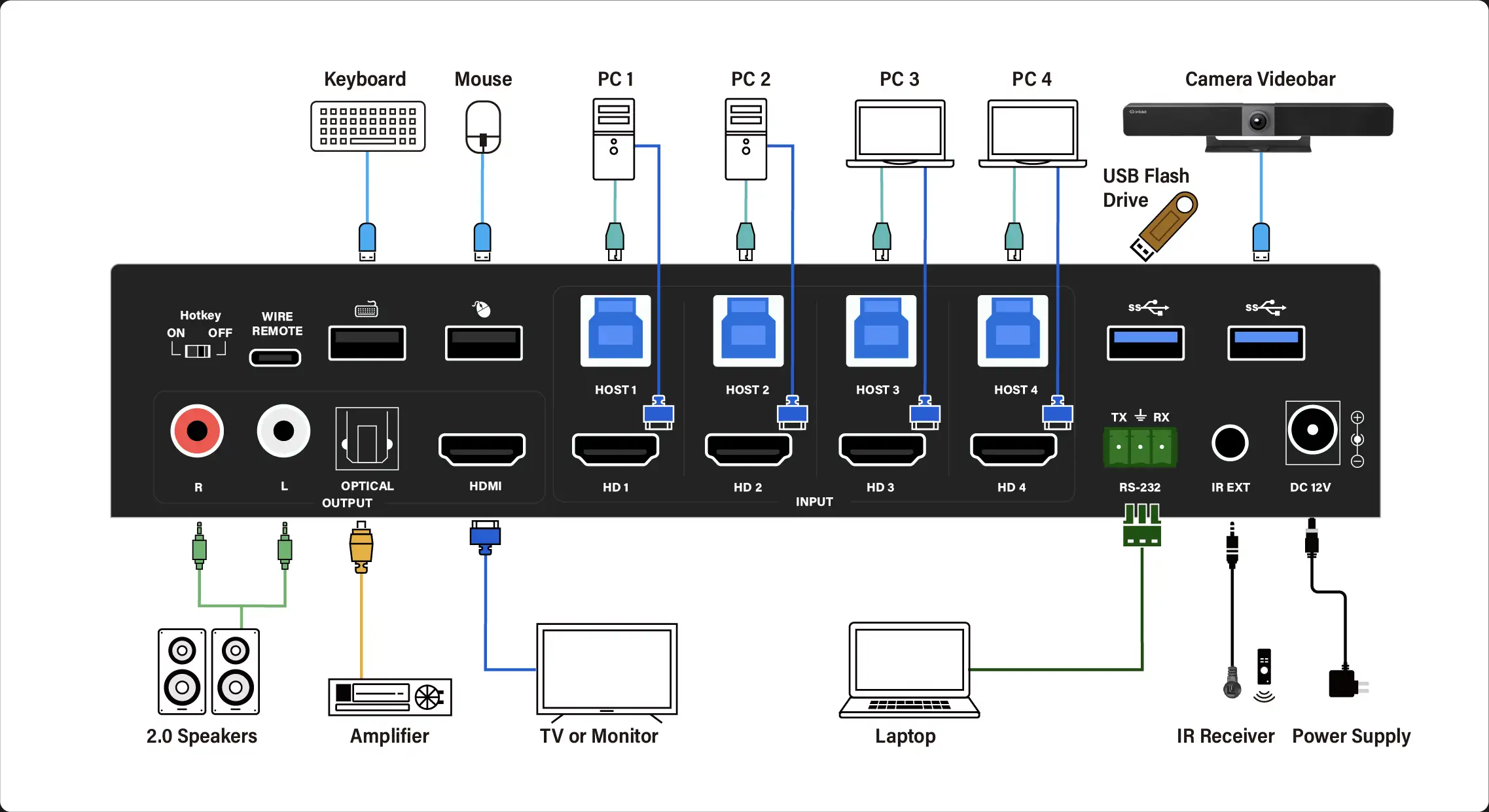

Diagram
Datasheet
| Model | iSwitch 401MVK |
| Name | 4K60 4×1 Seamless UHD Video & USB 3.0 KVM Switcher with Multiviewer Control |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | Fixed frequency 38KHz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| Audio Formats | HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, DTS, DTS-96/24, DTS High Res, DSD Analog audio [3.5mm L/R]: PCM2.0 SPDIF (OPTICAL): Dolby Digital/Plus, DTS 5.1, PCM2.0 Note: It does not support HBR audio. |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Input ports | 4 x HDMI IN [Type A, 19-pin female] |
| Output ports | 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF] |
| Control ports | 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] 4 x USB 3.0 HOST [USB Type B] 2 x USB 2.0 DEVICE [USB Type A] 3 x USB 3.0 DEVICE [USB Type A] |
