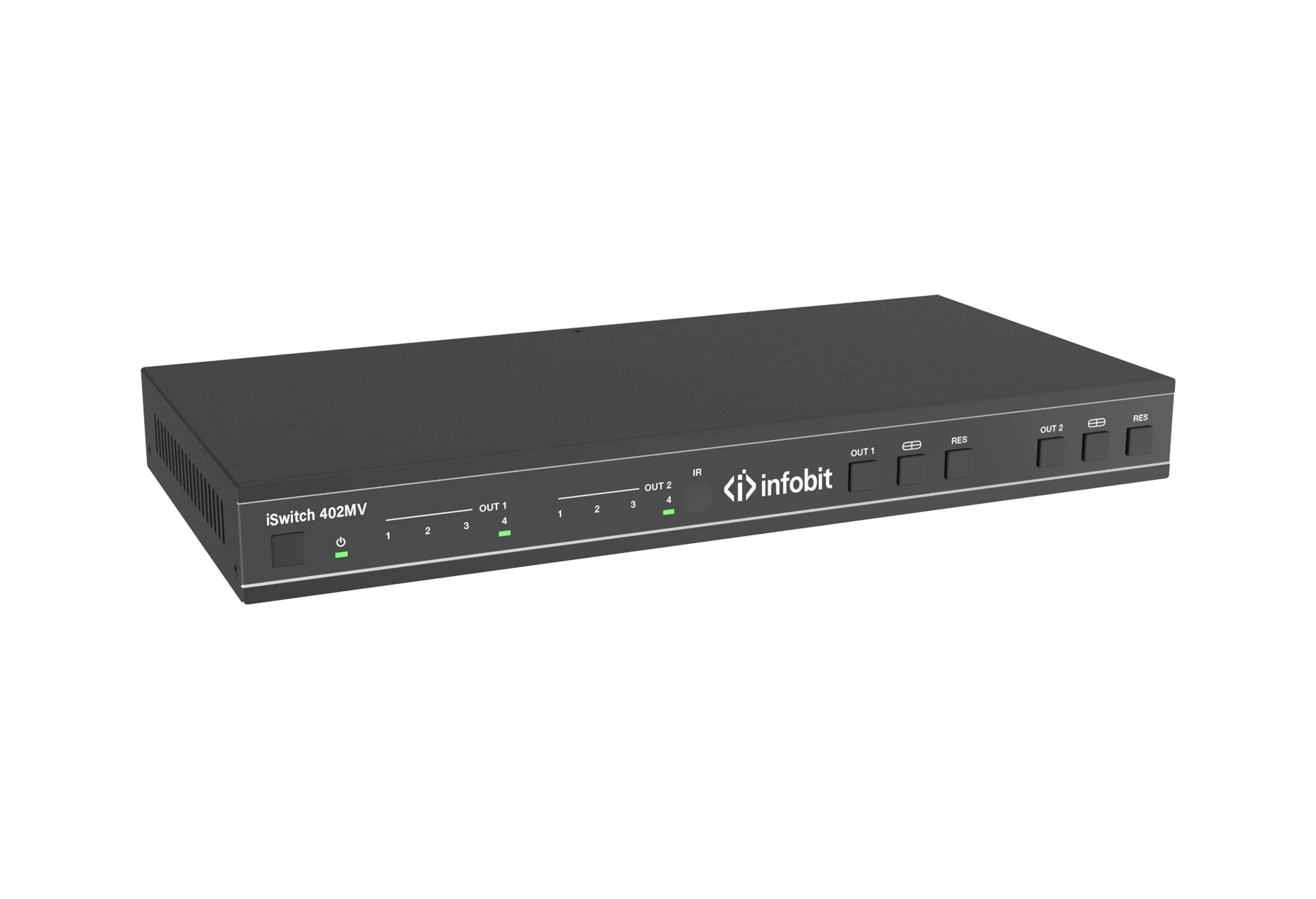

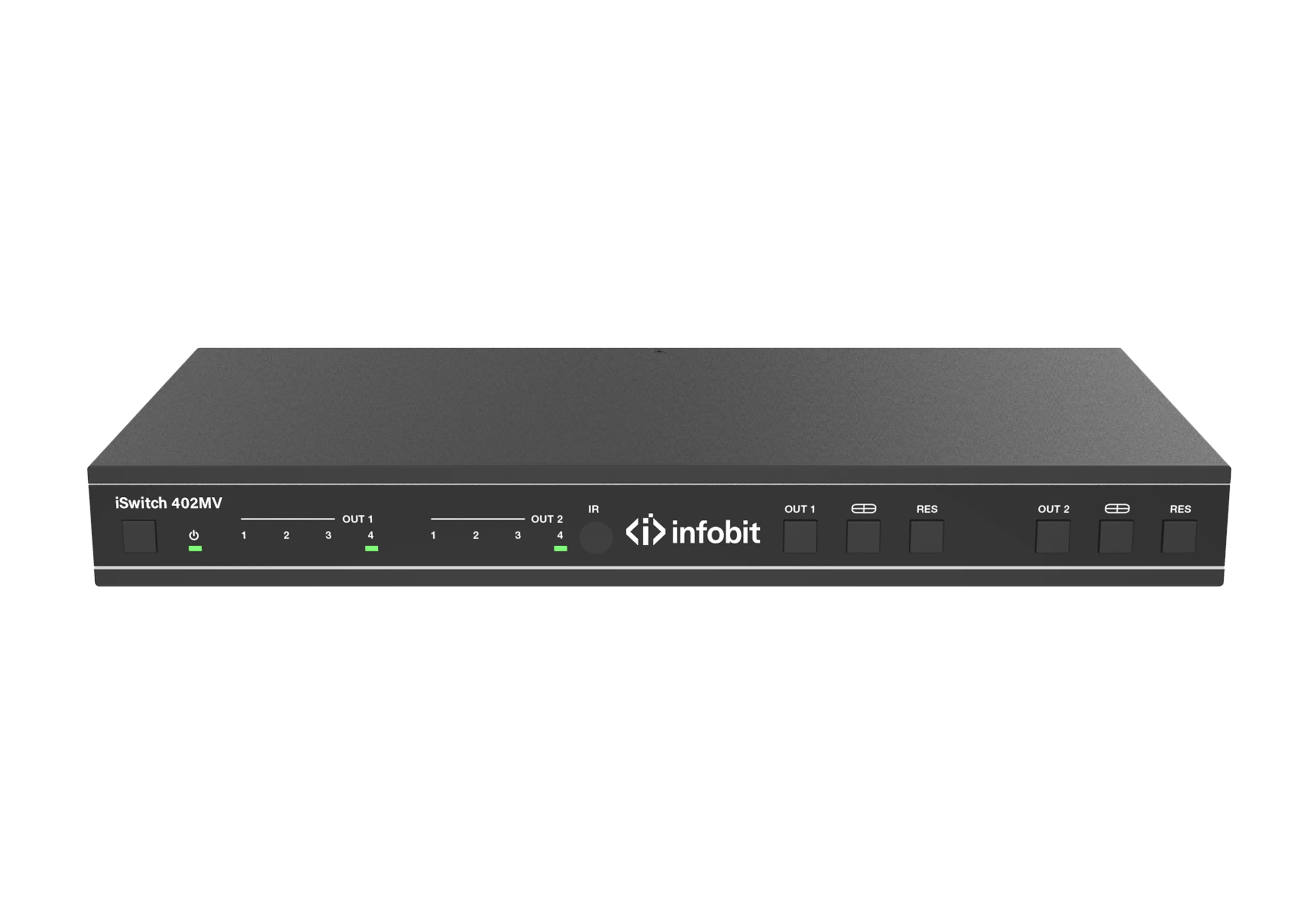

iSwitch 402MV
4K60 4x2 Multiviewer Seamless UHD Video Matrix Switcher
HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
18Gbps uncompressed Bandwidth, input and output resolution up to 4K2K@60 4:4:4
HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
Seamless switching between input channels
Combined multiple images and independent layouts to display on two UHD TVs
Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
Audio de-embedding via analog and optical fiber audio ports
Control via front panel buttons, IR remote, RS-232 commands
Each output port supports the Scaler function
Support independent audio selection
Advanced EDID management
Compact design for easy and flexible installation
![](https://www.infobitav.com/wp-content/uploads/2023/06/iSwitch-402MV-b02.jpg)
Seamless Switching
Seamless switching between input channels with any black screen intervals.
![](https://www.infobitav.com/wp-content/uploads/2023/06/iSwitch-402MV-b03.jpg)

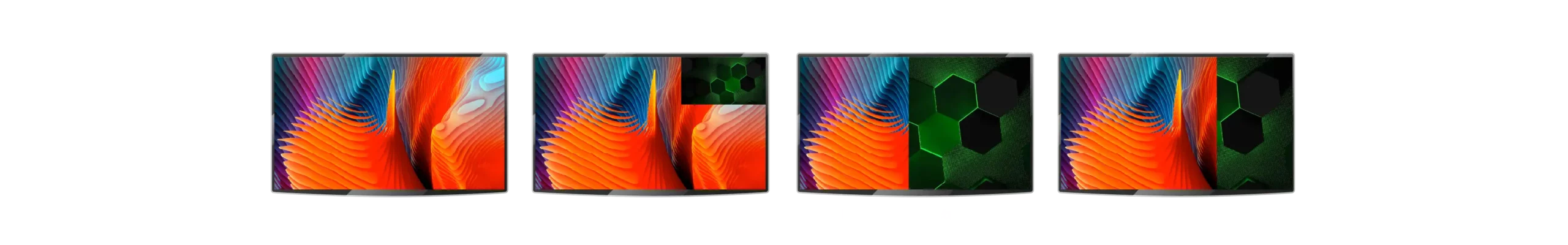

Single or Dual images modes
The iSwitch 402MV supports single image or dual-image displaying modes.
![](https://www.infobitav.com/wp-content/uploads/2023/06/iSwitch-402MV-b04.jpg)
Tri-image or Qual-image modes
The iSwitch 402MV supports Tri-image or Qual-image displaying modes.
![](https://www.infobitav.com/wp-content/uploads/2023/06/iSwitch-402MV-b06.jpg)
Audio extract
Support 7.1 CH audio, LPCM, DD+, DTS, Dolby TrueHD, DTS-master.
![](https://www.infobitav.com/wp-content/uploads/2023/06/iSwitch-402MV-b07.jpg)
Built-in 4K Scaler
Each output port supports Scaler function.
![](https://www.infobitav.com/wp-content/uploads/2023/06/iSwitch-402MV-b08.jpg)

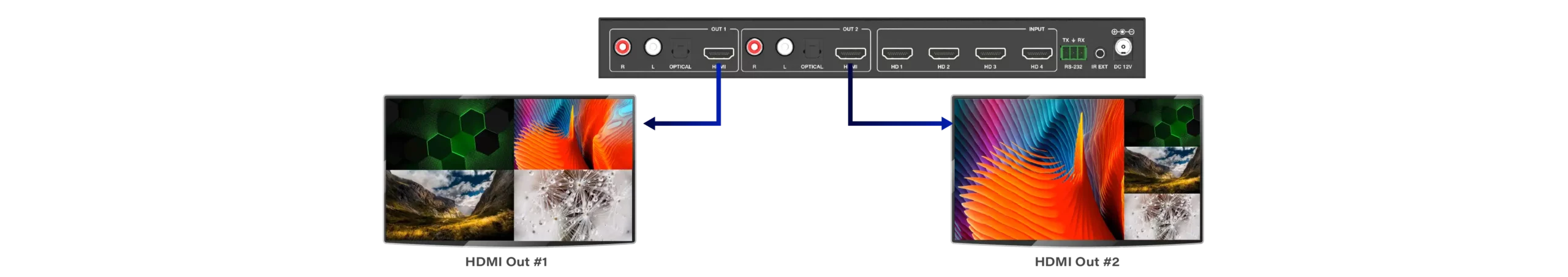

Multiview on individual output
The iSwitch 402MV support different multiview displaying modes on the 2 individual outputs.
Diagram
![iSwitch-402MV-b10](https://www.infobitav.com/wp-content/uploads/2023/06/iSwitch-402MV-b10.jpg)
Datasheet
Model | iSwitch 402MV |
Name | 4K60 4×2 Multiviewer Seamless UHD Video Matrix Switcher |
HDMI Compliance | HDMI 2.0b |
Video Bandwidth | 18Gbps |
Video Resolution | Up to 4K2K@60 4:4:4 |
IR Level | 5Vp-p |
IR Frequency | 38KHz |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
Color Depth | 8/10/12-bit |
Audio Formats | HDMI audio: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio Analog audio [3.5mm L/R]: PCM2.0 Optical fiber audio: PCM2.0/5.1/7.1CH, Dolby Digital/plus, DTS 5.1 |
ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |

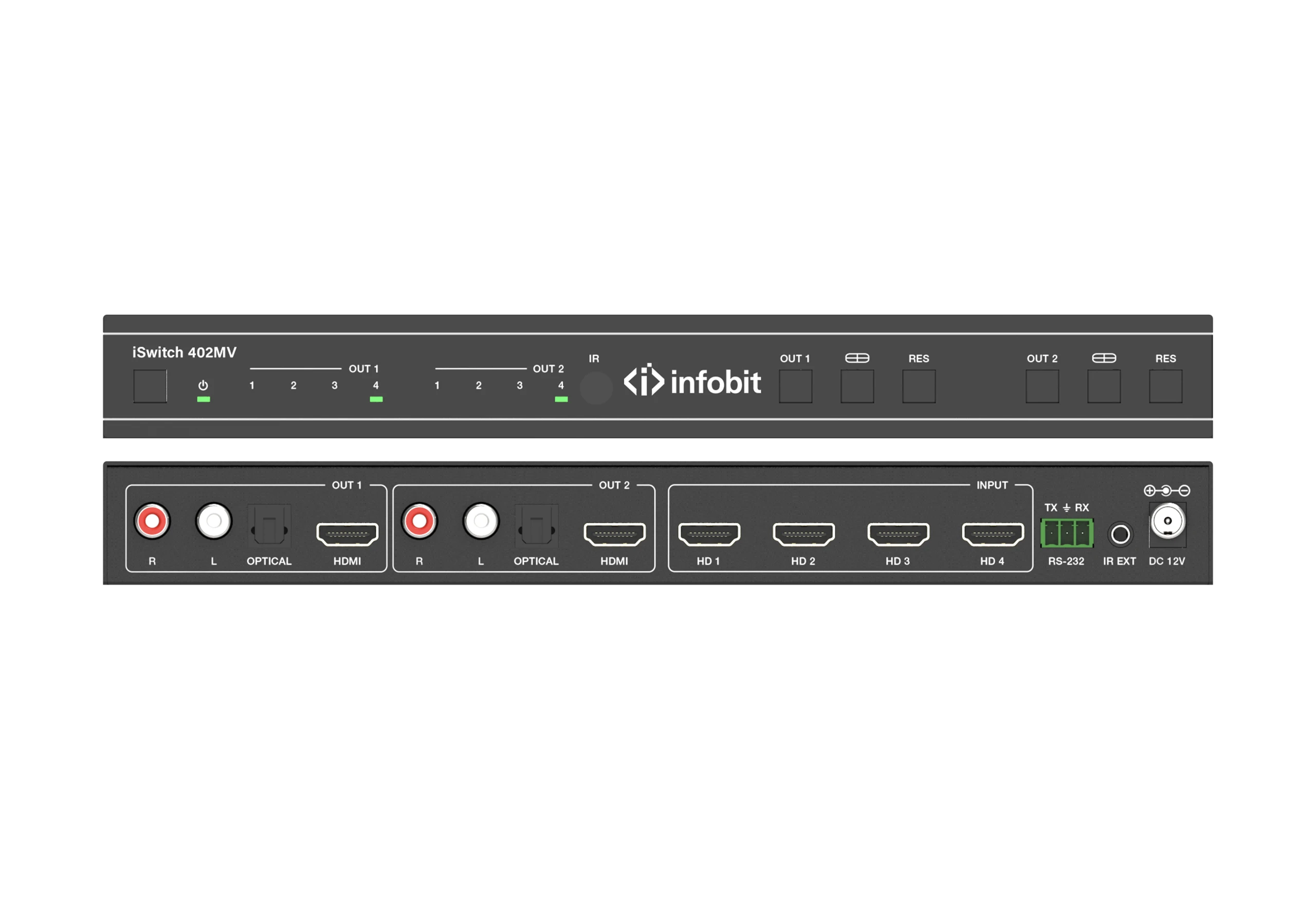

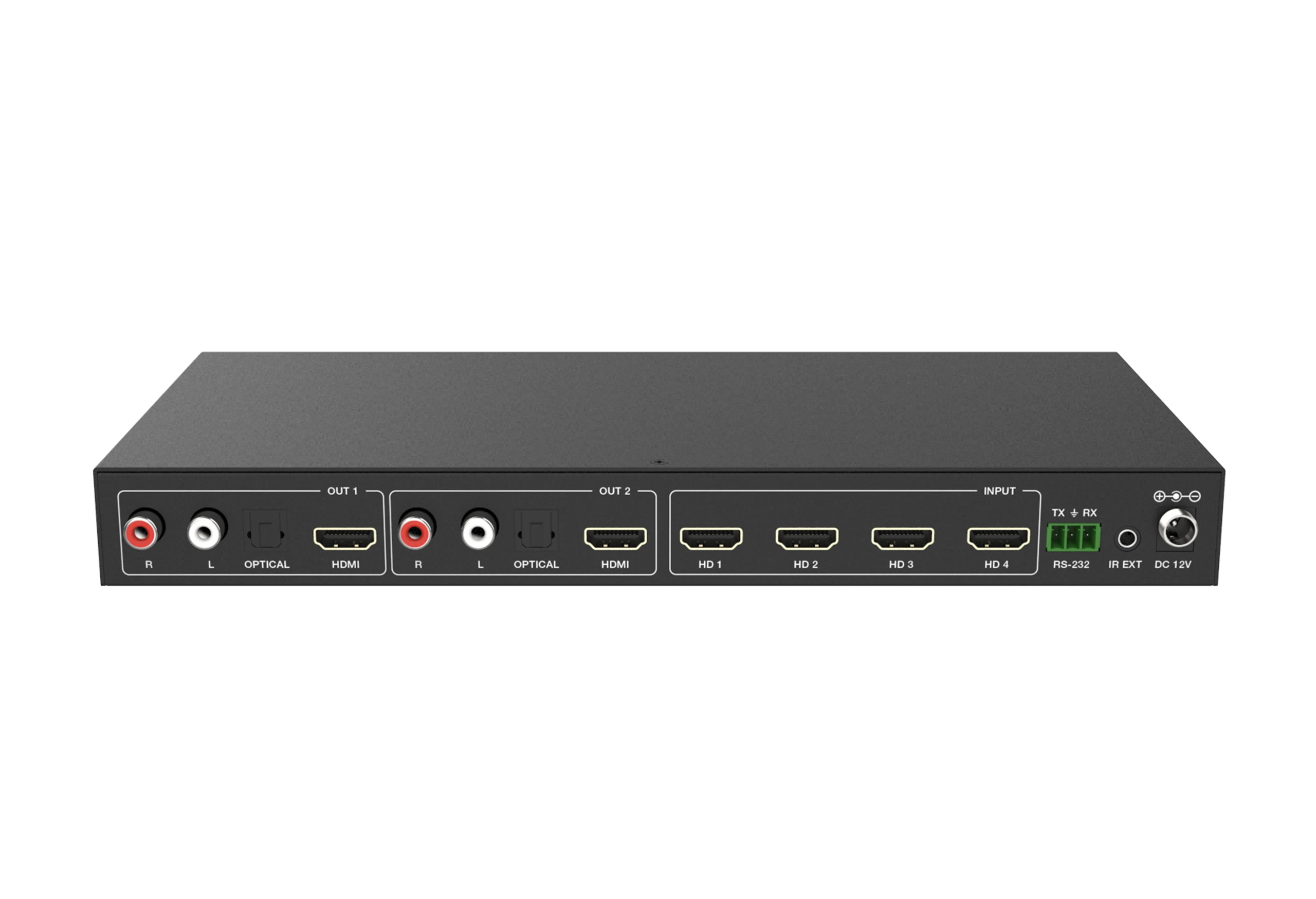

Input ports | 4 x HDMI IN [Type A, 19-pin female] |
Output ports | 2 x HDMI OUT [Type A, 19-pin female] 2 x L/R OUTPUT [RCA] 2 x OPTICAL OUTPUT [S/PDIF] |
Control ports | 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 270mm [W] x 130mm [D] x 30mm [H] |
Weight | 906g |
Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
Operating Temperature | 32 – 104°F / 0 – 40°C |
Storage Temperature | -4 – 140°F / -20 – 60°C |
Relative Humidity | 20 – 90% RH (non-condensing) |
Power Consumption | 15.72W (Max) |
