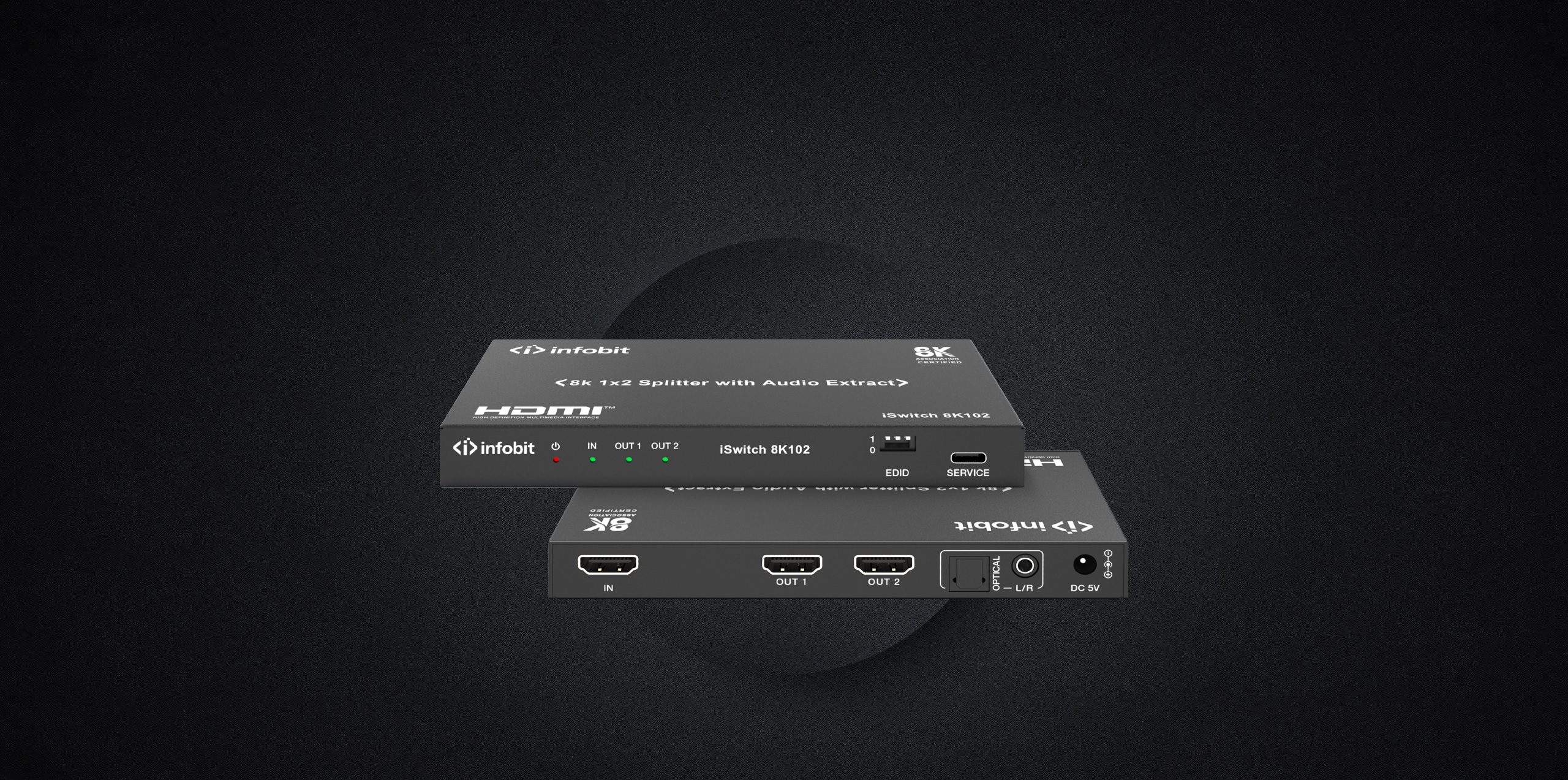

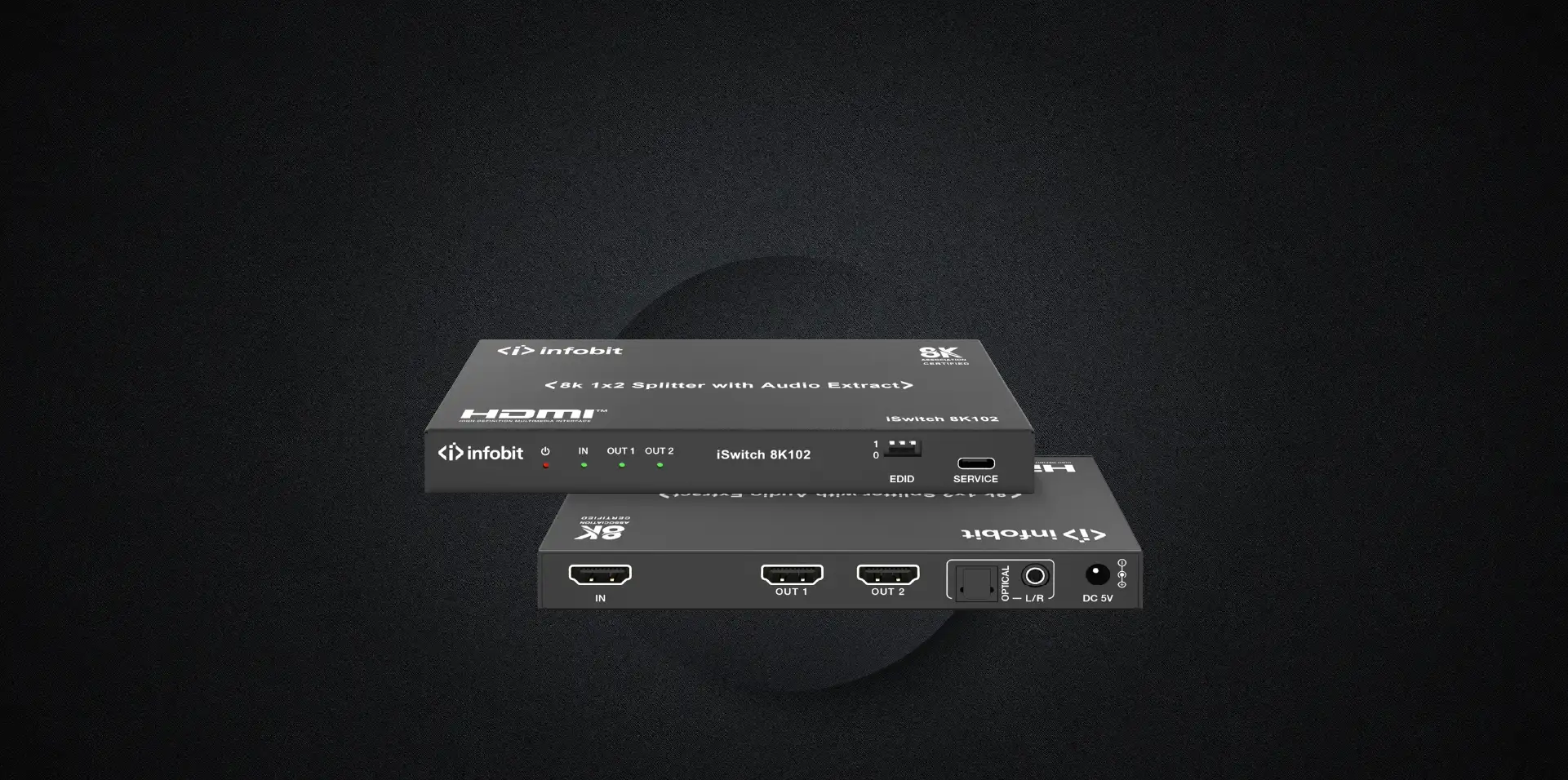

iSwitch 8K102
1- HDCP 2.3 compliant
2- Support 48Gbps FRL and 18Gbps TMDS video bandwidth
3- Support resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
4- VRR, FVA, ALLM are supported
5- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
6- Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master Audio
7- Support audio de-embedding function (output through the optical and analog port)
8- Support resolution auto downscaling on each output
9- Support auto converting of HDR to SDR on each output
10- Advanced EDID management

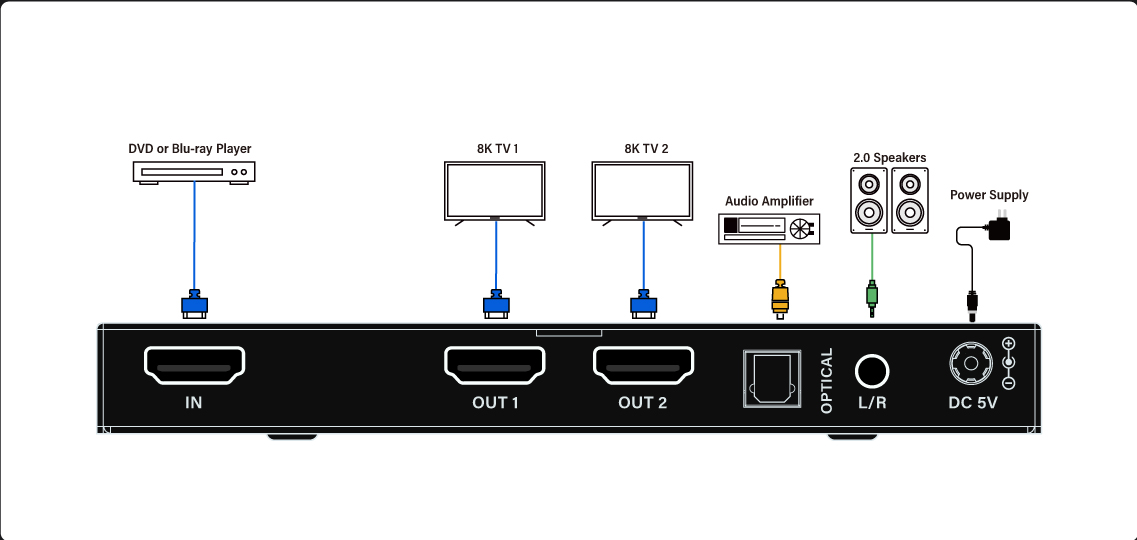

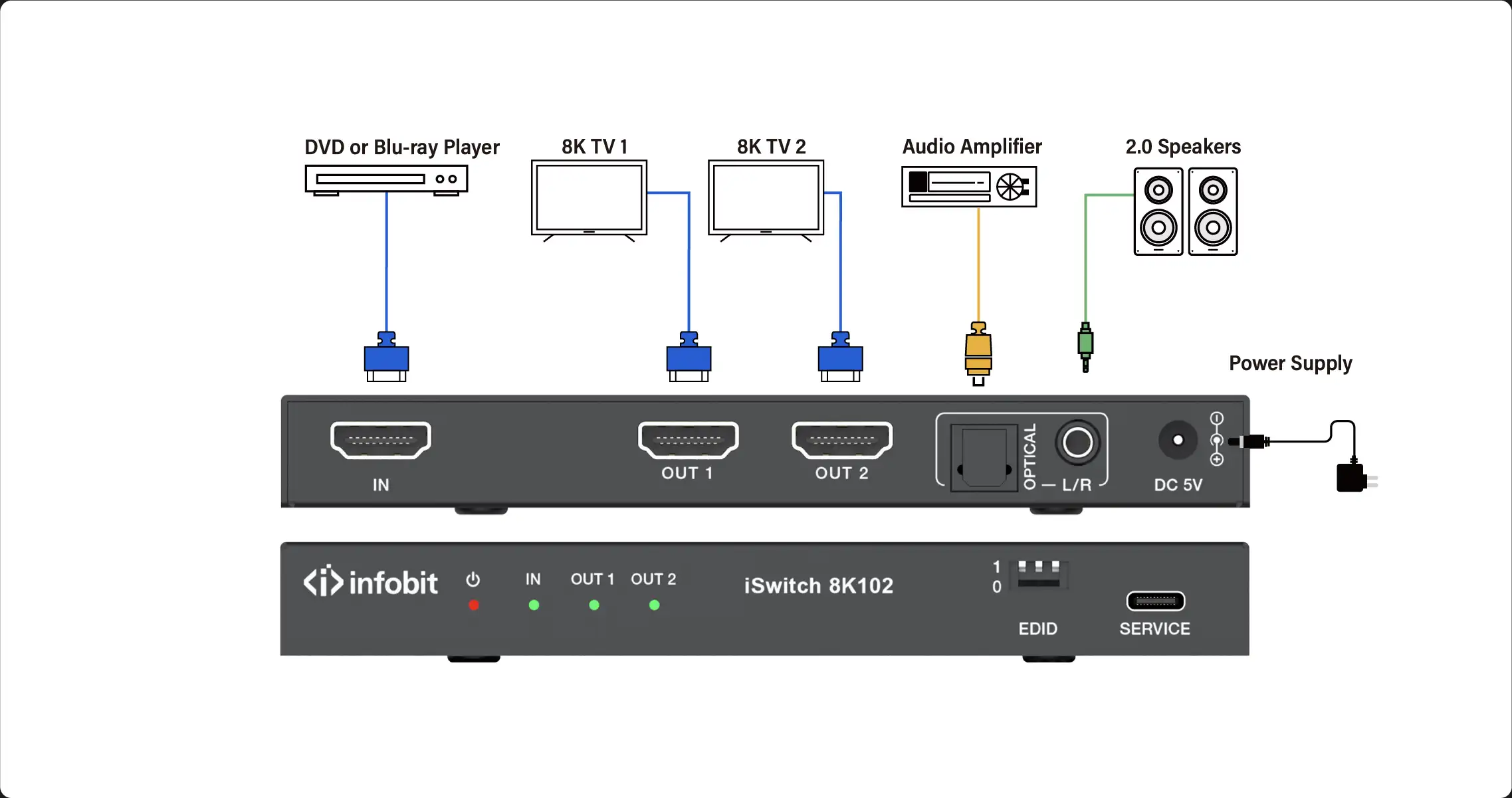

Diagram

Datasheet

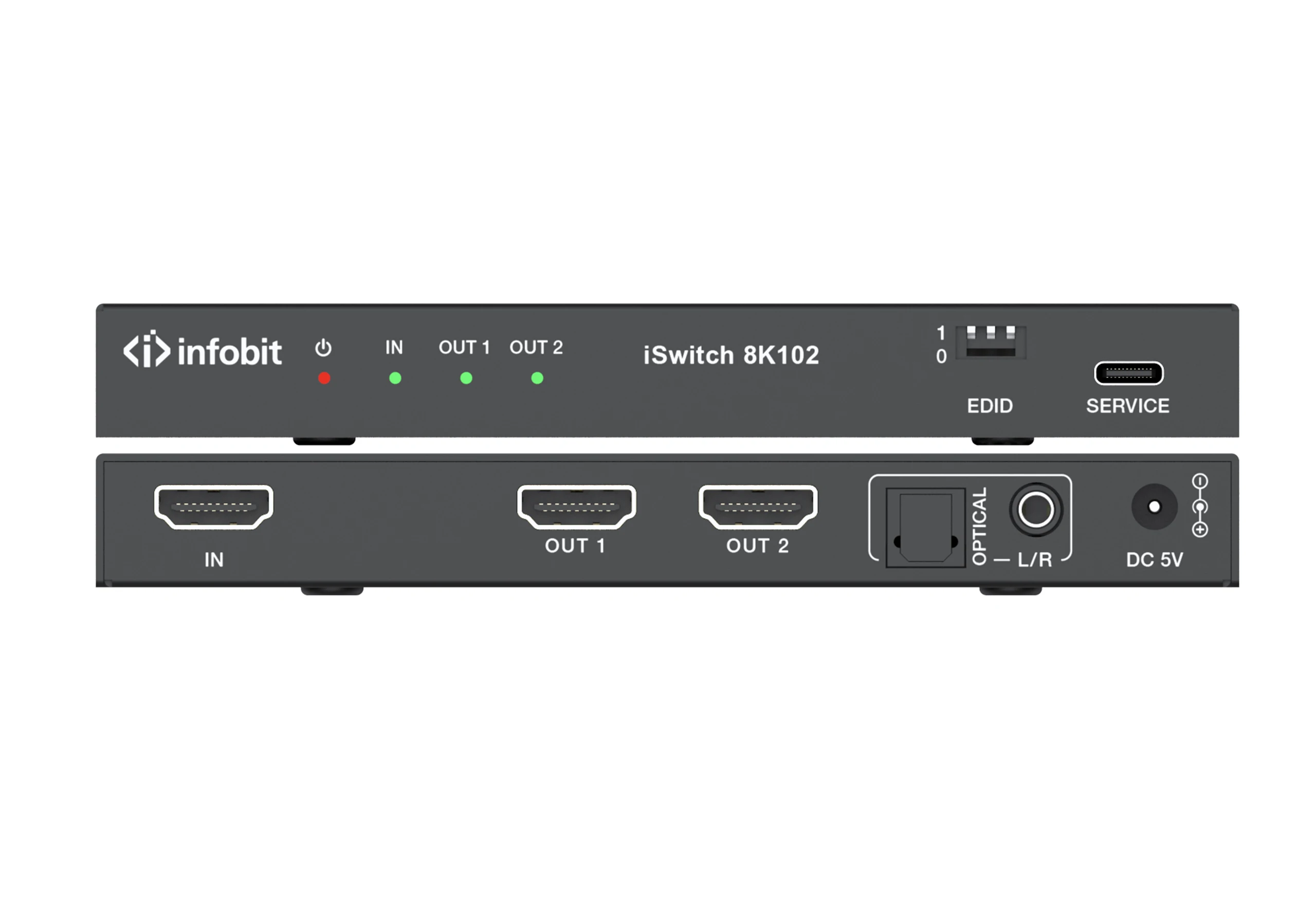

Model iSwitch 8K102
Name 1×2 HDMI 8K Splitter
Video Bandwidth  48Gbps FRL and 18Gbps TMDS
Input Port  1×HDMI Type A (19-pin female)
Output Ports  2×HDMI Type A (19-pin female)
1 × OPTICAL [S/PDIF]
1 × L/R [3.5mm Stereo Mini-jack]
Video Resolution  Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Chassis Material Metal
Color  Black
Weight  260g
Power Supply Input: AC100 – 240V 50/60Hz
Output: DC 5V/2A
Dimensions 145 mm(W)×68 mm(D)×17mm(H)
Operating Temperature  0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature  -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity  20~90% RH (non-condensing)

Download

  • iSwitch 8K102 User Manual V1.0.pdf

    0M 17-07-2024
