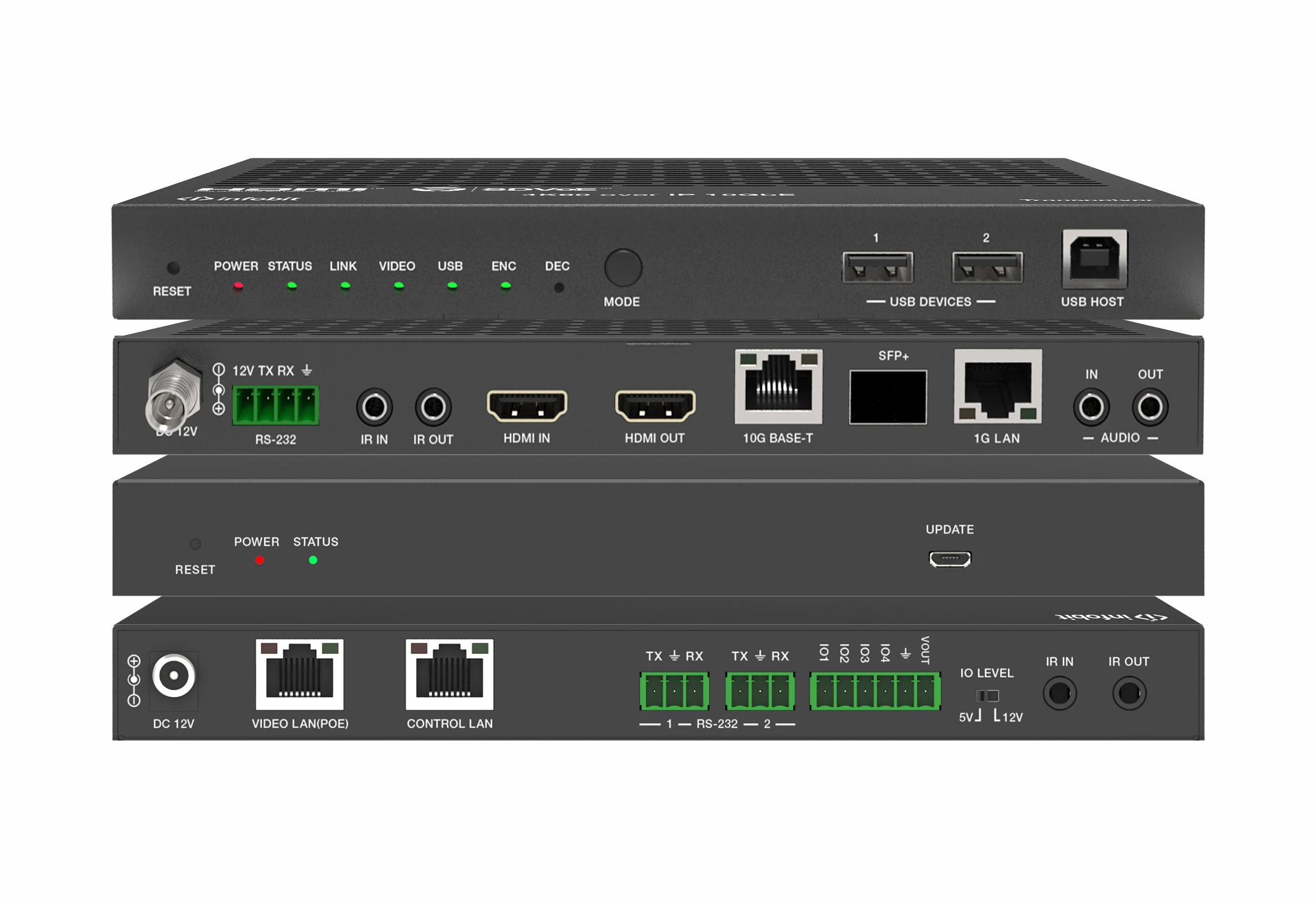

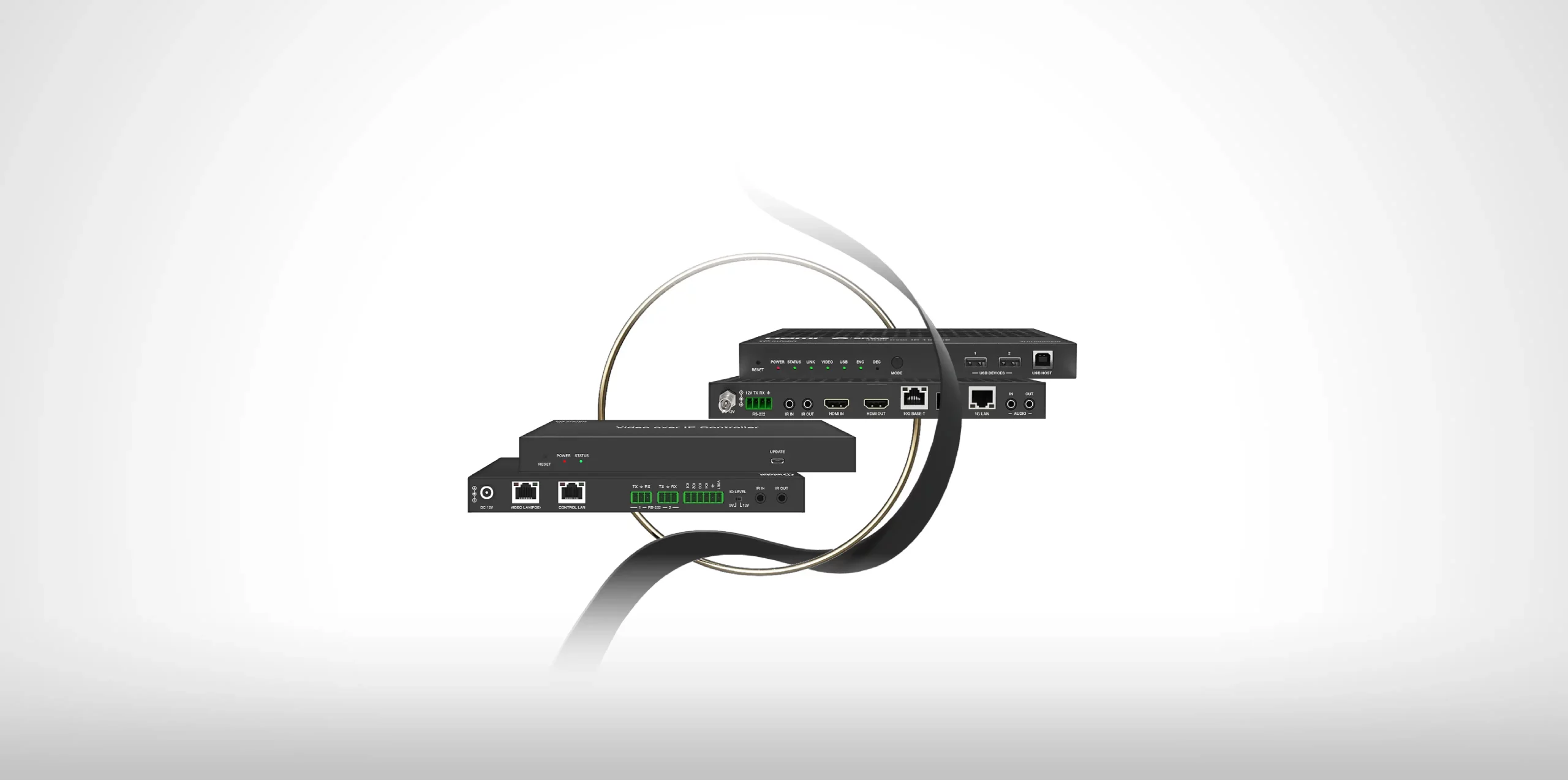

iSwitch SDV
SDVoE 4K60 AV over IP Transceiver with Fiber
HDMI 2.0b and HDCP 2.2 compliant
Support video resolution up to 4k2k@60Hz 4:4:4
Support 18Gbps video bandwidth
Flexible transceiver design (Encoder, Decoder, Copper port, and Fiber port share a box)
Support signal extension, matrix, seamless switching, Video Wall, and up to 32 windows Multi-viewer
2-line latency (zero-frame)
Built-in H.264/265 preview module for video live preview
Automatic detection of Fiber and Copper ports (priority can be set)
ENC mode supports HDMI Loop out, DEC mode supports HDMI in-to-out bypass
Support bi-directional IR and RS-232 control signal pass-through
HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Support bi-directional stereo analog audio pass-through
Support 3D and HDR format video, support CEC control
Support USB 2.0 or USB KVM (optional)
Support RS-232, TCP/IP, IR, Web GUI, and APP control
Support POE+ (PD mode)
![](https://www.infobitav.com/wp-content/uploads/2022/10/iSwitch-SDV-b12.jpg)

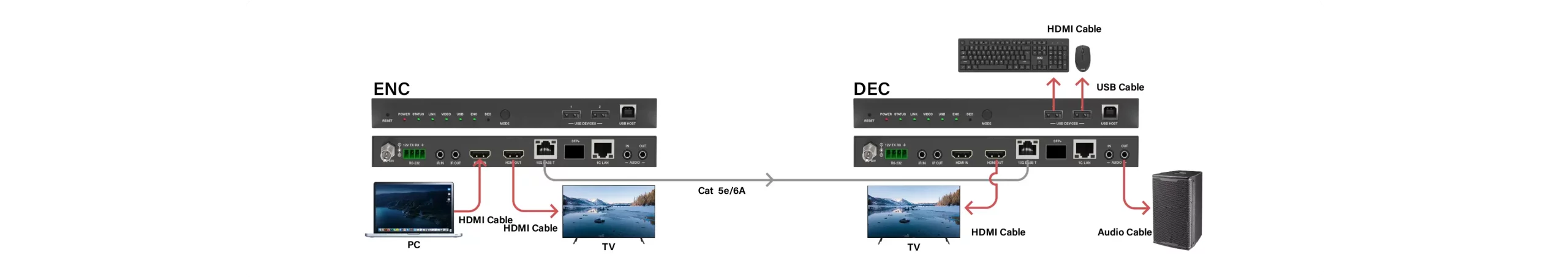

Point-to-Point
iSwitch AV over IP products are a direct replacement for AV Matrix (HDbaseT) solutions. Leverage IP infrastructure to route AV signals in offices, huddle rooms, conference rooms, or as content contribution (trunking) between locations. True plug-and-play, no need any IP settings.
![](https://www.infobitav.com/wp-content/uploads/2022/10/iSwitch-SDV-b13.jpg)

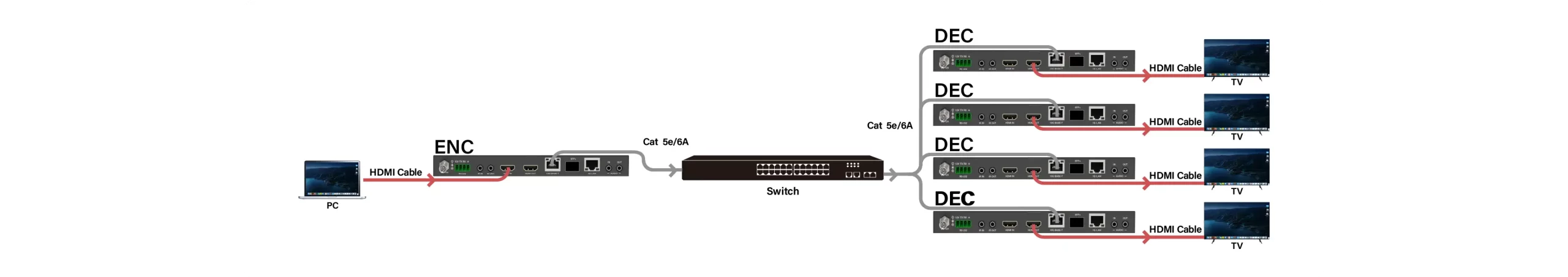

One-to-Many
iSwitch SDV efficiently deliver high-quality, low latency, AV to many displays on a floor, between floors, or across the entire organization.
![](https://www.infobitav.com/wp-content/uploads/2022/10/iSwitch-SDV-b14.jpg)

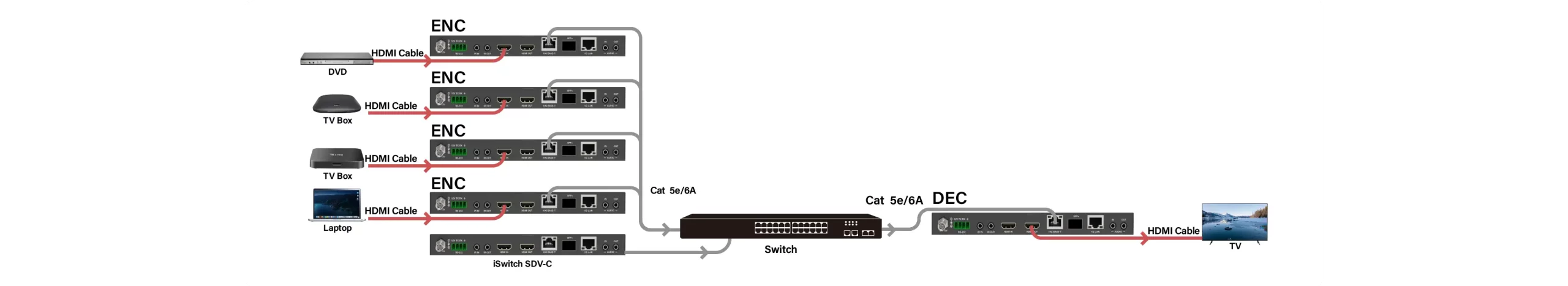

Many-to-One Switching
iSwitch SDV lets you take content from multiple encoders and deliver it to one decoder connected to the same managed Ethernet switch.
![](https://www.infobitav.com/wp-content/uploads/2022/10/iSwitch-SDV-b21.jpg)
Many-to-Many Video Wall
iSwitch SDV include video wall processing that allows encoded AV content to be presented across an array of displays.
![](https://www.infobitav.com/wp-content/uploads/2022/10/iSwitch-SDV-b16.jpg)

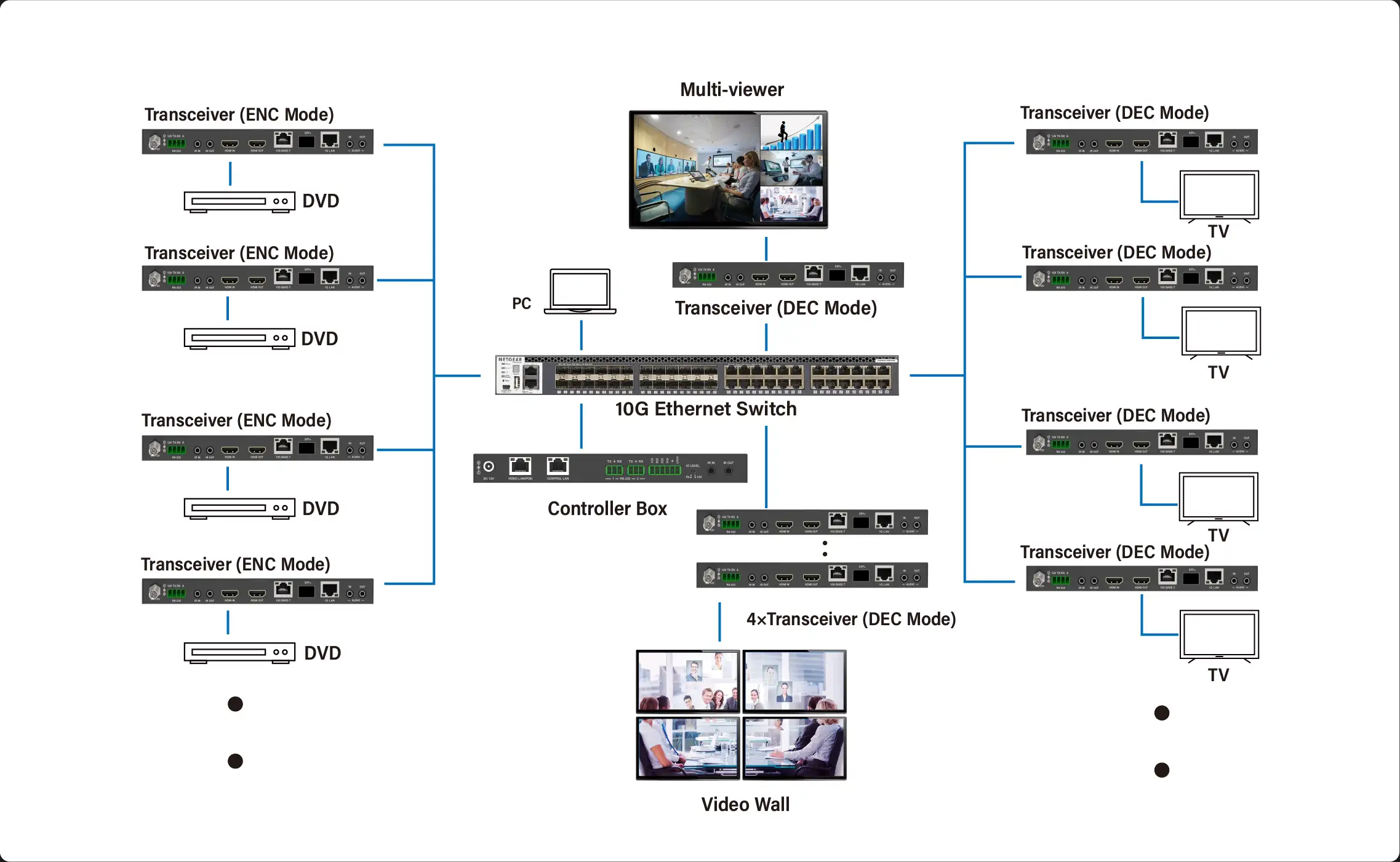

Many-to-Many Matrix Switching
Digital signage systems are usually asymmetrical – a few sources feeding a large number of destinations.
iSwitch SDV simply integrates decoder and network drop for each display.
![iSwitch-SDV-b07](https://www.infobitav.com/wp-content/uploads/2022/10/iSwitch-SDV-b07.jpg)
Datasheet
Model | iSwitch SDV-C |

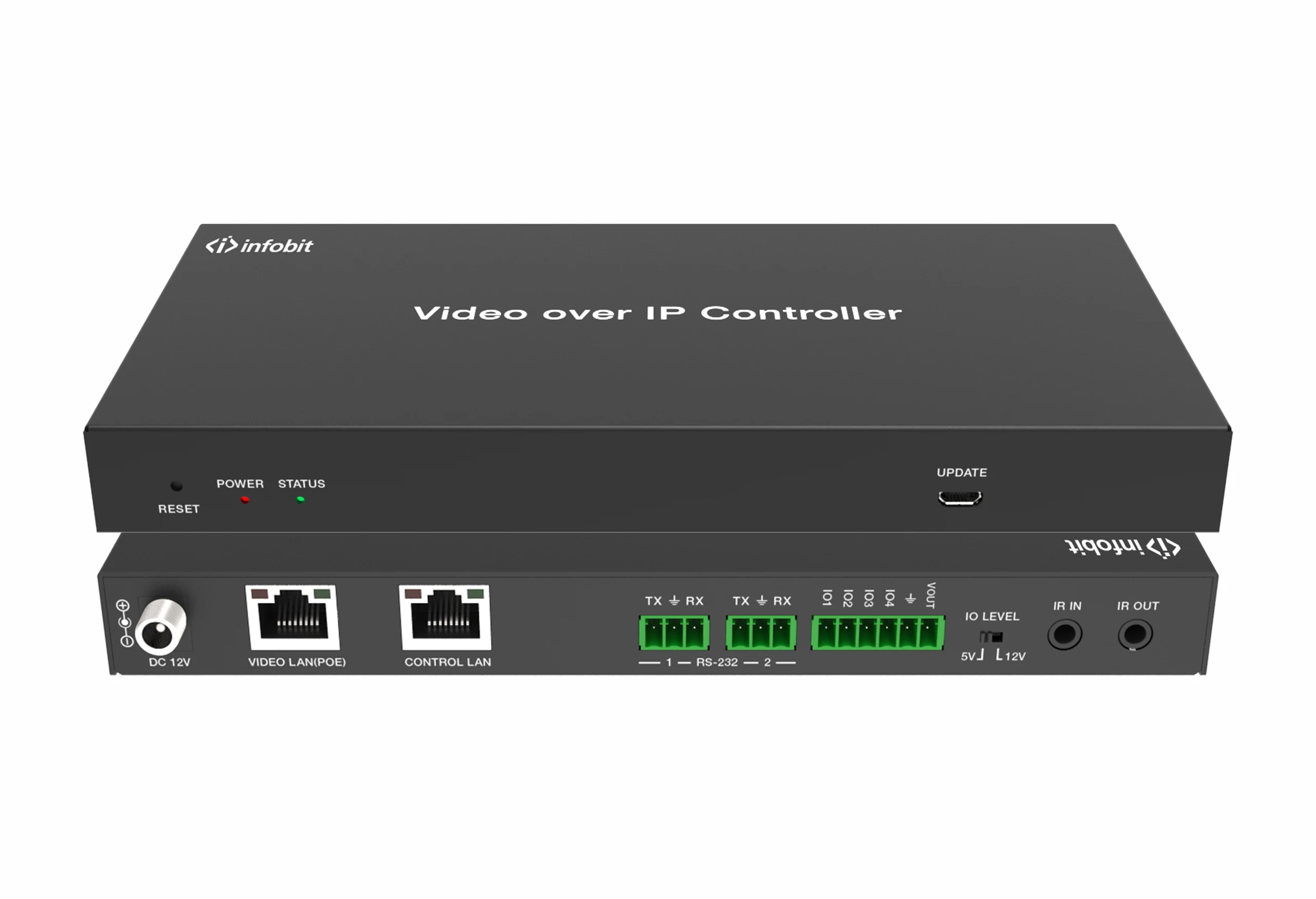

Name | SDVoE 4K60 AV over IP Control Node |
Network Bandwidth | 100M/ 1G |
Transmission Distance | MAX: 100M (CAT6A/7) |
Control Ports | 2 x 1G LAN [RJ45 connector] [VIDEO LAN support POE] 1 x IR IN [3.5mm audio jack, 12V level] 1 x IR OUT [3.5mm audio jack] 1 x DIGITAL I/O [6-pin 3.81mm phoenix connector] 2 x RS-232 [3-pin 3.81mm phoenix connector] 1x USB Host [Micro USB, 5-pin female] |
Model | iSwitch SDV-TR |

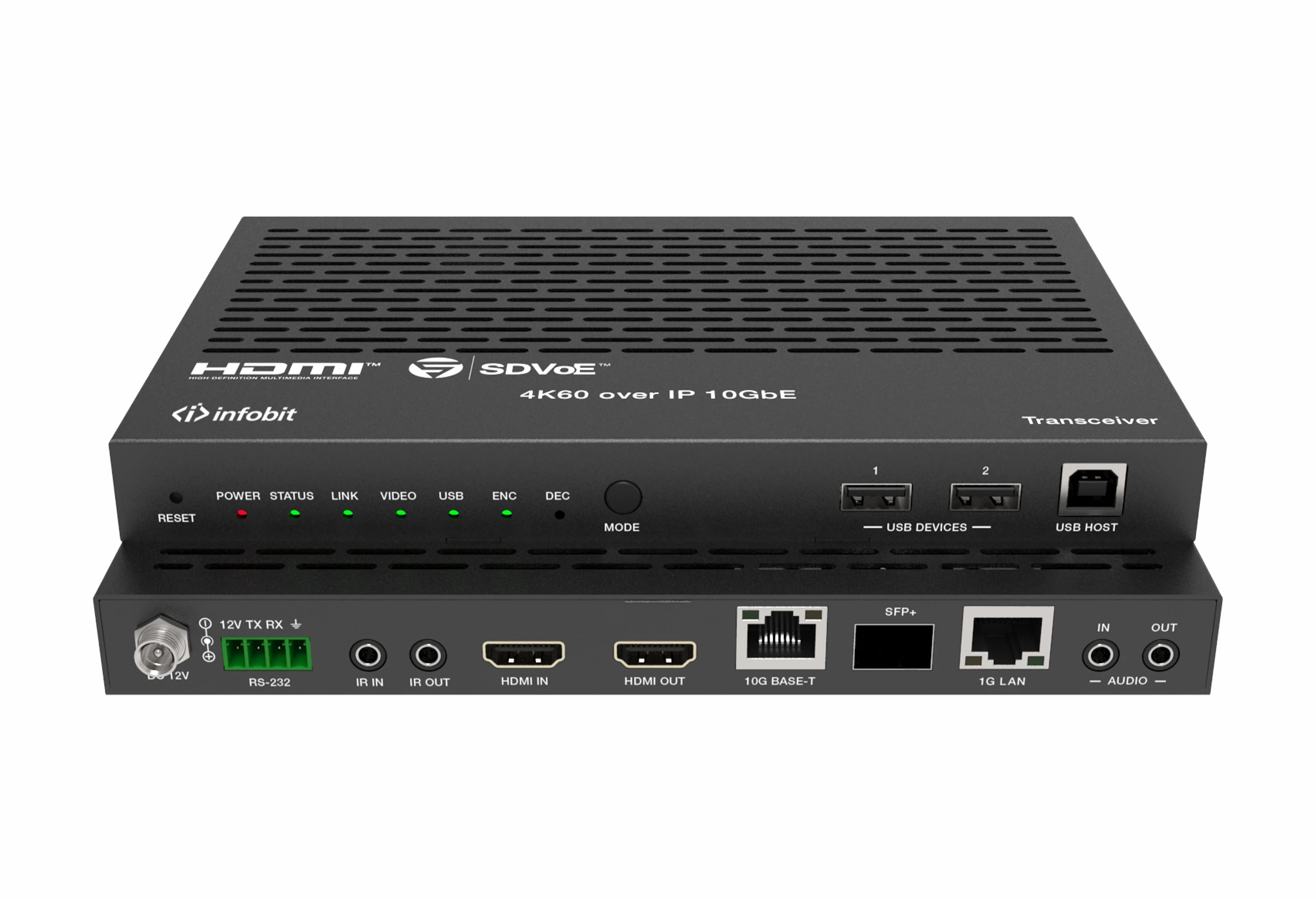

Name | SDVoE 4K60 AV over IP Transceiver with Fiber |
HDMI Compliance | HDMI 2.0b |
HDCP Compliance | HDCP 2.2 |
Video Bandwidth | 18Gbps |
Video Format | 10G BaseT |
Network Video Bandwidth | 10G |
Video Resolution | Up to 4K2K@60Hz YUV 4:4:4 |
Color Space | RGB, YCbCr 4:4:4, 4:2:2, 4:2:0 |
Color Depth | 8-bit, 10-bit, 12-bit (1080P) 8-bit (4K60) |
HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
Analog Audio Formats | PCM2.0CH |
Transmission Distance | MAX: 100M (CAT6A/7) / 90M(CAT6) |
ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |

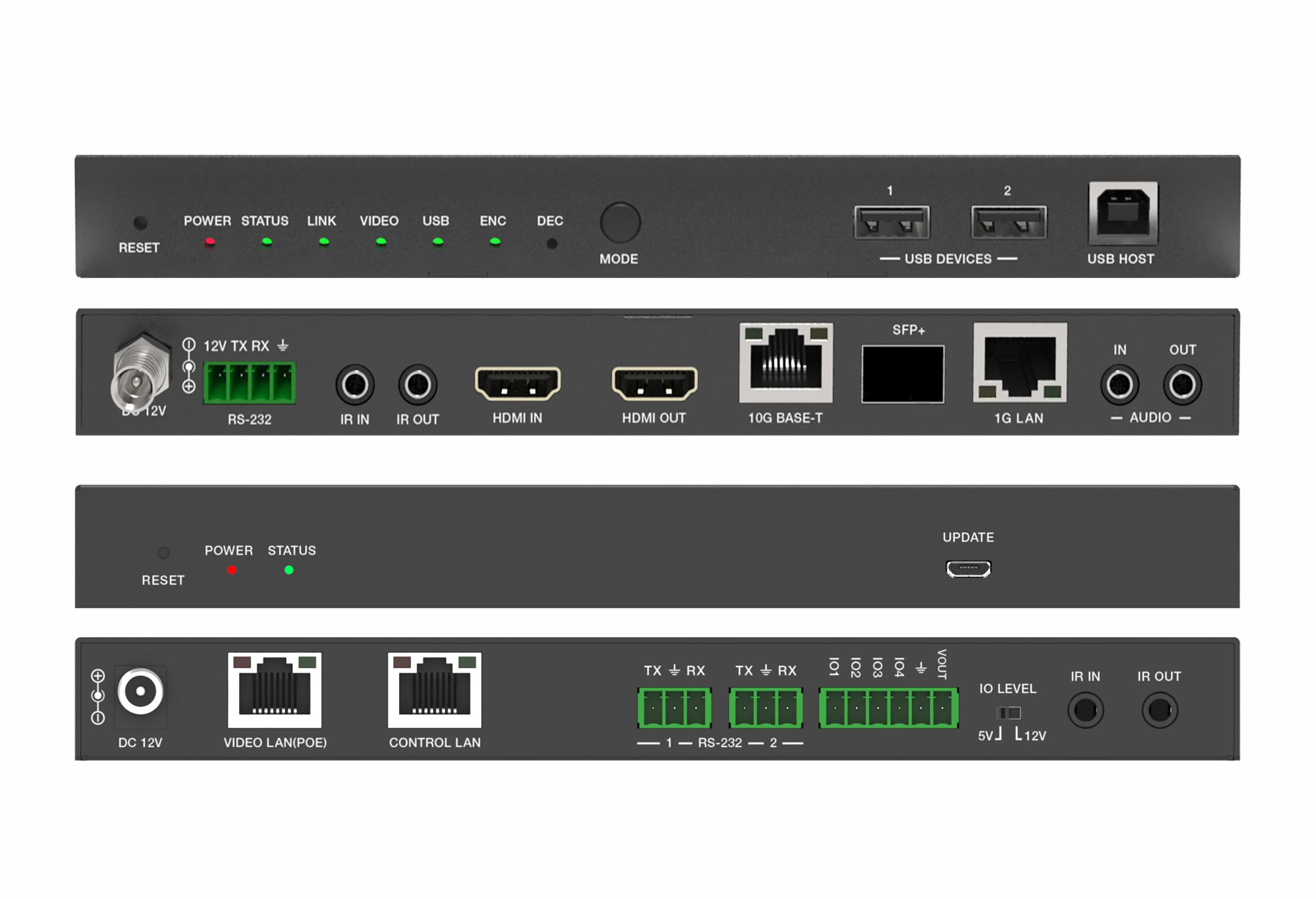

Transmitter | 1 x HDMI IN [Type A, 19-pin female] 1 x USB HOST [Type B, 4-pin female] 1x IR IN [3.5mm Jack] 1x AUDIO IN [3.5mm Jack] 1 x RS-232 [4-pin phoenix connector] |
Receiver | 1 x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [3.5mm Jack] 1 x IR OUT [3.5mm Jack] 2 x USB 2.0 [Type-A, 4pin female] 1 x 10G BASE-T [RJ45 jack] 1 x 10G SFP+ [Fiber slot] 1 x 1G LAN [RJ45 jack] |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 204mm (W)×134mm (D)×21.5mm (H) |
Weight | 693g |
Power Supply | DC 24V/1A |
Power Consumption | 18W (Max.) |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (non-condensing) |
Resolution / Cable Length: HDMI IN OUT | 4K60: 5m; 4K30: 10m, 1080P60: 15m |
