Two-channel Bluetooth audio to Dante® 2CH digital audio
Supports Bluetooth V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 192KHz@24bit
Dante® audio sampling rate supports 48KHz@24bit
Dante® audio delay supports 1/2/5ms (configurable)
Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
Compact design for easy and flexible installation
Supports Bluetooth ID renaming.

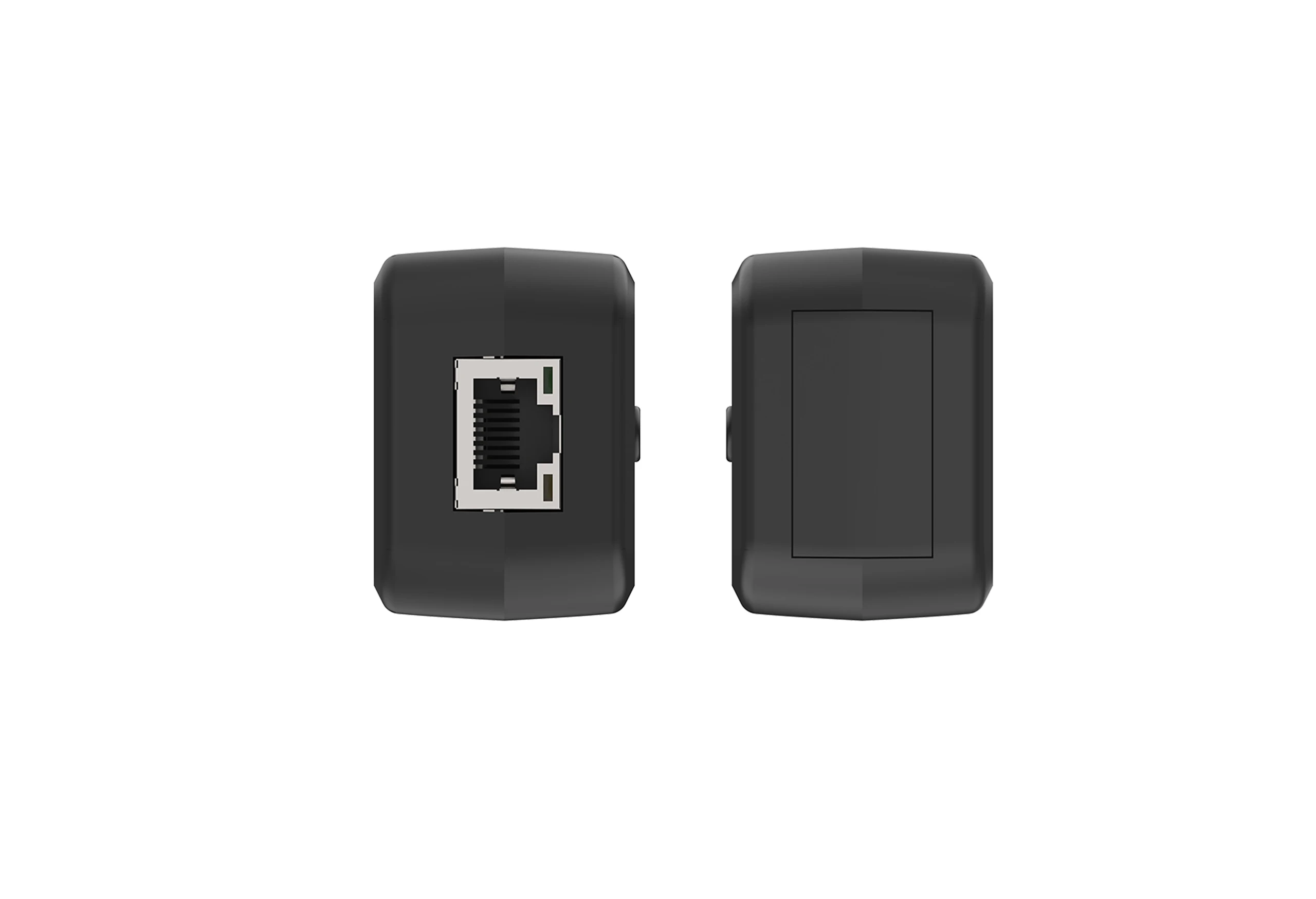

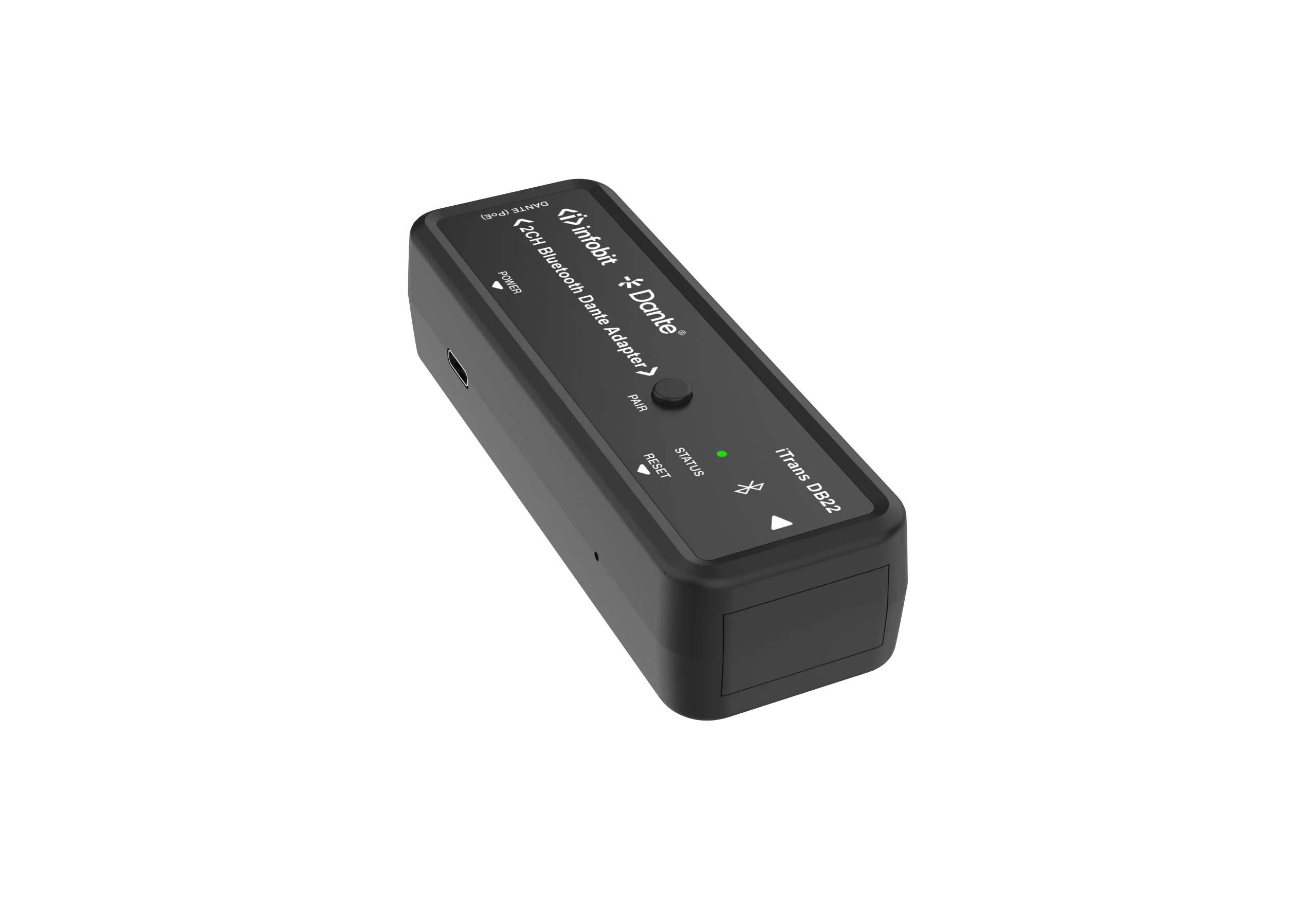

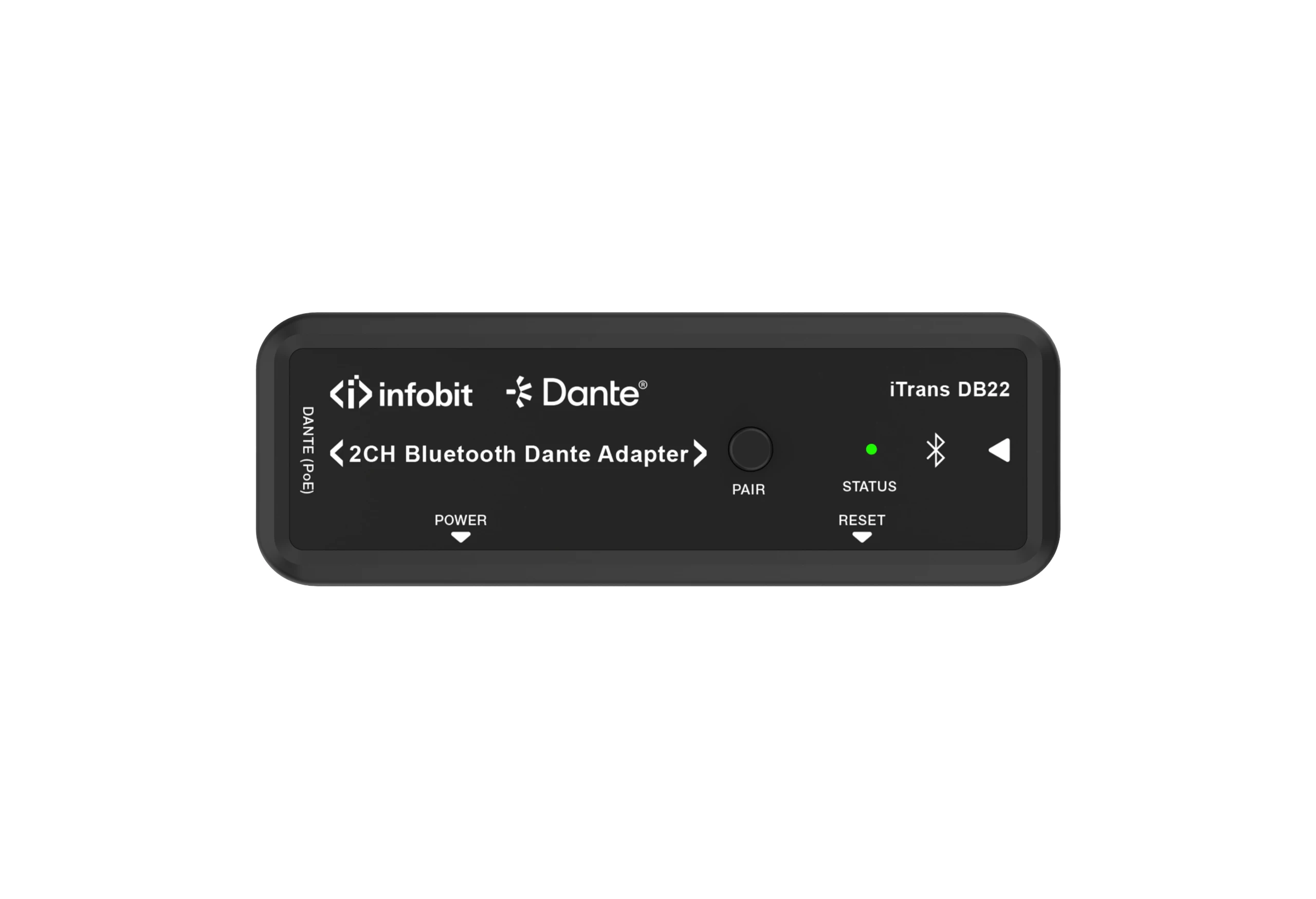

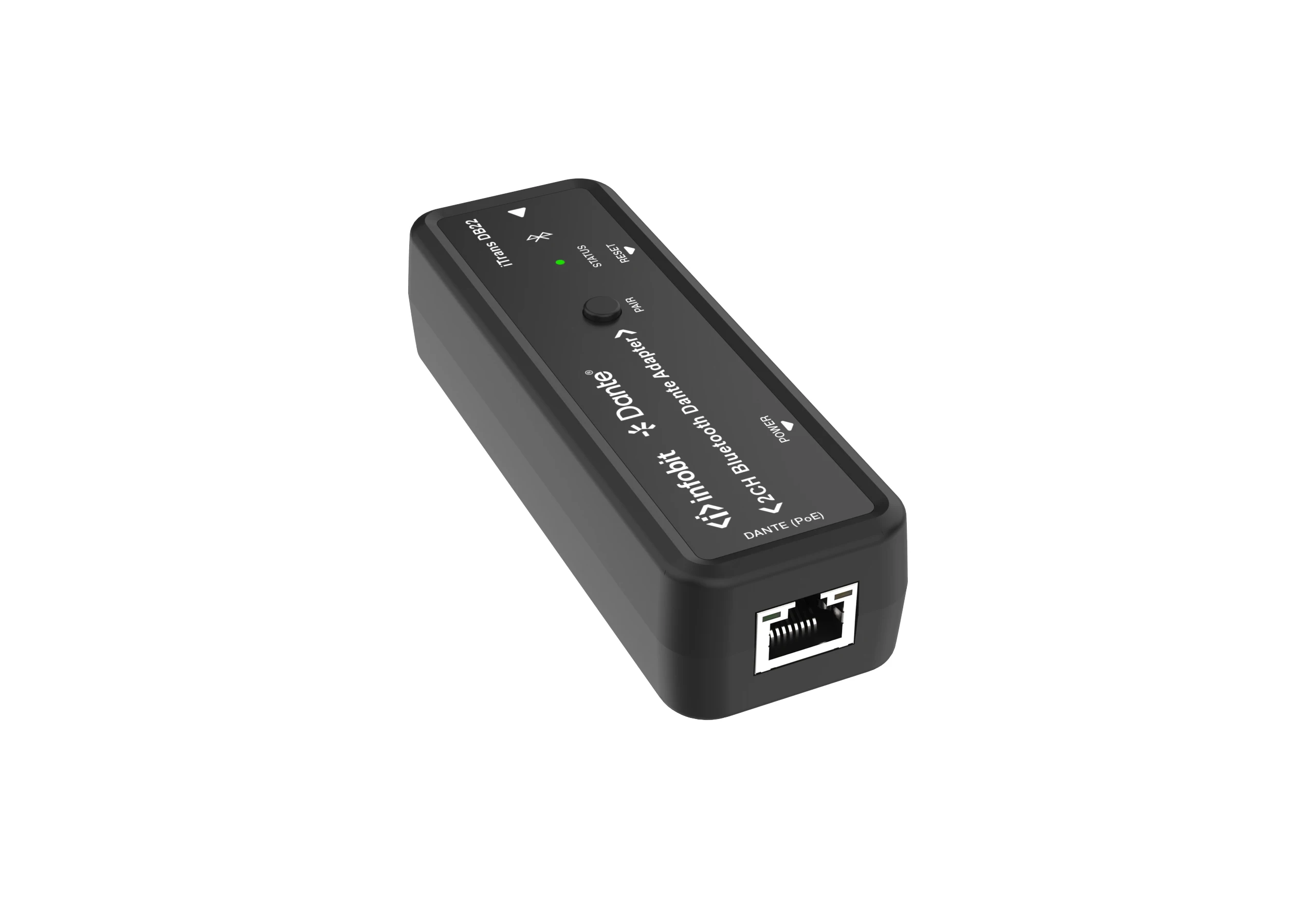

| Model | iTrans DB22 |
| Name | 2CH Bluetooth Input Adapter |
| Input Audio | Two-channel Bluetooth audio |
| Output Audio | Dante® 2CH digital audio |
| Control Method | Dante® Controller |
| Video Network Bandwidth | 100M |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Audio Formats | Bluetooth IN [Digital audio input, PCM 2CH 44.1K-192KHz 16/24bit] DANTE OUT [Digital audio output, PCM 2CH 48KHz 16/24bit] |
| Frequency Response | 20Hz to 20kHz (-/+0dB) |
| Dynamic Range | >100dB@2Vrms, 1kHzA-weighted |
| Audio S/N Ratio | >100dB@2Vrms, 1kHzA-weighted |
| Audio THD+N | <0.01%@0dBV, 1KHz |
| Transmission Distance | 328ft/100m (CAT6/6A/7) |
| ESD Protection | EC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Input Interfaces | 1x POWER [USB-C port, 12-pin female] 1x Bluetooth Input [Wireless] |
| Output Interfaces | 1x DANTE [RJ45 connector, PoE] |
| Others | 1x RESET button [System reboot button] 1x PAIR button 1x STATUS LED |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 115mm [W] x 40mm [D] x 28 mm [H] |
| Weight | 93g |
| Power Supply | USB input: 5V/500mA PoE input: PoE IEEE802.3af Class 0 |
| Power Consumption | 0.65W (Max) |
| Operating Temperature | 32 ~ 104°F / 0 ~ 40°C |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Operating Humidity | 20% ~ 80% RH (relative humidity, non-condensing) |
| Storage Humidity | 10% ~ 90% RH (relative humidity, non-condensing) |
