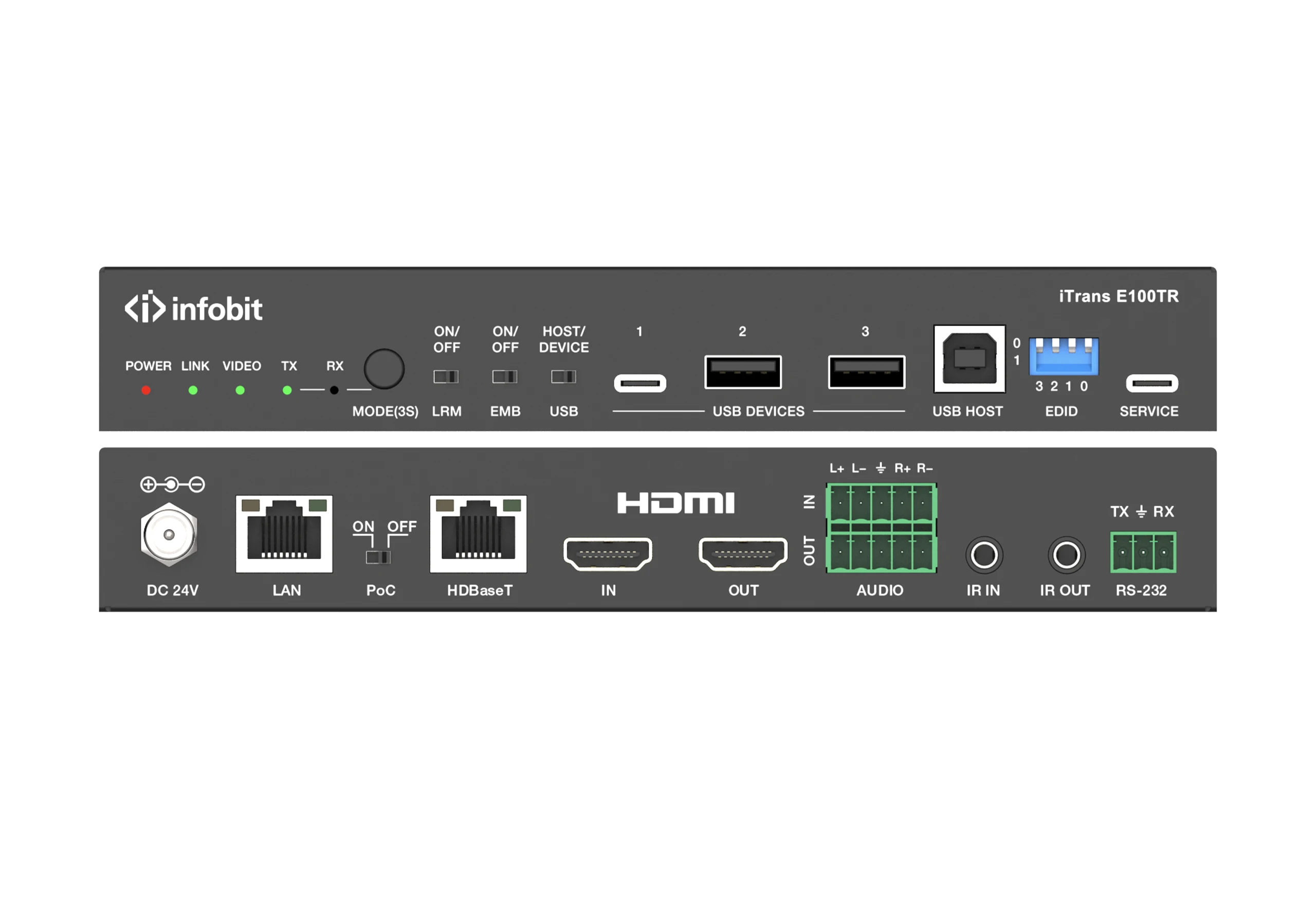

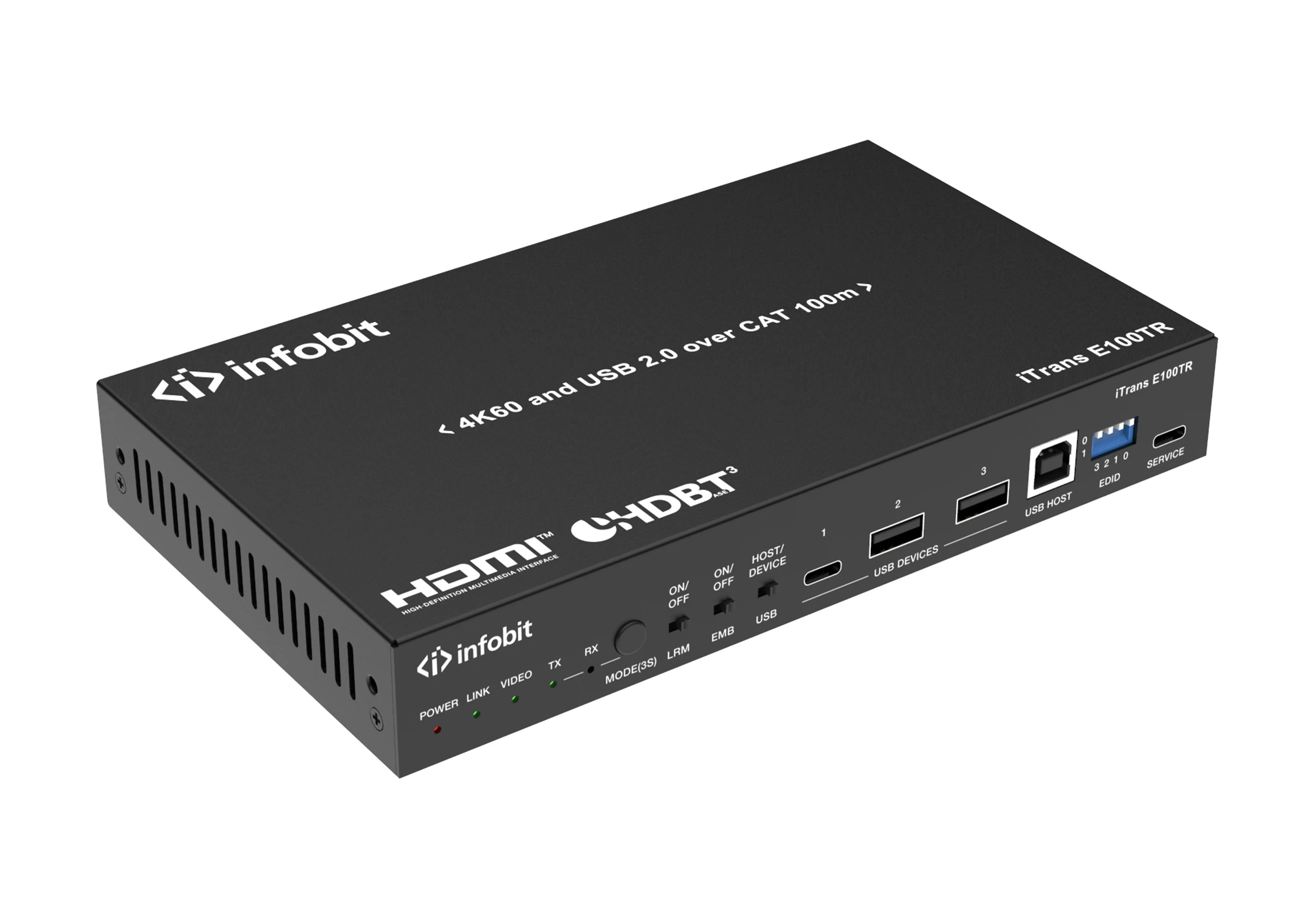

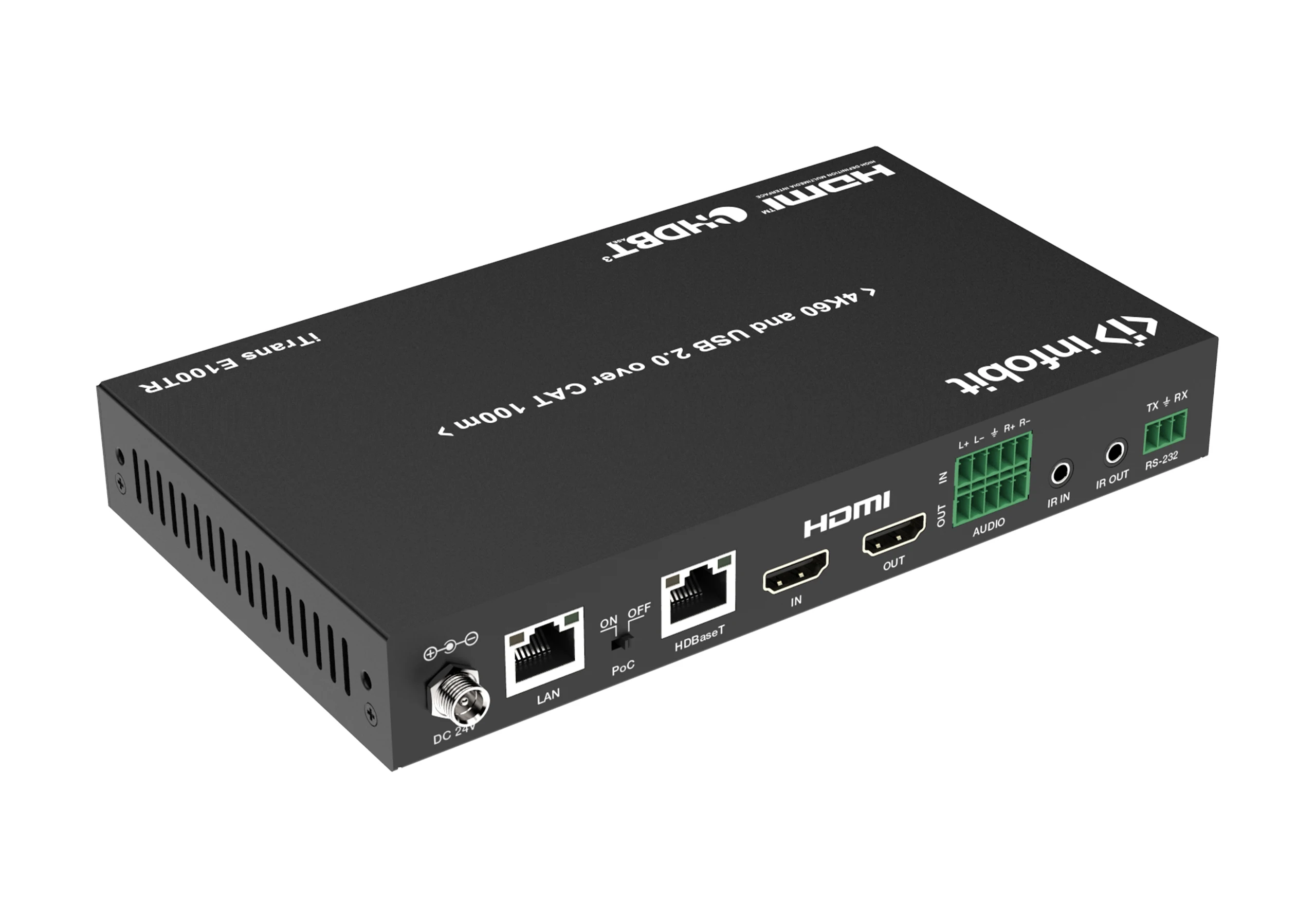

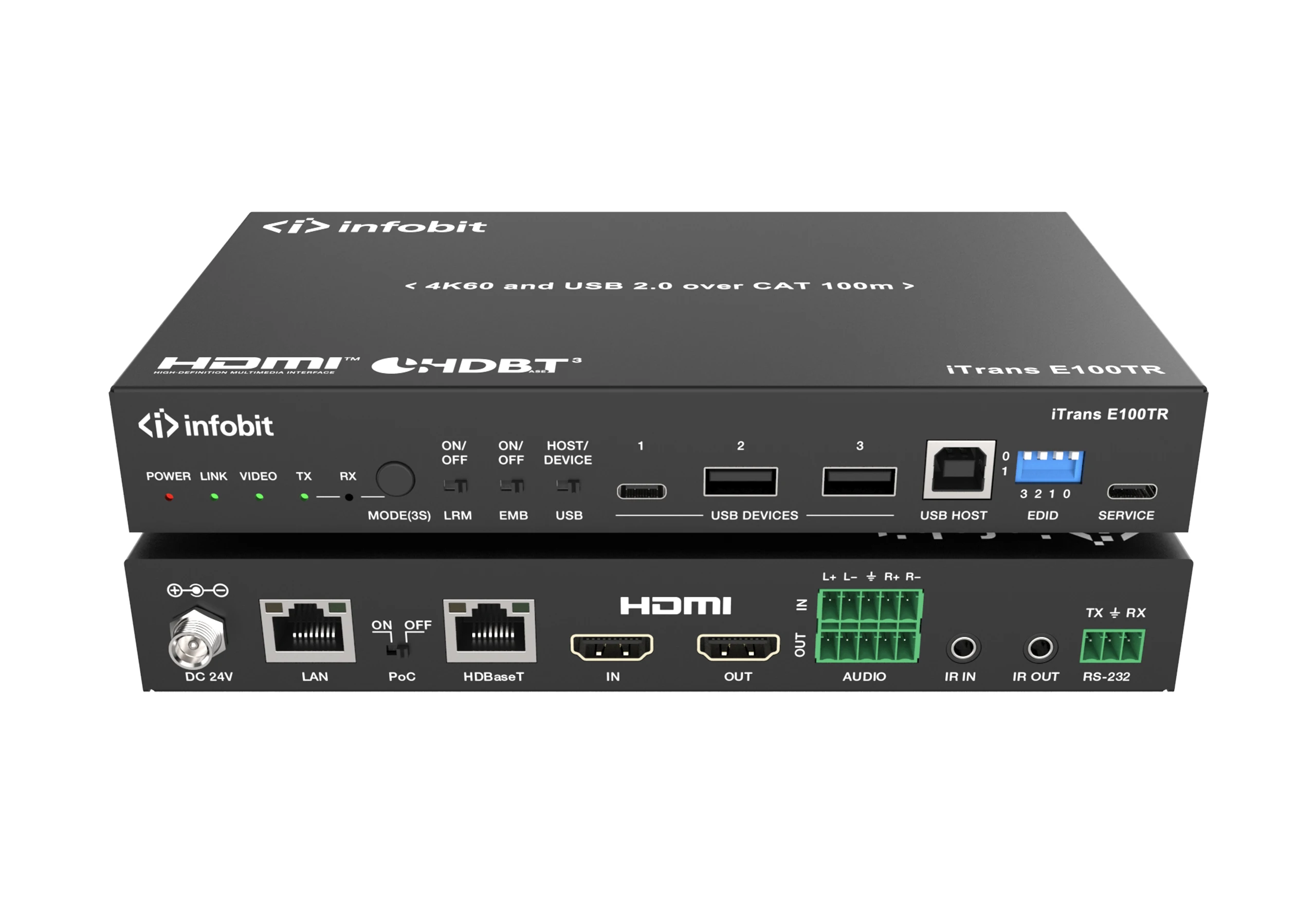

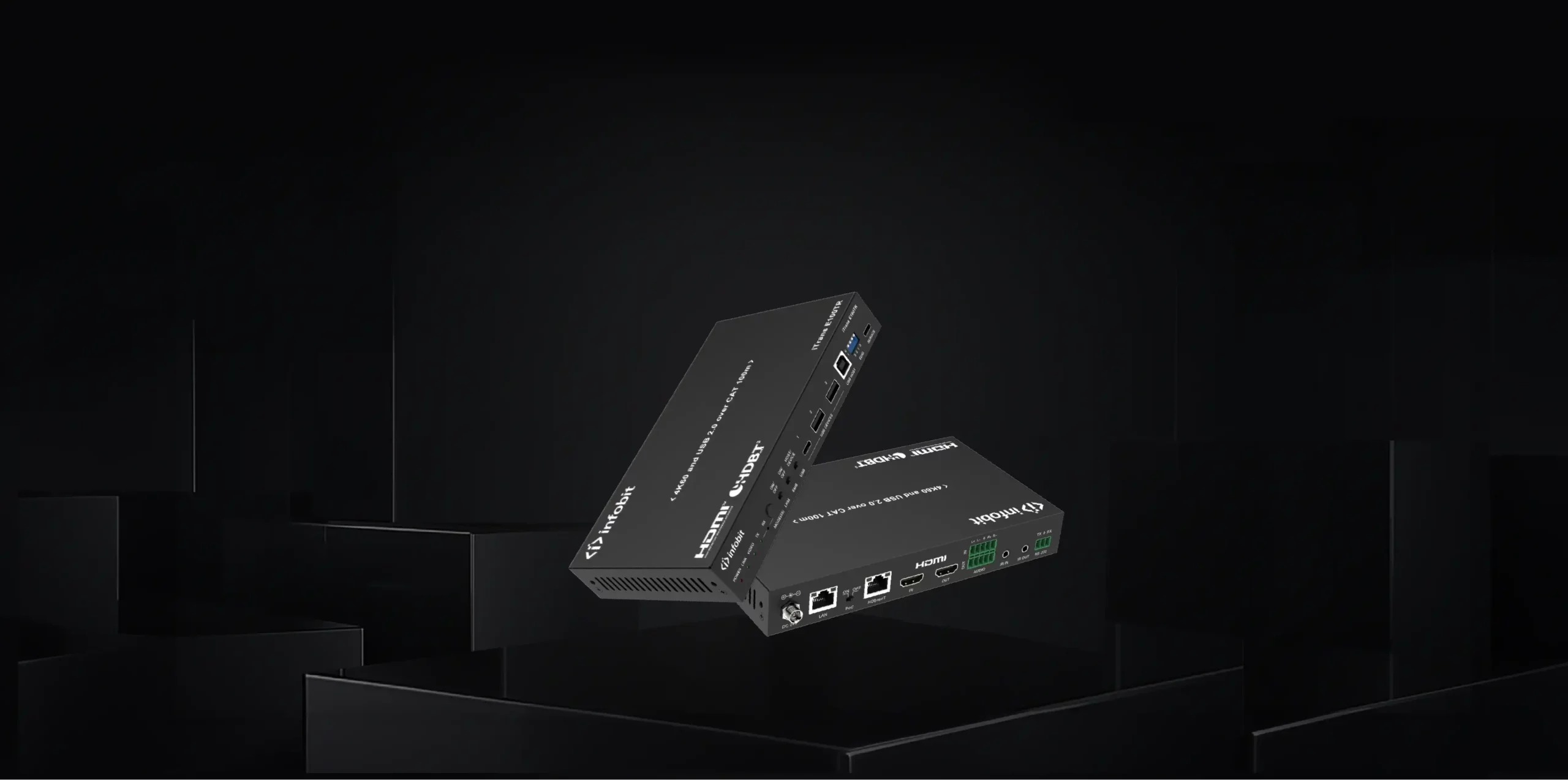

iTrans E100TR
1- Integrated transceiver design, can be flexibly configured as TX or RX through front panel buttons or API commands
2- HDCP 2.3 and HDBaseT 3.0 compliant
3- Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth, as specified in HDMI 2.0b
4- 4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)
5- 1080P60 4:4:4 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)
6- HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
7- Supports all HDMI audio formats pass-through
8- Supports analog audio embedding and HDMI audio de-embedding
9- Bi-directional IR, RS-232 and 1G Ethernet signal pass through
10- Supports USB 2.0 transmission, Host/Device is configurable
11- Supports EDID management and CEC signal pass-through
12- Bi-directional 24V PoC function, with PoC switch

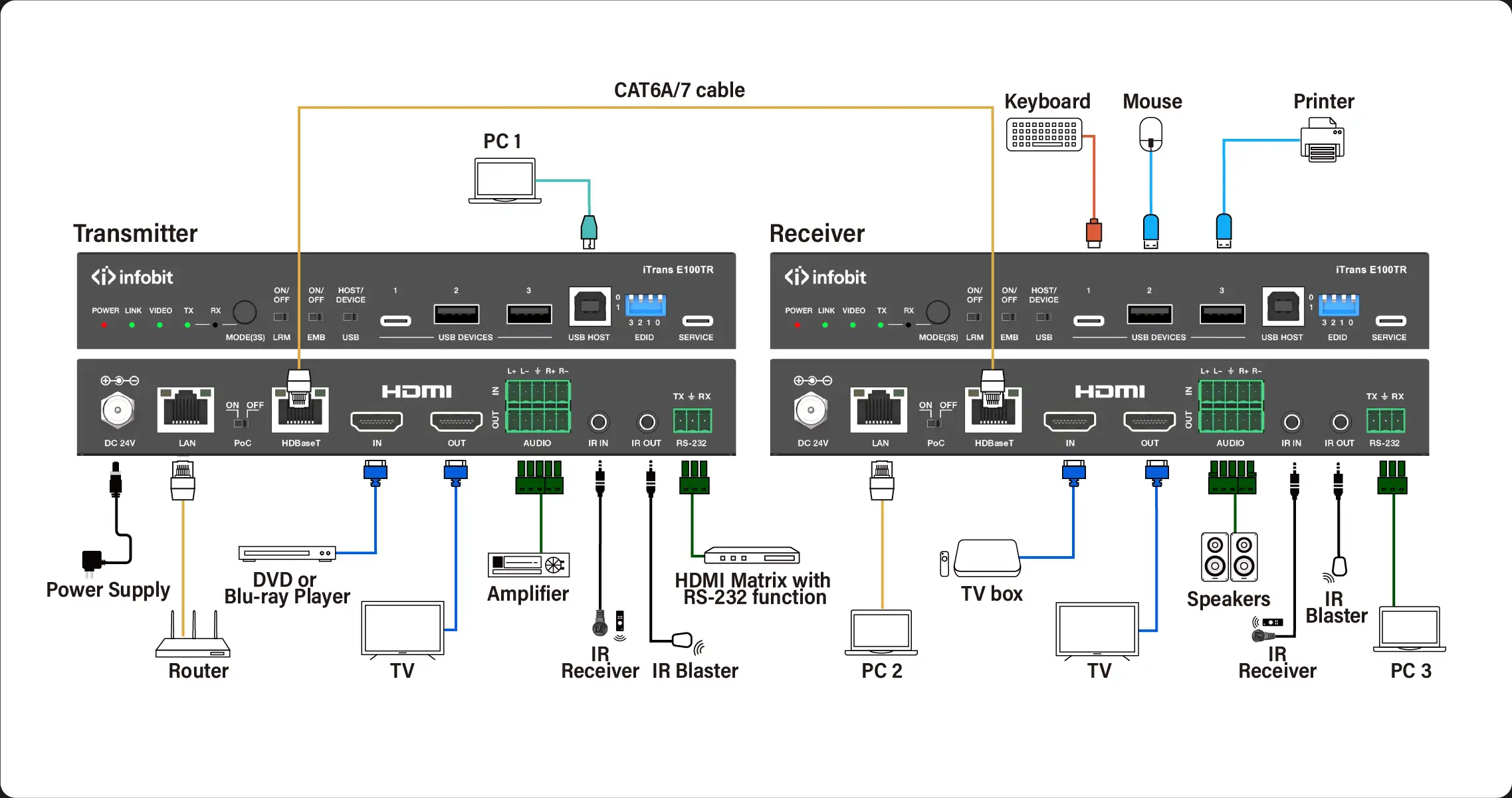

![iTrans-E100TR---B-连线图](https://www.infobitav.com/wp-content/uploads/2024/07/iTrans-E100TR-B-连线图.jpg)
Datasheet
Model | iTrans E100TR |
Name | 4K60 over HDBaseT 3.0 Transceiver w/ USB 2.0 |
HDMI Compliance | HDMI 2.0b, HDCP 2.3 |
Video Bandwidth | 18Gbps |
USB Bandwidth | 480Mbps |
Network Bandwidth | 1000Mbps (LAN) |
Video Resolution | Up to 4K@60Hz 4:4:4 |
HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
Color Depth | 8/10/12-bit |
Audio Formats | HDMI/HDBaseT passthrough: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X Analog Audio de-embedding: LPCM 2CH (sample rate 32~192kHz) |
Transmission Distance | HDBT Standard Mode (4K60/4K30/1080P): 328ft/100m (CAT6A/7) HDBT Long Reach Mode (1080P60 8bit): 492ft/150m (CAT6A/7) |
HDBaseT | HDBaseT 3.0 |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 190mm [W] x 110mm [D] x 28mm [H] |
Weight | 556g |
Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified) |
Power Consumption | <19W (individual box power consumption) |
Operating Temperature | 32 ~ 104°F / 0 ~ 40°C |
Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
Relative Humidity | 20 ~ 90% RH (no condensation) |
