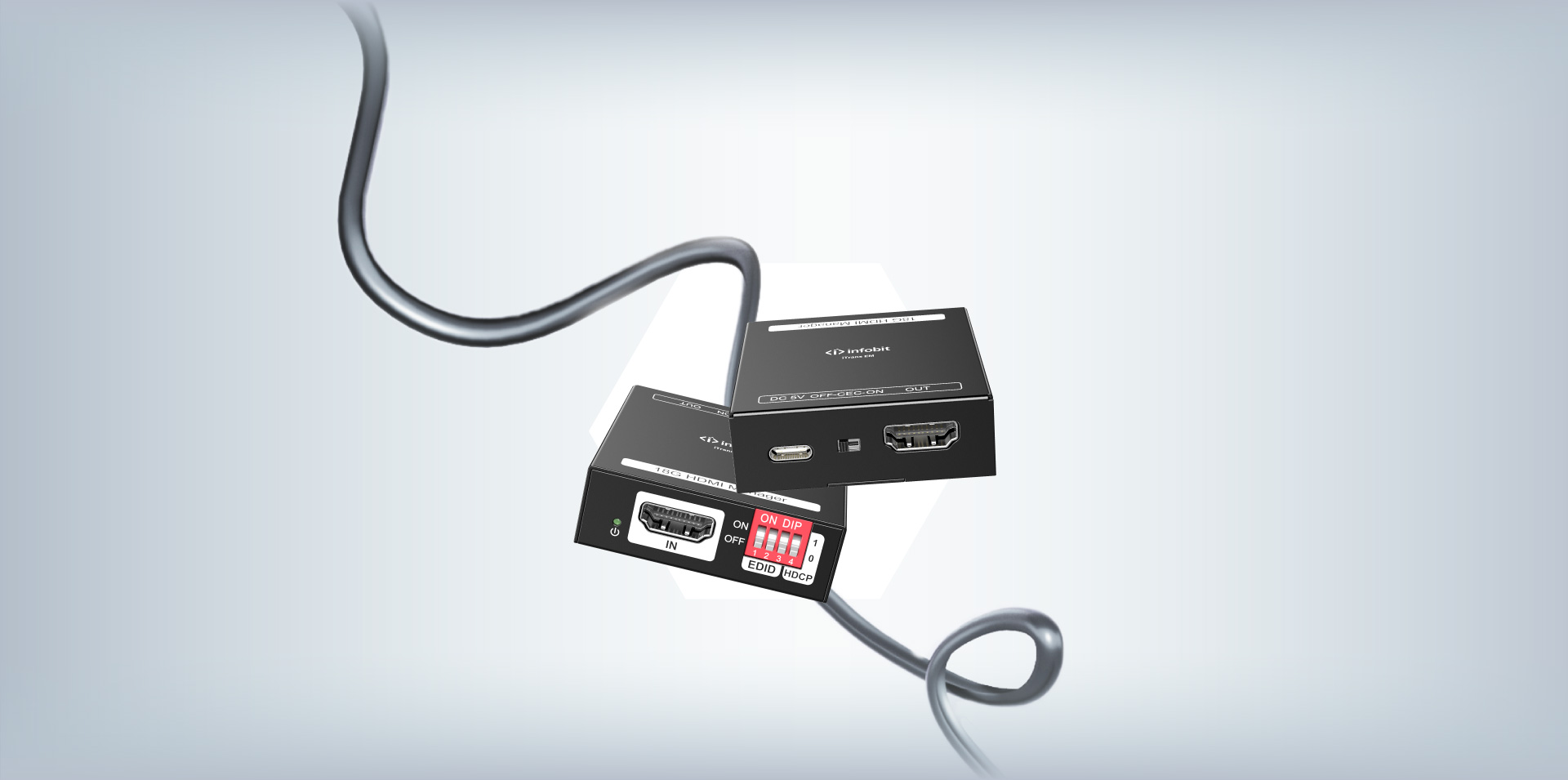

iTrans EM
18G HDMI 2.0 4K@60 444 HDCP2.2.
Supports EDID & HDCP manager.
Power by HDMI or USB-C.
CEC block switch.
Ensure EDID handshake successfully
When your devices are of different standards/generations, they may not be able to communicate as we expect.
If EDID handshake fails, you won’t get the right image.
An EDID emulator may help streamline communication and fix the problem.
If EDID handshake fails, you won’t get the right image.
An EDID emulator may help streamline communication and fix the problem.

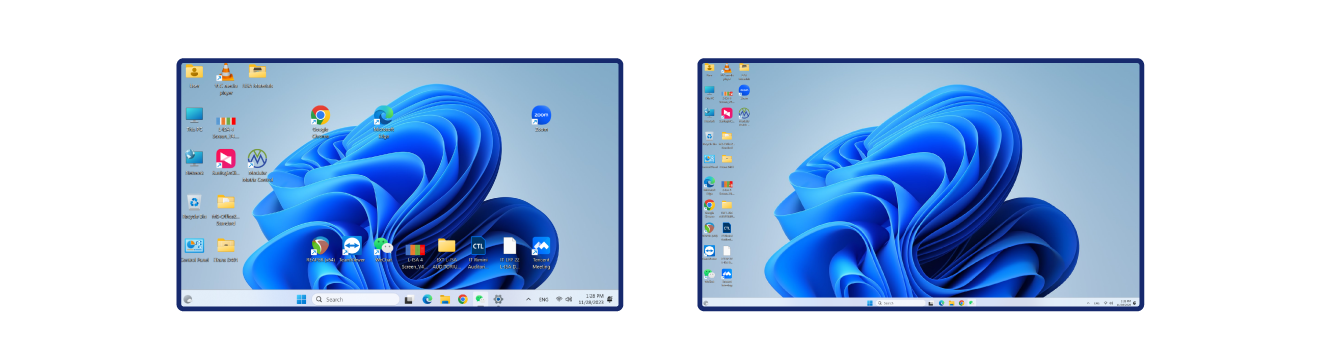

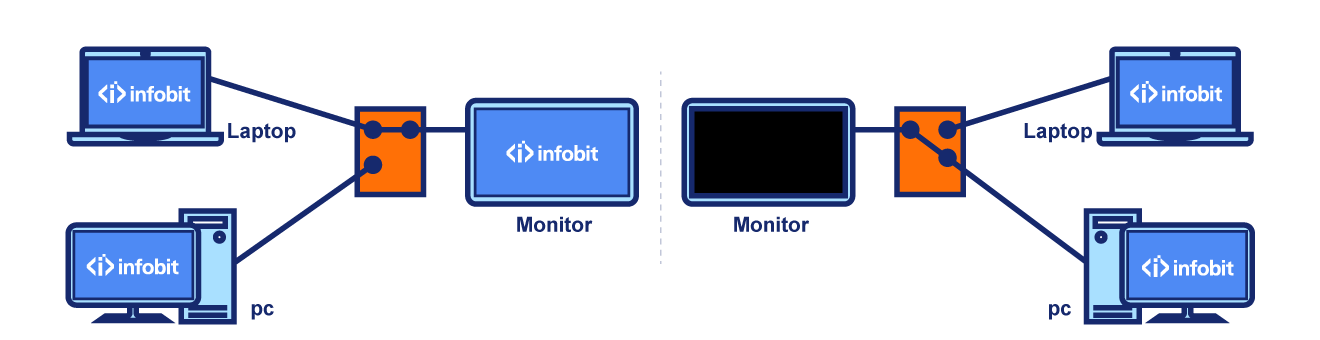

Ensure your KVM switch smoothly
When you are working on another device, the KVM switch cut the connection to your PC.
When you switch back, the EDID exchange will be initiated again and the icons are replaced as the data is refreshed
and all icons arrangement messed up.
The solution is to add an EDID emulator to fix your issue.
When you switch back, the EDID exchange will be initiated again and the icons are replaced as the data is refreshed
and all icons arrangement messed up.
The solution is to add an EDID emulator to fix your issue.
Datasheet
| Model | iTrans EM |
| Name | 18Gbps HDMI Manager with EDID & HDCP Manager |
| Input | (1) HDMI 2.0 |
| Input Connector | (1) Female type-A |
| HDMI Input Resolution | Up to 4K@60 4:4:4 |
| Output | (1) HDMI 2.0 |
| Output Connector | (1) Female type-A |
| HDMI Output Resolution | Up to 4K@60 4:4:4 |
| Bandwidth | 18Gbps |
| Power Supply | 5V 1A |
| Power Consumption | 2.4W(MAX) |
| Dimension (W*H*D) | 54x18x60mm |
| Net Weight | 85g |

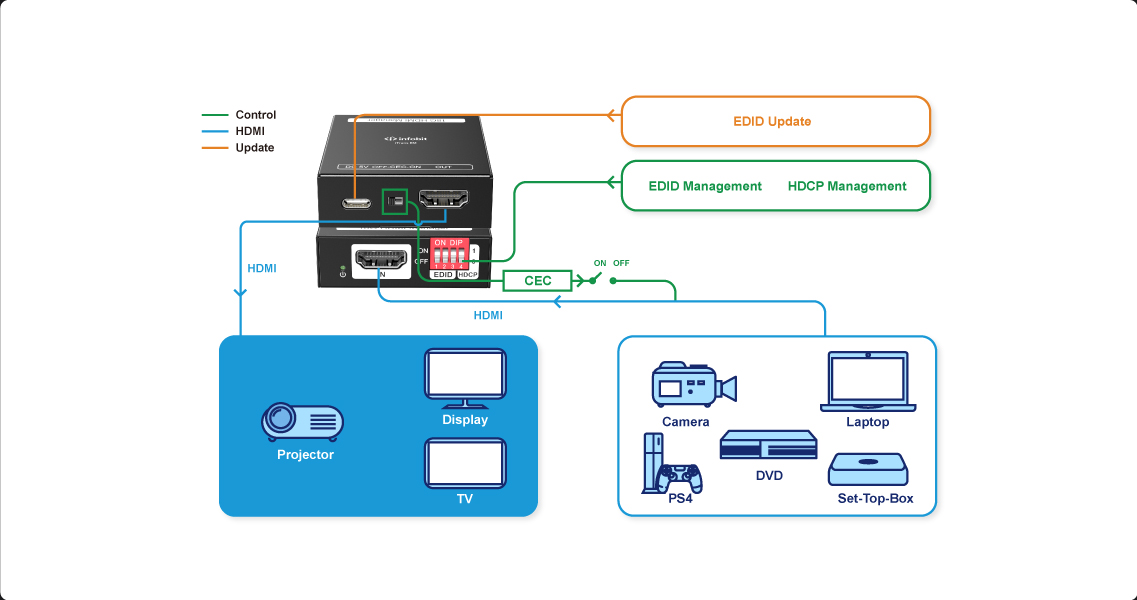

Diagram
Download
-
Why you must use iTrans EM V1.0.pdf0.39M2024-09-10
-
INFOBIT iTrans EM User manual V1.0.pdf0.32M2024-09-10
