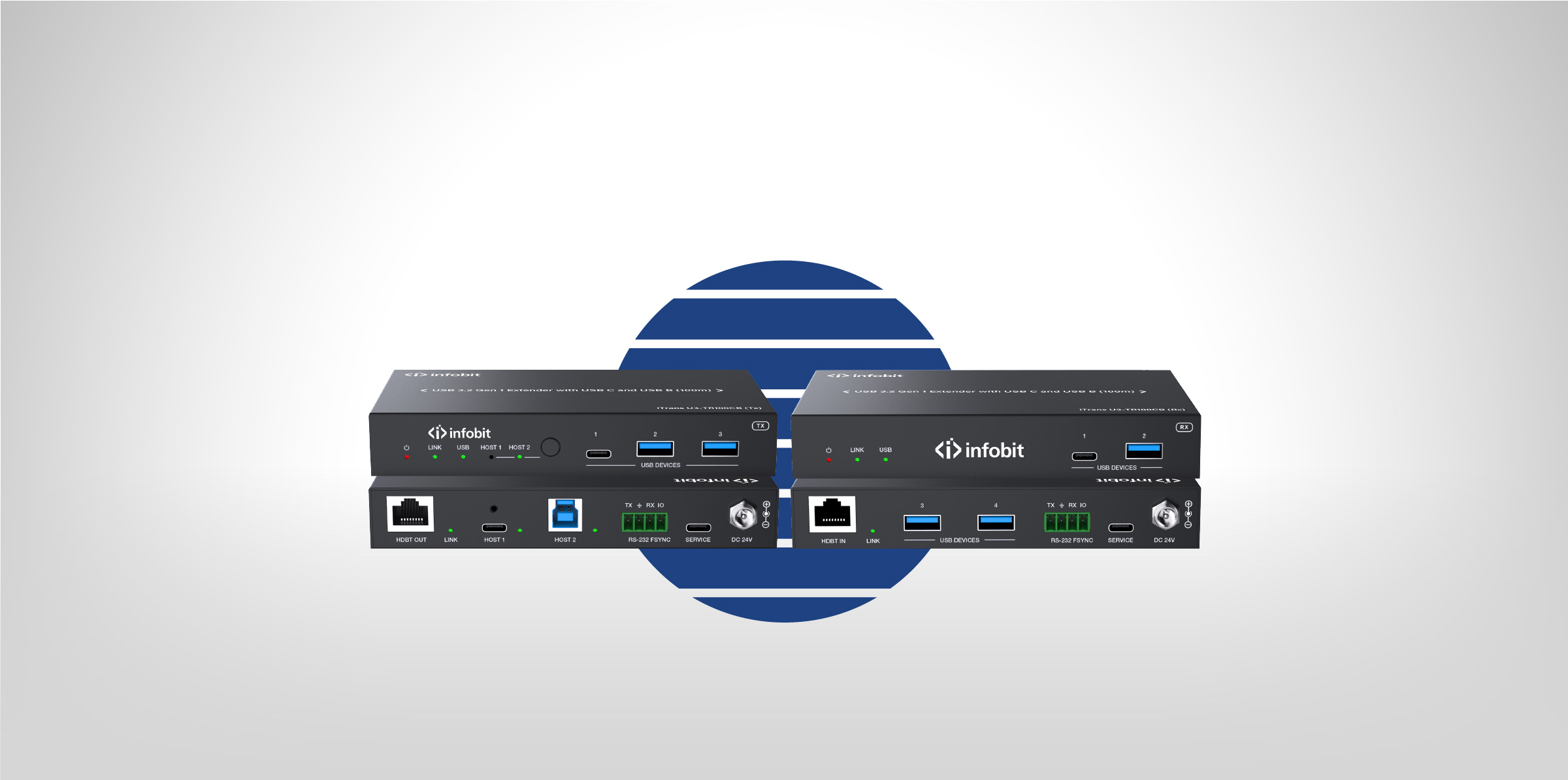

iTrans U3-TR100CB--B-01
iTrans U3-TR100CB

USB 3.2 Gen 1 Extender with USB C and USB B (100m)

HDBaseT

HDBaseT

PoC

PoC

100M

100M

5Gbps

5Gbps

RS-232

RS-232

Plug & Play

Plug & Play

USB 3.0

USB 3.0

iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB

Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable

USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps

Backwards compatible with USB 2.0 and 1.1

Hardware acceleration for isochronous and bulk transfer

TX features 1x USB-B and 1x USB-C selectable host ports

Support auto-switching and manual-switching modes

RX features 1x USB-C and 3x USB-A output ports (2x 5V@1A and 2x 5V@1.5A)

Support RS-232 pass-through and API control

Supports firmware upgrade via USB-C service port

Support FSYNC GPIO pass-through for industry camera use

Supports bi-directional 24V PoC (Power over Cable)

Plug-and-play with no drivers, downloads, or software required

iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB
iTrans U3-TR100CB
Datasheet
Model iTrans U3-TR100CB
Name USB 3.2 Gen 1 Extender with USB C and USB B (100m)
USB Protocol USB 3.2 Gen 1
Transmission Rate Up to 5Gbps
Transmission Distance 100m/328ft via CAT6a (F/FTP) cable
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Transmitter Input:
1× HOST 1 [USB Type C, 24-pin female]
1× HOST 2 [USB Type B, 9-pin female]
Output:
1× USB-C DEVICE [USB Type C, 24-pin female]
2× USB-A DEVICE [USB Type A, 9-pin female]
1× HDBT-USB3 [RJ45 connector, 24V PoC]
Control:
1× RS-232 [3pin-3.5mm phoenix connector]
1× FSYNC [1pin-3.5mm phoenix connector]
1× SERVICE [USB Type C, firmware update port]
Receiver Input:
1× HDBT-USB3 [RJ45 connector, 24V PoC]
Output:
3× USB-A DEVICE [USB Type A, 9-pin female]
1× USB-C DEVICE [USB Type C, 24-pin female]
Control:
1× RS-232 [3pin-3.5mm phoenix connector]
1× FSYNC [1pin-3.5mm phoenix connector]
1× SERVICE [USB Type C, firmware update port]
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 140mm [W] × 75mm [D] × 23mm [H]
Weight Transmitter: 313g; Receiver: 318g
Power Supply Input: AC 100~240V 50/60Hz; Output: DC 24V/3.75A
Power Consumption Transmitter: 23W (Max); Receiver: 35W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 20%~80% relative humidity, non-condensing
Storage Humidity 10%~90% relative humidity, non-condensing

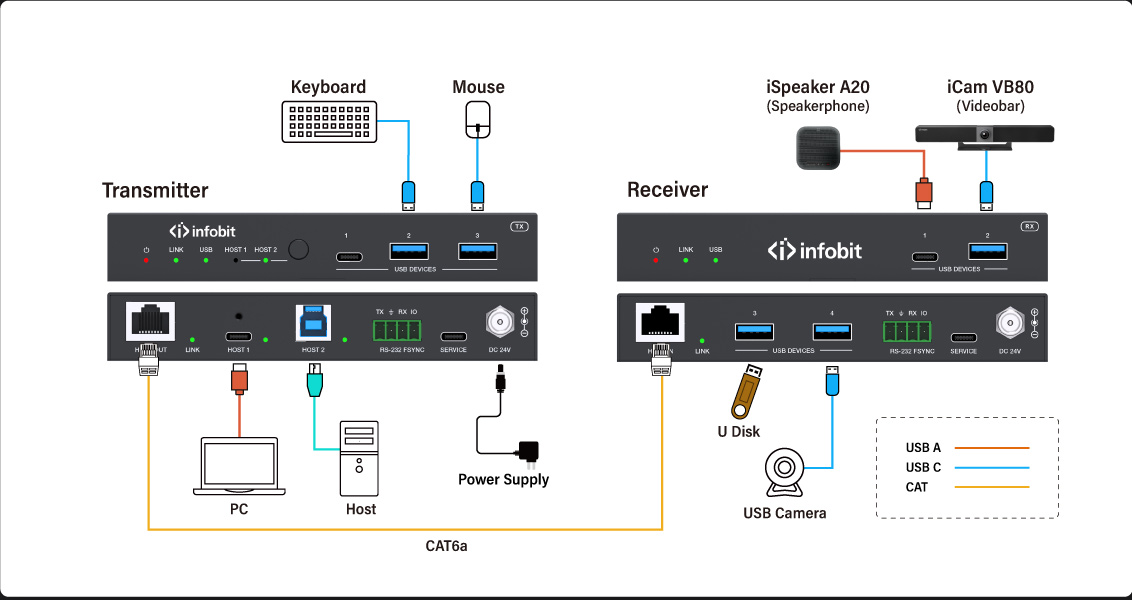

Diagram
Download
  • iTrans U3-TR100CB User Manual_V1.0.pdf
    3.87M
    2025-04-02
