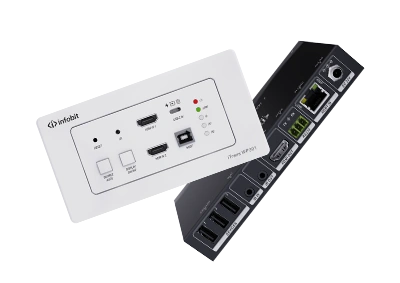

iTrans WP100HC

Support video resolution up to 4K2K@60Hz (4:4:4)

HDMI 2.0b, HDCP 2.2/1.x, and DP 1.2a compliant

HDMI input supports 18Gbps video bandwidth

Up to 7.1 channels of HD audio

Input signal source selection supports button switching

HBT mode: Audio and video signals can be transmitted up to 100m for 4K60/4K30/1080P

LRM mode: Audio and video signals can be transmitted up to 150m for 4K30/1080P

Built-in EDID DIP switch supports intelligent EDID management

Built-in audio DIP switch supports analog audio embedding

Built-in POC

Transmit bidirectional Infrared control signal together with the HDMI signal.

Transmit bidirectional RS-232 control signal together with the HDMI signal.

The Receiver supports USB 2.0 signal transmission

Standard UK version wall box

Chat Now

Datasheet

Model	iTrans WP100HC
Name	4K60 HDMI/USB-C 2×1 HDBT Wall-plate Extender (UK Version)
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	HDMI: 18Gbps; USB-C: 5.4Gbps
HDMI Video Resolution	Up to 4K2K@60Hz 4:4:4
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12bit
HDMI Audio Formats	LPCM 7.1CH, Dolby True HD and DTS-HD Master (Full format)
Analog Audio Embedding	48KHz
Transmission Distance	LRM mode: 492ft/150m (4K30/1080P) STD-HBT mode: 328ft/100m (4K60/4K30/1080P)
ESD Protection	Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge)
Transmitter	Input: 1x HDMI IN [Type A, 19-pin female] 1x USB-C IN [USB Type C] 1x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1x HDBaseT OUT [RJ45] Control: 1x TO PC [USB Type B] 1x RS-232 [3pin-3.81mm Phoenix connector] 1x IR IN [3pin-3.81mm Phoenix connector] 1x IR OUT [2pin-3.81mm Phoenix connector]
Receiver	Input: 1x HDBT IN [RJ45] Output: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [3pin-3.81mm Phoenix connector] Control: 2x USB 2.0 [USB Type A] 1x RS-232 [3pin-3.81mm Phoenix connector] 1x IR IN [3pin-3.81mm Phoenix connector] 1x IR OUT [2pin-3.81mm Phoenix connector] 1x SERVICE [Micro USB]
Housing	Metal Enclosure
Color	Front panel: White; Rear case: Black
Dimensions	Transmitter: 86mm [W] x 86mm [D] x 38.5mm [H] Receiver: 157.2mm [W] x 88mm [D] x 20mm [H]
Weight	Transmitter: 234g; Receiver: 377g
Power Supply	24V/1A (supporting bidirectional POC power supply)
Power Consumption	12.48W (Max)
Operating Temperature	32 – 104°F / 0 – 40°C
Storage Temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (no condensation)

Diagram

Download

iTrans WP100HC User Manual_V1.0.pdf

5.05M

2025-03-04
