iWall 104P
1- Supports 2 inputs, resolution up to 4K60.
2- Outputs support image 90°, 180° and 270° rotation, compatible with both landscape and portrait videowall installation.
3- Supports 4 HDMI with 1920*1200@60Hz resolution outputs.
4- Supports multiple videowall layouts: 2x2, 1x4, 4x1, 1x3 ...
5- Supports the videowall edge adjustment.
6- Supports HDMI 2.0, HDCP compatible.
7- Supports the IR remote, push-button and RS232 commands control.
Flexible videowall installation
Supports any videowall displaying modes from 1x2 to 2x2 videowalls.
Supports both landscape and portrait videowall installation.

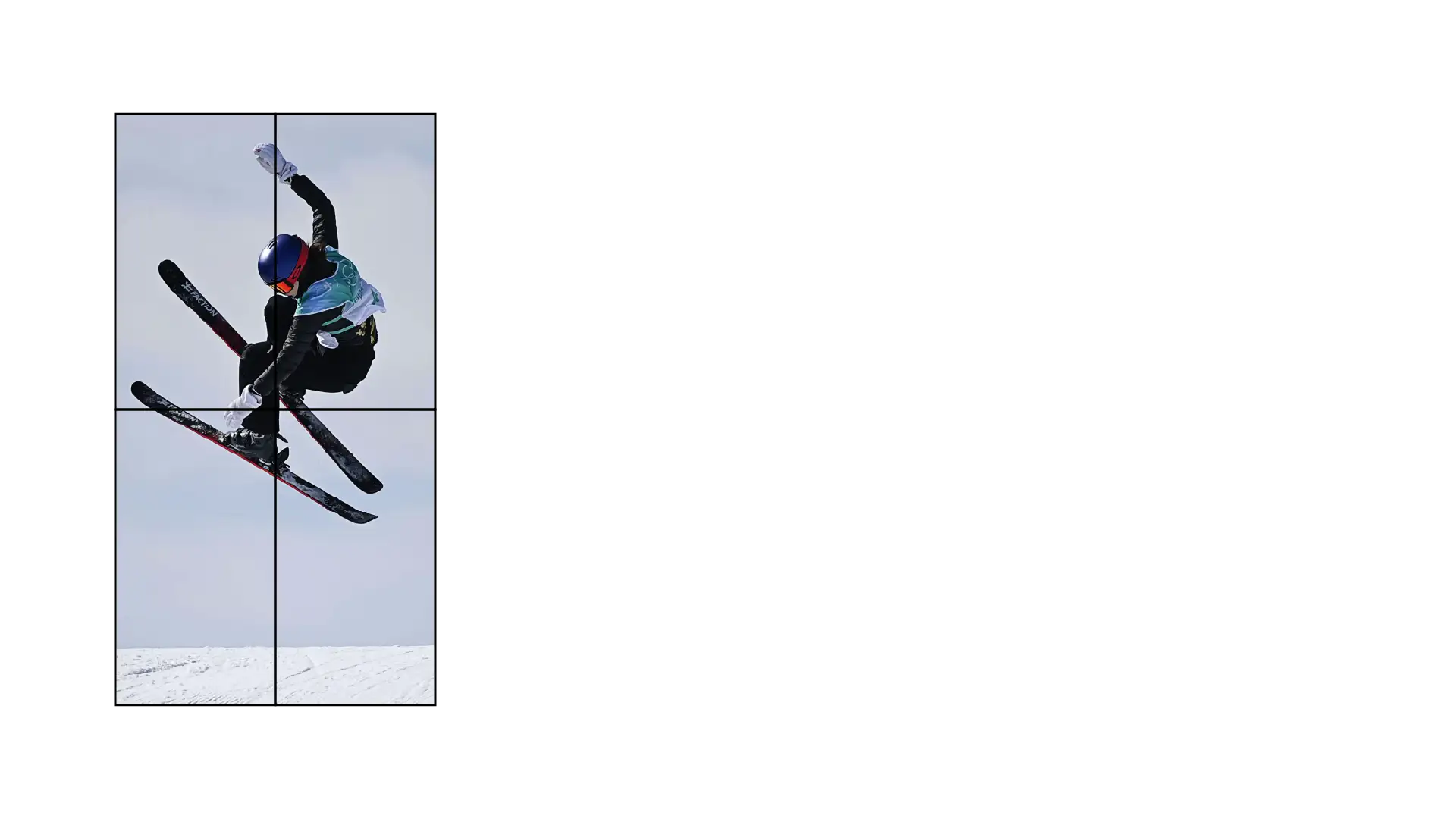

Rotate each image in 90° increment
Any input can be rotated at 90°, 180° or 270°.
Fully compatible with both landscape and portrait videowalls.

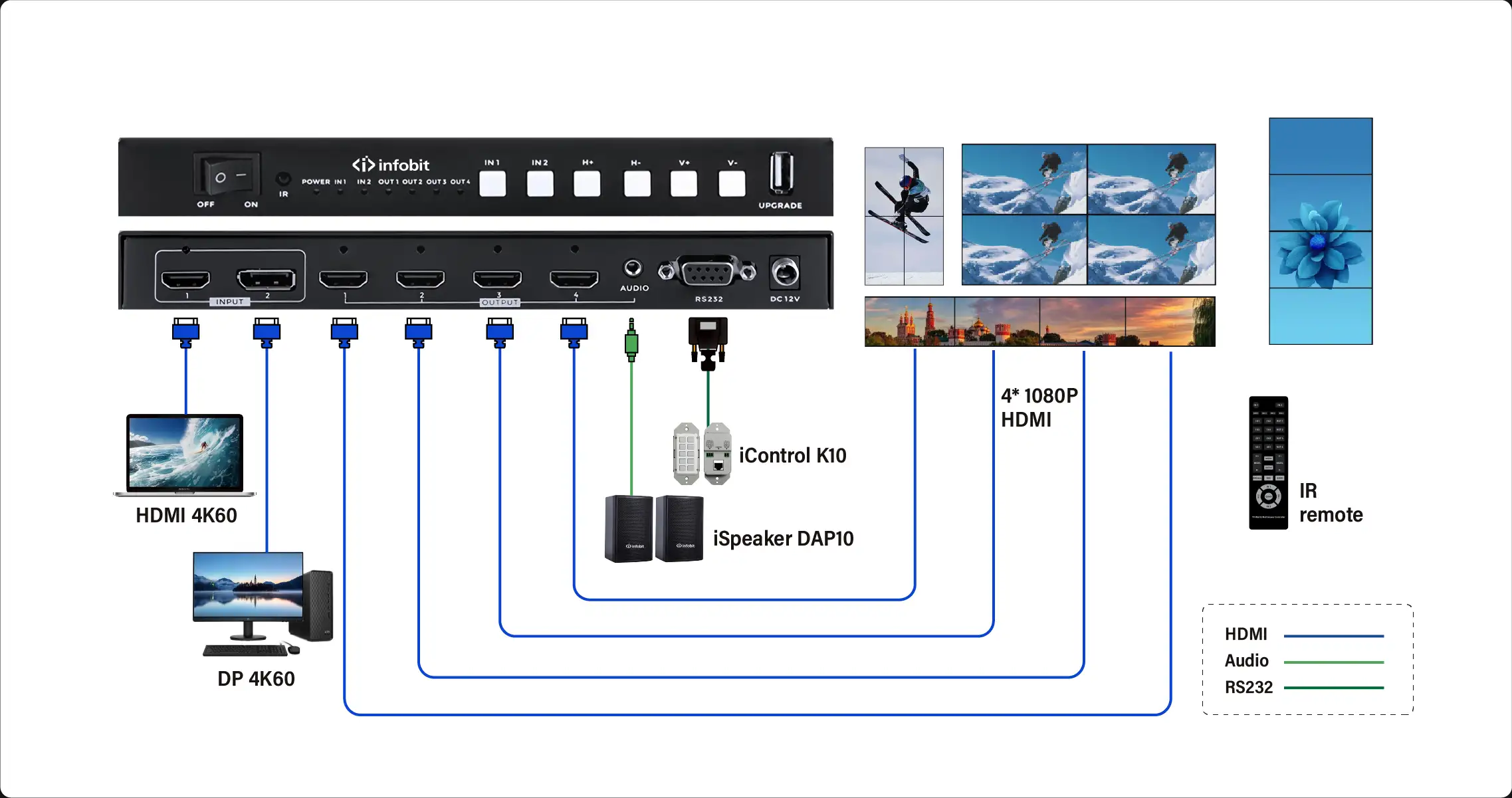

Diagram
Datasheet
| Model | iWall 104P |
| Product name | 4K60 1×4 Video Wall Controller with Portrait Mode |
| Control | Front buttons, remote control, RS232 |
| Input | 1x HDMI, 1x DP |
| Output | 4x HDMI, 1×3.5mm audio |
| Resolution | Input: 1920X1080,1920X2160,1920X3240,1920X4320,3840X1080,3840X2160,5760X1080, 7680X1080 Output: 1920*1200@60Hz |
| Rotation | Each output can be rotated as 90, 180, 270 degrees. |
| Videowall layouts | 1×1, 1×2, 1×3, 1×4, 2×1, 2×2, 3×1, 4×1, support both landscape and portrait installation |
| Power Supply | DC 12V3A |
| Power Consumption | 10W |
| Dimension (WxHxD) | 223*104*27mm |
| Weight | 2.5KG/ 5.5lbs |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -25℃ to 55℃ |
