iWall M4

4 windows (layers) on each display

4K60Hz signal input

Multiple video wall groups (up to 4x video walls)

Signal preview and monitoring

High-resolution background image

With a touch screen on the front panel

Supports redundant PSU (Power Supply Unit)

Supports RS232, IP, and Web GUI controls

Support Full HD, 4K UHD inputs, and Full HD outputs

Supports multiple format inputs and outputs such as HDMI, DisplayPort, DVI, and IP streaming

Supports max. 76X72 inputs x outputs

Supports windows arbitrary layout, stretching, scaling, roaming and picture-in-picture

Supports preset save, recall, and auto-cycle

Supports drag-and-drop video layers operation

Pure-hardware design, without Windows OS vulnerability, virus risks, blue screen errors

Chat Now

4K60Hz 4:4:4 Input Signal

It supports 4K60Hz 4:4:4 Ultra-high definition video signal input to
achieve a higher definition video wall.

Up to 4 Layers on Each Display

Supports 4 video windows per display,
each window is capable for freely stretching,
scaling, roaming, overlay and picture-in-picture.

High Resolution Background Image

Supports high-definition background image.
The image can be saved in the device and display when signals lost.
Without any black or blue screen interruption.

Multiple Video Wall Groups

Single iWall M4 is capable to manage up to 4x separated video walls.
And input signals can be shared and deployed to all video wall groups.

Text Overlay Banner

It allows users to display text banner upon the input sources,
which makes it easier to identity and operate the inputs.

IP Streaming Signals Decoding

Supports to decode H.264/ H.265 IP streaming from IP camera
and deliver the contents to video wall without the requirement of 3rd party decoders.

Scrolling Text Banner

To display notifications or news without installing any hardware or software.
Users can set the text fonts, colors, background color and scrolling speed.

Signal Previewing and Monitoring

It allows operator to view the input source
and video wall display in the iWall M4 software
and manage displaying through easy drag-and-drop operation.

Datasheet

A: Chassis

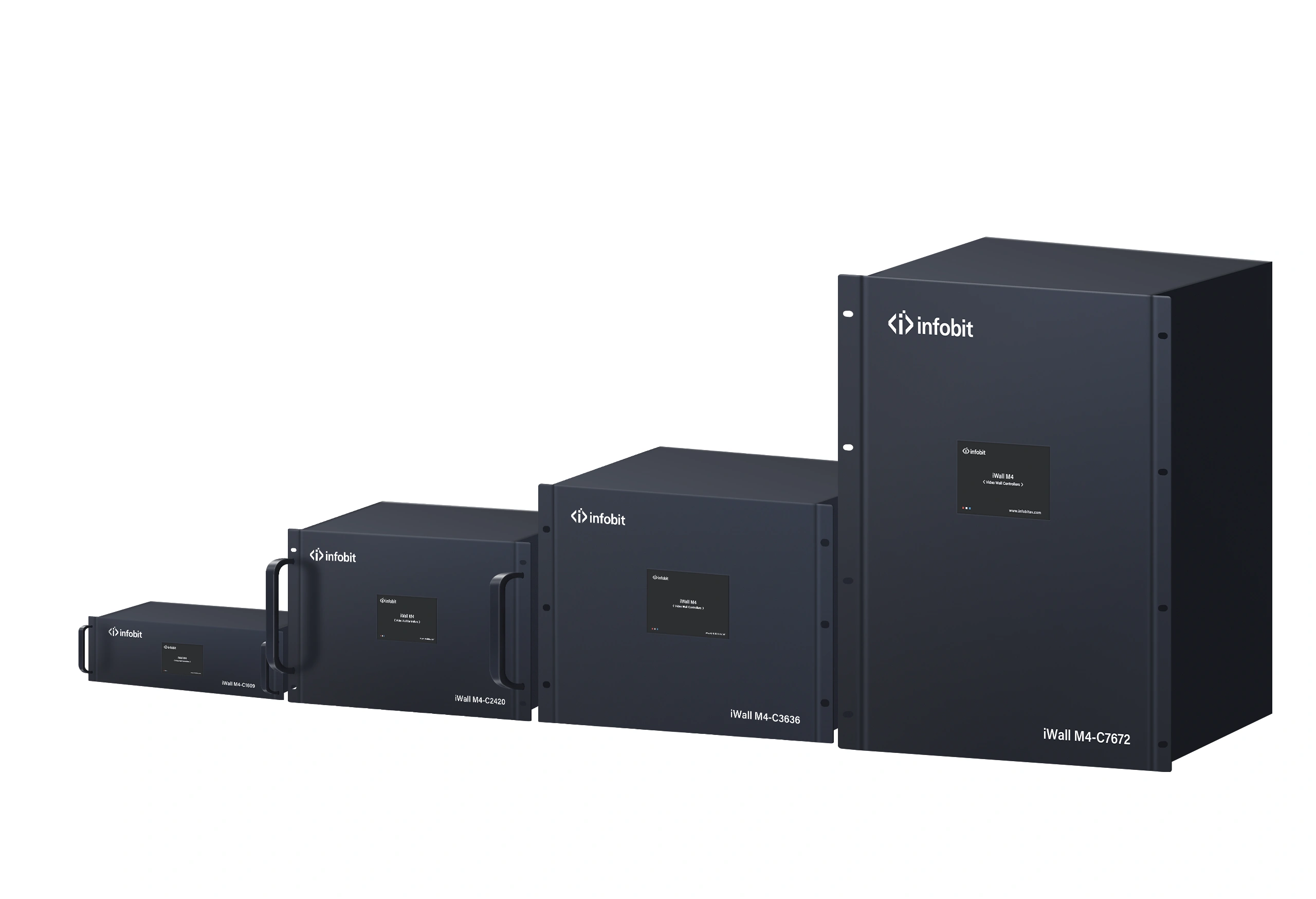

Model	iWall M4-C1609	iWall M4-C2420	iWall M4-C3636	iWall M4-C7672
Name	Modular Video Wall Controller	Modular Video Wall Controller	Modular Video Wall Controller	Modular Video Wall Controller
Chassis Size	2.5U	4U	6.5U	11U
Max. Input/ Output Slots	4x Input Slots, 3x Output Slots	6x Input Slots, 5x Output Slots	9x Input Slots, 9x Output Slots	19x Input Slots, 18x Output Slots
Max. HD Input/ Output ports	16×9	24×20	36×36	76×72
Input Ports Type	HDMI/ DVI/ DisplayPort/ SDI/IP	HDMI/ DVI/ DisplayPort/ SDI/IP	HDMI/ DVI/ DisplayPort/ SDI/IP	HDMI/ DVI/ DisplayPort/ SDI/IP
Output Ports Type	HDMI/ DVI	HDMI/ DVI	HDMI/ DVI	HDMI/ DVI
Input Resolution	1920 x 1200 60Hz; 4096 x 2160 60Hz	1920 x 1200 60Hz; 4096 x 2160 60Hz	1920 x 1200 60Hz; 4096 x 2160 60Hz	1920 x 1200 60Hz; 4096 x 2160 60Hz
Output Resolution	1920 x 1200 60Hz	1920 x 1200 60Hz	1920 x 1200 60Hz	1920 x 1200 60Hz
Video Layers per Display	Max. 4 video windows on each display	Max. 4 video windows on each display	Max. 4 video windows on each display	Max. 4 video windows on each display
Power Consumption	100W	150W	200W	350W
Power Supply	100-240V, 50/60Hz	100-240V, 50/60Hz	100-240V, 50/60Hz	100-240V, 50/60Hz
Operating Temperature	-20 to +70 ℃	-20 to +70 ℃	-20 to +70 ℃	-20 to +70 ℃
Humidity	10%- 90%	10%- 90%	10%- 90%	10%- 90%
Control Methods	Front touch screen; RS232; LAN, Web GUI	Front touch screen; RS232; LAN, Web GUI	Front touch screen; RS232; LAN, Web GUI	Front touch screen; RS232; LAN, Web GUI
PSUs ( Default)	2	2	2	4
Product Dimension	440 x 350 x 112 mm	440 x 350 x 178 mm	440 x 400 x 290 mm	440 x 400 x 490 mm
Net Weight	10kg	13kg	22kg	34kg
Package Dimension	590 x 510 x 225 mm	590 x 510 x 310 mm	592 x 510 x 450 mm	610 x 580 x 690 mm
Gross Weight	13kg	16kg	26kg	41kg
B: Cards & Accessories
Type	Model	Name	Port Type	Resolution
INPUT Cards	iWall M4-IN-4HDMI	4 channels 1080P HDMI input card	4	Up to 1920×1200/60Hz
	iWall M4-IN-4DVI	4 channels DVI input card	4	Up to 1920×1200/60Hz
	iWall M4-IN-1HDMI4K	1 channel 4K60 HDMI or DP input card	1	Up to 3840×2160/60Hz
	iWall M4-IN-2HDMI4K	2 channels 4K30 HDMI or DP input card	2	Up to 3840×2160/30Hz
	iWall M4-IN-2IP	2 channels IP Streaming input card	2	Up to 3840×2160/30Hz
	iWall M4-IN-4SDI	4 channels 3G-SDI input card	4	Up to 1920×1200/60Hz
OUTPUT Cards	iWall M4-OT-4HDMI	4 channels 1080P HDMI output card	4	Up to 1920×1080/60Hz
OUTPUT Cards	iWall M4-OT-4DVI	4 channels 1080P DVI output card	4	Up to 1920×1080/60Hz
Preview Card	iWall M4-PV-IP	1 channel IP Preview card	1	Up to 1920×1080/60Hz
Control Card	iWall M4-CTL	Control card with Network control, RS232 IN, RS232 OUT and Web Control
Power Supply	iWall M4-PSU	Redundant Power Supply Unit
