iWall X

4×4, 4×8, 8×8, 4×12 HDMI Video Wall Controllers

Robust FPGA video data process technology

4x video overlay windows per display

Video windows zoom in, zoom out, moving, overlay, roaming, resizing and switching

With 4×4, 4×8, 4×12 and 8×8 HD graphics inputs and outputs

Support both LCD and LED videowall

Presets saving and auto-switching

Video cropping, Scrolling text, Background picture

Embedded HDMI audio in all inputs

1x de-embedded audio from any input

Drag-and-Drop software operation

One-touch Power On/ Off the whole videowall

Seamless switching without any blank intervals

TCP/IP, RS232 Control

Chat Now

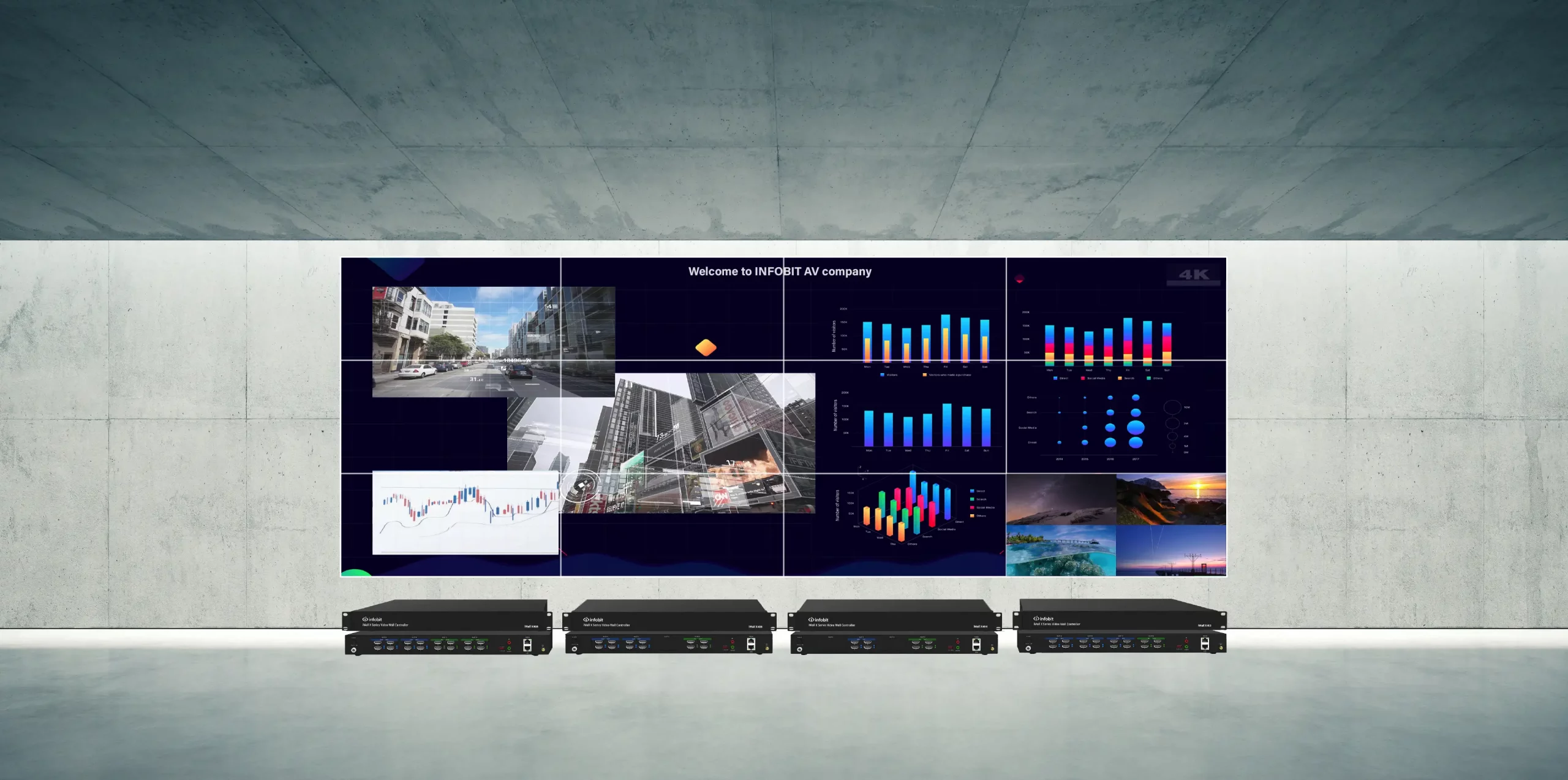

Flexible Layouts

Zooming, roaming, PIP and overlay supported. Sources can be displayed to the video wall at any position with any size. Up to 4 video layers per screen.

Easy to Use

With tailored GUI, iWall X App and control software allows operator to manage display through simple drag-and-drop operation.

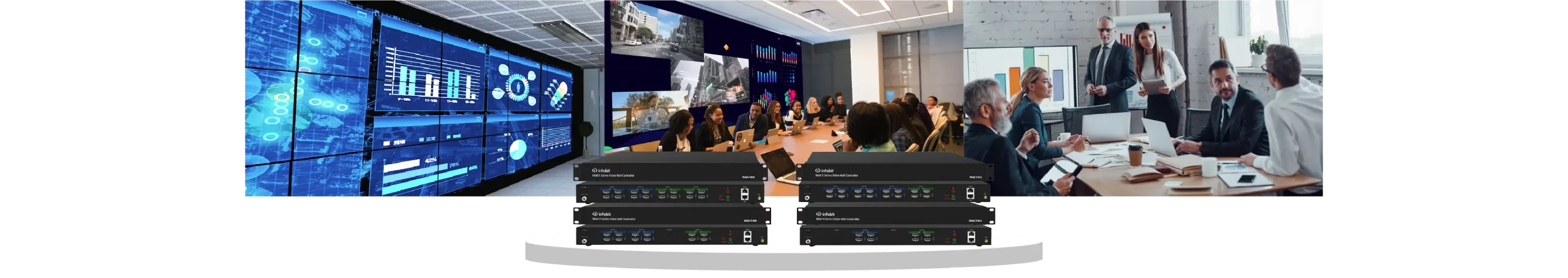

Versatile Application

With capabilities to support embedded audio, the iWall X offers higher flexibility for versatile applications, such as meeting rooms, small control rooms and digital signage.

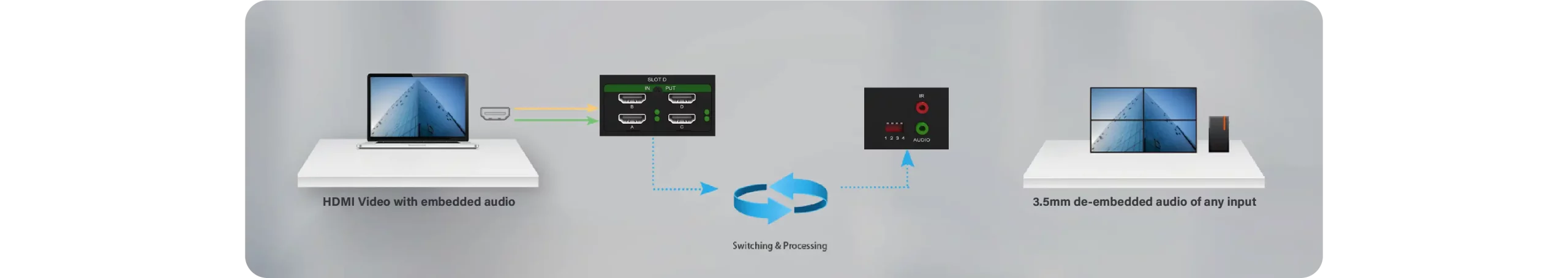

Audio Does Matter

The iWall X support HDMI embedded and de-embedded audio. User is able to switch, mute/ unmute volume each HDMI built-in audio.

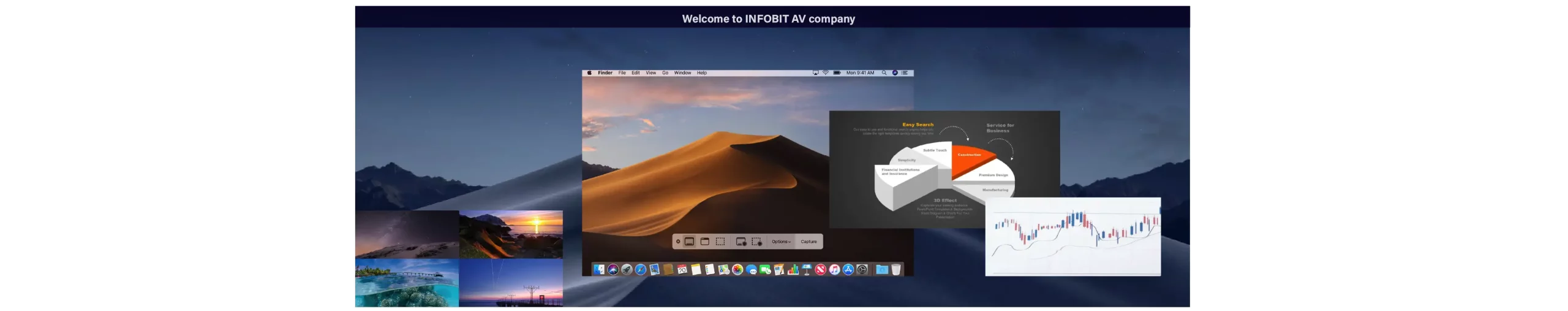

Ready for LED

The iWall X series support both LCD and LED videowall by the customize output resolutions.

One-touch Power ON/ OFF the video wall

The iWall X software supports one-touch operation to power on/ off the whole video wall by sending RS232 commands.

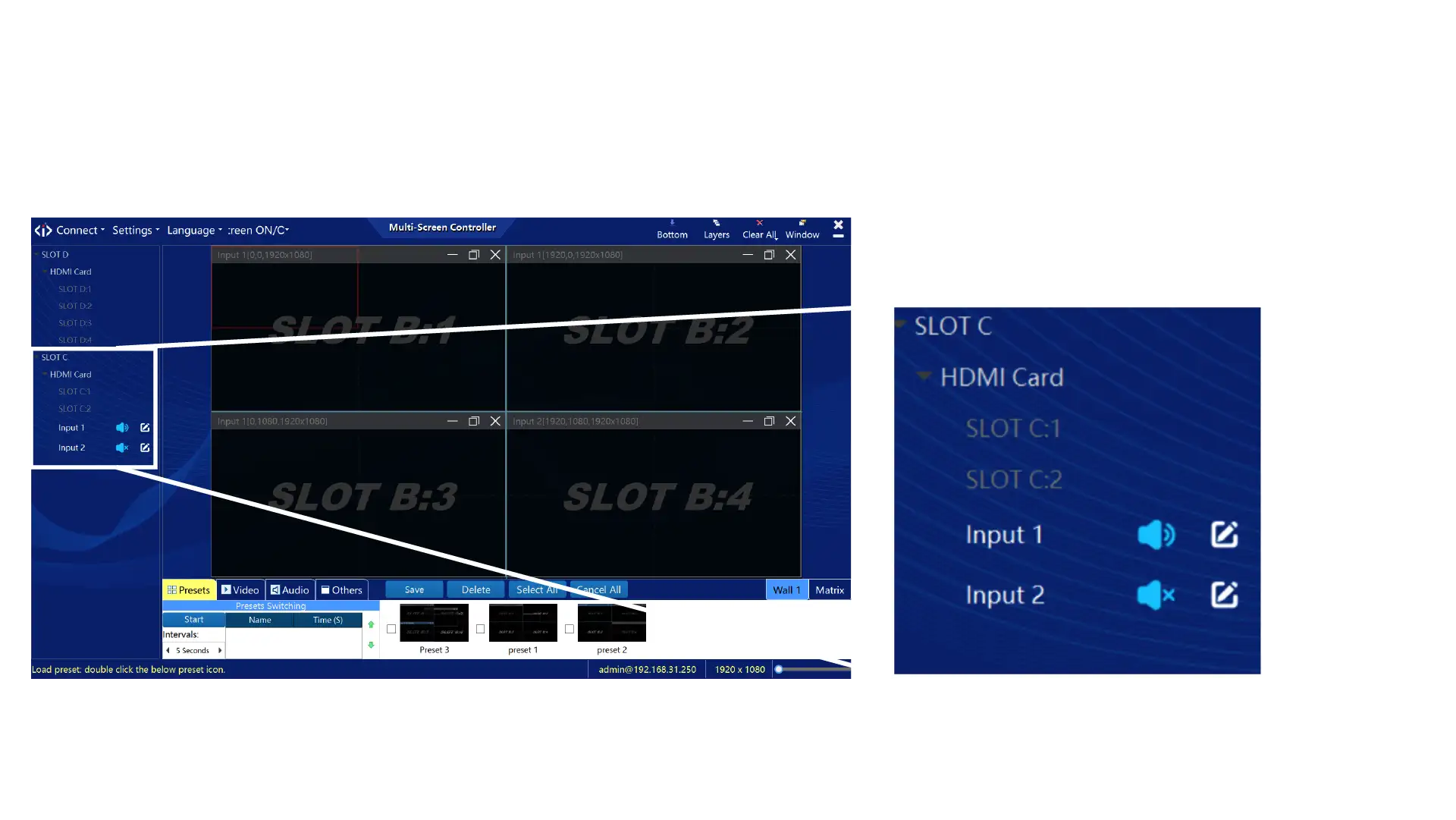

Route any audio input

Embedded HDMI audio in all inputs
1x de-embedded audio from any input
One-touch audio switching, mute or unmute

Datasheet

Series	iWall X
Name	1080P HDMI Video Wall Controller

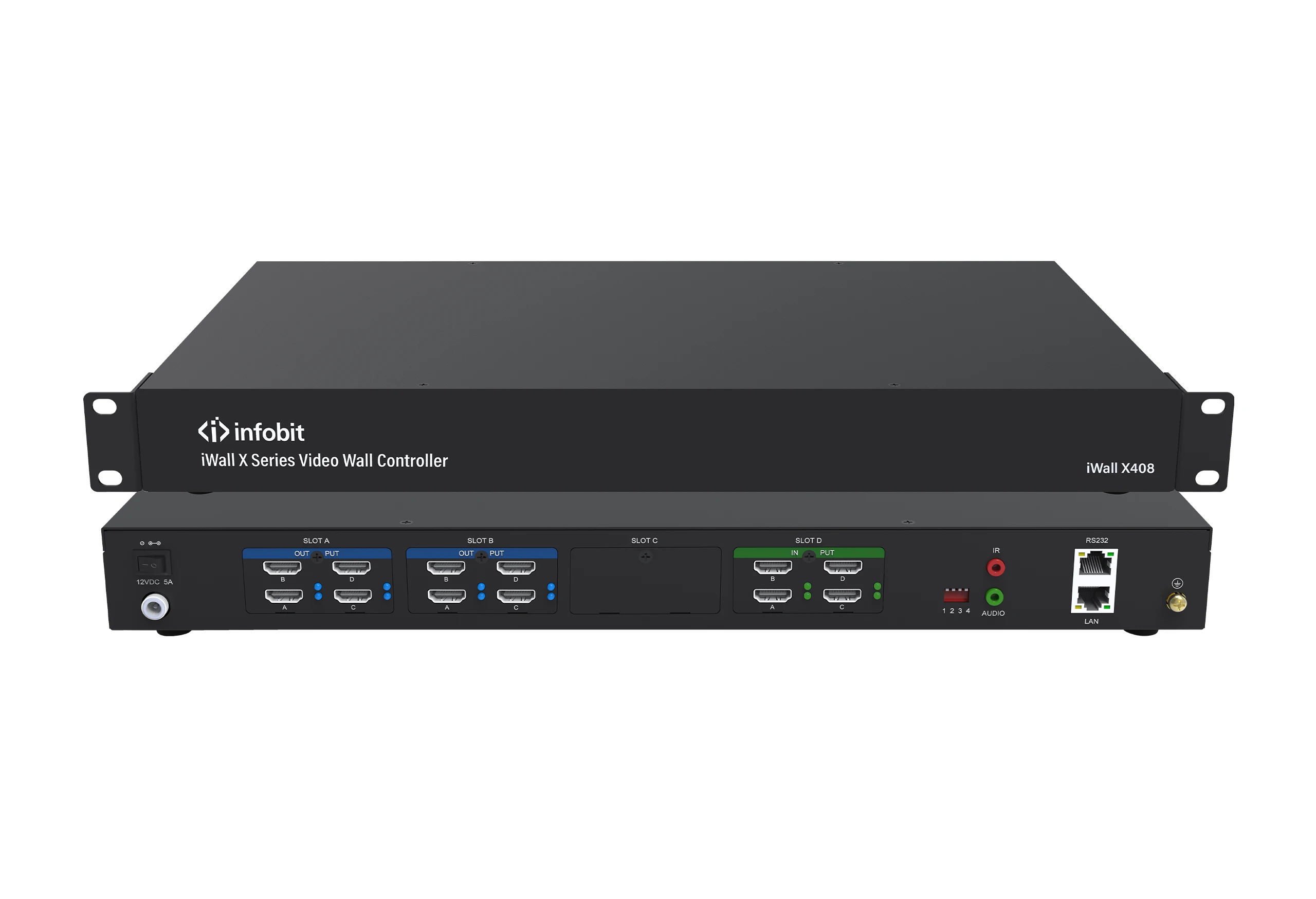

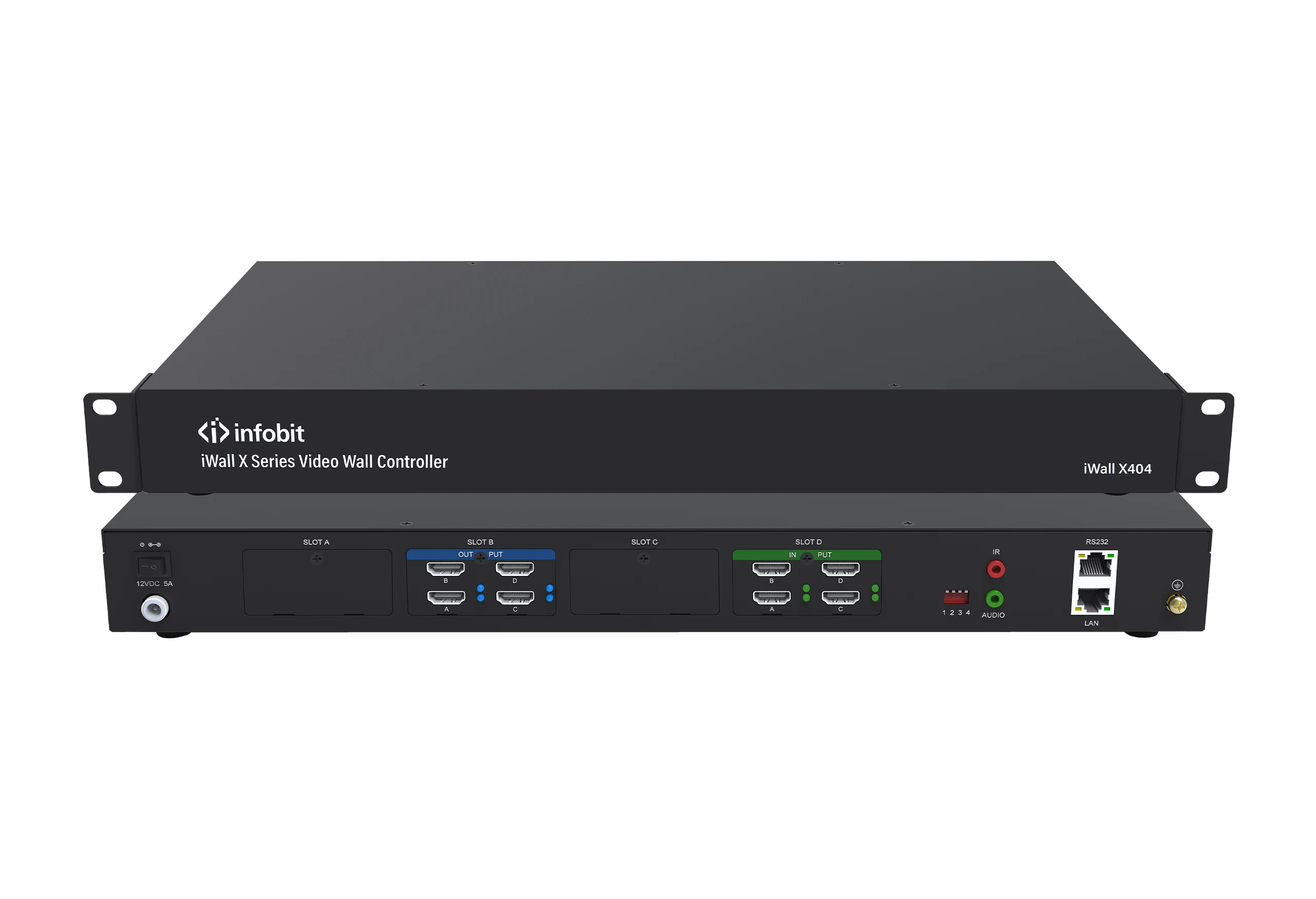

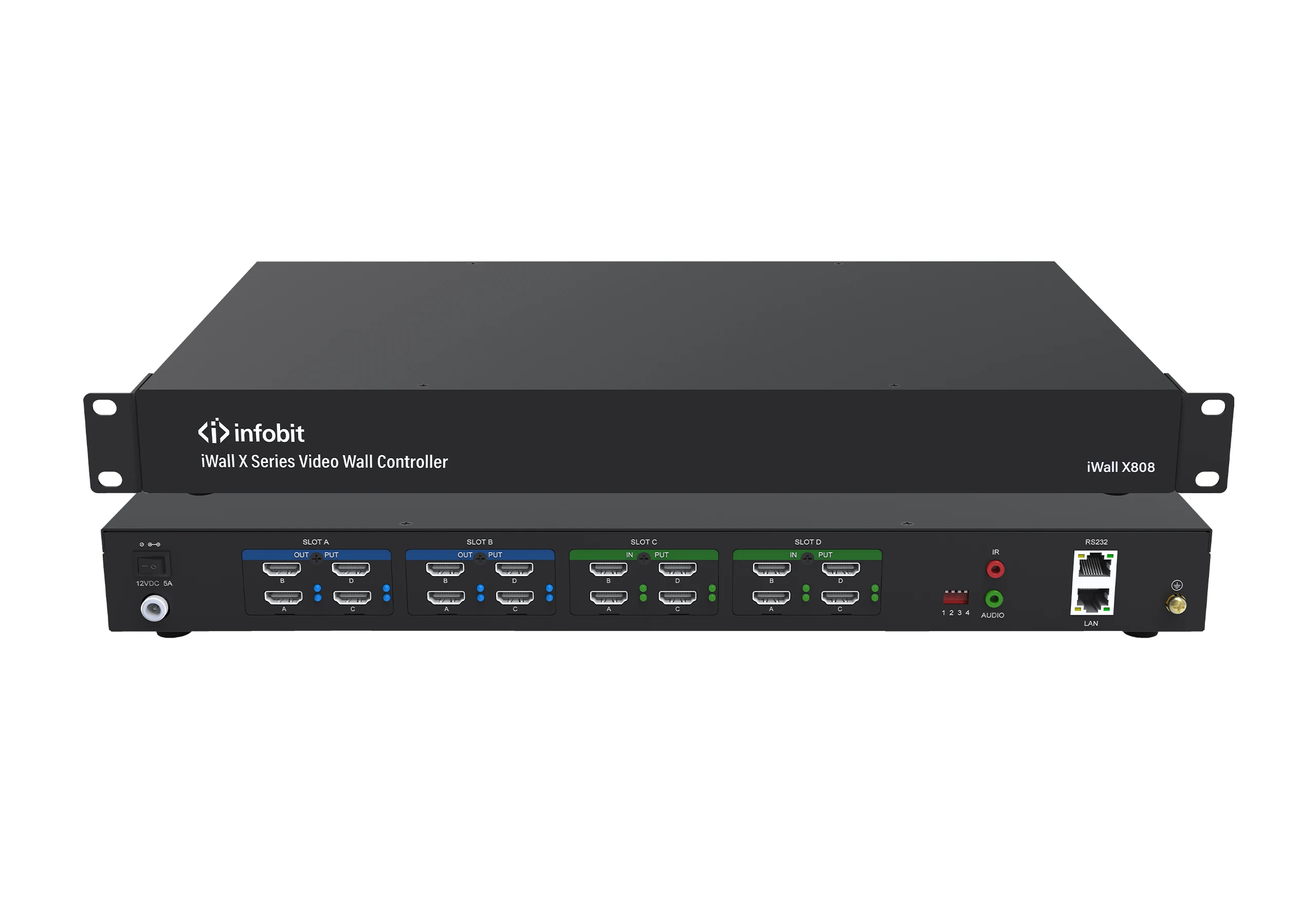

Models	iWall X404	iWall X408	iWall X808	iWall X412
Video Inputs	4x HDMI	4x HDMI	8x HDMI	4x HDMI
Video Outputs	4x HDMI	8x HDMI	8x HDMI	12x HDMI
HDMI version	HDMI 1.3
HDMI distance	15 meters via good quality copper cable
HDCP version	Not support HDCP
Size	1U
I/O resolutions	Max. 1920×1080 60Hz, supports customize resolutions
Audio Inputs	Embedded HDMI audio in all inputs
Audio Outputs	1x 3.5mm de-embedded audio from any input, stereo 192K sampling rate, 32bit
Video windows	4x video overlay windows per display zoom in, zoom out, moving, overlay, roaming, resizing and switching
Presets	Saving and auto switching
Video Cropping	Support
LCD videowall	Support
LED videowall	Support
Seamless Switching	Support
Operating System	FPGA pure hardware architecture, no OS
Videowall and Matrix	Supports both Videowall and Matrix modes
OSD text	Fixed OSD text* (the scrolling feature will be ready in Q3, 2023)
Background picture	Support
Control	TCP/IP, RS232 Control
Software	Windows PC, Android tablet
Net Dimension WHD	44625 cm without Ear, 48.5625 cm with Ear
Gross Dimension WHD	605165455 cm
Net Weight	2.5kg	2.6kg	2.7kg	2.7kg
Gross Weight	5.1kg	5.2kg	5.2kg	5.2kg
Power	In: 110-240V, 50/60Hz. Out: 12V DC 5A, 60W
In package	1x iWall X; 1x Power adapter; 1x UK power cord; 1x EU power cord; 1x 3.5mm audio cable, 1x RS232 to RJ45 adapter; 1x Grounding cable

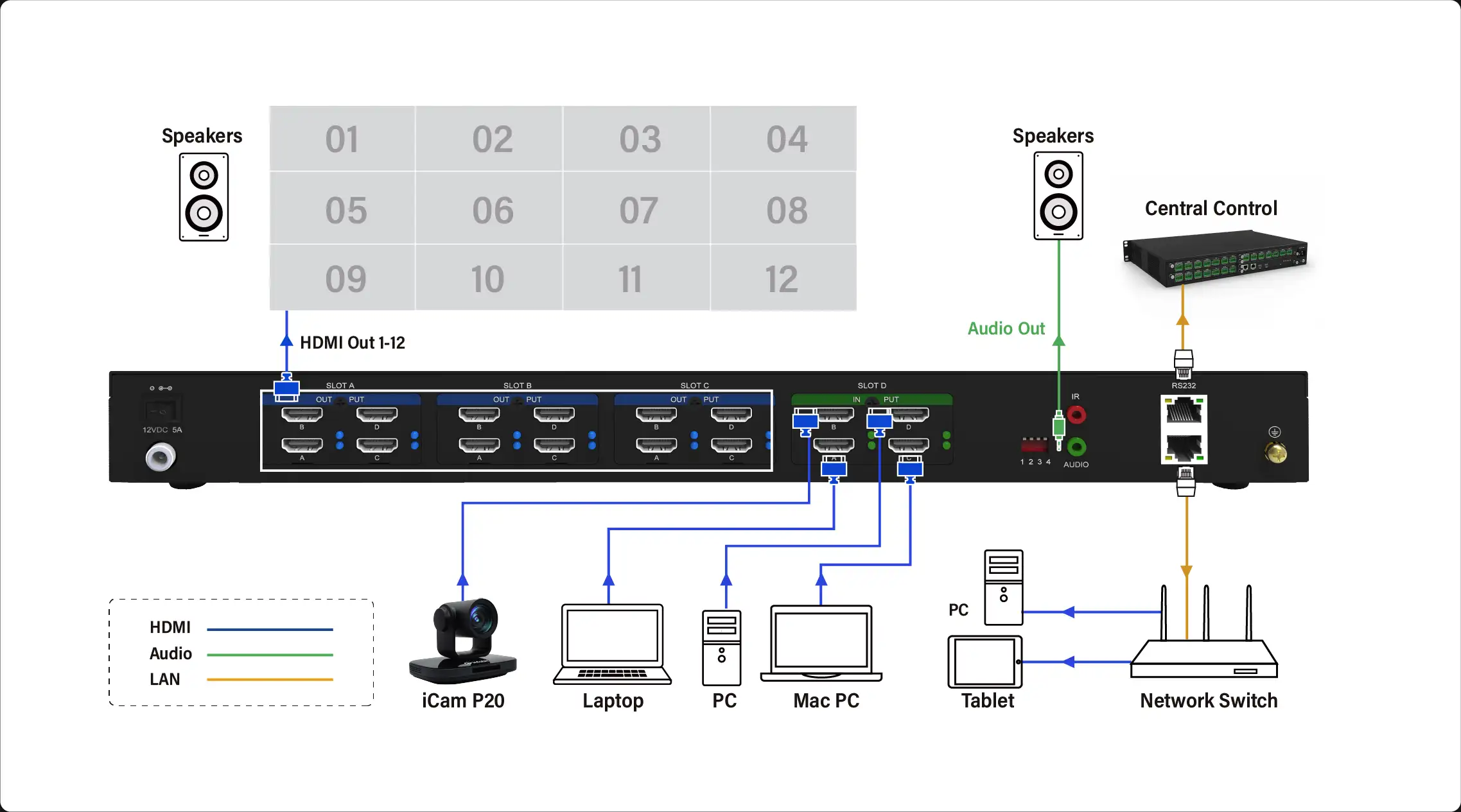

Diagram

Download

INFOBIT iWall X datasheet V1.0.pdf

0.3M

2024-09-05
INFOBIT iWall X Central Control Commands V1.0.pdf

0.78M

2024-09-05
INFOBIT iWall X User Manual V1.0.3

2.8M

2024-09-05
iwall 1.1.1.apk

28.89M

2024-09-05
