iFiber USB A 3.0 AMAF

USB 3.0 Active Optical Cable
AM to AF backwards compatible with USB 2.0

USB A 3.0 AMAF
USB A 3.0 AMAF
USB A 3.0 AMAF
USB A 3.0 AMAF
USB A 3.0 AMAF
USB A 3.0 AMAF
USB A 3.0 AMAF

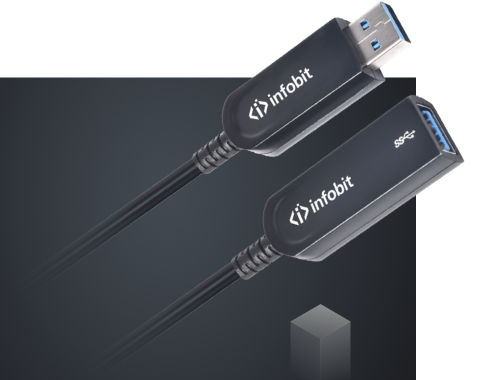

USB 3.0 Type-A Male to USB 3.0 Type-A Female

Extend USB 3.0 and 2.0 devices up to 30 meters (100ft)

Supports all USB 3.0 devices (compatible with USB 2.0)

Convert USB electrical data signal to optical signal

Supports USB 3.0 @ 5Gbps

Plug and Play

Fully featured Optical Transceiver integrated circuit includes a receiver and a transmitter

850nm VCSEL transmitter and PIN photo-detector receiver

Supports all major operating systems including Windows, Mac OS, and Linux

Number of devices can be increased using additional hubs

Low power consumption

Power adapter at the host is optional, can provide 5V 900mA power maximum to the remote device

Ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, to touch screens, webcams, and game consoles.

USB A 3.0 AMAF
USB A 3.0 AMAF
USB A 3.0 AMAF
 USB 3.0 AOC
USB 3.0 AOC
Available length: 5m, 10m, 15m, 20m, 25m, 30m
Datasheet
Product Name USB 3.0 Active Optical Cable
Description USB 3.0 Active Optical Cable backward compatible with USB 2.0
Connector USB 3.0 Standard-A Male to A female plug
Max. data rate  5.0Gbps
Range 30m over multimode optical fiber
Optical Transceiver 850 nm VCSEL (multimode)
Cable diameter 4.5 mm
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F).
Humidity 5% to 90% (non-condensing)

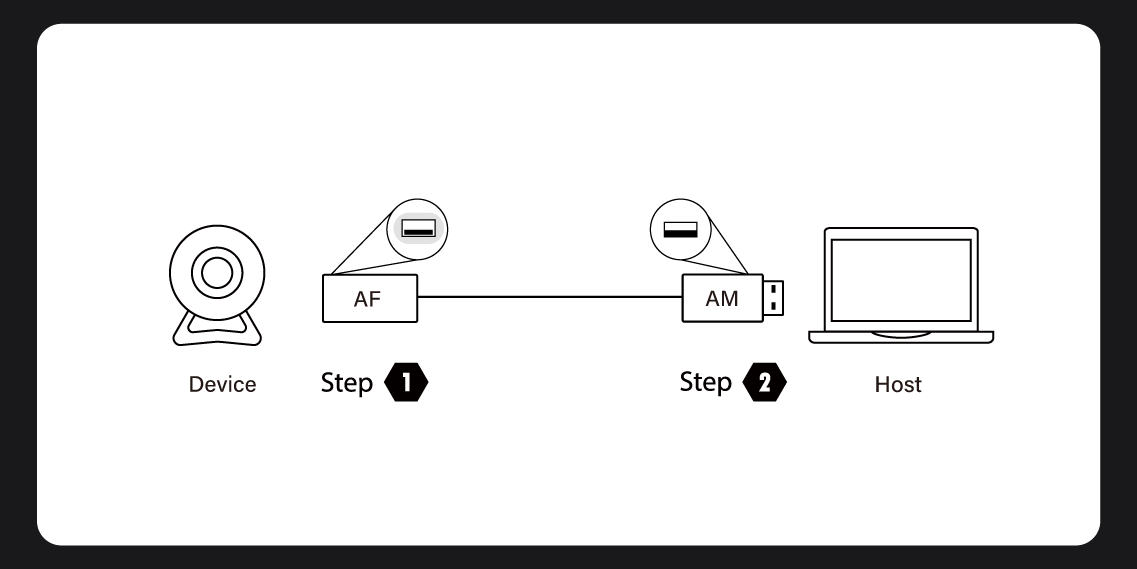

Diagram
Download
  • USB AOC AM to AF datasheet-21V1.0.pdf
    0.23M
    2024-09-29
