USB-C-3.1-video-b

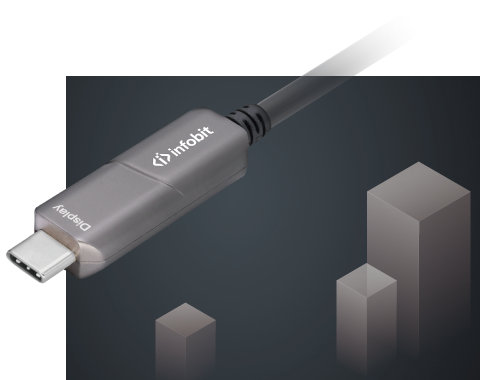

USB 3.1 C to C Active Optical Cable

Audio Video Transmission Only

AOC-USB31-CCV-xx
AOC-USB31-CCV-xx
AOC-USB31-CCV-xx
AOC-USB31-CCV-xx
AOC-USB31-CCV-xx
AOC-USB31-CCV-xx
AOC-USB31-CCV-xx

USB 3.1 C to C Active Optical Cable for Audio Video Transmission

Supports 4K@60Hz: Enjoy the stunningly realistic and lifelike video with the maximum 3840x2160p (4K) resolution with a full 60Hz.

USB Type-C video: Connect your USB Type-C enabled computer to a USB Type-C enabled monitor or display. Note that this cable only carries video.

Transmits up to 30m/100 feet: Can perfectly transmit 4K@60Hz HDR video to distances up to 30m/100 feet without extenders

Meet DP1.2 Standard, bandwidth can reach to 21.6Gbps super speed\

Support HDCP/EDID/CEC/3D

Support two sides plug and play, no PD

Order Code: AOC-USB31-CCV-xx

AOC-USB31-CCV-xx
AOC-USB31-CCV-xx
AOC-USB31-CCV-xx
 4K60 AOC
4K60 AOC
Available lengths: 5m, 10m, 15m, 20m, 25m, 30m
Datasheet
Items Specs
Connector A USB 3.1 Type-C Male
Connector B USB 3.1 Type-C Male
Cable Active Optical Hybrid Cable
Protocols Supported DP1.2
Max Data Rate 21.6Gbps
Max Length 30m (98ft)
Cable Diameter 4.0mm
Minimum Bend Radius 30mm
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)

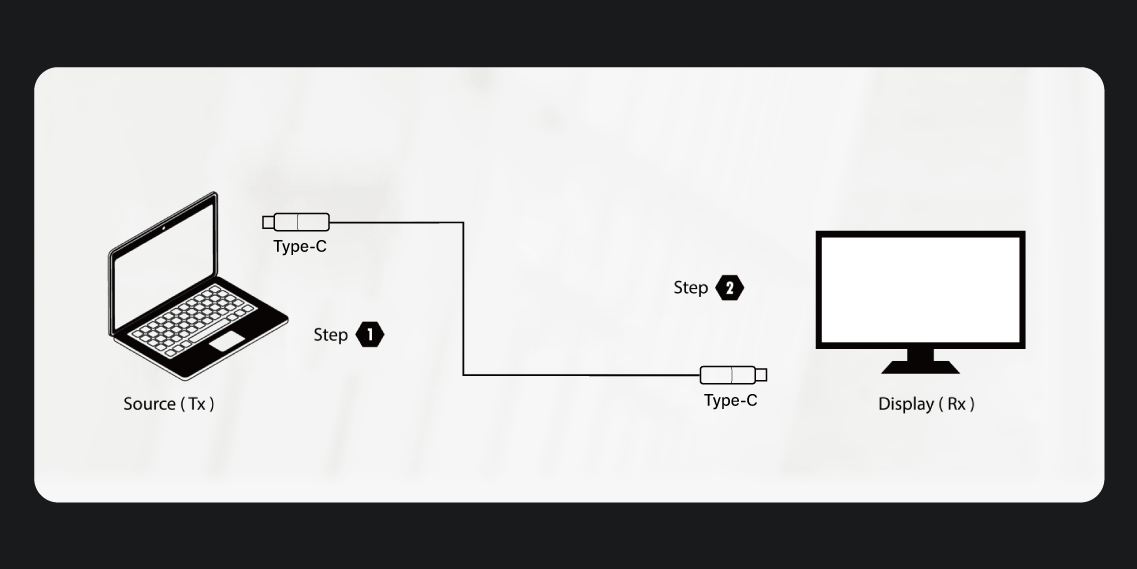

Diagram
Download
  • Datasheet_USB 3.1 Type C AOC for Video_21V1.0
    0.21M
    2024-09-14
